Panasonic NI-S300TR 1200-Watt Steam Iron User Manual

Introdución

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Panasonic NI-S300TR 1200-Watt Steam Iron. Please read this manual thoroughly before using the appliance and retain it for future reference.

Instrucións de seguridade

• Always ensure the iron is unplugged before filling or emptying the water tank, cleaning, or when not in use.
• Non toque superficies quentes. Use asas ou botóns.
• To protect against electric shock, do not immerse the iron in water or other liquids.
• É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
• The iron features a 3-Way Automatic Shut-off for safety. It will turn off automatically if left unattended in certain positions.
• Use o ferro só para o propósito doméstico para o que está previsto.
• Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou se caia ou estea danado de calquera xeito.
• Coloque sempre o ferro sobre unha superficie estable e resistente á calor cando estea en repouso.

Produto rematadoview

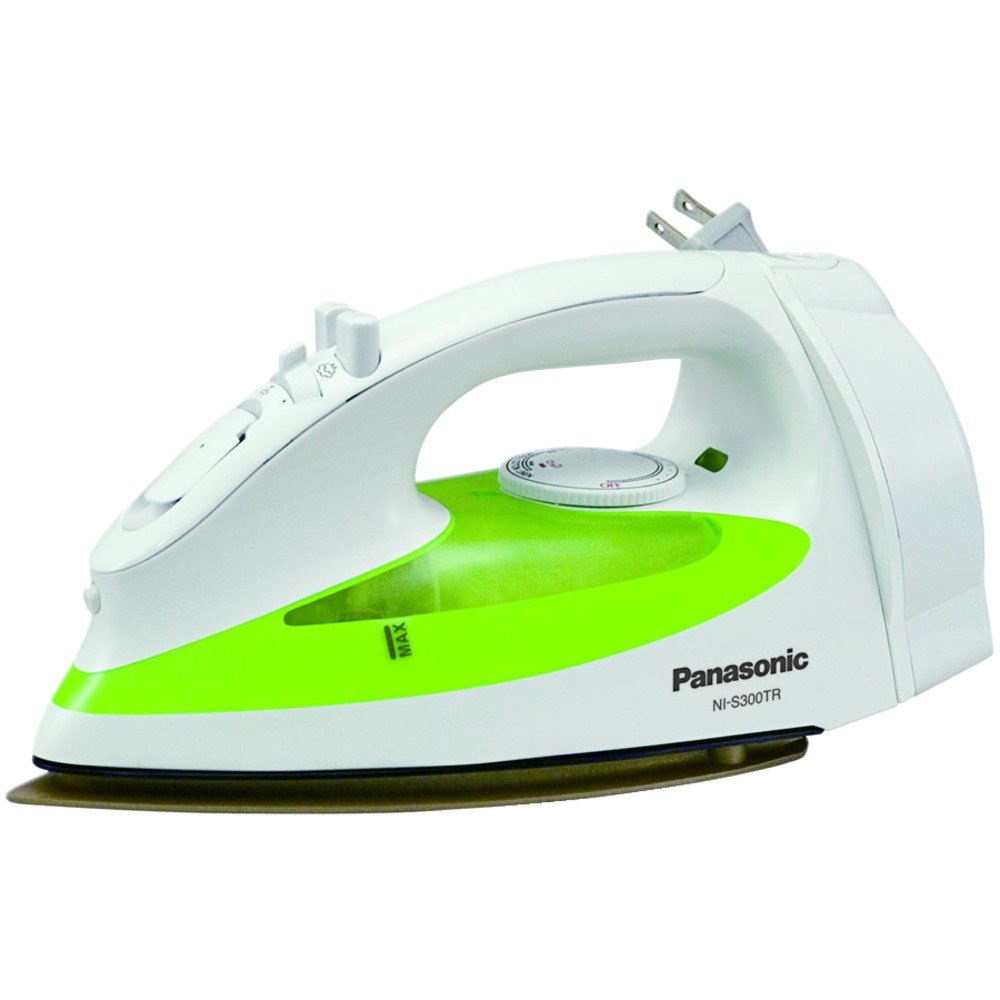

The Panasonic NI-S300TR is a 1200-watt steam iron designed for efficient garment care. Key features include:

• Titanium-Coated Curved Soleplate: Proporciona un deslizamento suave e unha distribución uniforme da calor.
• Adjustable Temperature and Steam Settings: Allows customization for various fabric types.
• Jet-of-Steam Function: Delivers a powerful burst of steam for stubborn wrinkles.
• Push-Button Spray Mist: Helps to dampen tecidos para facilitar o planchado.
• 3-Way Automatic Shut-off: Enhances safety by turning off the iron when inactive.
• Depósito de auga de 6.1 onzas: Proporciona ample capacity for steam ironing.
• Rubber-Grip Handle: Offers comfortable and secure handling.
• Retractable Cord Reel: For convenient storage and cord management.

Configuración

1. Enchendo o depósito de auga: Ensure the iron is unplugged. Open the water fill cover and slowly pour water into the 6.1-ounce water tank. For optimal performance and to prevent mineral buildup, distilled water is recommended. Do not overfill. Close the water fill cover securely.
2. Conectando: Extend the power cord from the retractable cord reel and plug the iron into a standard electrical outlet.

Instrucións de funcionamento

1. Selección de temperatura: Rotate the temperature dial to the desired setting based on the fabric type (e.g., synthetic, silk, wool, cotton, linen). Allow the iron to heat up until the indicator light turns off, signaling it has reached the selected temperature.
2. Configuración de Steam: For steam ironing, ensure the water tank is filled. Once the iron is hot, adjust the steam selector to the desired steam level (e.g., low, medium, high steam). For dry ironing, set the steam selector to the 'Dry' position.
3. Jet-of-Steam: Press the 'Jet-of-Steam' button for a powerful burst of steam. This is effective for removing stubborn wrinkles or for vertical steaming. Allow a few seconds between bursts.
4. Bruma de pulverización: Press the 'Spray Mist' button to release a fine mist of water onto the fabric. This helps to moisten dry areas for easier wrinkle removal.
5. Planchado: Begin ironing your garments, moving the iron smoothly over the fabric. The curved soleplate is designed to glide easily.
6. Retracción do cordón: After use and once the iron has cooled, press the cord reel button to automatically retract the power cord for neat storage.

Mantemento

• Self-Cleaning (Jet-of-Steam): To perform self-cleaning, fill the water tank, set the iron to maximum temperature, and then activate the 'Jet-of-Steam' function repeatedly over a sink. This helps flush out mineral deposits from the steam vents.
• Drenaxe de auga: After each use, or before storing for an extended period, empty any remaining water from the tank to prevent mineral buildup and leakage.
• Limpeza da sola: If the soleplate becomes stained or sticky, clean it with a damp cloth and a mild, non-abrasive cleaner specifically designed for iron soleplates. Do not use abrasive scouring pads or metallic cleaners.
• Almacenamento: Store the iron upright on its heel rest in a cool, dry place. Ensure the cord is fully retracted.

Resolución de problemas

• O ferro non quenta: Check if the iron is properly plugged into a working outlet. Ensure the temperature dial is set to a fabric type and not 'Off'. The 3-Way Auto Shut-off may have activated; move the iron to reactivate it.
• Sen vapor ou vapor insuficiente: Check if the water tank is filled. Ensure the temperature setting is high enough for steam generation (usually wool, cotton, or linen settings). The steam selector must be set to a steam position.
• Goteo de auga da sola: This can occur if the iron is not hot enough for the selected steam setting. Allow the iron to reach its full temperature before engaging steam. Ensure the water tank is not overfilled.
• Cord not retracting fully: Ensure there are no kinks or obstructions in the cord. Gently guide the cord if it snags during retraction.

Especificacións

Garantía e Soporte

This Panasonic NI-S300TR Steam Iron is covered by a 1 ano de garantía limitada on parts and labor. For warranty claims, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official Panasonic websitio.
