Bliss 21 1/2-B, A-110-1 Inclinable Press Service Machine Manual

1. Introdución

This service manual provides comprehensive information for the Bliss Inclinable Press, specifically covering models 18-C, 21 1/2-B, A-110-1, and A-111-B. It includes essential details for the operation, maintenance, and identification of parts for these machines, as well as various clutch types and roll feed systems. This manual was originally published in 1945 and contains 38 pages of technical content.

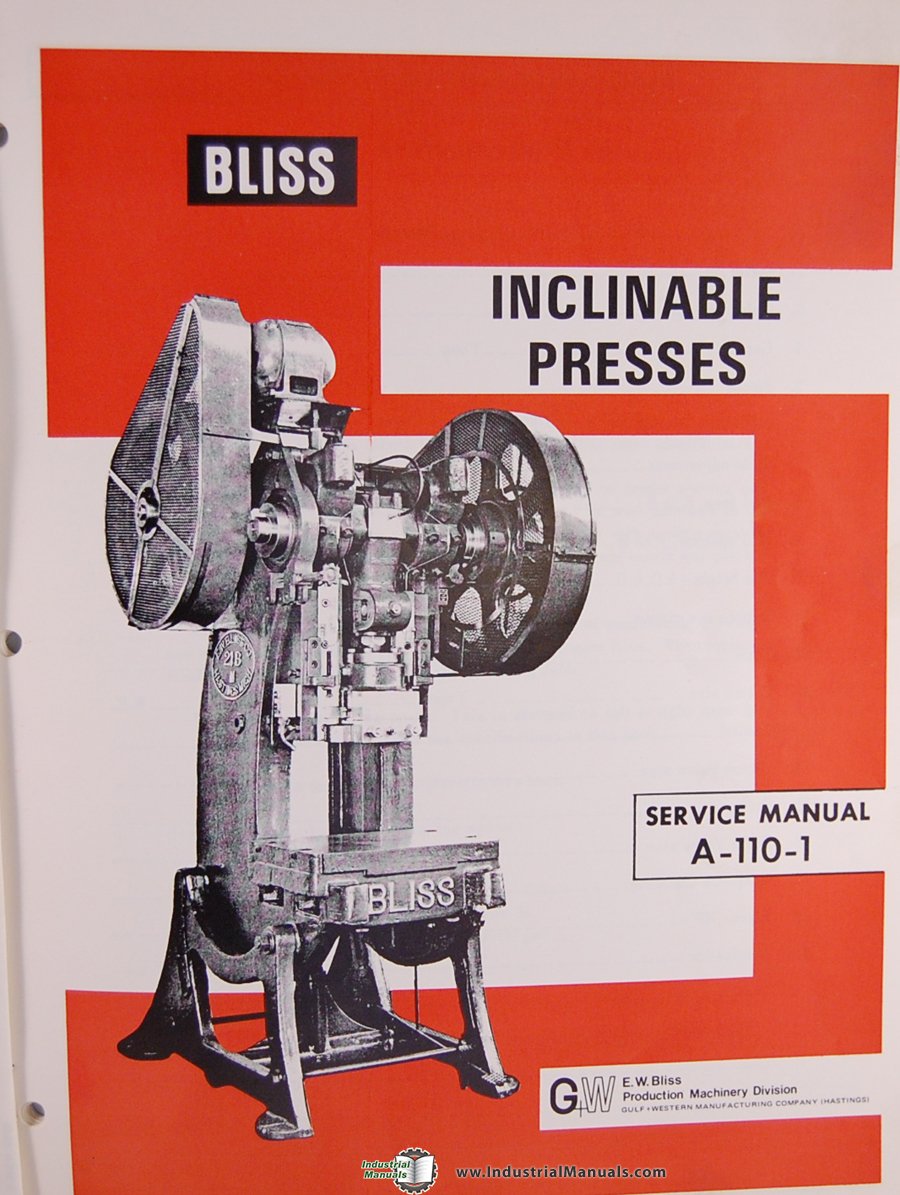

Figure 1: Front cover of the Bliss Inclinable Press Service Machine Manual.

2. Configuración

Proper setup of the Bliss Inclinable Press is crucial for safe and efficient operation. While specific setup procedures are detailed within the manual's operational sections, general guidelines include ensuring the machine is securely anchored, all safety guards are in place, and power connections are correctly established according to local electrical codes. Refer to the relevant sections for detailed installation and initial adjustment instructions.

3. Instrucións de funcionamento

This section outlines the procedures for operating the Bliss Inclinable Press. It covers the functionality of various components and their correct usage.

3.1 Clutch Systems

• A-111 Rolling Key Clutch: Instructions for engagement, disengagement, and adjustment of the rolling key clutch mechanism.
• A-112 Type G Clutch: Operational guidelines for the Type G clutch, including lubrication and inspection points.
• A-118 Type K Clutch: Procedures for operating and maintaining the Type K clutch.
• A-127 Type M Clutch: Details on the function and control of the Type M clutch system.

3.2 Bliss Roll Feed - Series 31, 32, 33

This subsection provides instructions for the setup, adjustment, and operation of the Bliss Roll Feed systems, specifically Series 31, 32, and 33. Proper calibration of the roll feed is essential for accurate material handling and consistent press operation.

4. Mantemento

Regular maintenance is critical for the longevity and reliable performance of the Bliss Inclinable Press. This section details routine inspection, lubrication schedules, and preventative measures.

• Lubricación: Recommended lubricants and lubrication points for all moving parts, including clutches and bearings.
• Inspección: Guidelines for daily, weekly, and monthly inspections of critical components such as dies, ram, crankshaft, and safety devices.
• Axustes: Procedures for making necessary adjustments to maintain optimal machine performance and alignment.
• Limpeza: Instructions for keeping the machine free from debris and contaminants.

5. Pezas

This section provides detailed diagrams and lists of replacement parts for the Bliss Inclinable Press. It includes specific part numbers and descriptions to assist in ordering and replacing components.

5.1 Clutch System Parts

Explotou views and part lists are provided for the following clutch types:

• A-111 Rolling Key Clutch
• A-112 Type G Clutch
• A-118 Type K Clutch
• A-127 Type M Clutch

5.2 Bliss Roll Feed Parts

Detailed parts information for Bliss Roll Feed Series 31, 32, and 33, including rollers, gears, and feeding mechanisms.

6 Solución de problemas

This section offers guidance for identifying and resolving common operational issues that may arise with the Bliss Inclinable Press. It provides a systematic approach to diagnose problems and suggests corrective actions.

For specific issues, consult the detailed operational and maintenance sections of this manual. If a problem persists after following the troubleshooting steps, it is recommended to contact a qualified service technician.
