1. Instrucións de seguridade importantes
Please read all instructions carefully before using the Harper AK80RED Food Processor. Keep this manual for future reference.
- Asegúrese sempre de que o aparello estea desconectado antes de montalo, desmontalo ou limpalo.
- Non mergulle a unidade motora en auga nin en ningún outro líquido. Límpiea conamp só tea.
- Manteña as mans, o cabelo, a roupa, así como as espátulas e outros utensilios lonxe das pezas móbiles durante o funcionamento para evitar lesións.
- Non faga funcionar o aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou se caia ou se danara de calquera xeito.
- Este aparello non está pensado para o seu uso por persoas (incluídos nenos) con capacidades físicas, sensoriais ou mentais reducidas, ou con falta de experiencia e coñecementos, a menos que teñan supervisión ou instrucións sobre o uso do aparello por unha persoa responsable da súa seguridade.
- Os nenos deben ser supervisados para asegurarse de que non xoguen co aparello.
- Use só accesorios recomendados ou vendidos polo fabricante.
- Non use ao aire libre.
- Coloque o aparello sobre unha superficie estable, plana e seca.
- Nunca deixe o aparello sen vixilancia mentres estea en funcionamento.
2. Produto rematadoview
The Harper AK80RED Food Processor is a versatile kitchen appliance designed for mixing, kneading, and whisking. It features a powerful 1000W motor and planetary mixing action for thorough results.
Image: The Harper AK80RED Food Processor, showcasing its main unit, stainless steel mixing bowl, and transparent splash guard.
Compoñentes:
- Unidade motora: The main body containing the motor and control panel.
- Cabeza inclinada: Permite un acceso doado á tixela e aos accesorios.
- Bol de mestura de aceiro inoxidable: 5-liter capacity for various recipes.
- Protección contra salpicaduras: Prevents ingredients from splashing out during operation.
- Anexos: Whisk, Beater, Dough Hook.
- Speed Control Dial/Buttons: For selecting desired speed.
- Palanca de liberación: To tilt the motor head.
- Pés antideslizantes: Para a estabilidade durante o funcionamento.
3. Configuración
Follow these steps to set up your food processor before first use.
3.1 Desembalaxe e limpeza inicial
- Retire coidadosamente todos os compoñentes da embalaxe.
- Wash the mixing bowl, splash guard, whisk, beater, and dough hook in warm, soapy water. Rinse thoroughly and dry.
- Limpe a unidade do motor con anuncioamp pano. Non o mergullo na auga.
- Asegúrate de que todas as pezas estean completamente secas antes da montaxe.
3.2 Asemblea
- Place the motor unit on a clean, flat, and stable surface.
- Press the release lever to tilt the motor head upwards.
- Place the stainless steel mixing bowl onto the base, turning it clockwise until it locks securely into place.
- Select the desired attachment (whisk, beater, or dough hook). Insert the attachment into the shaft and turn it slightly until it locks.
Image: The food processor with its head tilted back, showing the whisk attachment being inserted into the shaft.
- Attach the splash guard by aligning it with the grooves on the motor head and pressing it down.
- Lower the motor head by pressing the release lever again and gently pushing the head down until it clicks into place.
- Ensure the appliance is securely assembled before plugging it into a power outlet.
4. Instrucións de funcionamento
This section details how to use your Harper AK80RED Food Processor for various tasks.
4.1 Funcionamento xeral
- Ensure the appliance is correctly assembled and plugged into a 230V power outlet.
- Add your ingredients to the mixing bowl. Do not overfill the bowl beyond its maximum capacity.
- Select the desired speed using the control panel. The AK80RED features 4 electronic speed settings.
Imaxe: Primeiro plano view of the control panel with speed settings (1-4) and an ON/OFF button.
- Prema o botón ON/OFF para poñer en marcha o aparello.
- Monitor the mixing process. You can add ingredients through the opening in the splash guard if needed.
- Once finished, press the ON/OFF button to stop the appliance and unplug it from the power outlet.
- Tilt the motor head up, remove the attachment, and then remove the mixing bowl.
Image: The food processor in operation, mixing flour and other ingredients in the stainless steel bowl.
4.2 Usando anexos
- Bate: Use for whipping cream, egg whites, light batters, and meringues. Use higher speeds (3-4).
Image: The whisk attachment, ideal for aerating ingredients.
- Beater (Mixing Paddle): Suitable for mixing cakes, cookies, frostings, and mashed potatoes. Use medium speeds (2-3).

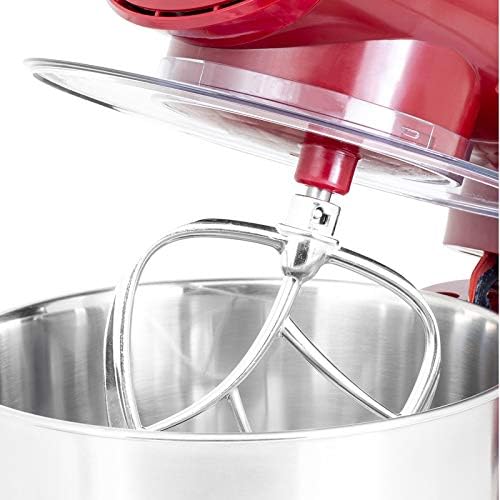

Image: The beater attachment, designed for general mixing tasks.
- Gancho para masa: Designed for kneading heavy doughs like bread, pizza, or pasta dough. Use lower speeds (1-2).
Image: The dough hook attachment, used for kneading heavy doughs.
5. Mantemento e Limpeza
Unha limpeza e un mantemento axeitados garantirán a lonxevidade e o rendemento óptimo do seu procesador de alimentos.
5.1 Limpeza
- Desenchufe sempre o aparello antes de limpar.
- Retire o recipiente da mestura, o protector contra salpicaduras e os accesorios.
- The mixing bowl, splash guard, whisk, beater, and dough hook are dishwasher safe. Alternatively, wash them in warm, soapy water, rinse, and dry thoroughly.
- Limpe o exterior da unidade motor cun pano suave eamp pano. Non use produtos de limpeza ou estropajos abrasivos.
- Nunca mergullo o motor en auga ou en calquera outro líquido.
- Asegúrate de que todas as pezas estean completamente secas antes de gardalas ou volvelas montar.
5.2 Almacenamento
Store the food processor in a dry, clean place, away from direct sunlight and out of reach of children.
6 Solución de problemas
If you encounter any issues with your Harper AK80RED Food Processor, please refer to the following table before contacting support.
| Problema | Causa posible | Solución |
|---|---|---|
| O aparello non se inicia. | Non conectado; apagadotage; motor head not locked down. | Check power connection; check circuit breaker; ensure motor head is fully lowered and locked. |
| Os anexos non se mesturan correctamente. | Attachment not correctly installed; too much or too little ingredient. | Ensure attachment is securely locked; adjust ingredient quantity according to recipe. |
| Ruído forte durante o funcionamento. | Sobrecarga; montaxe incorrecta. | Reduce load; check that all parts are correctly assembled and locked. |
| Cheiro ardente. | Motor overload; new appliance smell. | Immediately turn off and unplug. Reduce load. If smell persists after cooling, contact support. A slight smell is normal for new motors. |
7. Especificacións
Detailed technical specifications for the Harper AK80RED Food Processor.
- Nome do modelo: AK80RED
- Potencia: 1000 vatios
- Voltage: 230 voltios
- Capacidade do bol: 5 litros
- Número de velocidades: 4 (Electronic Variable)
- Material: Metal (body), Stainless Steel (bowl), Metal (blade material)
- Dimensións (L x W x H): Aproximadamente 43.8 x 33.8 x 39.2 cm
- Peso do artigo: 5.8 quilogramos
- Compoñentes incluídos: Whisk, Beater, Dough Hook
- Características especiais: Easy to Use, Robust, Planetary Mixing Action, Tilt-Head Design, Splash Guard, Non-slip Feet
- Pezas aptas para lavavajillas: Bowl, Whisk, Beater, Dough Hook, Splash Guard
8. Garantía
This Harper AK80RED Food Processor comes with a 1 ano de garantía from the date of purchase. This warranty covers manufacturing defects under normal household use. It does not cover damage resulting from misuse, neglect, accident, alteration, or improper maintenance.
Conserve o comprobante de compra para calquera reclamación de garantía.
9. Apoio
For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase documentation or visit the official Harper websitio.
When contacting support, please have your product model number (AK80RED) and proof of purchase readily available.
