Manual do usuario do ventilador de pedestal oscilante con nebulizador para exteriores NewAir AF-520B

1. Introdución

Thank you for choosing the NewAir AF-520B Outdoor Misting Oscillating Pedestal Fan. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your new fan. Please read it thoroughly before use and retain it for future reference.

The NewAir AF-520B is designed to provide effective cooling for outdoor spaces up to 500 square feet. It combines powerful air circulation with a gentle misting function, utilizing clean water evaporation to reduce ambient temperatures by as much as 10°F. Its slim design, three fan speeds, and wide-angle oscillation make it a versatile solution for patios, backyards, and other outdoor areas.

Figure 1: NewAir AF-520B Outdoor Misting Oscillating Pedestal Fan.

2. Instrucións de seguridade importantes

Cando se utilicen aparellos eléctricos, débense seguir sempre as precaucións básicas para reducir o risco de incendios, descargas eléctricas e lesións ás persoas.

• Lea todas as instrucións antes de usar este ventilador.
• This fan is for outdoor use only. Do not use indoors.
• Always plug the fan into a grounded outlet.
• Non faga funcionar ningún ventilador cun cable ou enchufe danados. Deseche o ventilador ou volva a un centro de servizo autorizado para o seu exame e/ou reparación.
• Non pase o cable debaixo da alfombra. Non cubra o cable con alfombras, corredores ou revestimentos similares. Non pase o cable debaixo dos mobles ou electrodomésticos. Coloque o cable lonxe da zona de tráfico e onde non se tropece.
• Para desconectar o ventilador, poña os controis na posición de apagado e, a seguir, retire a ficha da toma de corrente.
• Non introduza nin permita que os dedos ou obxectos estraños entren en ningunha abertura de ventilación ou de escape, xa que podería provocar unha descarga eléctrica ou un incendio, ou danar o ventilador.
• Do not block air openings or exhaust in any manner.
• Always use on a stable, flat surface to prevent the fan from tipping over.
• Non mergullo o ventilador en auga ou outros líquidos.
• This fan features a built-in GFCI (Ground Fault Circuit Interrupter) plug for enhanced safety, especially in outdoor environments. If the GFCI trips, reset it before further use.

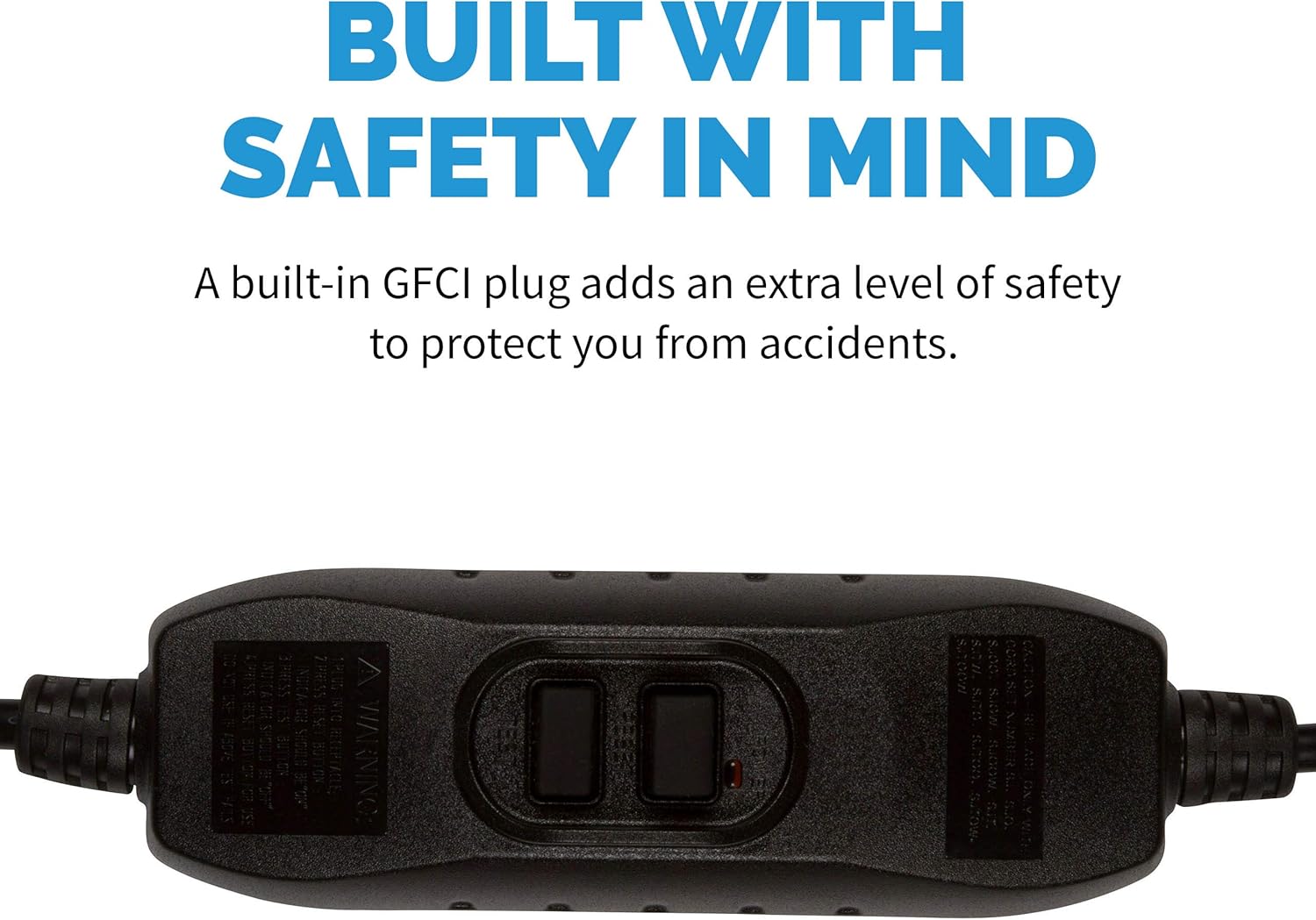

Figure 2: The fan's built-in GFCI plug for safety.

3. Contido do paquete

Please check to ensure all components are present and undamaged. If any parts are missing or damaged, contact NewAir customer support.

• Fan Head Assembly with Misting Nozzles
• Adjustable Pedestal Pole
• Base
• Power Cord with GFCI Plug
• Adaptador de mangueira de xardín
• Ferraxes de montaxe (parafusos, arandelas, etc.)
• Manual de usuario

4. Montaxe e Montaxe

The NewAir AF-520B fan is designed for easy assembly. Follow these steps to set up your fan:

1. Fixar o pau do pedestal á base: Securely fasten the adjustable pedestal pole to the heavy-duty base using the provided hardware. Ensure it is stable and upright.
2. Montar a cabeza do ventilador: Carefully attach the fan head assembly to the top of the pedestal pole. Align the mounting holes and secure with the designated screws.
3. Axustar a altura: Loosen the height adjustment knob on the pedestal pole, extend or retract the pole to your desired height, and then securely tighten the knob.
4. Connect to Water Source (for Misting Function):
   • Locate the garden hose adapter on the fan.
   • Connect a standard 0.75-inch garden hose to the adapter. Ensure the connection is tight to prevent leaks.
   • Position the fan in your desired outdoor area, ensuring it is on a stable, level surface.
5. Conectar: Plug the fan's power cord into a grounded outdoor electrical outlet. The built-in GFCI plug provides added safety.

Figure 3: Connecting the fan to a standard garden hose.

5. Instrucións de funcionamento

Your NewAir AF-520B fan offers both fan-only and misting functions.

Figure 4: Control panel with fan speed settings.

5.1 Funcionamento do ventilador

• Encendido/apagado: Press the '0' button on the control panel to turn the fan off. Press '1', '2', or '3' to turn the fan on and select a speed.
• Velocidades do ventilador: The fan has three speed settings:
  • 1: Baixa velocidade
  • 2: Velocidade Media
  • 3: Alta Velocidade
• Oscilación: To activate the oscillation feature, push down the oscillation knob located on the top of the motor housing. To stop oscillation, pull the knob up. This allows the fan to cover a wide area up to 500 sq. ft.

Figure 5: Key features of the NewAir AF-520B fan.

5.2 Misting Operation

To use the misting function, ensure the fan is connected to a garden hose and the water supply is turned on.

• Activate Misting: Once the fan is running and connected to the water supply, the misting nozzles will begin to emit a fine mist.
• Axustar o fluxo de auga: You can adjust the intensity of the mist by controlling the water flow from your garden hose spigot. A lower flow will produce a finer mist, while a higher flow will produce a more noticeable mist.
• Efecto de refrixeración: The misting function works by evaporative cooling, which can lower the surrounding air temperature by up to 10°F. This is most effective in arid climates.
• Turning Off Misting: To stop the misting, turn off the water supply from your garden hose spigot. It is recommended to turn off the water supply before turning off the fan to prevent water accumulation.

Figure 6: The fan in operation, demonstrating the misting function.

Figure 7: Detail of a misting nozzle.

6. Mantemento

Regular maintenance will help ensure the longevity and optimal performance of your NewAir AF-520B fan.

• Limpeza:
  • Desconecte sempre o ventilador da toma de corrente antes de limpalo.
  • Use un suave, damp pano para limpar as superficies exteriores do ventilador. Non empregue produtos de limpeza abrasivos nin disolventes.
  • For the fan blades and grille, use a soft brush or vacuum cleaner to remove dust and debris.
  • The misting nozzles can be cleaned by gently wiping them. If they become clogged, carefully remove them and soak in a descaling solution (e.g., vinegar and water) to remove mineral deposits. Rinse thoroughly before reattaching.
• Almacenamento:
  • Before storing, ensure the fan is completely dry, especially the misting components.
  • Disconnect the garden hose and drain any remaining water from the misting lines.
  • Garde o ventilador nun lugar fresco e seco, lonxe da luz solar directa e de temperaturas extremas.
  • Cover the fan to protect it from dust and moisture during off-season storage.

7 Solución de problemas

If your fan is not operating correctly, please consult the following troubleshooting guide.

8. Especificacións

Figure 8: Product dimensions and scale.

9. Garantía e atención ao cliente

9.1 Garantía limitada

The NewAir AF-520B Outdoor Misting Oscillating Pedestal Fan is covered by a 1 ano de garantía limitada desde a data de compra. Esta garantía cobre defectos de materiais e fabricación en condicións de uso normal. Non cobre danos resultantes de mal uso, accidentes, alteracións ou reparacións non autorizadas. Conserve o comprobante de compra para reclamacións de garantía.

Figure 9: Warranty and return information.

9.2 Atención ao cliente

For technical assistance, troubleshooting, warranty inquiries, or to order replacement parts, please contact NewAir Customer Support.

• Websitio: Visit the official NewAir websitio web con preguntas frecuentes e recursos de asistencia.
• Teléfono: Refer to the contact information provided on the NewAir websitio web ou a embalaxe do teu produto.
• Correo electrónico: Use the contact form or email address available on the NewAir websitio.

Please have your model number (AF-520B) and purchase date ready when contacting support.
