Introdución
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Globe Electric 65186 Dobson 1-Light Flush Mount Ceiling Light. Please read all instructions carefully before beginning installation and retain this manual for future reference.

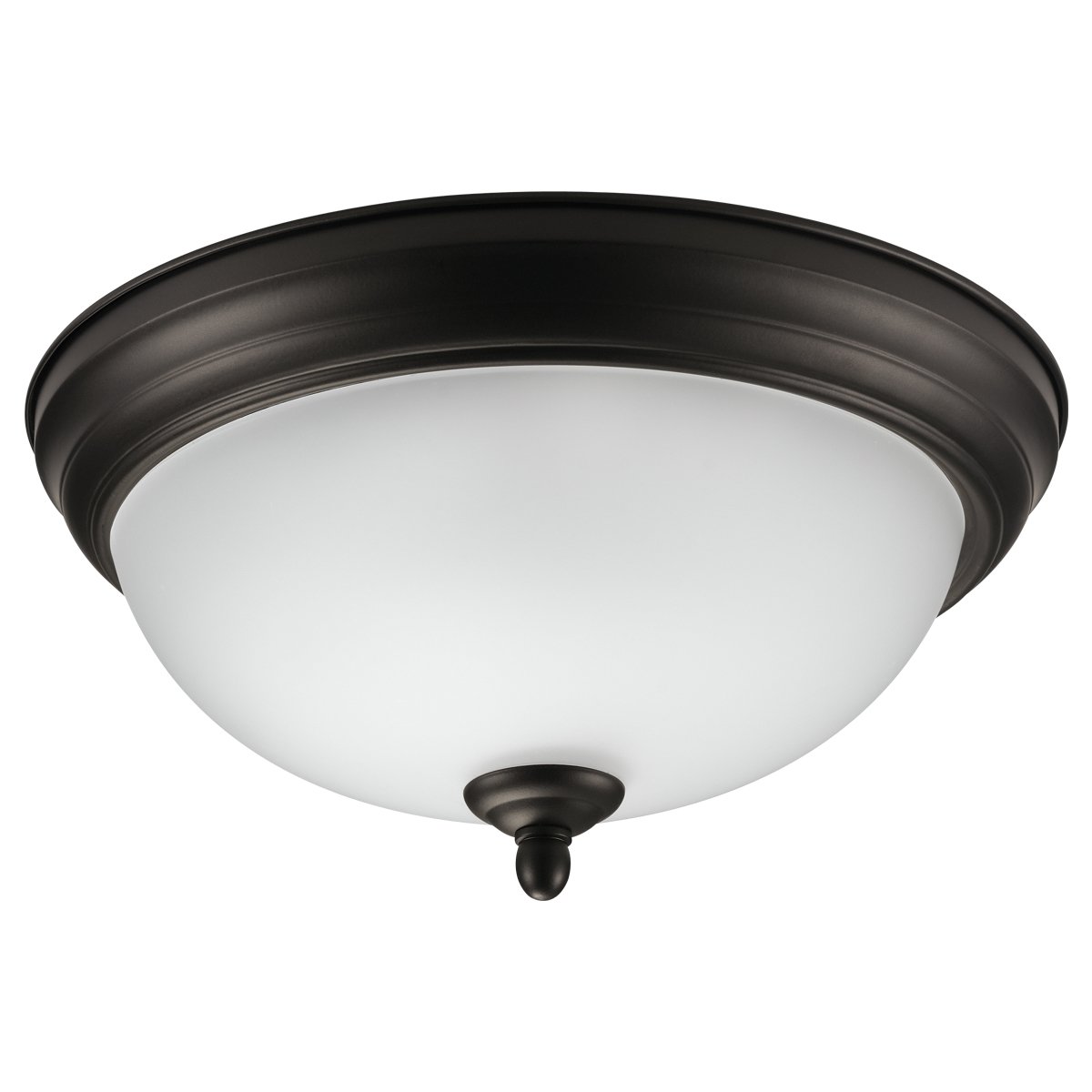

Figure 1: Globe Electric 65186 Dobson 1-Light Flush Mount Ceiling Light. This image shows the complete light fixture with its dark bronze finish and frosted glass shade.
Información de seguridade
AVISO: To avoid electric shock, ensure power is turned off at the circuit breaker before installation or servicing. All wiring must be in accordance with national and local electrical codes. If you are unsure about wiring, consult a qualified electrician.
- Do not install this fixture in wet locations. Suitable for indoor use only.
- Use só o tipo de lámpada e o wat especificadostage para evitar o sobrequecemento.
- Manexa os compoñentes de vidro con coidado para evitar que se rompan.
- Manteña os materiais inflamables lonxe da lámpada.
Contido do paquete
Comprobe que todos os compoñentes estean presentes antes de comezar a instalación:
- 1 x Light Fixture (Dark Bronze finish)
- 1 x Frosted Glass Shade
- 1 x Mounting Hardware Kit (includes screws, wire nuts, etc.)
- 1 x manual de instrucións
Note: 1x Medium Base/E26 A-Type 60W Bulb is non incluído e debe mercarse por separado.
Configuración e instalación
Follow these steps for proper installation of your flush mount ceiling light:
- Apagar a enerxía: Locate the circuit breaker controlling the light fixture's power supply and turn it off. Confirm power is off by attempting to turn on the light switch.
- Preparar superficie de montaxe: Ensure the ceiling junction box is securely mounted and capable of supporting the fixture's weight.
- Fixar o soporte de montaxe: Secure the mounting bracket (included in hardware kit) to the junction box using the provided screws.
- Conexións de cable: Connect the fixture's wires to the corresponding house wires (black to black, white to white, ground to ground) using the provided wire nuts. Ensure all connections are secure.
- Secure Fixture to Bracket: Carefully align the fixture with the mounting bracket and secure it using the provided screws.
- Instalar lámpada: Screw in one E26 A-Type 60W maximum bulb (sold separately) into the socket.
- Fixar a pantalla de vidro: Carefully place the frosted glass shade onto the fixture and secure it according to the design (typically by twisting or using decorative nuts).
- Restaurar enerxía: Volve a conectar o interruptor.
Figura 2: Interno view of the light fixture, illustrating the E26 bulb base and ironwork chassis for secure bulb installation.
Video guía de instalación
Video 1: This video demonstrates the installation process for a similar flush mount ceiling light, providing a visual guide to complement the written instructions.
Instrucións de funcionamento
Once installed, your Globe Electric 65186 Dobson light fixture is ready for use.
- Activar/Desactivar: Operate the light using your standard wall switch.
- Función regulable: This fixture is fully dimmable. If connected to a compatible dimmer switch (sold separately), you can adjust the light intensity to create your desired ambiance.
- Tipo de lámpada: The fixture requires one E26 A-Type bulb. For optimal performance and safety, do not exceed the maximum wattage de 60W.
Mantemento
Un mantemento regular garante a lonxevidade e o rendemento óptimo da súa lámpada.
- Limpeza: Turn off power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass.
- Substitución da lámpada: Turn off power before replacing the bulb. Allow the bulb to cool completely. Unscrew the old bulb and replace it with a new E26 A-Type 60W maximum bulb.
- Inspección: Comprobe periodicamente que todas as conexións eléctricas e os accesorios de montaxe estean ben axustados.
Resolución de problemas
Se tes problemas coa túa lámpada, consulta os seguintes problemas e solucións comúns:
| Problema | Causa posible | Solución |
|---|---|---|
| A luz non acende. | 1. Power is off at the circuit breaker. 2. Conexión de cable solta. 3. Lámpada defectuosa. | 1. Check and reset the circuit breaker. 2. Turn off power, check and secure all wire connections. 3. Substitúe a lámpada. |
| Luz parpadea. | 1. Bombilla solta. 2. Incompatible dimmer switch. 3. Conexión de cable solta. | 1. Aperte a lámpada. 2. Ensure dimmer switch is compatible with the bulb type. 3. Turn off power, check and secure all wire connections. |
| A luz é demasiado débil. | 1. Pouca potenciatage bulbo. 2. Dimmer setting is too low. | 1. Substitúeo por un wat máis altotage lámpada (ata 60W). 2. Adjust the dimmer switch to a higher setting. |
Especificacións
- Marca: Globo Eléctrico
- Número de modelo: 65186
- Cor: Oil Bronze
- Material: Metal, Vidro
- Estilo: Moderno
- Forma de iluminación: Preto do teito / Montaxe encastrada
- Dimensións do produto: 27.9L x 27.9W x 13.3H Centimetres (11L x 11W x 5.2H inches)
- Uso interior/exterior: Interior
- Fonte de enerxía: Hardwire Electric
- Método de control: Touch (via wall switch)
- Número de fontes de luz: 1
- Voltage: 120 voltios
- Wattage: 60 vatios (máximo)
- Base da lámpada: E26
- Embellishment Feature: Regulable
- Peso do artigo: 1.25 kg
- Montaxe necesaria: Non
Garantía e Soporte
This Globe Electric product comes with a 2 anos de garantía do fabricante.
For technical support, warranty claims, or further assistance, please contact Globe Electric customer service. Refer to the product packaging or the official Globe Electric websitio para obter a información de contacto máis actualizada.
Manufacturer Contact Information: Pointe-Claire, QC H9R 1A8, CA
