Introdución
This instruction manual provides essential information for the proper installation and maintenance of your Dirt Devil Style 1 replacement belt. This belt is designed for optimal performance with Dirt Devil Hand Vac Models 501 and 503, as well as other compatible models. Please read these instructions carefully before proceeding with installation to ensure safe and effective operation.
Produto rematadoview

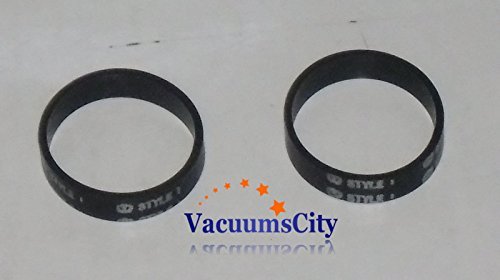

Imaxe: Dirt Devil Style 1 Replacement Belt. This image displays the genuine replacement belt, which is crucial for maintaining the performance of your Dirt Devil hand vacuum.
The Dirt Devil Style 1 belt is a critical component that drives the brush roll in your hand vacuum, ensuring effective cleaning. Regular inspection and timely replacement of the belt are vital for maintaining your vacuum's suction power and cleaning efficiency.
Instrucións de instalación
Precaucións de seguridade
- Always unplug the hand vacuum from the electrical outlet before performing any maintenance or installation procedures.
- Allow the vacuum to cool down if it has been recently used.
- Wear protective gloves if desired to prevent injury from sharp edges or moving parts.
Belt Replacement Procedure
- Preparar o baleiro: Unplug the Dirt Devil hand vacuum from the power source. Place the vacuum on a clean, flat surface with the brush roll facing upwards.
- Access the Brush Roll: Locate the brush roll cover on the bottom of the vacuum. Depending on your model (501 or 503), you may need to unscrew a few screws or release latches to remove this cover. Refer to your specific vacuum model's user manual for precise instructions on accessing the brush roll.
- Retirar o cinto vello: Carefully lift out the brush roll. The old belt will likely be stretched, worn, or broken. Remove the old belt from both the motor shaft and the brush roll. Dispose of the old belt responsibly.
- Instalar a correa nova: Loop the new Dirt Devil Style 1 belt around the motor shaft first. Then, stretch the belt around the brush roll. Ensure the belt is centered and properly seated in the grooves of both the motor shaft and the brush roll. The belt should be taut but not overly stretched.
- Reinstall Brush Roll and Cover: Place the brush roll back into its housing, ensuring the belt remains correctly positioned. Reattach the brush roll cover, securing any screws or latches that were removed.
- Proba de funcionamento: Plug the vacuum back into the power outlet and turn it on briefly to ensure the brush roll spins freely and the new belt is functioning correctly.
Operating with the New Belt
Once the new belt is installed, your Dirt Devil hand vacuum should operate with renewed efficiency. The belt ensures that the brush roll rotates at the correct speed, agitating carpet fibers and effectively picking up dirt and debris. If you notice any unusual noises or a lack of brush roll rotation after installation, refer to the troubleshooting section.
Mantemento
To prolong the life of your vacuum and its belt, regular maintenance is recommended:
- Inspeccionar regularmente: Periodically check the belt for signs of wear, cracking, stretching, or breakage. A worn belt can reduce cleaning performance.
- Rolo de cepillo limpo: Remove hair, threads, and other debris that may become wrapped around the brush roll. Excessive build-up can put strain on the belt and motor.
- Substitución oportuna: Replace the belt immediately if it shows signs of damage or if the brush roll stops spinning. Using a damaged belt can lead to further damage to the vacuum motor.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O rolo do cepillo non xira. | Belt is broken, stretched, or dislodged. | Unplug vacuum, check belt. Replace if broken or stretched. Re-seat if dislodged. |
| Vacuum making unusual noise. | Belt is slipping or brush roll is obstructed. | Unplug vacuum, inspect belt for proper tension and seating. Clear any obstructions from brush roll. |
| Rendemento de limpeza reducido. | Belt is worn or stretched, reducing brush roll speed. | Inspect belt for wear. Replace if necessary to restore optimal brush roll rotation. |
Especificacións
- Número de peza: 1232240001
- Estilo de cinto: Estilo 1
- Dispositivos compatibles: Dirt Devil Hand Vac Models 501, 503, 5000, 103, 500, 513, 103B, 10515/B, 10563CA/CAB, DD120, DD122, 150CA/B/ZUK, M150CAWC, 172/B, 500B, 510/A, 515, 523, 533, DD520/B, M550CA, 560, 06500, 08130, 08500, 08510B Vacuums
- Marca: Dirt Devil
- Fabricante: Dirt Devil
Información da garantía
Specific warranty details for this replacement part are not provided in the product information. Please refer to the original Dirt Devil hand vacuum's user manual or contact Dirt Devil customer support for warranty inquiries regarding replacement parts.
Atención ao cliente
For further assistance, technical support, or to purchase additional replacement parts, please visit the official Dirt Devil website or contact their customer service department. Contact information can typically be found in your original vacuum's user manual or on the manufacturer's websitio.
