1. Introdución
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Kew Nilfisk Alto E150.2-10 H X-TRA Pressure Washer. Please read this manual thoroughly before using the product and retain it for future reference.
2. Información de seguridade
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This pressure washer generates high-pressure water jets, which can be dangerous if misused. Never direct the water jet at people, animals, electrical equipment, or the unit itself. Always wear appropriate personal protective equipment, including eye protection and sturdy footwear. Ensure the power supply matches the unit's requirements and use a residual current device (RCD) for added protection. Disconnect the power supply before performing any maintenance or cleaning.
3. Contido do paquete
Upon unpacking, verify that all components are present and undamaged. The standard package for your Nilfisk E150.2-10 H X-TRA Pressure Washer includes:
- 1 x 10m Armoured High-Pressure Hose on a Hose Reel
- 1 x G4 Spray Handle
- 1 x G4 ClickClean Extension Lance
- 1 x ClickClean Powerspeed Nozzle
- 1 x ClickClean Tornado Nozzle
- 1 x ClickClean Foam Sprayer Bottle
- 1 x 5m Mains Supply Cable
- 1 x Nozzle Jet Cleaning Tool

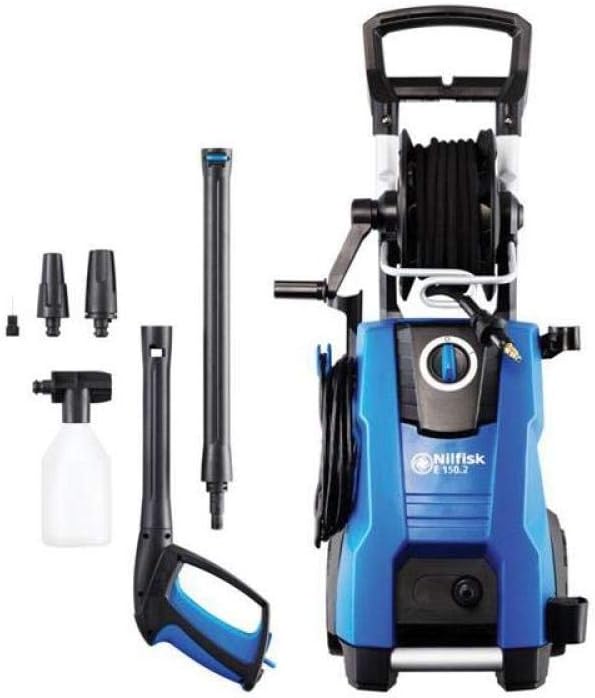

Image: The Nilfisk E150.2-10 H X-TRA Pressure Washer shown with its main unit, spray handle, extension lance, various nozzles, foam sprayer bottle, and hose reel.
4. Configuración e montaxe
- Desempaquetar a unidade: Retire coidadosamente todos os compoñentes da embalaxe.
- Coloque o asa: Secure the telescopic aluminium handle into its designated slots on the main unit.
- Conectar a mangueira de alta presión: Attach the 10m armoured high-pressure hose from the hose reel to the pressure washer's outlet. Ensure a secure connection.
- Assemble Spray Handle and Lance: Connect the G4 spray handle to the G4 ClickClean extension lance.
- Engadir boquilla: Select the desired ClickClean nozzle (Powerspeed or Tornado) and attach it to the extension lance. The ClickClean system allows for quick and easy nozzle changes.
- Conectar o abastecemento de auga: Connect a garden hose (not supplied) to the water inlet of the pressure washer. Ensure the water supply is turned on before starting the unit. The maximum water feed temperature is 40°C.
- Conectar enerxía: Plug the 5m mains supply cable into a suitable 240V electrical outlet.
Imaxe: Un lado view of the Nilfisk E150.2-10 H X-TRA Pressure Washer, highlighting its compact design and hose reel.
5. Instrucións de funcionamento
- Preparación: Asegúrate de que todas as conexións estean seguras e que o subministro de auga estea completamente aberto.
- Cebado da bomba: Before switching on the motor, squeeze the trigger on the spray handle to allow water to flow through the system and expel any air. Continue until a steady stream of water emerges.
- Comezando a unidade: Switch on the pressure washer. The induction motor will start, and the pump will build pressure.
- Using the Spray Handle: Squeeze the trigger to activate the high-pressure jet. Release the trigger to stop the flow.
- Cambio de boquillas: To change nozzles, turn off the unit and release any residual pressure by squeezing the trigger. Detach the current nozzle and attach the desired ClickClean nozzle.
- Usando o pulverizador de escuma: Fill the ClickClean Foam Sprayer Bottle with appropriate cleaning solution. Attach it to the lance. The unit will then apply foam.
- Apagado: Turn off the pressure washer. Turn off the water supply. Squeeze the trigger to release any remaining pressure in the system. Disconnect the water hose and power cable.
6. Mantemento
- Limpeza de boquillas: Regularly clean the nozzles using the provided nozzle jet cleaning tool to prevent blockages and maintain optimal spray patterns.
- Filtro de auga: Check and clean the water inlet filter periodically to prevent debris from entering the pump.
- Mangueira e conexións: Inspeccione a mangueira de alta presión e todas as conexións para detectar desgaste, danos ou fugas antes de cada uso. Substitúa as pezas danadas inmediatamente.
- Almacenamento: Store the pressure washer in a dry, frost-free environment. Ensure all water is drained from the pump and hose before storing to prevent freezing damage. Utilize the hose reel for neat storage of the high-pressure hose.
7 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O motor non arranca | Sen subministración eléctrica; disyuntor disparado; interruptor avariado. | Check power connection; reset circuit breaker; contact service. |
| Baixa presión | Insufficient water supply; clogged nozzle; air in pump; worn seals. | Ensure full water flow; clean nozzle; prime pump; contact service. |
| Presión pulsante | Air in pump; restricted water flow; dirty inlet filter. | Prime pump; check water supply; clean inlet filter. |
| Fugas de auga | Conexións soltas; xuntas tóricas ou selos danados. | Aperte as conexións; substitúa as pezas danadas. |
8. Especificacións técnicas
| Especificación | Valor |
|---|---|
| Número de modelo | 128471201 |
| Máx. Presión | 150 bar |
| Caudal | 500 l/h. |
| Potencia do motor | 2,100 W |
| Max. Water Feed Temperature | 40°C |
| Lonxitude da mangueira | 10 m |
| Peso do elemento | 20.8 kg |
| Dimensións do produto (L x W x H) | 37.5 x 39 x 78 cm |
| Fonte de enerxía | Eléctrico con cable (240 V) |
| Cor | Black, Navy Blue, Grey |
| Certificación | CSA, CE |
9. Garantía e soporte
Your Kew Nilfisk Alto E150.2-10 H X-TRA Pressure Washer comes with a standard 2 ano de garantía from the date of purchase. You can extend this warranty to 5 anos by registering your product online. To qualify for the extended warranty, registration must be completed within 30 days of purchase.
Rexistro do produto: Visita www.yournilfisk.com para rexistrar o seu produto.
For technical support, spare parts, or warranty claims, please contact Nilfisk customer service through their official website or authorized service centers. Please have your model number (128471201) and proof of purchase ready when contacting support.
