1. Información importante de seguridade
Please read this manual carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.
- Always ensure the appliance is unplugged before cleaning, maintenance, or when not in use.
- Non mergulle o aparello, o cable de alimentación nin o enchufe en auga ou outros líquidos.
- Non faga funcionar o aparello cun cable ou enchufe danados, nin despois de que o aparello funcione mal ou teña dano dalgún xeito.
- Manteña o aparello fóra do alcance dos nenos.
- Asegúrese de que o aparello estea colocado sobre unha superficie estable e nivelada para evitar que se volque.
- Non bloquee as entradas ou saídas de aire.
- Only use clean water in the water tank. Do not add any chemicals or additives.
- This appliance is protected against splashing water (IPX4 rating). However, avoid direct water jets.
2. Produto rematadoview
The De'Longhi EV250.BK is an evaporative air cooler designed to provide natural cooling and improved air quality. Key features include:
- Evaporative Cooling System: Utilizes water to cool the air, ideal for dry climates.
- Función ionizador: Releases negative ions to enhance air purity and personal well-being.
- Filtro de po: Helps to clean the air by trapping dust particles.
- Depósito de auga grande: 4.5-liter removable water tank provides up to 6 hours of operation.
- Multiple Fan Speeds & Modes: Features 3 fan speeds and 3 operating modes (Natural, Normal, Sleep).
- Control remoto: For convenient adjustment of functions and settings.
- Portabilidade: Equipped with handles and wheels for easy movement.
Figura 2.1: Fronte view of the De'Longhi EV250.BK Evaporative Air Cooler.

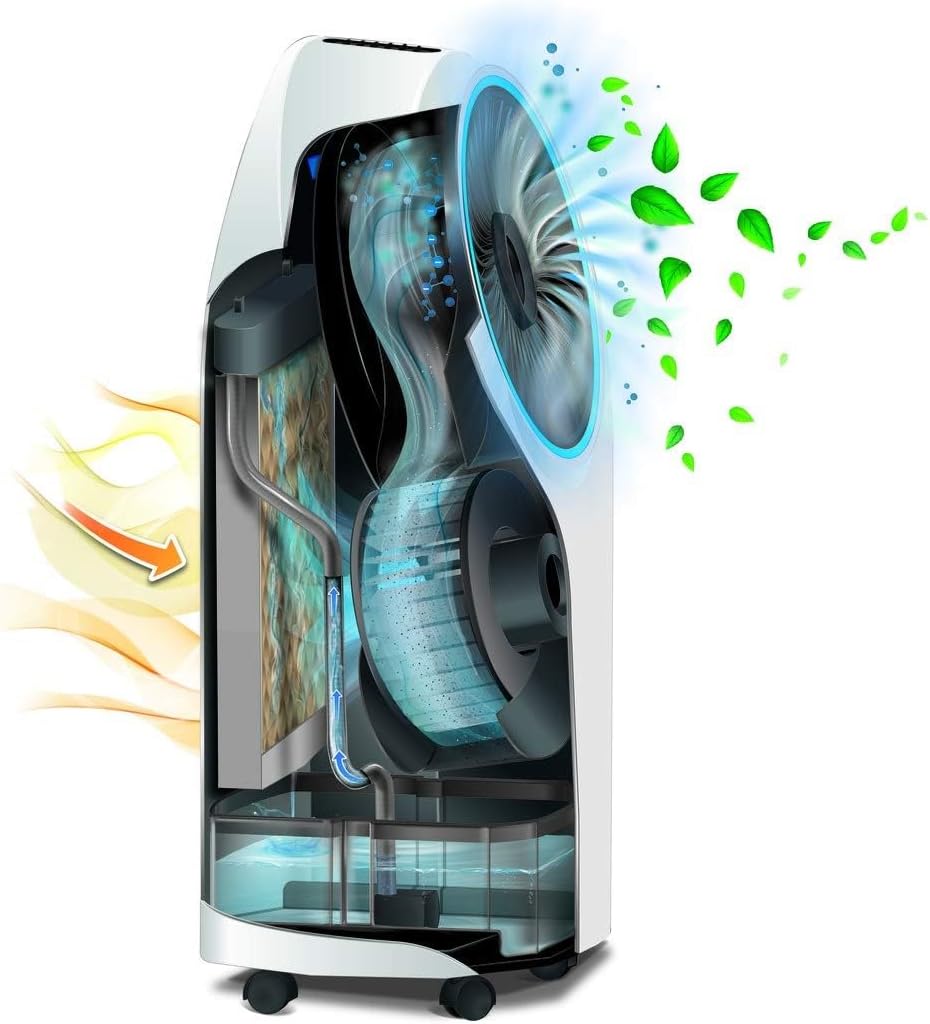

Figure 2.2: Internal diagram illustrating the evaporative cooling process and air filtration.
3. Configuración
- Desembalaxe: Carefully remove the appliance from its packaging. Retain packaging for storage or transport.
- Posicionamento: Place the air cooler on a flat, stable surface. Ensure there is adequate space around the unit for proper airflow. The unit is designed for floor mounting and is portable thanks to its integrated wheels.
Figura 3.1: Example of suitable placement for the air cooler.
- Enchendo o depósito de auga:
- Pull out the removable 4.5-liter water tank from the rear of the unit.
- Fill the tank with clean, cool water up to the maximum level indicator.
- For enhanced cooling, you may place the included ice pack (or ice cubes) into the water tank.
- Deslice con coidado o depósito de auga de volta na unidade ata que encaixe no seu lugar.
Figure 3.2: Water level indicator and unit wheels for portability.
- Potencia de conexión: Enchufe o cable de alimentación nunha toma eléctrica adecuada.
4. Instrucións de funcionamento
The De'Longhi EV250.BK can be operated using the control panel on the unit or the included remote control.
Figure 4.1: Remote control for the EV250.BK unit.
4.1 Encendido/apagado
- Preme o Botón de acendido (símbolo: círculo cunha liña vertical) on the control panel or remote control to turn the unit on or off.
4.2 Axuste da velocidade do ventilador
- Preme o Botón de velocidade (símbolo: aspas do ventilador) to cycle through the 3 available fan speeds: Low, Medium, and High.
4.3 Modos de funcionamento
- Preme o Botón de modo to select one of the following operating modes:
- Normal: Fluxo de aire constante á velocidade seleccionada.
- Natural: Simula a brisa natural variando a velocidade do ventilador.
- Durmir: Reduces fan speed and noise for quiet operation, gradually decreasing fan speed over time.
4.4 Cooling Function (Evaporative)
- Asegúrese de que o depósito de auga estea cheo.
- Preme o Botón de refrixeración (symbol: snowflake or water droplet) to activate the evaporative cooling function. The unit will draw water from the tank to cool the air.
- To deactivate, press the Cooling button again.
4.5 Función ionizadora
- Preme o Botón ionizador (symbol: often a stylized cloud or ion symbol) to activate the air purification feature.
- To deactivate, press the Ionizer button again.
4.6 Función de temporizador
- Preme o Botón do temporizador (símbolo: reloxo) to set the desired operating duration. The unit will automatically turn off after the set time.
- Each press typically increases the timer by one hour.
5. Mantemento
Regular maintenance ensures optimal performance and extends the lifespan of your De'Longhi EV250.BK air cooler.
5.1 Limpeza do filtro de po
- Desenchufe o aparello da toma de corrente.
- Locate the dust filter, typically at the rear or side air intake.
- Remove the filter according to the instructions in the full product manual (usually by sliding or unlatching).
- Clean the filter with a soft brush or vacuum cleaner to remove accumulated dust. For a more thorough cleaning, rinse it under running water. Ensure it is completely dry before reinserting.
- Reinstall the dust filter.
5.2 Limpeza do depósito de auga
- Desenchufe o aparello.
- Remove the water tank as described in the Setup section.
- Baleirar a auga restante.
- Clean the inside of the tank with a mild detergent and water. Rinse thoroughly to remove all soap residue.
- Allow the tank to air dry completely before reinserting it into the unit. This helps prevent mold and mildew growth.
5.3 Limpeza xeral
- Limpe o exterior da unidade cun suave, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
- Asegúrate de que non entre auga nos compoñentes eléctricos internos.
6 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| A unidade non se acende. | Sen fonte de alimentación. | Check if the power cord is securely plugged into the outlet. Ensure the outlet is functional. |
| Sen efecto de arrefriamento. | O depósito de auga está baleiro ou a función de arrefriamento está desactivada. | Fill the water tank. Activate the cooling function. For better cooling, add ice or a frozen ice pack to the water tank. |
| Fluxo de aire débil. | Dust filter is clogged. | Clean the dust filter as described in the Maintenance section. |
| Ruído insólito. | Water pump noise (normal for evaporative coolers) or unit not on a level surface. | Ensure the unit is on a stable, level surface. Some water circulation noise is normal during evaporative cooling. |
| O control remoto non funciona. | Baterías descargadas ou obstrución. | Replace the batteries in the remote control. Ensure there is no obstruction between the remote and the unit's sensor. |
7. Especificacións
| Nome do modelo: | EV250.BK |
| Marca: | De Longhi |
| Material: | Plástico |
| Cor: | Negro |
| Tipo de montaxe: | Montaxe no piso |
| Capacidade do depósito de auga: | 4.5 litros |
| Capacidade de fluxo de aire: | 350 Microliters per minute |
| Potencia (Wattage): | 70 vatios |
| Nivel de ruído: | 44 decibeis |
| Número de velocidades: | 3 |
| Tipo de control: | Control remoto |
| Modo de funcionamento: | Automático |
| Peso do artigo: | 7.2 quilogramos |
| Dimensións (D x W x H): | 34.2 cm (profundidade) x 39.4 cm (ancho) x 80 cm (altura) (Interpreted for tower form factor based on product images) |
| Características especiais: | Timer, Portable |
8. Garantía e soporte
Información da garantía: The De'Longhi EV250.BK evaporative air cooler comes with a 2-year availability of spare parts, indicating a commitment to product longevity and repairability. Please retain your proof of purchase for warranty claims.
Atención ao cliente: For technical assistance, troubleshooting beyond this manual, or warranty service, please contact De'Longhi customer support through their official websitio web ou a información de contacto proporcionada coa documentación da compra.
You can find more information and support resources on the official De'Longhi websitio: www.delonghi.com
