DEWENWILS Digital Outdoor Light Sensor Countdown Timer Instruction Manual

1. Introdución

This manual provides detailed instructions for the operation and maintenance of your DEWENWILS Digital Outdoor Light Sensor Countdown Timer. Please read this manual thoroughly before using the device to ensure proper function and safety. This timer is designed to automate the control of outdoor electrical devices such as lights and pumps, offering multiple programmable modes for convenience and energy efficiency.

2. Información importante de seguridade

• Só para uso exterior: This timer is designed for outdoor use. Ensure it is installed in a location protected from direct heavy rain and moisture.
• Montaxe vertical: For optimal weather resistance, mount the timer vertically with the outlets facing downwards, at least 2 feet above ground level.
• Valoración eléctrica: Do not exceed the maximum electrical rating of 125V, 60Hz, 1875W Resistive, 1875W General Use, 1000W Tungsten, 1/2HP, 500VA Electronic Ballast, 120VAC 8.3A Standard Ballast.
• Tomas de terra: Always use grounded appliances with the timer's 3 grounded outlets.
• Desconectar a enerxía: Desconecte sempre a alimentación antes de realizar calquera mantemento ou axuste.
• Nenos e animais: Manteña o dispositivo fóra do alcance dos nenos e das mascotas.

3. Produto rematadoview

3.1 Características principais

• Multiple Operating Modes: Always ON/OFF, Random, Program, Dusk to Dawn, 2/8 Hours Countdown.
• 7-Day & 8 Programs: Up to 8 ON/OFF programs can be set over a 7-day period with 1-minute intervals.
• Light Sensor: Automatically turns ON at dusk and OFF at dawn based on ambient light.
• Countdown Mode: Allows devices to run for 2 or 8 hours, independent of other settings.
• Durable Construction: Features PPE+PS material and a 6-inch SJTW 14-3 grounded cord for outdoor use.
• 3 Grounded Outlets: Connect multiple devices simultaneously.

3.2 Compoñentes e controis

Familiarize yourself with the timer's components and control buttons:

The timer features a digital display and several buttons for programming and mode selection:

• Botón PROG: Adoitado review timer events and enter program settings.
• Botón MODE: Cycles through different operating modes (AUTO, RDM, PHOTOCELL, 2H, 8H).
• Botóns +/-: Adjust time and program settings (increase/decrease).
• Botón X: Clears current settings.
• Gear Icon Button: Used to move to the next part during time/program setting.
• Power Button (U): Manual override for programmed events.
• 2H/8H Buttons: Instant ON for 2 or 8 hours, then OFF.
• Restablecer burato: Located on the device, used to reset all settings.

4. Configuración

4.1 Initial Reset

Before programming, all settings should be reset to factory defaults. Insert a thin non-conducting object (like a toothpick) into the reset hole on the timer to clear all previous settings. The display will show '0:00' or similar, indicating a successful reset.

4.2 Axuste da hora actual

1. Manteña premida Icona de engrenaxe button for 2 seconds to enter the current time setting mode.
2. Preme o + or - button to select the correct day of the week.
3. Preme o Icona de engrenaxe button to move to the hour setting.
4. Preme o + or - button to set the current hour. Ensure AM/PM is correct.
5. Preme o Icona de engrenaxe button to move to the minute setting.
6. Preme o + or - botón para axustar os minutos actuais.
7. Preme o Icona de engrenaxe button to finish current time setting and return to normal display.

For a visual guide on setting the current time and programming, please refer to the official operation video below:

5. Modos de funcionamento

The timer offers several operating modes. Press the MODO botón para percorrelos cíclicamente.

5.1 AUTO Mode (Programmed ON/OFF)

In AUTO mode, the timer operates according to your set ON/OFF programs. You can set up to 8 distinct ON/OFF programs over a 7-day period.

1. Preme o MODO button until 'AUTO' appears on the display.
2. Preme o PROG botón e, a continuación, prema o botón Icona de engrenaxe button to enter program setting for '1 ON'.
3. Preme + or - to select the desired day(s) of the week for this program. Options include individual days, weekdays, weekends, or all 7 days.
4. Preme o Icona de engrenaxe button to move to the hour setting.
5. Preme + or - to set the ON hour (ensure AM/PM is correct).
6. Preme o Icona de engrenaxe button to move to the minute setting.
7. Preme + or - to set the ON minutes.
8. Preme o Icona de engrenaxe button to enter OFF setting for '1 OFF'.
9. Repeat steps 3-7 to set your desired OFF time for the program.
10. Continúa presionando PROG e Icona de engrenaxe to set up to 8 ON/OFF programs.
11. Once you complete the program settings, press the Icona de engrenaxe button or wait for 15 seconds to save the current settings and return to normal display.

5.2 RDM Mode (Random ON/OFF)

In Random mode, the timer will turn ON at a random time and remain ON for approximately 15 minutes. This mode can be used to give the appearance of occupancy.

• Preme o MODO button until 'RDM' appears on the display.
• The timer will now operate with random ON/OFF cycles.

5.3 PHOTOCELL Mode (Dusk to Dawn)

The Photocell mode utilizes the built-in light sensor to automatically turn connected devices ON at dusk and OFF at dawn.

• Preme o MODO button until 'PHOTOCELL' appears on the display.
• Ensure the light sensor is not obstructed for accurate operation.

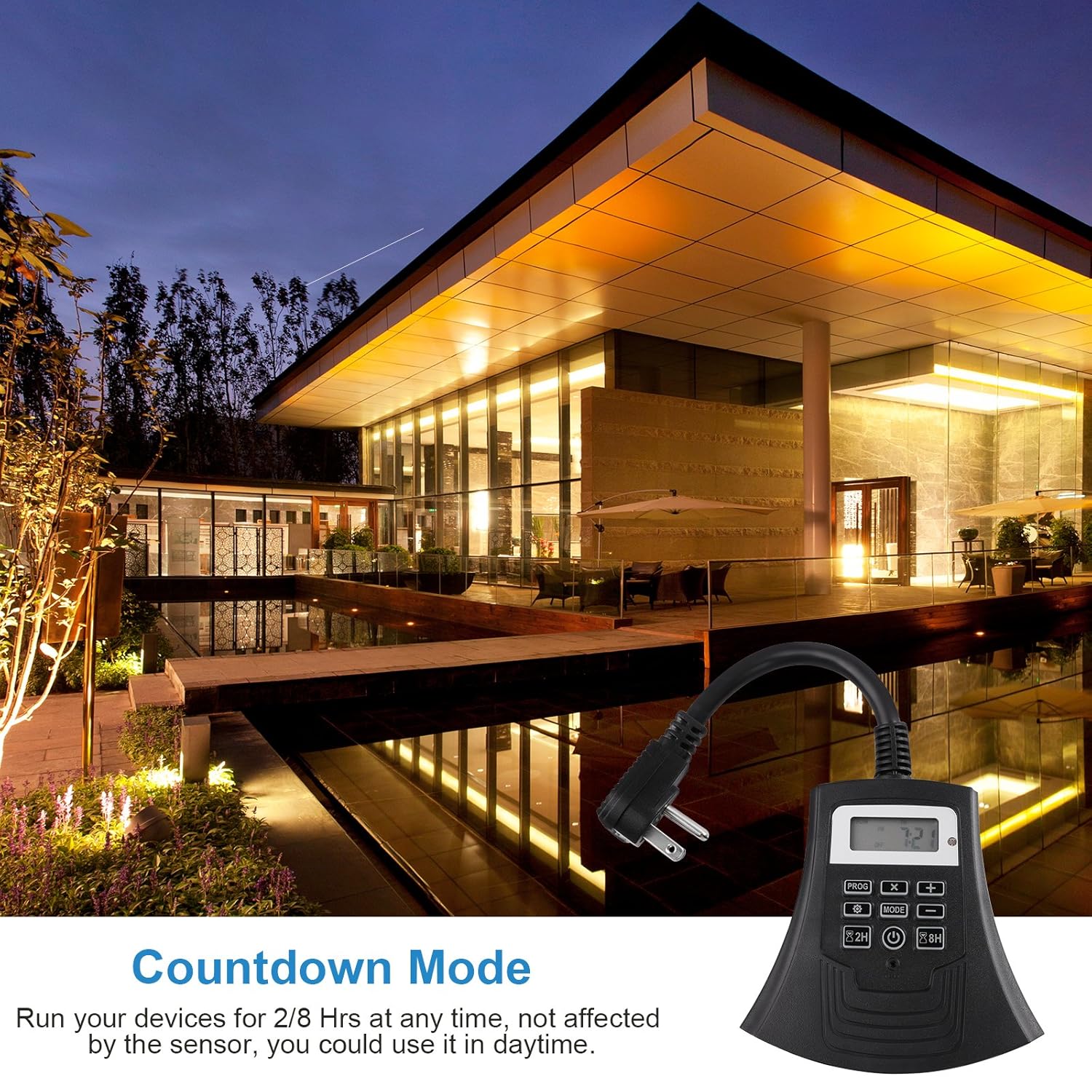

5.4 Countdown Modes (2H / 8H)

These modes allow you to turn on connected devices for a fixed duration of 2 or 8 hours, independent of other programmed settings. This is useful for temporary lighting or device operation.

• Preme o 2H button for a 2-hour countdown.
• Preme o 8H button for an 8-hour countdown.
• The timer will turn OFF automatically after the selected duration.

5.5 Manual ON/OFF Override

The power button (U) allows you to manually override the current programmed events, switching the timer to always ON or always OFF. To return to prior settings, switch it back to the corresponding mode.

6. Directrices de instalación

For safe and effective outdoor use, follow these installation guidelines:

• Mount the timer in a vertical position with the outlets facing downwards.
• Ensure the timer is at least 2 feet above the ground level to prevent water ingress.
• Choose a location that provides adequate protection from extreme weather conditions.

7. Mantemento

• Limpeza: Disconnect the timer from power before cleaning. Use a soft, damp pano para limpar o exterior. Non empregue produtos químicos agresivos nin produtos de limpeza abrasivos.
• Almacenamento: If not in use for extended periods, store the timer in a cool, dry place away from direct sunlight and extreme temperatures.
• Batería de respaldo: The timer includes a backup battery that holds settings during power outages for up to 3 months.

8 Solución de problemas

9. Especificacións

• Vol. De entradatage: 125 V, 60 Hz
• Potencia máxima: 1875W Resistive; 1875W General Use; 1000W Tungsten; 1/2HP; 500VA Electronic Ballast; 120VAC 8.3A Standard Ballast
• Cordón: SJTW 14/3C, 6-inch length
• Material: EPI+PS
• Número de configuracións: 15 (referring to program slots and modes)
• Cor: Negro
• Modelo: B07D2BVMRT
• UPC: 611901252216
• Fabricante: DEWENWILS

10. Garantía e soporte

This DEWENWILS product comes with a 1 ano de garantía from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.

For warranty claims, technical support, or any questions regarding your product, please contact DEWENWILS customer service. Contact information can typically be found on the product packaging or the official DEWENWILS websitio.
