Xiaomi xiaomi mi band 3
Manual de usuario do rastreador de actividade Xiaomi Mi Band 3
Model: Xiaomi Mi Band 3 | Brand: Xiaomi
Introdución
The Xiaomi Mi Band 3 is an advanced fitness tracker designed to help you monitor your daily activities and health metrics. Featuring an OLED display and touchpad, it provides real-time information on exercise duration, mileage, heart rate, and more. With 50-meter water resistance, it is suitable for swimming and various water-based activities. This manual provides essential information for setting up, operating, and maintaining your Mi Band 3.
Contido do paquete
Upon opening the sealed box, verify that all components are present:
- Xiaomi Mi Band 3 Tracker Unit
- Black Wristband (Microfiber material)
- Cable de carga dedicado
- Manual de usuario (este documento)
Figure 1: Xiaomi Mi Band 3 main unit and wristband.
Configuración
1. Cargando o dispositivo
Before first use, fully charge your Mi Band 3. Connect the charging cable to the tracker unit and a USB power source (e.g., computer USB port or a USB wall adapter). The OLED display will show the charging status.
2. Installing the Mi Fit App
To utilize all features of your Mi Band 3, download and install the official Xiaomi Sports (Mi Fit) App on your smartphone. The app is available for both Android and iOS devices.
- Para Android: Busca "Mi Fit" on the Google Play Store.
- Para iOS: Busca "Mi Fit" on the Apple App Store.
3. Emparellamento co teu teléfono intelixente
- Asegúrate de que o Bluetooth estea activado no teu smartphone.
- Open the Mi Fit App and create an account or log in.
- Follow the in-app instructions to add a new device. Select "Mi Band" from the list.
- The app will search for your Mi Band 3. Once found, confirm the pairing on both your phone and the band (by tapping the button on the band when prompted).
Figure 2: Mi Band 3 display showing time and date.
Instrucións de funcionamento
Navegando pola pantalla
The Mi Band 3 features an OLED touchpad display. Swipe up or down to scroll through different functions and tap the capacitive button below the screen to select or confirm actions.
Características principais:
- Data e hora: A pantalla predeterminada mostra a hora e a data actuais.
- Podómetro: Tracks your daily steps taken. This data is synchronized with the Mi Fit App for detailed analysis.
- Monitor de frecuencia cardíaca: Swipe to the heart rate screen and the band will automatically measure your heart rate. Ensure the band is snug on your wrist for accurate readings.
Figure 3: Mi Band 3 displaying heart rate measurement.
- Seguimento do sono: Automatically monitors your sleep patterns, including deep and light sleep, providing insights through the Mi Fit App.
- Notificacións: Receive call, message, and app notifications directly on your wrist. You can reject calls by long-pressing the button.
- Pronóstico do tempo: View current weather conditions and forecasts for the next few days (requires synchronization with the Mi Fit App and internet connection).

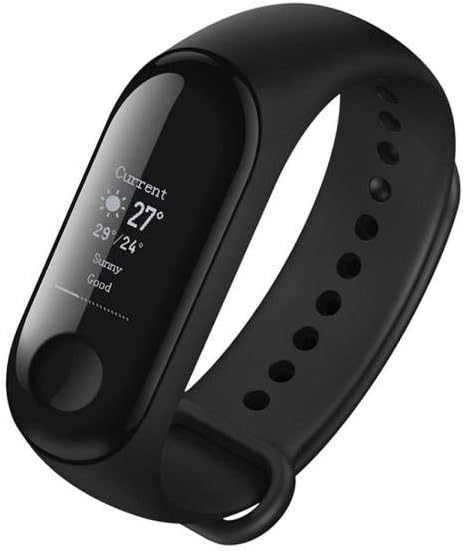

Figure 4: Mi Band 3 displaying weather information.
- Recordatorio de sedentarismo: The band can remind you to move if you've been inactive for too long, configurable via the app.
- Atopar o meu teléfono: Use this feature on the band to make your paired phone ring, even if it's on silent mode (within Bluetooth range).
- Modos de adestramento: Initiate specific workout tracking sessions (e.g., outdoor run, treadmill, cycling) from the band or the app.
Mantemento
- Limpeza: Regularly clean the band and the tracker unit with a soft, damp pano. Evite produtos químicos agresivos ou materiais abrasivos.
- Resistencia á auga: The Mi Band 3 is 50-meter water resistant, suitable for swimming and showering. However, avoid prolonged exposure to hot water, diving, or high-pressure water jets. Do not operate the band's touch screen underwater.
- Almacenamento: When not in use for extended periods, store the band in a cool, dry place.
- Coidado da batería: Charge the device before the battery is completely depleted to prolong its lifespan.
- Substitución da correa: The microfiber wristband is interchangeable. Ensure any replacement straps are compatible with the Mi Band 3 unit.
Resolución de problemas
| Problema | Posible Solución |
|---|---|
| Band not turning on/displaying anything. | Ensure the band is fully charged. Connect it to the charger and check if the charging icon appears. |
| Non se pode emparellar co teléfono intelixente. |
|
| Lecturas inexactas da frecuencia cardíaca. | Ensure the band is worn snugly on your wrist, about one finger's width from your wrist bone. Avoid excessive movement during measurement. |
| Non aparecen as notificacións. |
|
| Display not visible in direct sunlight. | The OLED display may be difficult to read in very bright direct sunlight. Try shading the screen with your hand. |
Especificacións
| Característica | Detalle |
|---|---|
| Nome do modelo | Xiaomi Mi Band 3 |
| Tipo de visualización | OLED Touchpad |
| Tamaño da pantalla | 0.3 polgadas |
| Resistencia á auga | 50 metros (5 ATM) |
| Conectividade | Bluetooth |
| Tipo de batería | Ion de litio |
| Peso | 30 gramos |
| Material | Microfiber (wristband) |
| Características especiais | Time Display, Sleep Monitor, Sedentary Reminder, Pedometer, Heart Rate Monitor |
Garantía e Soporte
The Xiaomi Mi Band 3 comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Xiaomi website. For technical support, troubleshooting assistance, or service inquiries, please contact Xiaomi customer support through their official channels or visit their support page online.
Xiaomi oficial Websitio: www.mi.com
