Tier1 Pool & Spa Filter Cartridge User Manual

Produto rematadoview

The Tier1 Pool & Spa Filter Cartridge is designed to provide high-quality filtration for your pool or spa, ensuring clean and clear water. This product is a replacement for various models, including Hayward CX1380RE, Star Clear Plus C7490, Filbur FC-1297, and Pleatco PA137, among others. It features a pleated fabric filter media that maximizes contact for greater capacity and reduction of impurities.

Image: Four Tier1 Pool & Spa Filter Cartridges, showcasing the product packaging and the filters themselves. These cartridges are designed for efficient water filtration in pools and spas.

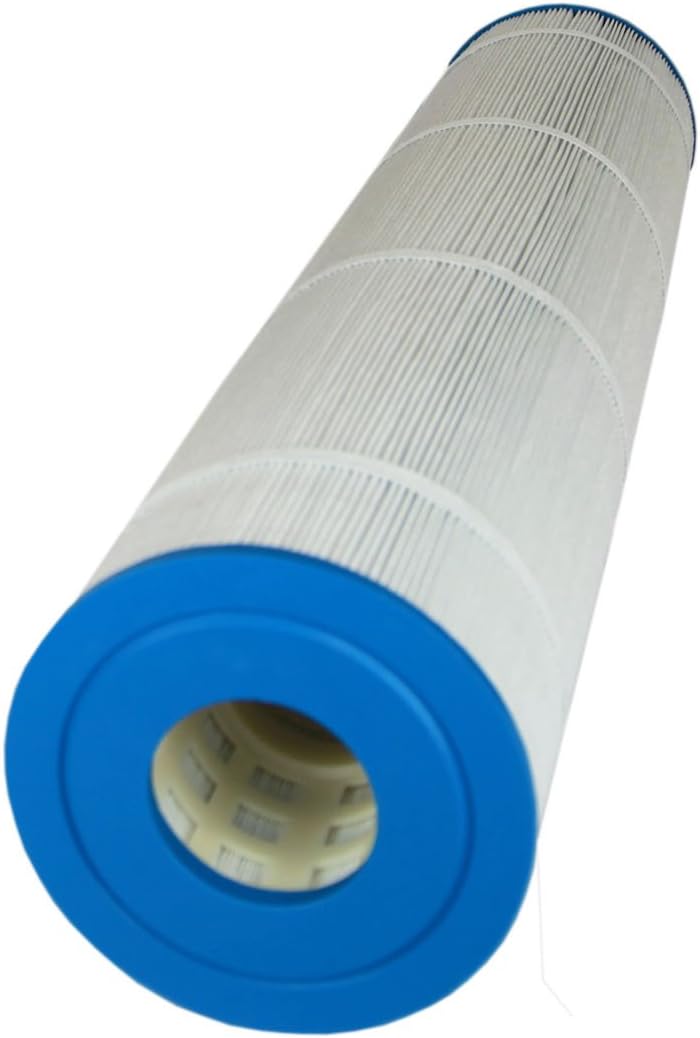

Image: A single Tier1 Pool & Spa Filter Cartridge shown from an angled perspective, highlighting its pleated fabric construction and blue end caps. This design contributes to its filtration efficiency.

The filter's durable and washable 137 sq ft fabric is engineered with tight porosity and a dense weave to effectively sift out unwanted hair, leaves, dust, sediment, and sand. Its high-strength, high-flow design ensures optimal performance with less wear and tear on your pump.

Configuración e instalación

Proper installation of your Tier1 filter cartridge is crucial for optimal performance and longevity. Ensure your pool or spa system is turned off and depressurized before beginning the installation process.

1. Prepare the Filter Housing: Turn off the pump and close any necessary valves to isolate the filter. Open the air relief valve on top of the filter to release any pressure. Remove the filter tank lid according to your system's manufacturer instructions.
2. Retirar o cartucho antigo: Carefully lift out the old filter cartridge. Dispose of it properly.
3. Clean Housing (Optional but Recommended): Inspect the inside of the filter housing for any debris and clean as necessary. Check the O-ring for cracks or wear; replace if damaged. Lubricate the O-ring with a silicone-based lubricant if needed.
4. Instalar un cartucho novo: Gently lower the new Tier1 filter cartridge into the filter housing. Ensure it is seated correctly and securely. The cartridge is designed for systems that use a 7 inch (Outside diameter) x 32 3/4 inch (Length) spa or pool filter.
5. Vivenda segura: Replace the filter tank lid and secure it according to your system's manufacturer instructions. Close the air relief valve.
6. Reiniciar o sistema: Open any valves that were closed and turn on the pump. Once water begins to flow, slowly open the air relief valve until a steady stream of water emerges, then close it.
7. Record Pressure: Note the pressure gauge reading immediately after installation. This will be your baseline for determining when maintenance is required.

Image: This diagram illustrates the internal structure of the Tier1 filter's injected molded core compared to a PVC drilled core found in other products. The Tier1 design promotes strong, reliable construction, superior water flow, and uniform sediment distribution, which helps reduce pump stress.

Pautas de funcionamento

Once installed, the Tier1 filter cartridge works continuously to maintain the cleanliness of your pool or spa water. The pleated fabric design maximizes the filtration surface area, allowing for efficient removal of contaminants.

• Continuous Filtration: The filter operates as part of your pool or spa's circulation system, continuously drawing water through its pleated media to trap impurities.
• Fluxo óptimo: The high-strength, high-flow design ensures that water passes through the filter efficiently, maintaining good circulation and reducing strain on your pump.
• Debris Capture: The dense weave and tight porosity of the fabric effectively capture a wide range of particles, including hair, leaves, dust, sediment, and sand, contributing to sparkling clear water.

Image: This illustration depicts the Tier1 filter cartridge actively cleaning water by removing common impurities such as hair, leaves, sediment, sand, dirt, and general debris, resulting in sparkling clear water.

Mantemento

Regular maintenance of your Tier1 filter cartridge is essential to prolong its lifespan and ensure consistent water quality. The filter is designed to be durable and washable.

• When to Clean/Replace: It is recommended that you clean or replace your pool or spa filter when the pressure gauge on the filter tank reaches 8 psi (pounds per square inch) above the pressure recorded when the filter was first installed. This indicates that the filter is becoming clogged and its efficiency is reduced.
• Procedemento de limpeza:
  1. Turn off the pump and release pressure from the filter system.
  2. Remove the filter cartridge from the housing.
  3. Rinse the pleats thoroughly with a garden hose, working from top to bottom. Use a filter cleaning tool or nozzle for best results.
  4. For deeper cleaning, soak the cartridge in a specialized filter cleaning solution overnight to remove oils and stubborn debris. Follow the cleaner's instructions.
  5. Rinse again thoroughly after soaking.
  6. Reinstall the clean cartridge as per the "Setup and Installation" section.
• Lonxevidade: The uniform fabric and sturdy, evenly spaced pleats are designed to hold up to multiple cleanings without significant wear, contributing to a longer fabric lifespan.

Image: This graphic compares the "Superior Cleanability" of Tier1's flat bond features against the drawbacks of point bond designs in other products. Tier1's uniform fabric reduces clogs and is easier to clean, utilizing 100% of the filter's surface area for maximum efficiency, and its sturdy pleats withstand multiple cleanings.

Image: This diagram explains the "Trilobal Advantage" of Tier1 filters, which offers 40% more debris holding capacity. Trilobal fibers create extra space to trap debris without blocking water flow, leading to a greater surface area, longer fabric lifespan, more time between cleanings, and higher filtration efficiency compared to round fibers.

Resolución de problemas

If you encounter issues with your Tier1 filter cartridge or pool/spa water quality, consider the following common troubleshooting steps:

If these steps do not resolve the issue, consult a qualified pool or spa technician.

Especificacións

Detailed specifications for the Tier1 Pool & Spa Filter Cartridge:

• Marca: Nivel 1
• Número de modelo: e1785435-d38b-451a-b4db-71e09a703942
• Material: Pleated Fabric
• Dimensións do produto (total): 7" D x 7" W x 32.75" H
• Diámetro exterior: 7 polgadas
• Lonxitude: 32 3/4 polgadas
• Filter Media Area: 137 pés cadrados
• Peso do artigo: 19 libras (para o paquete de 4)
• UPC: 810004470743
• Modelos compatibles: Replacement for Hayward CX1380RE, Star Clear Plus C7490, Filbur FC-1297, Pleatco PA137, Unicel C-7490, C1380RE, SmartFilter 550, BHCA5520MB, CA5500, CX1380REM, 090164021348, 090164021331, SD-01013, FC-6455, PA137-M, C-7490-4, CX1380-RE, C-5500, C5520, SD-00368, APCC7251, 17-175-1339 filtration cartridges.

Garantía e Soporte

Tier1 products are manufactured to high-quality standards. Specific warranty details are typically provided with your purchase documentation or can be found on the official Tier1 websitio. Garde o comprobante de compra para calquera reclamación de garantía.

For technical support, product inquiries, or further assistance, please visit the official Tier1 websitio web ou póñase en contacto co seu departamento de atención ao cliente. A información de contacto adoita atoparse na embalaxe do produto ou na presenza oficial en liña da marca.

Note: Always refer to the specific instructions provided by your pool or spa system manufacturer for compatibility and installation procedures.
