Manual de usuario dos walkie-talkies profesionais Retevis RT27

Introdución

Thank you for choosing the Retevis RT27 Professional Walkie Talkies. This manual provides essential information for the safe and efficient operation of your device. The RT27 series offers reliable long-range communication, robust design, and user-friendly features, making it ideal for various professional environments such as schools, security, restaurants, warehouses, and construction sites.

This package includes a convenient 6-way multi-unit charger, allowing you to charge multiple walkie-talkies or batteries simultaneously, saving time and ensuring your devices are always ready for use.

Image: Six Retevis RT27 walkie-talkies securely placed in the 6-slot multi-unit charger, ready for charging. The charger is black with green indicator lights visible, and a power adapter is connected.

Configuración

Desembalaxe e inspección inicial

Carefully unpack all components. Verify that all items listed below are present and undamaged:

• Retevis RT27 Walkie Talkie Units
• Baterías Li-ion de 1100 mAh
• 6-Way Multi-Unit Charger
• Power Adapter for Charger
• Clips para cinto
• Correas de man

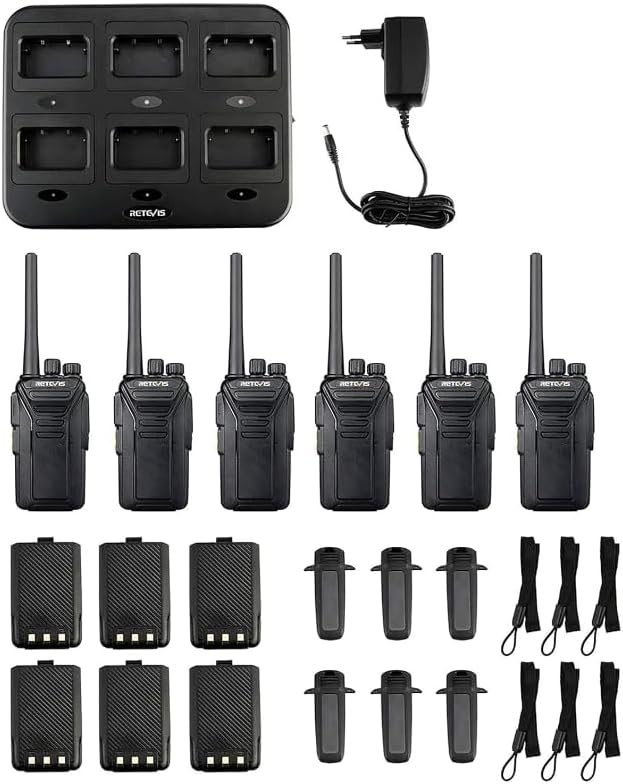

Imaxe: Unha completa view of the Retevis RT27 package contents, including six walkie-talkie units, the 6-way charging base with its power adapter, six rechargeable batteries, six belt clips, and six hand straps, all laid out on a white surface.

Instalación de baterías

1. Ensure the walkie-talkie is turned off.
2. Aliñe a batería co compartimento da batería na parte traseira do walkie-talkie.
3. Empuxa suavemente a batería no seu lugar ata que faga clic de forma segura.

Imaxe: Primeiro plano view of the back of a Retevis RT27 walkie-talkie with its 1100mAh Li-ion battery detached, showing the battery contacts and model information on both the radio and the battery.

Cargando as baterías

The 6-way multi-unit charger allows for efficient charging of up to six walkie-talkies or batteries simultaneously. Each slot has an independent pilot lamp to indicate charging status.

1. Connect the power adapter to the 6-way charger and plug it into a power outlet.
2. Place the walkie-talkies (with batteries installed) or individual batteries into the charging slots.
3. The indicator light for each slot will turn vermello to indicate charging in progress.
4. Once charging is complete, the indicator light will turn verde.

Imaxe: De arriba abaixo view of the Retevis 6-way multi-unit charger with its power adapter. An arrow points to an indicator light, explaining that red signifies 'Charging' and green signifies 'Charging Completed'.

The 1100mAh battery capacity provides 8-10 hours of continuous use with reception and multiple transmissions, and extended standby time depending on usage frequency.

Instrucións de funcionamento

Activación/Desactivación e control de volume

1. To turn on the walkie-talkie, rotate the top-left knob clockwise until you hear a click.
2. Continue rotating the same knob to adjust the volume to a comfortable level.
3. To turn off, rotate the knob counter-clockwise until it clicks off.

Selección de canles

The RT27 features 16 channels. To communicate, all walkie-talkies must be set to the same channel.

1. Rotate the top-right knob to select your desired channel (1-16).
2. Ensure all radios intended for communication are on the identical channel.

Transmitir e recibir

1. To transmit, press and hold the Push-to-Talk (PTT) button on the side of the walkie-talkie. Speak clearly into the microphone.
2. Solta o botón PTT para recibir.

VOX Function (Hands-Free Operation)

The RT27 is equipped with a VOX (Voice Operated Exchange) function, allowing for hands-free communication.

1. To activate VOX, refer to the specific programming instructions (usually requires programming software, not directly on the radio).
2. Once activated, the radio will automatically transmit when it detects your voice, eliminating the need to press the PTT button.

Image: A Retevis RT27 walkie-talkie with the text 'VOX' and 'Main libre' (hands-free) indicating its voice-activated transmission capability.

Función Squelch

The RT27 features a squelch level from 0-9, which helps reduce interference from wind noise and other environmental sounds, ensuring clear and smooth calls.

Mantemento

Atención Xeral

• Keep the walkie-talkie and charger clean and dry. Use a soft, damp pano para limpeza. Non empregue produtos químicos agresivos nin produtos de limpeza abrasivos.
• Evite expoñer o dispositivo a temperaturas extremas, luz solar directa ou humidade elevada.
• The RT27 is designed to be robust, having passed 1000 drop tests. However, avoid unnecessary drops or impacts to prolong its lifespan.

Coidado da batería

• Cargue completamente as baterías antes do primeiro uso.
• Do not overcharge or deep discharge batteries.
• If storing the walkie-talkie for an extended period, remove the battery.

Resolución de problemas

Especificacións

• Marca: Retevis
• Número de modelo: EUA9059E-C9059D
• Cor: Negro
• Número de canles: 16
• Rango de frecuencia: 446.00625MHz-446.09375MHz (PMR446)
• Rango máximo: 3 quilómetros (dependendo do entorno)
• Composición da batería: NiMH (Lithium-ion included)
• Capacidade da batería: 1100 mAh (4.07 Wh)
• Voltage: 3.7 voltios
• Características especiais: 6-way charger, Rechargeable, Robust and easy to use, Long range, Hands-free (VOX)
• Nivel de resistencia á auga: Non impermeable
• Dimensións do produto: 20.5D x 31.8W x 15.8H centimeters (for the charger unit)

Garantía e Soporte

Retevis ofrece unha 2 ano de garantía para o corpo da radio e un 1 ano de garantía para accesorios. Ademais, hai un Política de devolución sen motivo de 30 días.

Máis alá do período de garantía, os servizos de mantemento seguen dispoñibles, e os compradores serán responsables dos custos asociados.

For any inquiries, technical support, or warranty claims, please contact Retevis customer service via Amazon. We aim to respond within 12 hours.

For more information and products, visit the official Retevis store: Tenda Retevis en Amazon
