Vitafit VT571 Digital Kitchen Food Scale User Manual

Produto rematadoview

The Vitafit VT571 Digital Kitchen Food Scale is designed for precise measurement of food ingredients. It features a clear LED display, a durable tempered glass surface, and a slim, elegant design for easy storage.

• Alta capacidade: Measures up to 10 kg (22 lbs).
• Precisión: Minimum weighing of 2g, with 1g exact increments.
• Varias unidades: Displays measurements in grams (g), kilograms (kg), ounces (oz), and pounds:ounces (lb:oz).
• Borrar pantalla: Large and bright LED display (50x30mm) with white digits for easy readability.
• Función de tara: Allows for measurement of multiple ingredients in the same bowl.
• Eficiencia enerxética: Features an auto-off function, low battery, and overload indications.

Imaxe: Arriba view of the Vitafit VT571 Digital Kitchen Food Scale, showcasinpolo seu elegante deseño e a súa pantalla LED.

Configuración

1. Instalación da batería:

   Locate the battery compartment on the underside of the scale. Open the compartment cover and insert 3 AAA batteries, ensuring correct polarity (+/-). Close the cover securely.



   Image: The underside of the scale, highlighting the battery compartment and non-slip rubber feet.

2. Colocación:

   Place the scale on a hard, flat, and level surface. Uneven surfaces can affect measurement accuracy.

Instrucións de funcionamento

1. Encendido/apagado:

   Preme o ON/OFF/TARA button (power symbol) to turn the scale on. The display will show '0' or '0.0' when ready. Press and hold the ON/OFF/TARA button for a few seconds to turn the scale off.



   Image: A close-up of the scale's surface, showing the ON/OFF/TARE button and the UNIT button, along with various unit displays.
2. Conversión de unidades:

   Preme o UNIDADE button to cycle through the available measurement units: g, kg, oz, and lb:oz.

3. Pesar ingredientes:

   Place the item to be weighed directly onto the center of the scale platform. The weight will be displayed on the LED screen. Wait a few seconds for the reading to stabilize.

4. Función de tara (sumar e pesar):

   To weigh multiple ingredients in the same container or to subtract the weight of a container:

   1. Coloque o recipiente baleiro na báscula.
   2. Preme o ON/OFF/TARA botón. A pantalla restablecerase a "0".
   3. Add the first ingredient to the container. The scale will display its weight.
   4. Para engadir outro ingrediente, prema o botón ON/OFF/TARA button again to reset the display to '0', then add the next ingredient. Repeat as needed.


   Image: The scale in use, demonstrating the tare function with a bowl containing ingredients, and a hand pressing the tare button.

5. Función de apagado automático:

   The scale will automatically turn off after approximately 2 minutes of inactivity to conserve battery life.

Mantemento

• Limpeza:

  The tempered glass surface is easy to clean. Wipe the scale with a damp cloth. Do not immerse the scale in water or use abrasive cleaning agents. Ensure the bottom side of the unit does not get wet.

• Almacenamento:

  Due to its slim design (23x17x2.2cm), the scale can be easily stored in a kitchen drawer or cabinet when not in use.

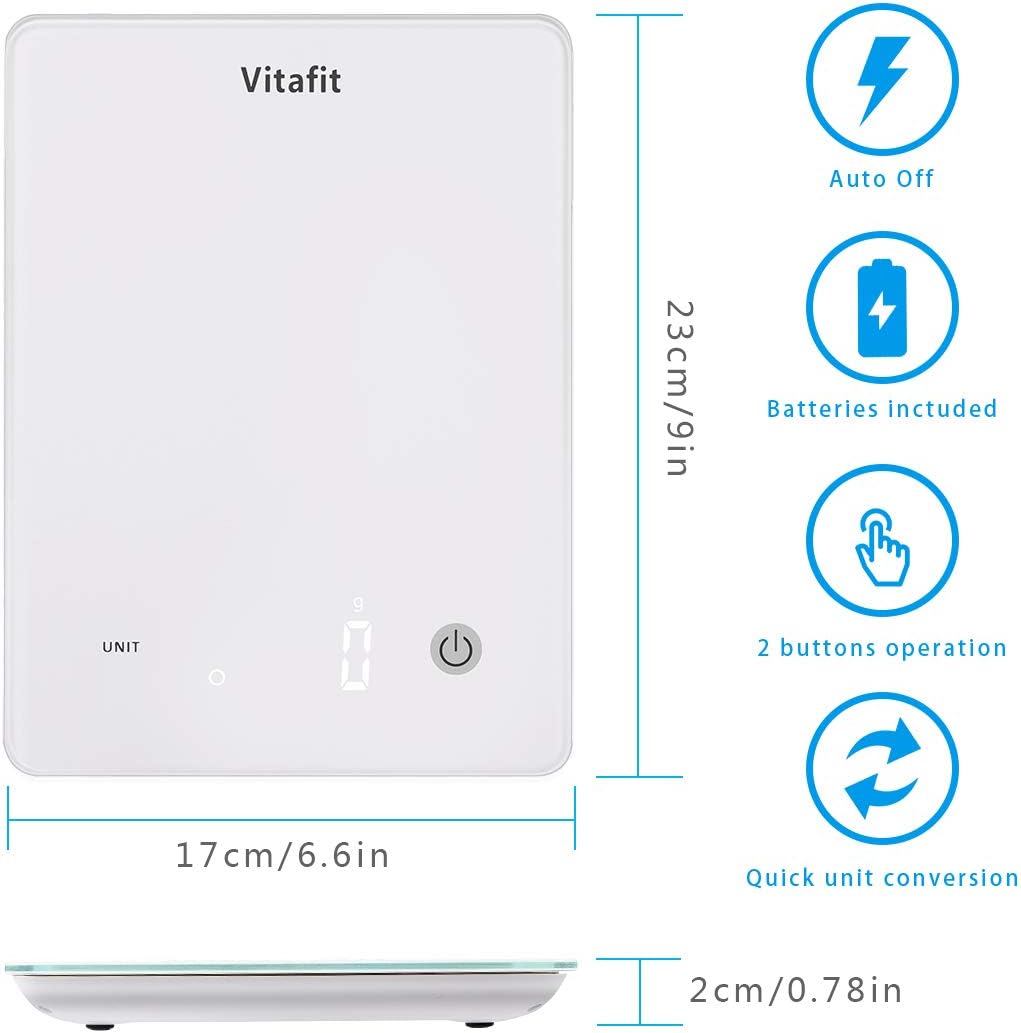

  Image: Diagram showing the dimensions of the Vitafit VT571 scale (23cm x 17cm x 2cm) and icons for auto-off, batteries included, 2-button operation, and quick unit conversion.

• Substitución da batería:

  When the 'Lo' indicator appears on the display, it is time to replace the batteries. Refer to the 'Battery Installation' section under Setup.

Resolución de problemas

• Lecturas inexactas:
  • Ensure the scale is placed on a hard, flat, and level surface.
  • Avoid placing the scale near strong air currents or vibrations.
  • Wait a few seconds for the reading to stabilize after placing an item.
• Pantalla 'Lo':

  Indicates low battery. Replace the 3 AAA batteries.

• 'O-Ld' Display:

  Indicates overload. The weight on the scale exceeds its maximum capacity (10 kg / 22 lbs). Remove the item immediately to prevent damage.
• A escala non se acende:

  Comprobe se as baterías están instaladas correctamente e non están esgotadas. Substitúaas se é necesario.

Especificacións

Información da garantía

This Vitafit Digital Kitchen Food Scale is covered by a 5 ano de garantía desde a data de compra. Esta garantía cobre defectos de fabricación e fallos de materiais en condicións de uso normal. Conserve o comprobante de compra para reclamacións de garantía.

The warranty does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.

Atención ao cliente

For any questions, technical assistance, or warranty claims, please contact Vitafit customer support through the retailer's platform or visit the official Vitafit websitio para os detalles de contacto.
