DEWALT 20V MAX Heat Gun Instruction Manual

1. Produto rematadoview

The DEWALT 20V MAX Cordless Heat Gun (DCE530B) is designed for various applications where a corded heat gun may not be practical. Its compact design allows for use in tight spaces. This tool is ideal for tasks such as heat shrinking wire tubing, paint removal, and decal removal. It offers two temperature settings and features lock-on and lock-off capabilities for hands-free operation.

As características principais inclúen:

• Up to 990 degrees F/532 degrees C max output temperature.
• Up to 42 minutes of runtime per charge (battery and charger sold separately).
• 6.7 CFM airflow.
• Lock-on button for continuous use.
• Lock-off trigger for manual operation.
• Integrated LED light to illuminate work areas.

Figura 1: Fronte view of the DEWALT 20V MAX Cordless Heat Gun.

2. Información de seguridade

AVISO: lea todas as advertencias de seguridade e todas as instrucións. O incumprimento das advertencias e instrucións pode provocar descargas eléctricas, incendios e / ou lesións graves.

• Always wear appropriate personal protective equipment, including safety glasses, gloves, and respiratory protection, especially when working with materials that may release fumes.
• Non dirixa a pistola de calor a persoas ou animais.
• Non use a pistola de calor preto de materiais ou gases inflamables.
• Asegurar unha ventilación axeitada na zona de traballo.
• Deixe que a pistola de calor se arrefríe completamente antes de almacenala.
• Do not block the air intake or output nozzles.
• Use only DEWALT 20V MAX batteries and chargers with this tool.

3. Compoñentes e contido da embalaxe

Your DEWALT 20V MAX Heat Gun package includes the following:

• DEWALT 20V MAX Cordless Heat Gun (DCE530B)
• (1) Hook nozzle attachment
• (1) Flat nozzle attachment

Nota: A batería e o cargador véndense por separado.

Figure 2: DEWALT Heat Gun with flat and hook nozzle attachments.

4. Configuración

4.1 Instalación da batería

1. Ensure the heat gun is turned off.
2. Align the battery pack with the receptacle on the bottom of the heat gun handle.
3. Deslice a batería na ferramenta ata que encaixe firmemente no seu lugar.
4. To remove the battery, press the release button and pull the battery pack out.

4.2 Nozzle Attachment

1. Ensure the heat gun is cool and disconnected from any power source (battery removed).
2. Select the desired nozzle (flat or hook) for your application.
3. Slide the nozzle onto the heat gun's output barrel until it is firmly seated.
4. Ensure the nozzle is securely attached before operation.

5. Instrucións de funcionamento

5.1 Acendido/Apagado

• To turn on the heat gun, press the trigger switch. The LED light will illuminate the work area.
• Para apagar, solte o interruptor de disparo.

Figura 3: Example of using the heat gun for heat shrinking wire tubing.

5.2 Configuración de temperatura

The heat gun features two temperature settings. Use the temperature selector switch located on the top of the tool to toggle between settings:

• Configuración baixa: For delicate tasks or when lower heat is required.
• Configuración alta: For maximum heat output, up to 990°F (532°C).

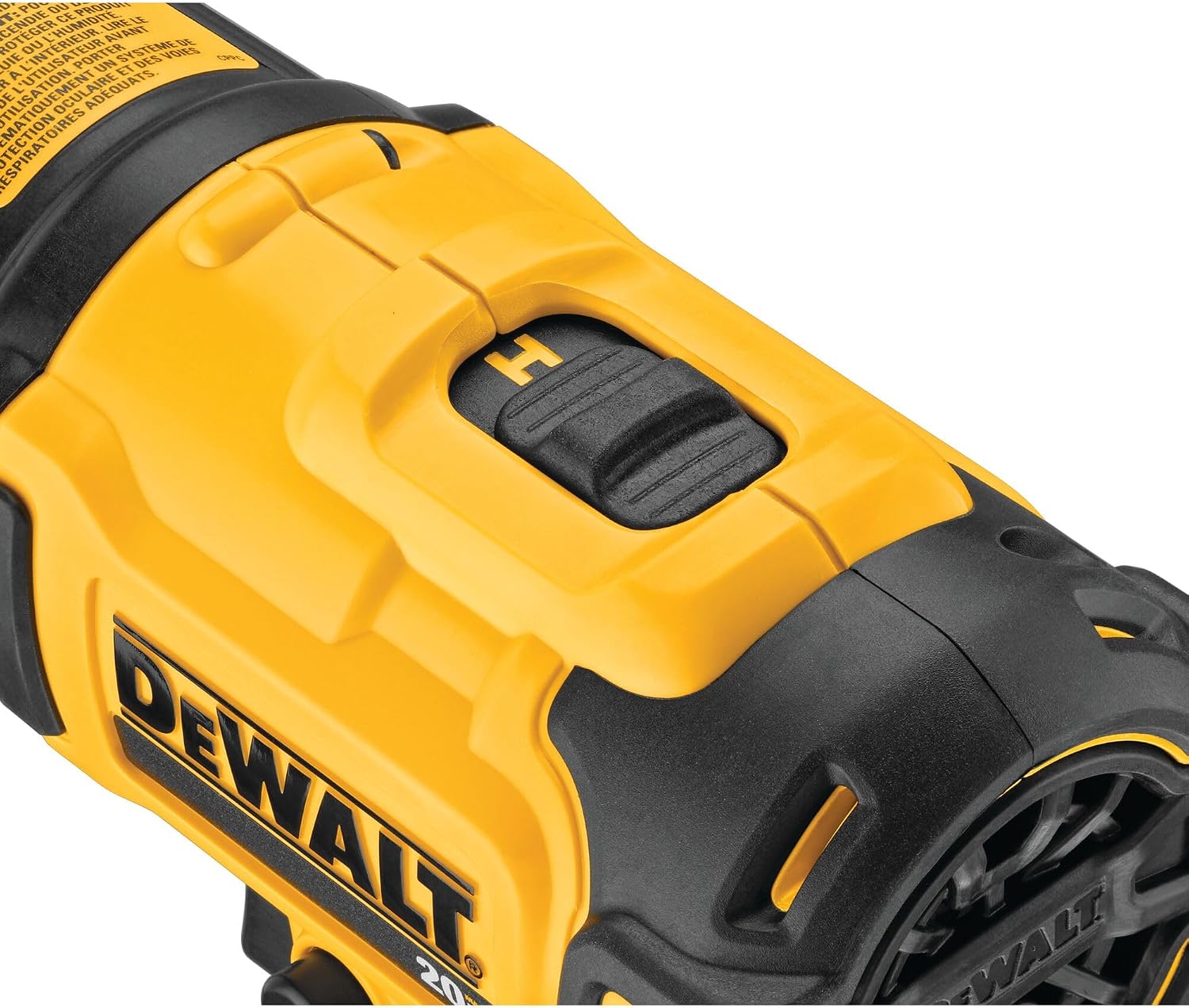

Figure 4: Location of the temperature selector switch.

5.3 Lock-On and Lock-Off Features

• Lock-On: For continuous operation without holding the trigger, press the lock-on button while the trigger is depressed. To disengage, press the trigger again.
• Bloqueo: The trigger can be locked in the off position to prevent accidental activation. Engage the lock-off trigger when the tool is not in use or during transport.

Figure 5: Location of the trigger and lock button.

5.4 Vídeo oficial do produto

Watch this official video from DEWALT for an overview of the 20V MAX Heat Gun:

6. Mantemento

• Limpeza: Regularly clean the tool's air vents and housing with a soft, damp pano. Non use produtos químicos agresivos ou produtos de limpeza abrasivos.
• Almacenamento: Store the heat gun in a dry, secure location out of reach of children. Ensure the tool is cool before storing.
• Coidado da batería: Refer to your DEWALT battery and charger manual for proper charging and storage procedures.

7 Solución de problemas

8. Especificacións

9. Garantía e soporte

Para obter información sobre a garantía e a atención ao cliente, consulte a páxina oficial de DEWALT website or the documentation included with your purchase. You can also find a PDF version of the user guide aquí.

DEWALT products are known for their durability and reliability. Should you encounter any issues, please contact DEWALT customer service for assistance.
