RESPAWN Fortnite Skull Trooper-V Gaming Chair User Manual

1. Información de seguridade

Please read all instructions carefully before assembling and using the chair. Retain this manual for future reference. Failure to follow these instructions may result in injury or damage to the product.

• Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or damaged.
• Assemble the chair on a soft, clean surface to prevent scratching.
• Non aperte demasiado os parafusos durante a montaxe, xa que isto podería danar as roscas ou os compoñentes.
• Manteña os nenos e as mascotas lonxe da zona de montaxe. As pezas pequenas poden supoñer un perigo de asfixia.
• Non te poñas de pé na cadeira. Úsaa só para sentarte.
• Capacidade de peso máxima: 275 libras (125 kg)Non excedas este límite.
• Regularly check all bolts and screws to ensure they remain tight.

2. Contido do paquete

Verifique que todos os seguintes compoñentes estean incluídos no seu paquete:

• Montaxe de respaldo
• Seat Assembly with Armrests
• Base de estrelas
• Rodas (5 pezas)
• Cilindro de elevación de gas
• Tapa elevadora de gas
• Placa de mecanismo
• Paquete de ferramentas (parafusos, arandelas, chave Allen)

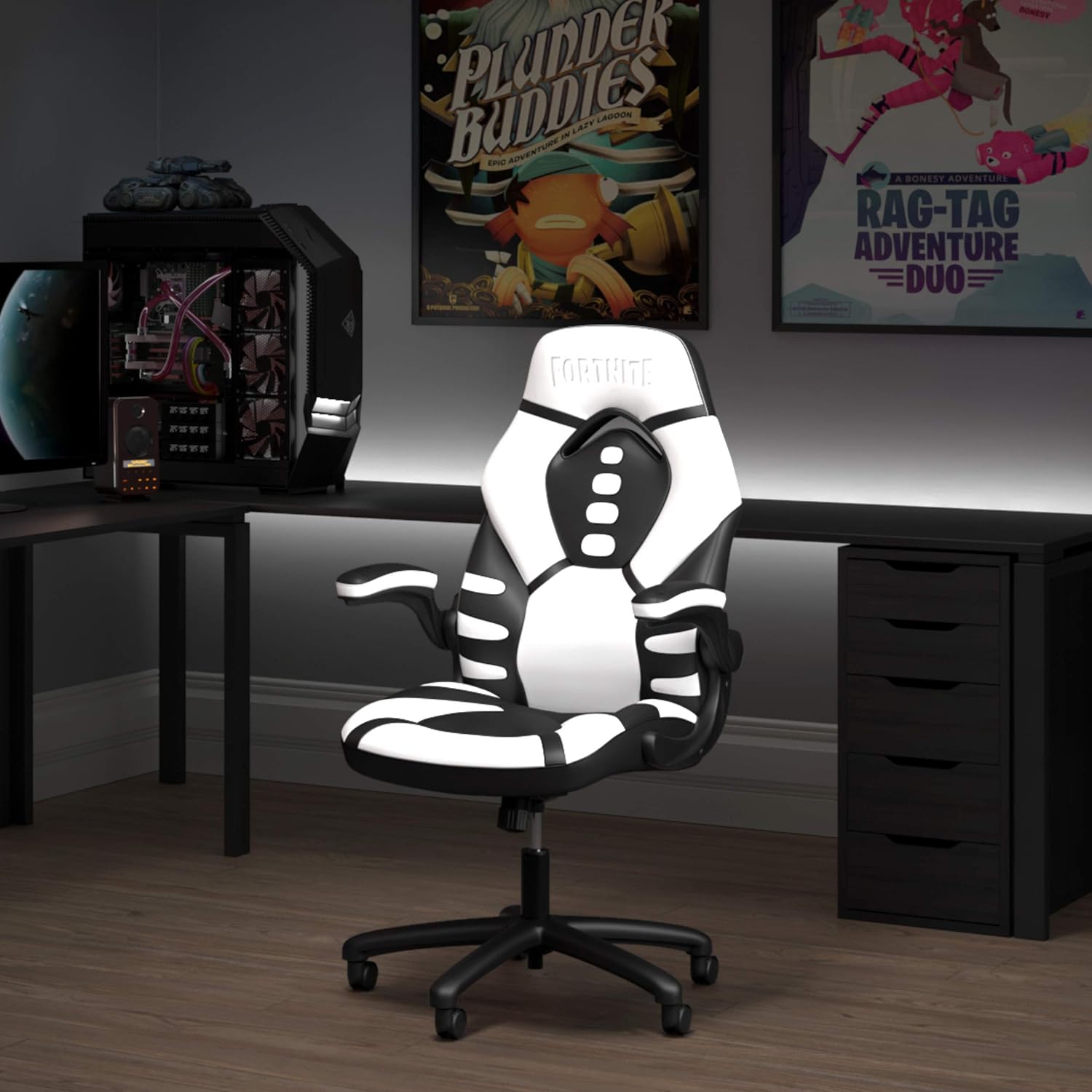

Figure 1: Fully assembled RESPAWN Fortnite Skull Trooper-V Gaming Chair.

3. Instrucións de montaxe

Follow these steps to assemble your gaming chair. It is recommended to have a second person assist with certain steps.

Paso 1: Fixar as rodas á base en forma de estrela

Insert each of the five casters into the holes at the end of the star base. Push firmly until they click into place.

Figure 2: Underside of the chair base, showing caster attachment points.

Paso 2: Instalar o elevador de gas

Place the gas lift cylinder into the center hole of the star base. Cover the gas lift with the gas lift cover.

Paso 3: Fixar a placa do mecanismo ao asento

Align the mechanism plate with the pre-drilled holes on the underside of the seat assembly. Secure it using the provided screws and Allen wrench. Ensure the front of the mechanism plate faces the front of the seat.

Paso 4: Conectar o asento ao elevador de gas

Carefully place the assembled seat onto the gas lift cylinder, ensuring the tapered end of the gas lift fits securely into the mechanism plate.

Step 5: Attach Backrest to Seat

Align the backrest with the mounting brackets on the seat assembly. Secure it using the remaining screws. It may be easier to attach the arms to the backrest first, then attach the backrest to the seat, as suggested by some users.

Figura 3: Fronte view of the chair, highlighting the backrest and seat connection.

4. Instrucións de funcionamento

Your RESPAWN Fortnite Skull Trooper-V Gaming Chair offers several adjustable features for personalized comfort.

4.1. Axuste de altura do asento

To adjust the seat height, pull the lever located on the right side of the seat upwards. While holding the lever, stand up to raise the seat or remain seated and apply pressure to lower it. Release the lever to lock the height.

Figura 4: Lateral view illustrating the location of the height adjustment lever.

4.2. Bloqueo de inclinación e control de tensión

The same lever used for height adjustment can also lock or unlock the chair's tilt function. Push the lever inwards to lock the chair in an upright position, or pull it outwards to allow the chair to recline. The tilt tension knob, located underneath the seat at the front, can be rotated to adjust the resistance of the tilt mechanism. Turn clockwise to increase tension, counter-clockwise to decrease.

4.3. Flip-Up Padded Armrests

The armrests can be flipped up to allow for uninhibited movement or to push the chair closer to a desk. Simply lift the armrests upwards until they lock into the vertical position. To lower them, pull them down until they click into place.

Figure 5: Detail of the padded armrest, featuring the Skull Trooper emblem.

4.4. Xiro de 360 ​​graos

The chair is designed with a 360-degree swivel function, allowing for dynamic movement and easy access to different areas around your workspace without needing to reposition the entire chair.

5. Mantemento

Un coidado e mantemento axeitados prolongarán a vida útil da túa cadeira de xogos.

• Limpeza: Limpe as superficies cun suave, damp cloth. For bonded leather, use a mild leather cleaner if necessary. Avoid harsh chemicals or abrasive cleaners.
• Inspección: Periodically check all bolts, screws, and connections to ensure they are tight. Retighten as needed.
• Evite a luz solar directa: A exposición prolongada á luz solar directa pode provocar que o material se destiña ou se rache.
• Límite de peso: Non exceda a capacidade de peso máxima de 275 lb (125 kg).

6 Solución de problemas

Consulta a táboa seguinte para ver os problemas comúns e as súas solucións.

7. Especificacións

8. Garantía e soporte

8.1. Garantía limitada de por vida

The RESPAWN Fortnite Skull Trooper-V Gaming Chair is covered by a RESPAWN Limited Lifetime Warranty. This warranty covers the gaming chair for users up to 275 lbs (125 kg) against defects in material and workmanship. For full details on warranty coverage, terms, and conditions, please refer to the official RESPAWN websitio ou póñase en contacto co servizo de atención ao cliente.

8.2. Atención ao cliente

For assistance with assembly, parts, troubleshooting, or warranty claims, please contact RESPAWN customer support. You can find contact information on the official RESPAWN websitio:

Visit RESPAWN Support Websitio

Please have your model number (TROOPER-01) and proof of purchase ready when contacting support.
