Garosa TPA3116D2 XH M641 Audio AmpManual de usuario da tarxeta máis vivo

1. Introdución

This manual provides essential information for the safe and effective use of the Garosa TPA3116D2 XH M641 Audio Amplifier Board. This Class D digital power amplifier board features a TPA3116D2 chip, offering dual-channel stereo output with 150W per channel. It is designed for various audio applications, including mobile phones, computers, and home theater systems. Please read this manual thoroughly before installation and operation.

2. Información de seguridade

• Fonte de alimentación: Asegúrese de que a fonte de alimentación voltage is within the specified range of DC 12V-24V. Using an incorrect voltagPodemos danar a placa.
• Polaridade: Always observe correct polarity when connecting the power supply. Incorrect polarity will cause damage.
• Impedancia do altofalante: Connect speakers with appropriate impedance ratings to prevent damage to the amplifier ou altofalantes.
• Ventilación: Garantir unha ventilación adecuada ao redor amplifier board to prevent overheating, especially during prolonged operation at high power.
• Manexo: Avoid touching components on the board while it is powered on. Static electricity can damage sensitive electronic components.
• Ambiente: Do not expose the board to moisture, dust, or extreme temperatures.

3. Produto rematadoview

The Garosa TPA3116D2 XH M641 is a high-efficiency Class D digital amplifier board. It features a TPA3116D2 chip, providing robust stereo audio output. The board includes pre-amplifier and bass frequency processing, with dedicated bass volume control.

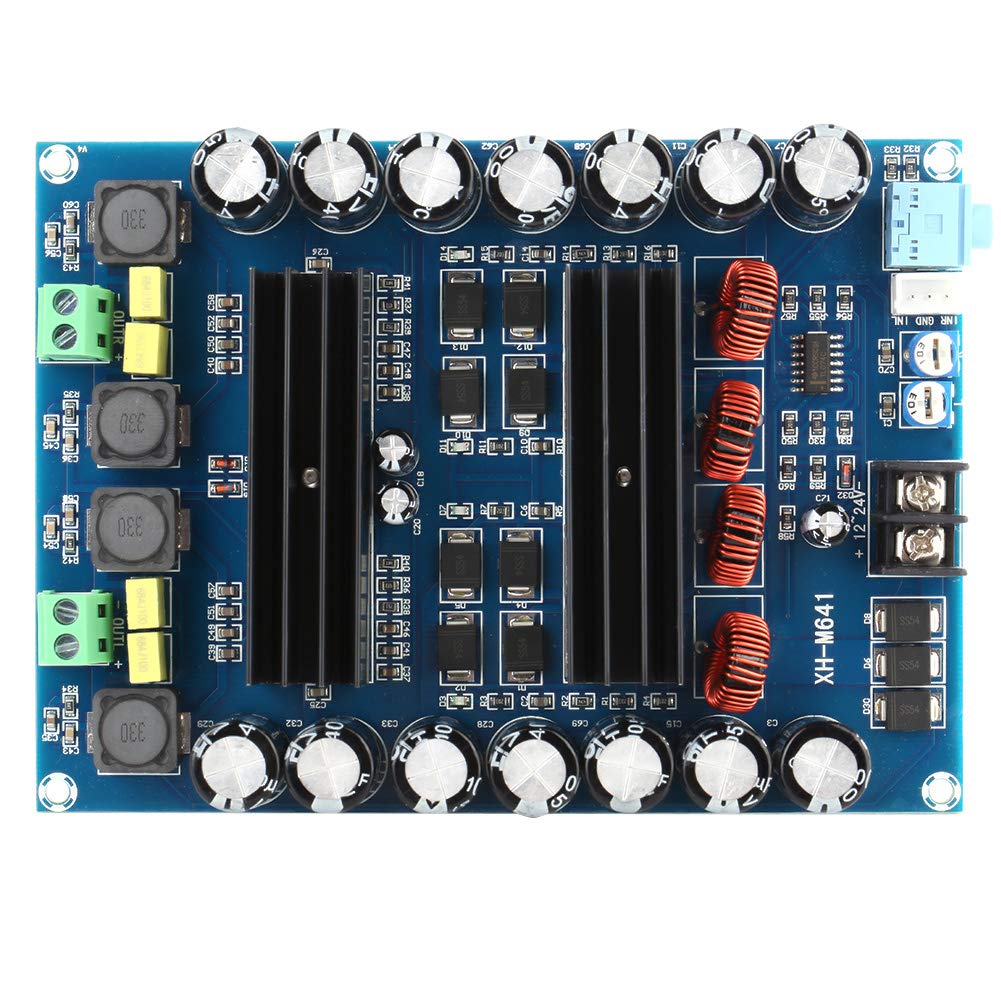

Figura 3.1: Arriba view of the Garosa TPA3116D2 XH M641 amplifier board, showing main components including heat sinks, capacitors, and input/output terminals.

Características principais:

• Ampchip lifier: TPA3116D2
• Canles: Dual Channel Stereo
• Potencia de saída: 150W + 150W
• Vol. De entradatage: DC 12V-24V
• Eficiencia: Ata o 96%
• Protección: Short-circuit and over-heat protection
• Material: Double-sided PCB for enhanced reliability

Figura 3.2: Abaixo view da amplifier board, illustrating the double-sided PCB construction for improved quality and reliability.

4. Instrucións de configuración

Siga estes pasos para configurar o seu amplifier board:

4.1. Conexión de alimentación

1. Identify the DC power input terminals on the board, typically marked '+12-24V' and 'GND'.
2. Connect a DC power supply (12V-24V) to these terminals. Ensure correct polarity: positive to '+12-24V' and negative to 'GND'.
3. It is recommended to use a power supply capable of delivering sufficient current (e.g., 13.02 Amps as per specifications) for optimal performance, especially at higher volumes.

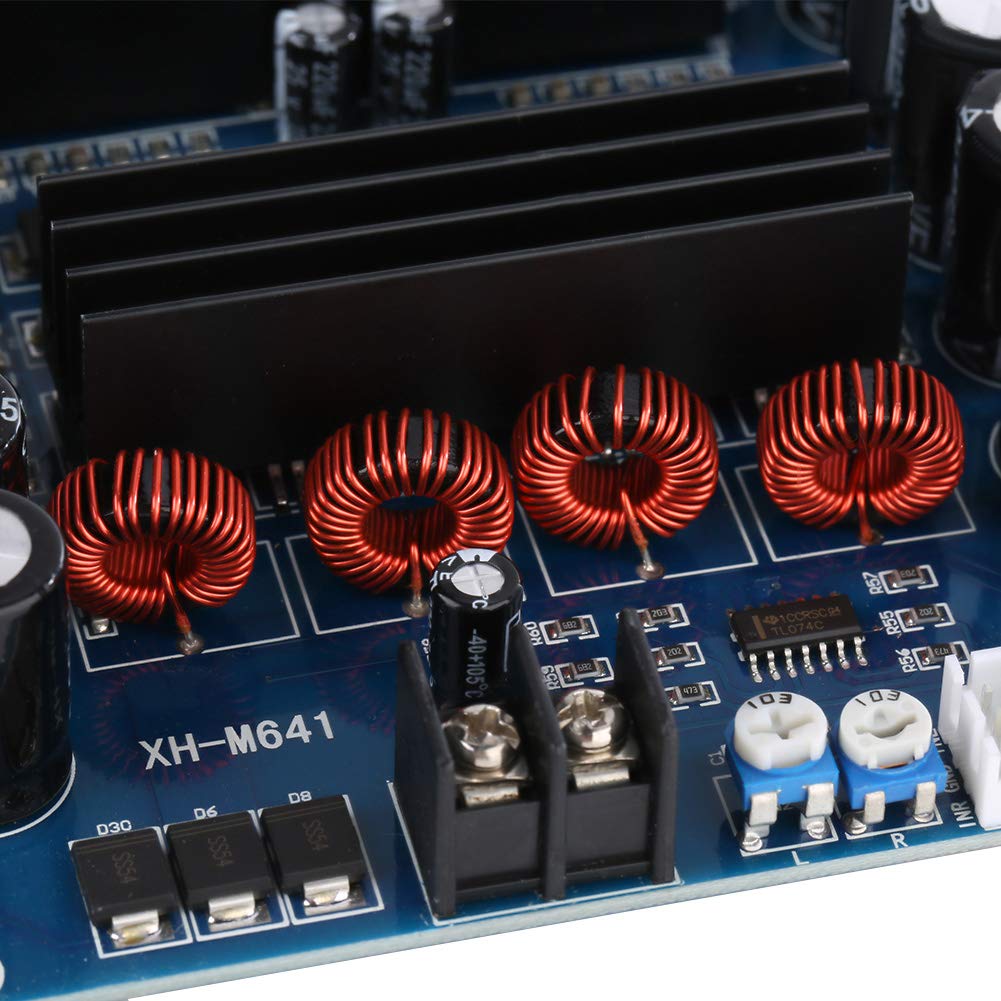

Imaxe 4.1: Primeiro plano view of the DC power input terminals, showing where to connect the 12V-24V power supply.

4.2. Conexión de entrada de audio

1. Locate the audio input jack (typically a 3.5mm stereo jack or screw terminals for L/R/GND).
2. Connect your audio source (e.g., mobile phone, computer, MP3 player) to the audio input using an appropriate cable.

Figure 4.2: Detail of the audio input jack and the bass and volume potentiometers.

4.3. Conexión de saída do altofalante

1. Identify the speaker output terminals, usually marked 'OUT L+' 'OUT L-' for the left channel and 'OUT R+' 'OUT R-' for the right channel.
2. Connect your passive speakers to these terminals. Ensure correct polarity for each speaker (positive to '+' and negative to '-').
3. Verify that speaker impedance is compatible with the amplifier (typically 4-8 ohms).

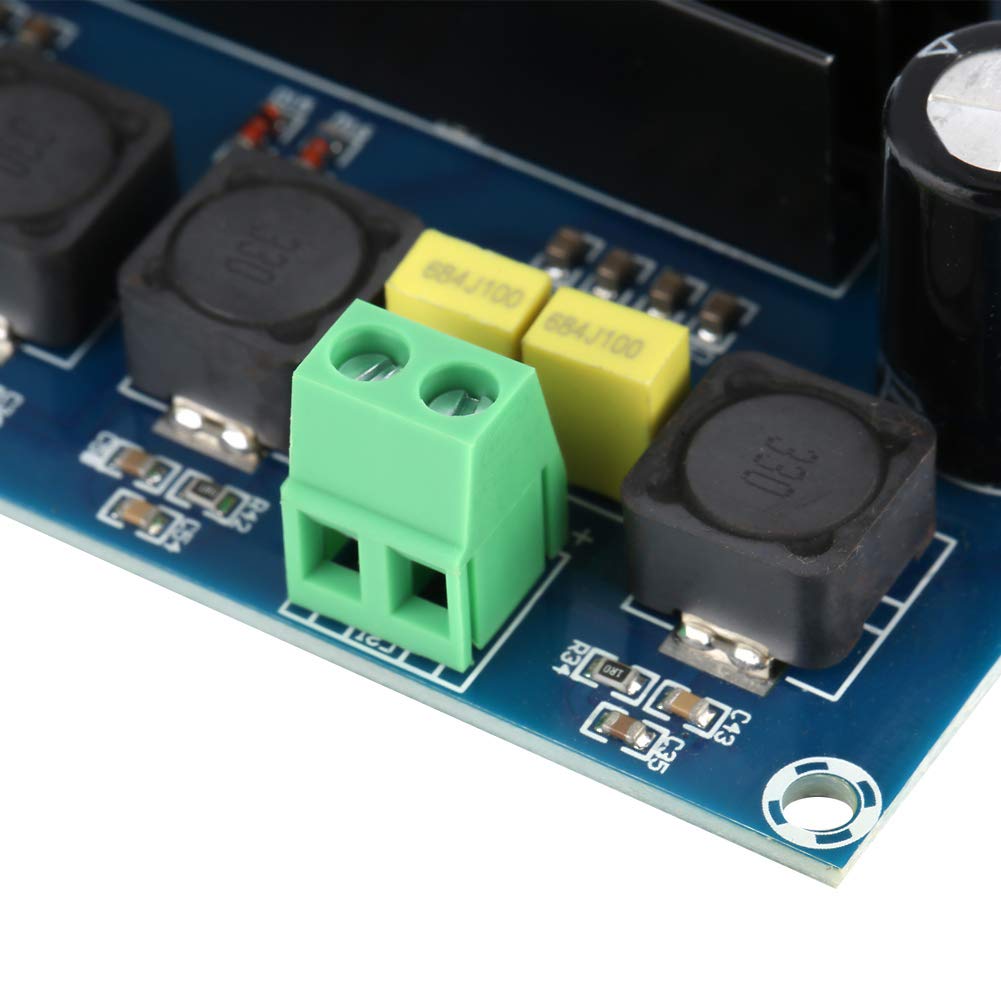

Figure 4.3: Detail of the speaker output terminals for connecting left and right channel speakers.

5. Instrucións de funcionamento

Once all connections are securely made:

1. Encendido: Aplique enerxía ao amplifier board. An indicator LED may illuminate to confirm power.
2. Control de volume: Adjust the main volume potentiometer to your desired listening level.
3. Control de graves: Use the bass volume potentiometer to adjust the low-frequency output according to your preference.
4. Reprodución de audio: Start playing audio from your connected source.
5. Apagado: Desconecte a fonte de alimentación cando non estea en uso.

6. Mantemento

Para garantir a lonxevidade e o rendemento óptimo do seu amplifier board:

• Limpeza: Keep the board clean and free from dust. Use a soft, dry brush or compressed air to remove dust. Do not use liquid cleaners.
• Inspección: Periodically inspect all connections for looseness or corrosion.
• Almacenamento: If storing the board for an extended period, keep it in a dry, cool environment, away from direct sunlight and extreme temperatures.
• Evitar a sobrecarga: Do not continuously operate the amplifier at maximum volume, especially with inadequate power supply, as this can lead to overheating and premature component failure.

7 Solución de problemas

Se tes problemas co teu amplifier board, refer to the following table:

8. Especificacións

9. Garantía e soporte

This product is manufactured by Garosa. For specific warranty information or technical support, please refer to the retailer or manufacturer's official websitio. Garde o recibo da compra como xustificante da mesma.
