ARyee 18V 6.0Ah Replacement Lithium-Ion Battery User Manual

1. Produto rematadoview

This manual provides essential information for the safe and effective use of your ARyee 18V 6.0Ah Replacement Lithium-Ion Battery. This high-capacity battery is designed to provide long-lasting performance for your compatible Ryobi 18V ONE+ system cordless tools. It features built-in protections for enhanced safety and durability.

Figure 1: ARyee 18V 6.0Ah Replacement Lithium-Ion Battery

2. Configuración e compatibilidade

The ARyee 18V 6.0Ah battery is designed for seamless integration with a wide range of Ryobi 18V ONE+ cordless tools.

2.1 Cargo inicial

Before first use, fully charge the battery using a compatible Ryobi 18V charger. Ensure the charger is clean and free of debris.

2.2 Instalación da batería

1. Align the battery with the battery port on your Ryobi 18V ONE+ tool.
2. Deslice a batería firmemente no seu lugar ata que faga clic, o que indica que está ben bloqueada.
3. To remove, press the release button (typically located on the top or sides of the battery) and slide the battery out.

2.3 Modelos compatibles

This battery is a direct replacement for Ryobi 18V battery models including P102, P103, P104, P105, P107, P108, P109, P190, P100, P122, P191. It also fits a broad range of Ryobi 18V tools such as CCD-1801, CCG-1801M, CCG-180L, CCS-1801/DM, CCS-1801/LM, CCS-1801D, CCS-1801LM, CCW-180L, P200, P2000, P2002, P201, P203, P204, P206, P2060, P208B, P210, P221, P230, P234G, P236, P240, P2400, P241, P246, P250, P2500, P310, P3200, P3300, P3310, P521, P522, P530, P540, P570, P600, P715, P716, P730, P731, P740, P741, P780, P813, P835, and many others within the Ryobi 18V ONE+ system.

Figure 2: Broad compatibility with Ryobi 18V ONE+ tools.

3. Instrucións de funcionamento

3.1 Powering Your Tool

Once the battery is securely installed, your Ryobi 18V ONE+ tool is ready for operation. Refer to your specific tool's manual for detailed operating instructions.

3.2 luces indicadoras de batería

The battery features a 4-LED indicator system that allows you to monitor the remaining charge. Press the indicator button to illuminate the LEDs.

• 4 LEDs iluminados: Full charge (75-100%)
• 3 LEDs iluminados: High charge (50-75%)
• 2 LEDs iluminados: Medium charge (25-50%)
• 1 LED iluminado: Low charge (0-25%), recharge soon

Figure 3: Key features including LED indicator lights for charge status.

3.3 Vídeo de demostración do produto

4. Mantemento e almacenamento

4.1 Carga

Always use a genuine Ryobi 18V charger or a compatible charger specifically designed for Ryobi 18V Lithium-Ion batteries. Avoid using damaged chargers or attempting to charge non-rechargeable batteries.

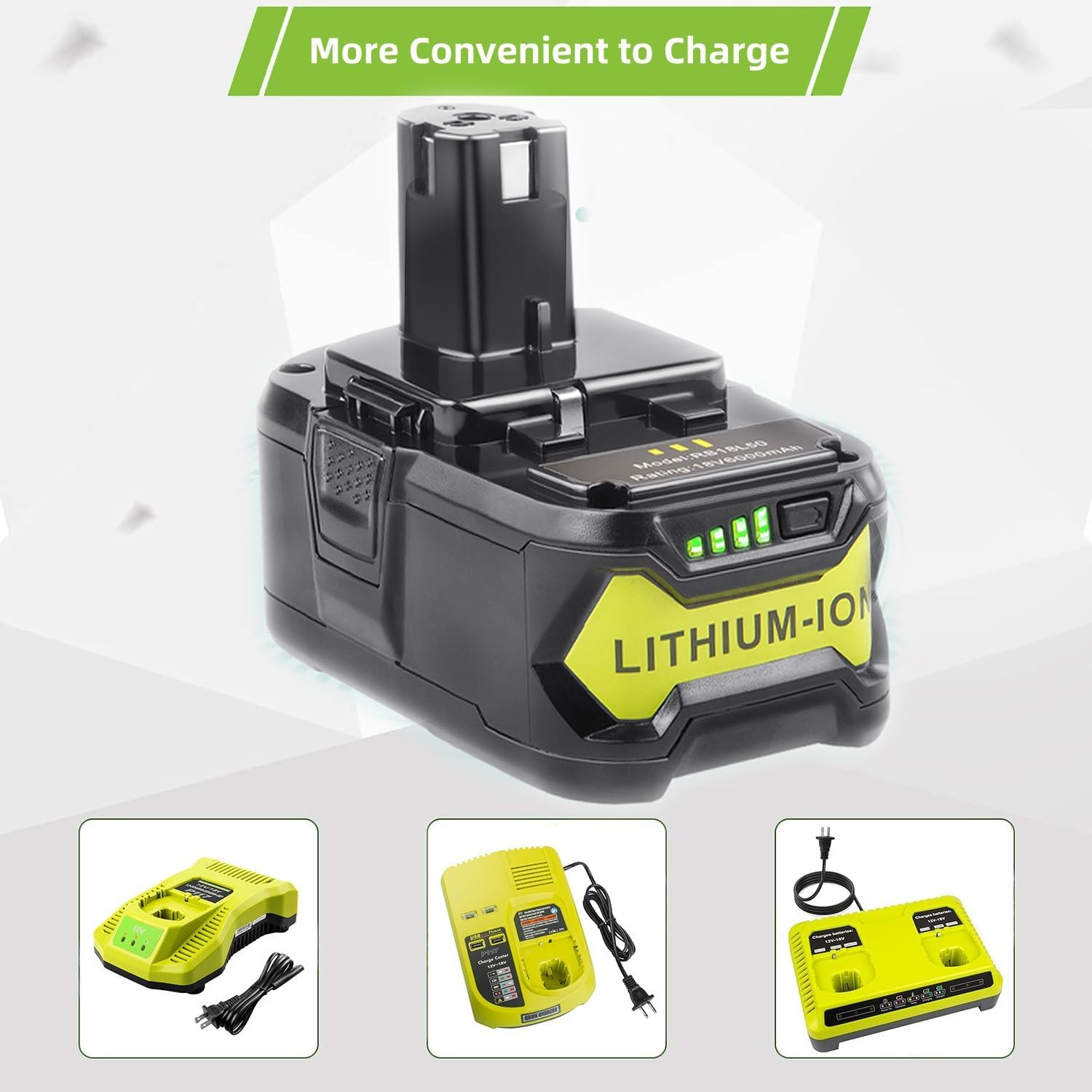

Figure 4: The battery is compatible with various Ryobi 18V chargers.

4.2 Almacenamento

• Almacene as baterías nun lugar fresco e seco lonxe da luz solar directa e de temperaturas extremas.
• Para o almacenamento a longo prazo, cargue a batería ata aproximadamente o 50 % da súa capacidade.
• Avoid storing batteries in a completely discharged state, as this can lead to irreversible damage.
• Keep batteries away from metal objects that could short-circuit the terminals.

4.3 Limpeza

Periodically clean the battery terminals with a dry cloth to ensure good electrical contact. Do not use liquids or solvents.

5 Solución de problemas

• A batería non se carga: Ensure the battery is fully seated in the charger. Check if the charger is plugged in and receiving power. Verify the charger is compatible with Ryobi 18V Lithium-Ion batteries.
• Ferramenta non funciona: Ensure the battery is fully charged and properly installed in the tool. Check the tool itself for any malfunctions.
• Reduced run time: Over time, all batteries experience some capacity degradation. Ensure the battery is fully charged before use. Extreme temperatures can also affect performance.
• Battery feels hot during charging/use: Some heat is normal. However, excessive heat may indicate an issue. Discontinue use and charging if the battery becomes unusually hot. The battery has built-in protections against over-heating.

This battery is equipped with multiple protection features including protection against overcharging, over-discharge, over-current, short-circuit, and steady voltage circuit to ensure safe operation.

Figure 5: Built-in protection features for reliable quality.

6. Especificacións

7. Información de seguridade

Lithium-ion batteries are powerful and require careful handling to prevent injury or damage.

• Do not disassemble, open, or shred battery packs.
• Non expoña as baterías á calor nin ao lume. Evite o almacenamento baixo a luz solar directa.
• Non cortocircuite unha batería. Non garde os paquetes de baterías ao azar nunha caixa ou caixón onde poidan producirse curtocircuítos entre si ou por outros obxectos metálicos.
• Non someta as baterías a golpes mecánicos.
• En caso de fuga dunha batería, non permita que o líquido entre en contacto coa pel ou os ollos. En caso de contacto, lave a zona afectada con abundante auga e consulte un médico.
• Manteña as baterías limpas e secas.
• Recarga só co cargador especificado polo fabricante.
• Non utilice ningún cargador que non sexa o especificamente proporcionado para o seu uso co equipo.
• Non utilice ningunha batería que non estea deseñada para o seu uso co equipo.
• Manteña as baterías fóra do alcance dos nenos.
• Busque atención médica inmediatamente se se tragou unha pila ou unha batería.
• Dispose of properly according to local regulations. Do not dispose of with household waste.

8. Garantía e soporte

ARyee is committed to providing high-performance products. All ARyee batteries undergo rigorous testing by the manufacturer to meet and exceed OEM product specifications. This product has successfully passed CE, RoHS, and FCC certifications, ensuring compliance with international safety and quality standards.

For specific warranty details, technical support, or inquiries, please contact ARyee customer service through their official channels or visit the ARyee Store on Amazon.
