1. Produto rematadoview
The Eastman EZ-FLO 70601 Nevercold Under Sink Hot Water Recirculating Pump is designed to provide hot water at your faucet without extended waiting times. This system circulates hot water through your existing plumbing, ensuring hot water is readily available when needed. It features a patented design for under-sink operation and includes a built-in programmable timer for efficient use.
This recirculating pump is intended for use in homes with standard single-pipe plumbing systems up to 250 feet. It is not suitable for use with tankless water heaters.

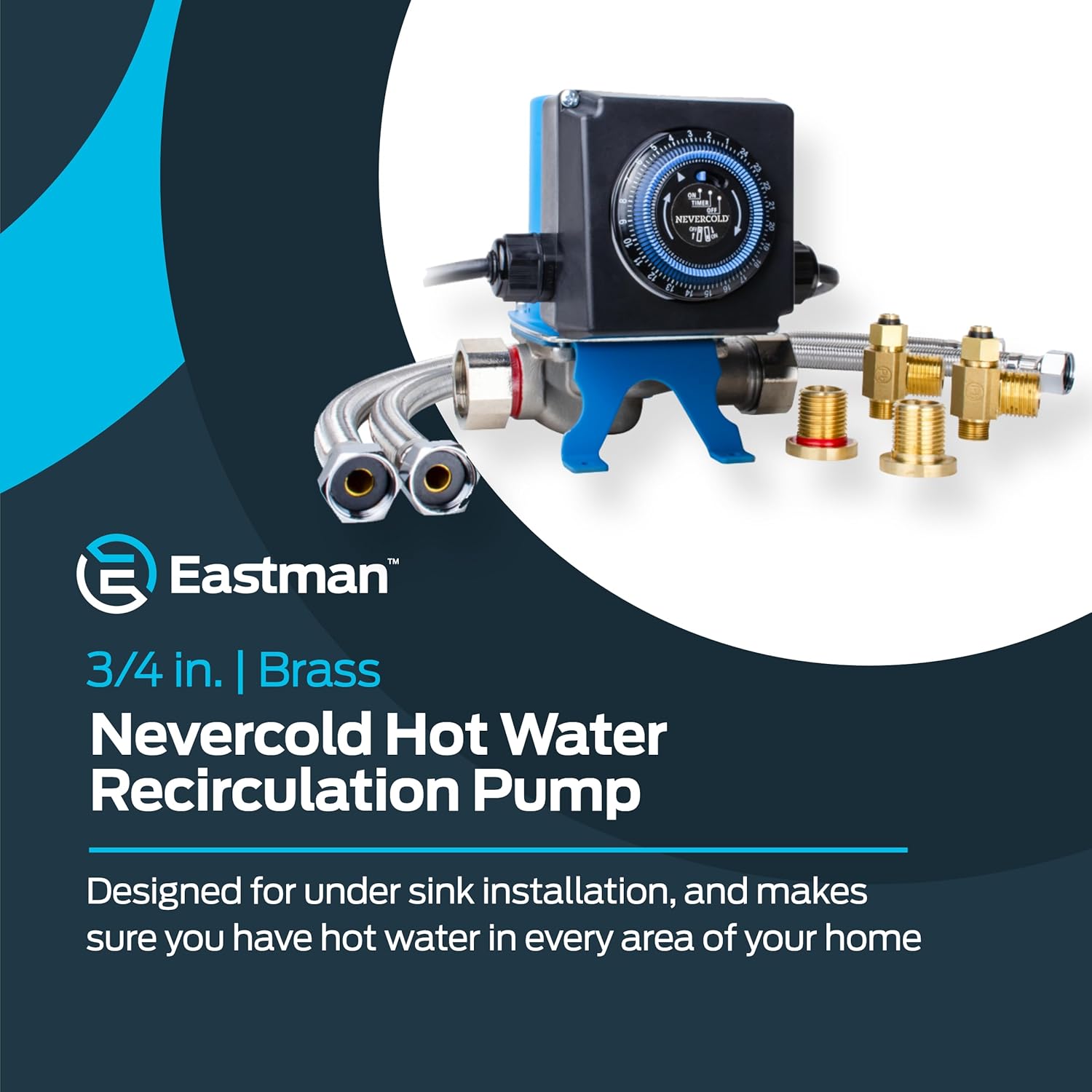

Image 1.1: The EZ-FLO 70601 Nevercold Under Sink Hot Water Recirculating Pump and included fittings.
2. Información de seguridade
- Lea atentamente todas as instrucións antes da instalación e operación.
- Ensure the electrical supply is disconnected before performing any installation or maintenance.
- An electrical outlet at the sink is required for installation. Ensure the outlet is properly grounded.
- Non faga funcionar a bomba se o cable de alimentación ou a ficha están danados.
- Este produto está deseñado só para uso en interiores.
- Do not use this pump with tankless water heaters.
- Consult a qualified plumber or electrician if you are unsure about any part of the installation process.
3. Contido do paquete
Comprobe que todos os compoñentes estean presentes antes de comezar a instalación:
- 1x Stainless Recirculating Pump with pre-wired 10 ft power cord
- 2x 3/4 inch NPT Male Threaded Stainless Steel Flanges
- 2x Flange Gaskets
- 2x Flex Hoses (3/4 inch NPT x 3/4 inch NPT, 24 inch long)
- 2x Tees (1/2 inch Compression x 3/4 inch NPT x 1/2 inch Compression)
Image 3.1: All components included in the EZ-FLO 70601 Nevercold Recirculating Pump kit.
4. Instalación
The EZ-FLO 70601 Nevercold pump is designed for under-sink installation. Proper installation requires a standard single-pipe plumbing system and an accessible electrical outlet under the sink.
4.1 Comprobacións previas á instalación
- Confirm your home has a standard single-pipe plumbing system.
- Ensure an electrical outlet is available under the sink where the pump will be installed.
- Turn off the main water supply and drain the hot and cold water lines at the installation point.
4.2 Pasos da instalación
- Mount the recirculating pump securely under the sink. Ensure it is positioned to allow for hose connections and access to the timer.
- Connect the provided flex hoses to the hot and cold water supply lines under the sink using the included tees and flanges. Follow local plumbing codes.
- Connect the pump to the flex hoses. Ensure all connections are tight to prevent leaks.
- Slowly turn on the main water supply and check for any leaks. Tighten connections as necessary.
- Plug the pump's power cord into the grounded electrical outlet.
Image 4.1: Diagram illustrating the under-sink installation of the recirculating pump.
Image 4.2: Schematic of a typical hot water recirculation system with the pump installed at the furthest point from the water heater.
5. Configuración e funcionamento
The Nevercold recirculating pump is equipped with a built-in programmable timer and an aquastat (temperature sensor) to manage hot water circulation.
5.1 Axuste do temporizador programable
The integrated timer allows you to set specific periods during the day when the pump will activate. This ensures hot water is available during peak demand times, such as mornings and evenings, without continuous operation.
- Refer to the timer's specific instructions for setting the desired on/off cycles.
- Typically, you will push in segments on the timer dial corresponding to the hours you want the pump to operate.
- Ensure the current time is correctly set on the timer for accurate scheduling.
Image 5.1: Detail of the programmable timer on the recirculating pump.
5.2 Funcionamento automático
When the pump is activated (either by the timer or manually), it circulates water until the aquastat detects that the water temperature has reached a set hot temperature. Once the desired temperature is achieved, the pump automatically shuts off, conserving energy.
6. Mantemento
Regular maintenance ensures the longevity and efficient operation of your recirculating pump.
6.1 Flushing for Maintenance
The system is designed for easy flushing when maintenance or replacement is necessary. Consult a qualified plumber for detailed flushing procedures, which typically involve isolating the pump, draining the lines, and flushing with appropriate solutions if scale buildup is a concern.
6.2 Limpeza
Periodically inspect the pump and connections for any signs of leaks or corrosion. Clean the exterior of the pump with a damp cloth as needed. Do not use abrasive cleaners.
7 Solución de problemas
If you encounter issues with your Nevercold recirculating pump, refer to the following common troubleshooting steps:
- A bomba non funciona:
- Check if the pump is properly plugged into a working electrical outlet.
- Verify the timer settings. Ensure the pump is scheduled to run at the current time.
- Check for tripped circuit breakers.
- No Hot Water / Water Not Hot Enough:
- Ensure the water heater is functioning correctly and set to an adequate temperature.
- Confirm the pump is running during the desired times.
- Check if the aquastat sensor is properly installed and functioning.
- Verify that the system is not being used with a tankless water heater, as this pump is not compatible.
- Fugas:
- Immediately turn off the water supply and disconnect power to the pump.
- Inspect all connections for tightness. Use plumber's tape or pipe sealant on threaded connections if necessary.
- Check hoses for damage or improper seating.
If problems persist after attempting these steps, contact customer support or a qualified professional.
8. Especificacións
| Número de modelo | 70601 |
| Fabricante | EZ-FLO |
| Marca | Eastman |
| Material | Aceiro inoxidable |
| Fonte de enerxía | Eléctrico con cable |
| Peso do elemento | 907 g (aprox. 2 libras) |
| Dimensións do produto (L x W x H) | 20.02 x 20.96 x 22.86 cm (7.88 x 8.25 x 9 polgadas) |
| Plumbing System Compatibility | Standard single-pipe plumbing systems up to 250 ft. Not for use with tankless water heaters. |
| Certificacións | Meets California Title 24 on-call requirements |
| UPC | 091712028499 |
Image 8.1: The EZ-FLO 70601 pump is certified to meet California Title 24 on-call requirements.
9. Garantía e soporte
Para obter información sobre a garantía ou asistencia técnica, consulte o sitio web oficial do fabricante websitio web ou póñase en contacto co seu departamento de atención ao cliente. Garde o recibo da compra como proba de compra.
Manufacturer: EZ-FLO
Marca: Eastman
