Black Lion Audio PG-XLM Rackmount Power Conditioner

Introdución

The Black Lion Audio PG-XLM is a rackmount power conditioner designed to provide clean, well-regulated power and protection for your audio equipment. It incorporates advanced PG-90 Filtering Technology to safeguard your devices from power-spike damage and ensure optimal performance. This manual provides essential information for setting up, operating, and maintaining your PG-XLM unit.

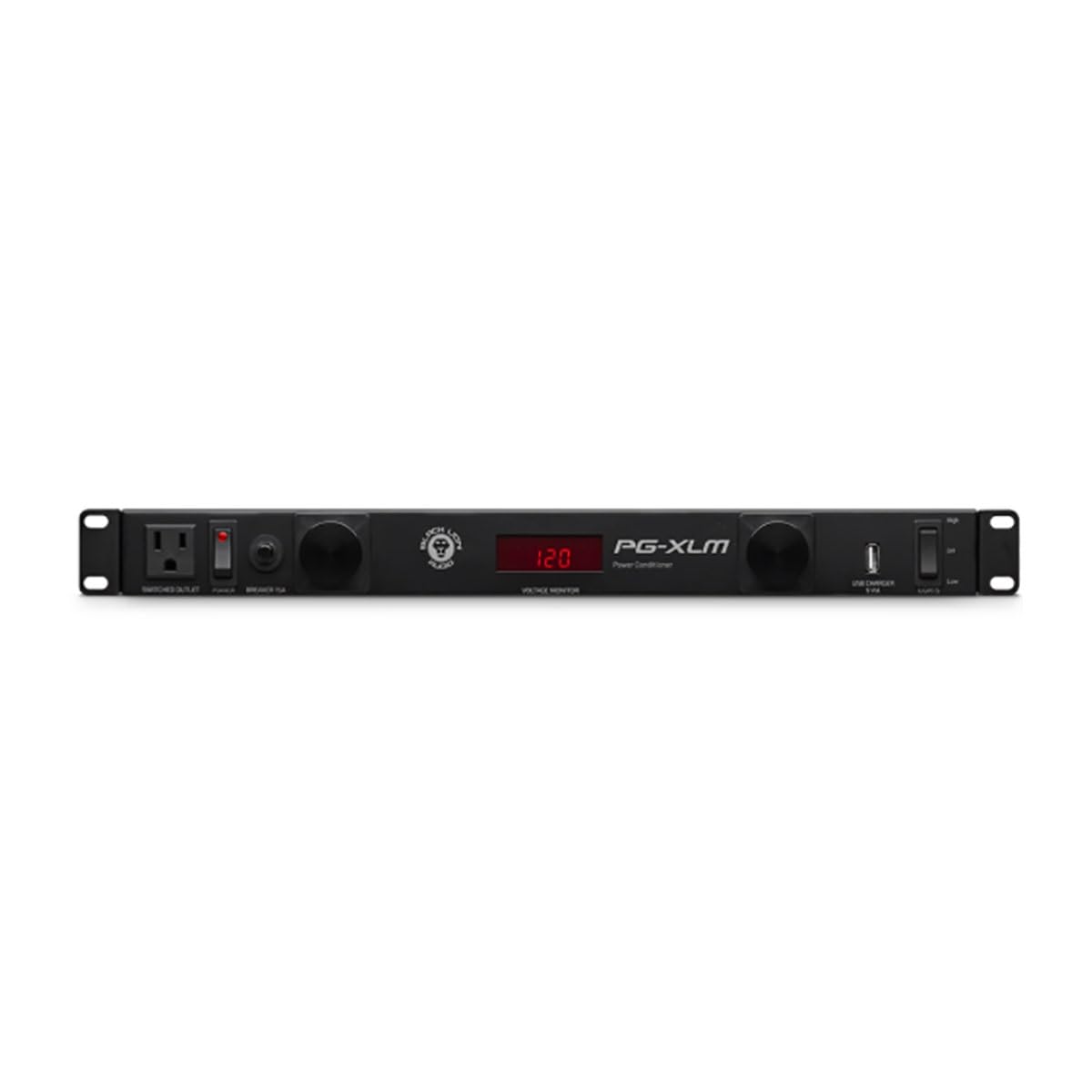

Imaxe: Fronte view of the Black Lion Audio PG-XLM Rackmount Power Conditioner, highlighting its PG-90 Filtering Technology.

Configuración

1. Desembalaxe: Carefully remove the PG-XLM from its packaging. Verify all components listed in the 'What's in the Box' section are present.
2. Montaxe: The PG-XLM is designed for 1U rackmount installation. Securely fasten the unit into a standard 19-inch equipment rack using appropriate rack screws.
3. Conexión de alimentación: Connect the attached power cable from the PG-XLM to a grounded AC outlet. Ensure the outlet provides the correct voltage (120V AC, 60Hz for North American models).
4. Equipo de conexión:
   • Rear Panel Outlets: Connect your studio equipment (e.g., audio interfaces, monitors, preamps) to the eight switched, filtered, and surge-protected outlets on the rear panel.
   • Front Panel Outlet: Use the one filtered convenience outlet on the front panel for temporary connections or devices requiring easy access.
   • Porto USB: The front panel USB port is for charging compatible devices (5V).

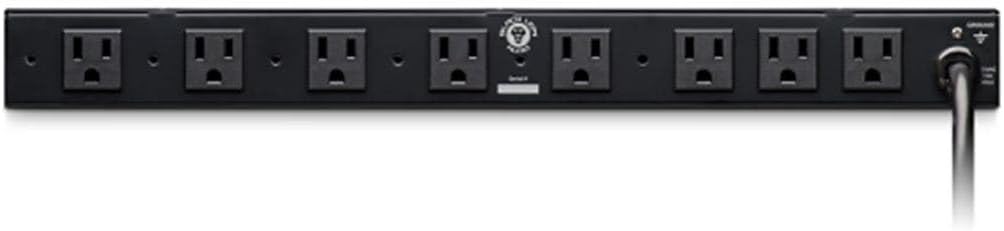

Imaxe: Traseira view of the Black Lion Audio PG-XLM, illustrating the eight switched and filtered power outlets.

Instrucións de funcionamento

1. Encendido/apagado: Use the main power switch on the front panel to turn the unit on or off.
2. Voltage Monitor: The digital LED display on the front panel shows the current AC voltage. This helps monitor the stability of your power supply.
3. Front Panel LED Lights: The two pull-out LED lights on the front panel provide rack illumination. Use the 3-way switch (off, low, high) to adjust their brightness as needed.
4. Carga USB: Connect your USB-powered devices to the front panel USB port for charging.
5. Interruptor: The PG-XLM features a 15A circuit breaker. If the unit overloads, the breaker will trip to protect connected equipment. Reset by pressing the button after reducing the load.

Image: Close-up of a pull-out LED light on the front panel of the PG-XLM, used for rack illumination.

Características

• Rackmount Power Conditioner with PG-90 Filtering Technology
• 2 Front-panel Pull-out LED Lights
• LED Voltage Pantalla do monitor
• Panasonic Wima Capacitors
• 8 Rear-panel Outlets
• 1 Front-panel Convenience Outlet
• Front-panel USB Charging Port

Mantemento

• Limpeza: Use a soft, dry cloth to clean the exterior of the unit. Avoid liquid cleaners or solvents.
• Ventilación: Asegúrese de que haxa unha ventilación axeitada arredor da unidade para evitar o sobrequecemento. Non bloquee as aberturas de ventilación.
• Xestión de cables Periodically check all power cables for damage or loose connections. Organize cables to prevent strain and tangling.
• Condicións ambientais: Operate the unit in a dry environment, away from excessive heat, moisture, or dust.

Resolución de problemas

• Sen enerxía: Check the main power switch, the power cable connection, and the circuit breaker on the unit. Also, verify the wall outlet is functioning.
• Protection Light On: If the 'Protection' indicator light is red, it signifies an extreme voltage event. The unit may have shut down to protect connected equipment. Disconnect all devices, reset the unit (if applicable), and check the power source before reconnecting.
• Ruído inusual: Ensure all connections are secure. If noise persists, try connecting the unit to a different circuit or consult a qualified technician.

Especificacións

Vídeo do produto

Video: An official product video from RAD Distribution showcasing the Black Lion Audio PG-P Portable Power Conditioner, demonstrating its features and filtering technology. While a portable model, it shares core brand technology relevant to the PG-XLM.

O que hai na caixa

• 1 x Black Lion Audio PG-XLM Rackmount Power Conditioner

Garantía e Soporte

The Black Lion Audio PG-XLM comes with a limited warranty. For detailed warranty information, product support, or service inquiries, please refer to the official Black Lion Audio websitio web ou póñase en contacto directamente co servizo de atención ao cliente. Garde o recibo de compra para reclamacións de garantía.
