RGB AC Plug-in LED Strip Lights User Manual

Introdución

This manual provides essential information for the safe and effective use of your RGB AC Plug-in LED Strip Lights. Designed for ease of use, these color-changing LED strips offer versatile lighting solutions for various indoor and outdoor applications. Please read this manual thoroughly before installation and operation, and retain it for future reference.

Información de seguridade

Para garantir un funcionamento seguro e evitar danos, observe as seguintes precaucións:

• Always ensure the power source matches the voltage requirements of the LED strip (120 Volts AC).
• Do not connect the LED strip to a power supply other than the one provided.
• Avoid bending the LED strip sharply, as this may damage the internal circuitry.
• Do not submerge the LED strip or its power cord in water, despite its waterproof rating. The IP65 rating protects against water jets, not submersion.
• Asegúrate de que todas as conexións estean seguras antes de conectalo a unha toma de corrente.
• Keep the LED strip and its components out of reach of children.
• Desconecte a alimentación antes de realizar calquera mantemento ou instalación.
• Do not cover the LED strip with materials that may impede heat dissipation during operation.

Contido do paquete

Verifica que todos os compoñentes estean presentes no teu paquete:

• Selected length of RGB AC Plug-in LED Strip (e.g., 3 ft.)
• Connected power cord with in-line DC rectifier and RGB Controller unit
• RGB IR Remote Control
• Mounting Clips with hardware (1 clip per 3-foot section)

Configuración e instalación

The RGB AC Plug-in LED Strip Lights are designed for simple plug-and-play installation.

1. Desembalar a tira de LED: Carefully uncoil the LED strip from its packaging.
2. Colocación do plan: Determine the desired location for your LED strip. Ensure the length is appropriate for the space. The strip can be cut every half meter (approximately 19.68 inches) at designated cut marks to fit your specific requirements.
3. Montaxe: Use the provided mounting clips and hardware to secure the LED strip in place. Distribute clips evenly along the length of the strip for stable installation.
4. Conectar á enerxía: The power cord with the in-line DC rectifier and RGB Controller unit is pre-attached to the LED strip. Simply plug the 2-prong plug into a standard 120V AC household receptacle.

Image: The RGB AC Plug-in LED Strip Light, showing the coiled strip, the attached LED controller, and the power plug. This illustrates the main components included for installation.

Instrucións de funcionamento

Control your LED strip lights using the included RGB IR Remote Control.

• Encendido/apagado: Preme o ON/OFF button on the remote to turn the lights on or off.
• Selección de cor: Use the color buttons on the remote to select from 20 different static colors.
• Modos dinámicos: Choose from 5 dynamic modes (e.g., flash, strobe, fade, smooth) to create various lighting effects. Refer to the remote's button labels for specific mode functions.
• Axuste de brillo: Usa o Brillo arriba / abaixo botóns para axustar a intensidade da luz.
• Rango de control remoto: For optimal performance, point the remote directly at the IR receiver on the controller unit. The remote may require close proximity to the receiver to function effectively.

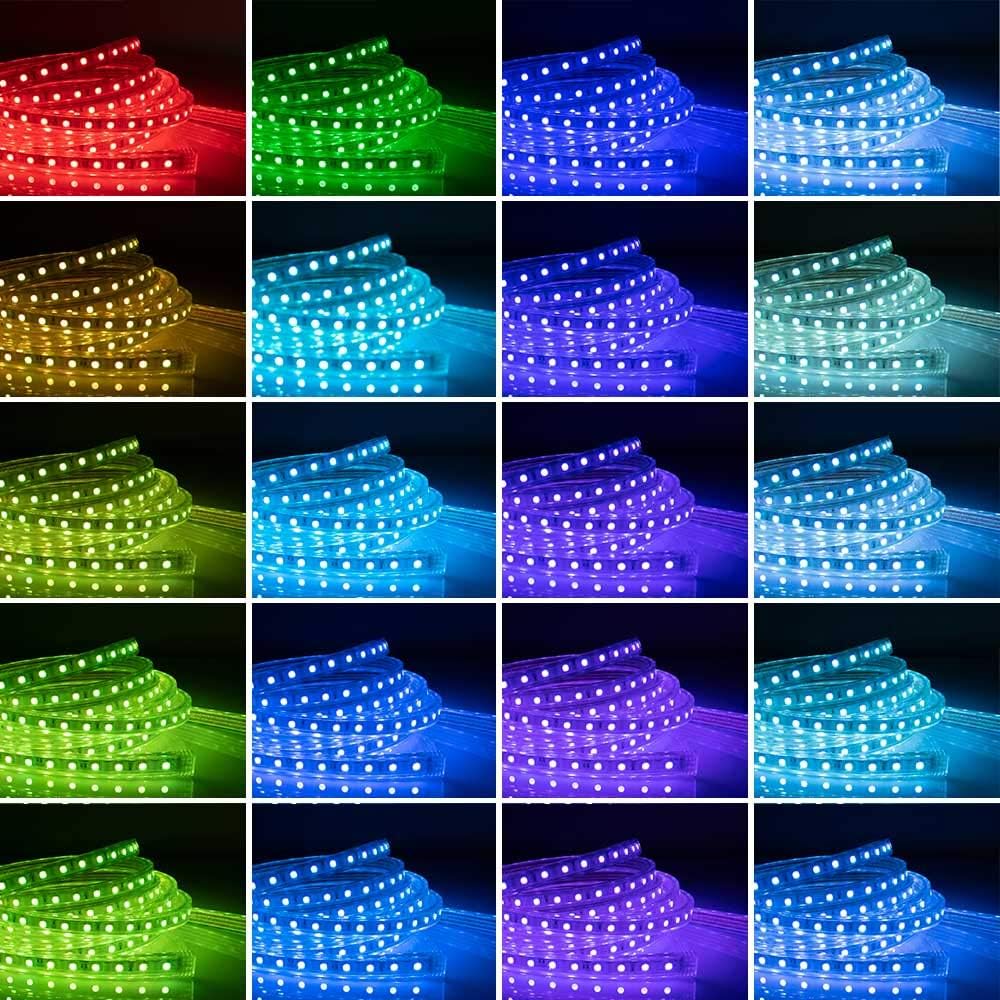

Image: A grid displaying the RGB LED strip lights illuminated in various colors, including red, green, blue, yellow, cyan, magenta, and different shades, demonstrating the product's multicolor capabilities.

Mantemento

The LED strip lights are designed for durability and require minimal maintenance.

• Limpeza: To clean the LED strip, ensure it is unplugged from the power source. Gently wipe the surface with a soft, dry or slightly damp pano. Non use produtos químicos agresivos ou produtos de limpeza abrasivos.
• Almacenamento: When not in use for extended periods, store the LED strip in a cool, dry place, away from direct sunlight and extreme temperatures. Coil it loosely to prevent damage.
• Durabilidade: The strip is encased in IP65 waterproof PVC with a UV inhibitor, providing protection against dust and water jets, and resistance to UV degradation.

Resolución de problemas

If you encounter issues with your LED strip lights, refer to the following common problems and solutions:

Especificacións

Garantía e Soporte

This product is manufactured by Generic. For warranty information, technical support, or assistance with product issues, please refer to the contact information provided with your purchase or visit the manufacturer's official websitio. Garde o comprobante de compra para calquera reclamación de garantía.
