1. Introdución
Thank you for choosing the Gridinlux Homely Tower Lux fan. This instruction manual provides essential information for the safe and efficient operation of your new tower fan. Please read this manual thoroughly before use and retain it for future reference.
The Gridinlux Homely Tower Lux is designed to provide instant freshness and continuous air movement, featuring a 45W motor, three speed settings, and a 75° oscillation function for wide air distribution.
2. Instrucións de seguridade importantes
Cando se utilicen aparellos eléctricos, débense seguir sempre as precaucións básicas de seguridade para reducir o risco de incendios, descargas eléctricas e lesións ás persoas, incluíndo as seguintes:
- Lea todas as instrucións antes de usar este ventilador.
- Asegurar o voltagO valor indicado na etiqueta de clasificación corresponde ao volume da túa rede eléctricatage.
- Non faga funcionar ningún ventilador cun cable ou enchufe danados. Deseche o ventilador ou volva a un centro de servizo autorizado para o seu exame e/ou reparación.
- Non pase o cable debaixo da alfombra. Non cubra o cable con alfombras, corredores ou revestimentos similares. Coloque o cable lonxe da zona de tráfico e onde non se tropece.
- Non introduza nin permita que os dedos ou obxectos estraños entren en ningunha abertura de ventilación ou de escape, xa que isto podería provocar unha descarga eléctrica ou un incendio, ou danar o ventilador.
- Non bloquee as entradas nin as saídas de aire de ningún xeito. Non o use en superficies brandas, como unha cama, onde as aberturas poderían quedar bloqueadas.
- Coloque sempre o ventilador sobre unha superficie estable e plana para evitar que se volque.
- Desconecte o ventilador da toma de corrente cando non o estea a usar, ao movelo dun lugar a outro e antes de limpalo.
- Este aparello non está pensado para o seu uso por persoas (incluídos nenos) con capacidades físicas, sensoriais ou mentais reducidas, ou con falta de experiencia e coñecementos, a menos que teñan supervisión ou instrucións sobre o uso do aparello por unha persoa responsable da súa seguridade.
- Os nenos deben ser supervisados para asegurarse de que non xoguen co aparello.
3. Produto rematadoview
The Gridinlux Homely Tower Lux fan is designed for efficient air circulation and cooling. Below are its key features and components.
3.1 Características principais
- Potente motor de 45 W: Provides optimal airflow with energy efficiency.
- Tres axustes de velocidade: Choose between Low, Medium, and High for customized comfort.
- Oscilación de 75°: Distributes air across a wider area for comprehensive room cooling.
- Deseño compacto e portátil: Standing 79 cm tall with a 23 cm diameter base, and weighing 2.7 kg, it features a convenient carrying handle for easy relocation.
- Controis intuitivos: Simple top-mounted rotary control for ease of use.
3.2 Compoñentes
Familiarize yourself with the main parts of your tower fan:
- Reixa de saída de aire
- Panel de control (superior)
- Carrying Handle (Rear)
- Base
- Cable de alimentación e enchufe

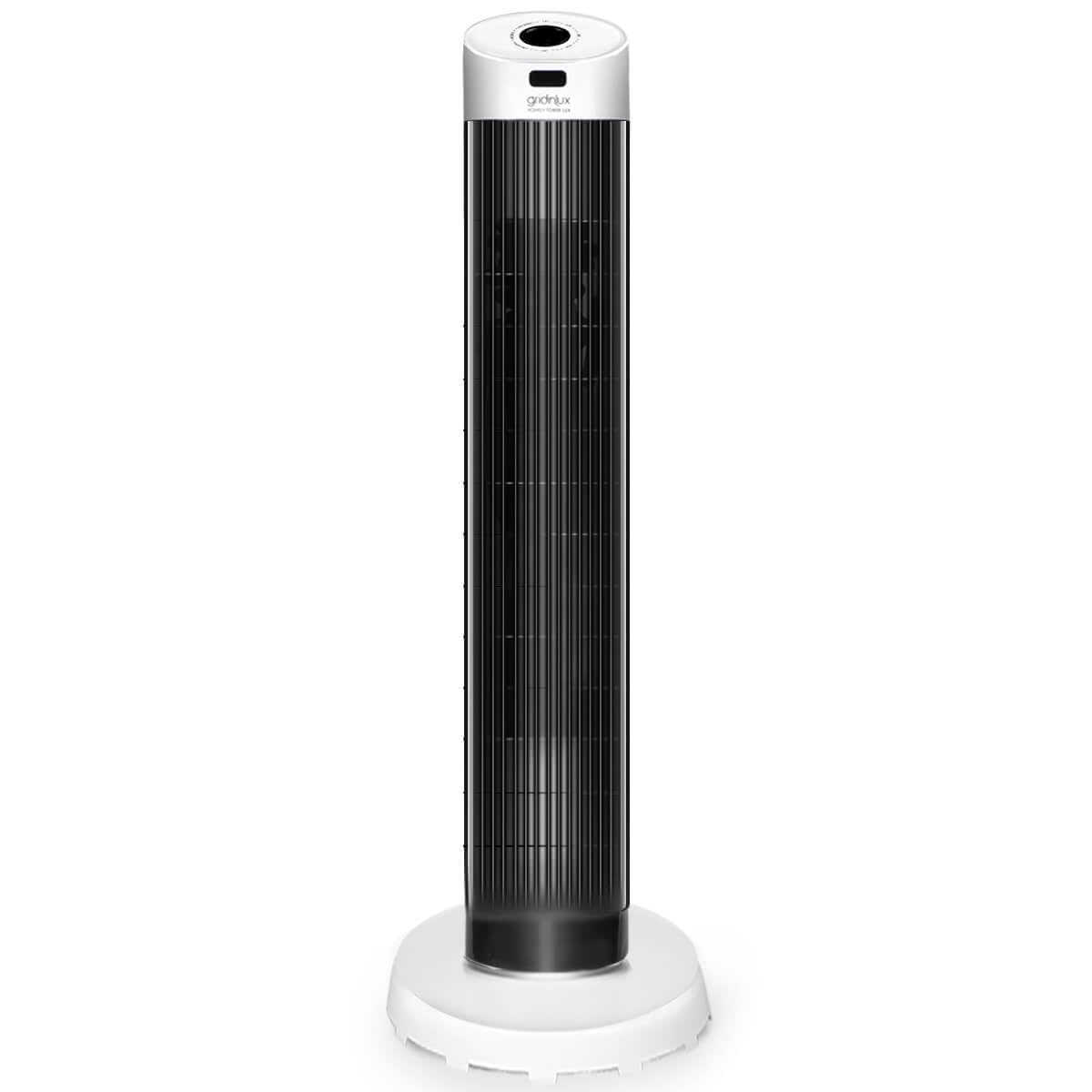

Figura 1: Gridinlux Homely Tower Lux Fan. This image shows the overall design of the tower fan.
Figura 2: Illustration of the fan's three speed settings (1, 2, 3) and air distribution in a room.
Figura 3: Sobrecarga view demonstrating the 90-degree oscillation capability of the fan, with Low, Med, and High speed indicators.
Figura 4: Physical dimensions of the tower fan, showing a height of 79 cm and a base diameter of 23 cm.
Figura 5: Detallado view of the top control panel, featuring a rotary dial for power, speed, and oscillation settings.
Figura 6: The integrated carrying handle located at the back of the fan, demonstrating its portability.
4. Configuración
The Gridinlux Homely Tower Lux fan requires minimal setup. Follow these steps to prepare your fan for use:
- Desempaquetar: Retire con coidado o ventilador da súa embalaxe. Garde a embalaxe para o seu almacenamento ou transporte futuros.
- Colocación: Place the fan on a firm, level surface. Ensure there is adequate space around the fan for proper airflow and oscillation, away from curtains or other objects that could obstruct the air intake or outlet.
- Conexión de alimentación: Plug the power cord into a standard 240V AC electrical outlet. Ensure the outlet is easily accessible.
5. Instrucións de funcionamento
Your Gridinlux Homely Tower Lux fan is equipped with a simple rotary control for easy operation.
5.1 Funcións do panel de control
Figura 7: Close-up of the rotary control dial on the top of the fan, showing OFF, LOW, MID, HIGH speed settings and SWING function.
- OFF: Apaga o ventilador.
- BAIXO: Activates the fan at the lowest speed setting.
- MID: Activates the fan at a medium speed setting.
- ALTO: Activates the fan at the highest speed setting.
- SWING: Activates the oscillation function, allowing the fan to rotate horizontally to distribute air over a wider area. This can be used with any speed setting.
5.2 Como operar
- Activar: Rotate the control dial from "OFF" to your desired speed setting (LOW, MID, or HIGH).
- Axustar a velocidade: To change the fan speed, rotate the dial to the desired setting.
- Activar a oscilación: To enable the oscillation feature, rotate the dial to the "SWING" position while the fan is running at any speed. The fan will begin to rotate from side to side.
- Deactivate Oscillation: To stop oscillation, rotate the dial back to a fixed speed setting (LOW, MID, or HIGH). The fan will stop rotating and blow air in a fixed direction.
- Desactivar: Rotate the control dial to the "OFF" position.
6. Mantemento
Regular cleaning and proper maintenance will ensure the longevity and efficient operation of your fan.
- Desconecta sempre o ventilador da toma de corrente antes de limpalo ou realizar calquera mantemento.
- Limpeza do exterior: Use un suave, damp un pano para limpar as superficies exteriores do ventilador. Non empregue produtos de limpeza abrasivos nin disolventes, xa que poden danar o acabado.
- Limpeza dos orificios de ventilación: Use a vacuum cleaner with a brush attachment or compressed air to remove dust and debris from the air intake and outlet grilles. Ensure no foreign objects enter the fan.
- Almacenamento: If the fan will not be used for an extended period, unplug it, clean it thoroughly, and store it in a cool, dry place, preferably in its original packaging.
- Non hai pezas reparables polo usuario: The fan contains no user-serviceable parts. Do not attempt to disassemble or repair the fan yourself. Contact qualified service personnel for repairs.
7 Solución de problemas
If you encounter issues with your Gridinlux Homely Tower Lux fan, refer to the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| O ventilador non se acende. |
|
|
| Fluxo de aire débil. |
|
|
| O ventilador é ruidoso. |
|
|
| A oscilación non funciona. |
|
|
8. Especificacións
| Característica | Detalle |
|---|---|
| Marca | Gridinlux |
| Nome do modelo | Homely Tower Lux |
| Número de modelo | GL6-0038 |
| Poder | 45 vatios |
| Voltage | 240 voltios |
| Número de velocidades | 3 |
| Ángulo de oscilación | 75° |
| Deseño de ventiladores | Tower Fan / Floor Mount |
| Tipo de control | Rotary Dial (Manual) |
| Dimensións (altura) | 79 cm |
| Dimensións (diámetro da base) | 23 cm |
| Peso | 2.7 kg |
9. Garantía e soporte
Gridinlux products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Gridinlux websitio.
For technical support, troubleshooting assistance beyond what is provided in this manual, or to inquire about replacement parts, please contact Gridinlux customer service. Contact details can typically be found on the product packaging or the official brand websitio.
