Sigma 150-600mm F5-6.3 DG DN for L Mount Lens Instruction Manual

1. Introdución

This manual provides detailed instructions for the proper use, setup, and maintenance of your Sigma 150-600mm F5-6.3 DG DN telephoto zoom lens for L-mount cameras. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.

The Sigma 150-600mm F5-6.3 DG DN lens is designed for L-mount camera systems, offering a versatile telephoto zoom range suitable for various photographic applications, including wildlife, sports, and distant subjects. It features exceptional optical performance, a compact and lightweight design, and up to 4 stops of optical stabilization.

2. Que hai na caixa

Verifique que todos os seguintes elementos estean incluídos no seu paquete:

• Sigma 150-600mm F5-6.3 DG DN Lens
• Parasol da lente (LH1034-01)
• Tapón de lente dianteira
• Tapa de lente traseira
• Collar para trípode
• Funda blanda

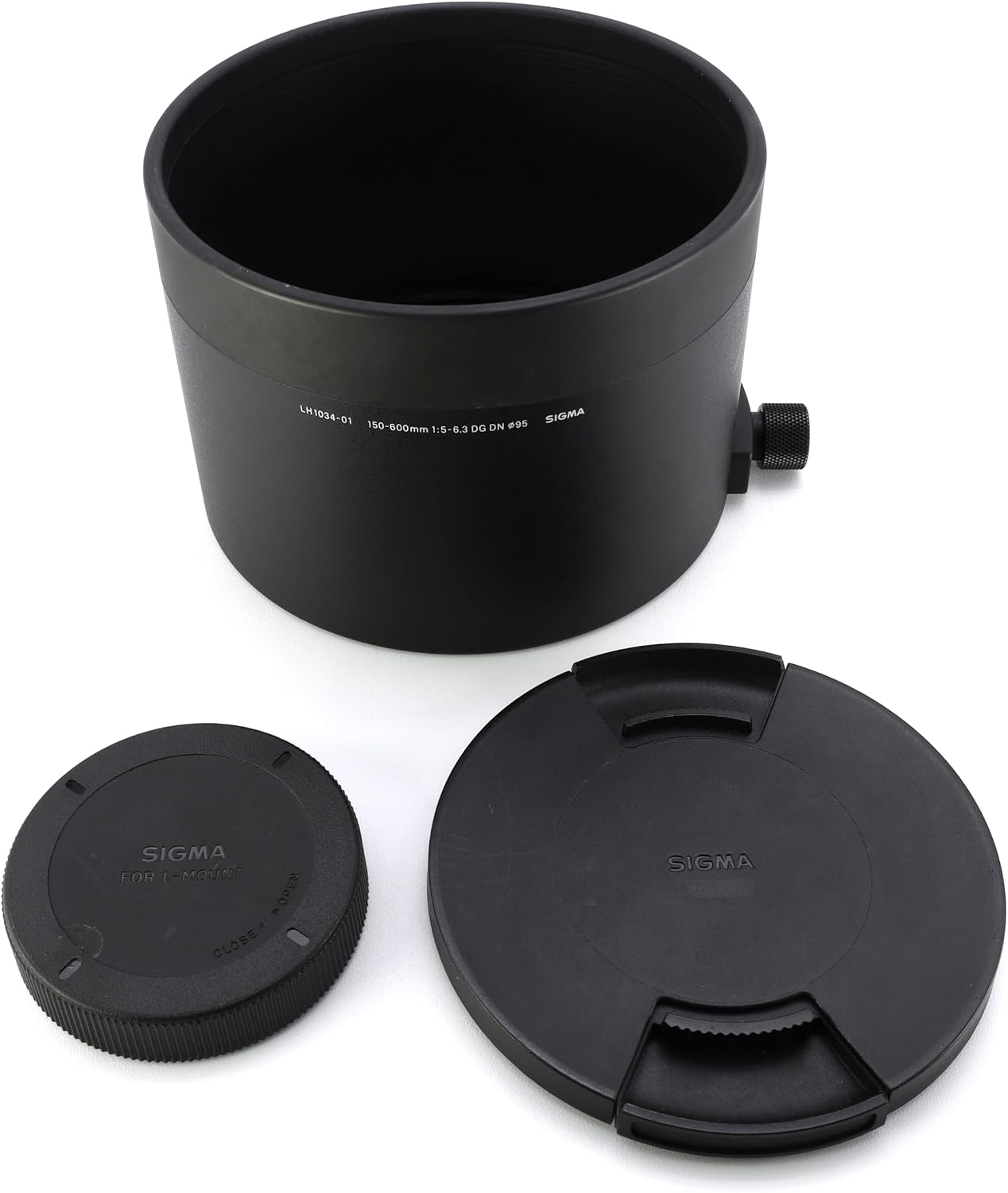

Figure 2.1: Included accessories: lens hood, front lens cap, and rear lens cap.

3. Configuración

3.1 Colocación da lente na cámara

1. Asegúrate de que tanto a cámara como a lente estean apagadas.
2. Retire a tapa traseira da lente e a tapa do corpo da cámara.
3. Align the mounting index mark on the lens with the corresponding mark on your camera body.
4. Insert the lens into the camera mount and rotate it clockwise until it clicks securely into place. Do not force the lens.

Figura 3.1: Traseira view of the lens, illustrating the L-mount interface.

3.2 Colocación da tapa da lente

A tapa da lente axuda a bloquear a luz estraña e protexer o elemento frontal da lente.

1. Aliñe a tapa da lente coa parte dianteira da lente.
2. Xire a capota no sentido das agullas do reloxo ata que encaixe na súa posición.

Figura 3.2: Fronte view of the lens with the hood attached.

3.3 Uso do colar de trípode

The tripod collar allows for better balance when mounting the lens and camera on a tripod or monopod, especially given the lens's weight.

1. Afrouxa o botón de bloqueo do colar do trípode.
2. Rotate the lens within the collar to achieve the desired orientation (horizontal or vertical).
3. Aperte firmemente o botón de bloqueo.
4. Attach your tripod or monopod to the tripod collar foot.

Figura 3.3: Lateral view of the lens, highlighting the tripod collar.

4. Instrucións de funcionamento

4.1 Zoom

To change the focal length, rotate the zoom ring located on the lens barrel. The focal length markings (150, 180, 200, 250, 300, 400, 500, 600mm) indicate the current setting.

Figura 4.1: Lateral view of the lens, showing the zoom ring and focal length indicators.

4.2 Focalización

The lens supports both autofocus (AF) and manual focus (MF). Use the AF/MF switch on the lens barrel to select your desired mode.

• Enfoque automático (AF): Set the switch to AF. The camera will automatically focus on your subject.
• Enfoque manual (MF): Set the switch to MF. Rotate the focus ring to manually adjust the focus.

4.3 Optical Stabilization (OS)

The lens features optical stabilization to reduce camera shake, especially at longer focal lengths or slower shutter speeds. Use the OS switch to enable or disable this function.

• Modo 1: General stabilization for various shooting situations.
• Modo 2: Optimizado para tomas panorámicas, estabilizando o movemento vertical e permitindo o movemento horizontal.

It is recommended to turn off OS when using the lens on a tripod or when shooting with very fast shutter speeds.

4.4 Interruptor limitador de enfoque

The focus limiter switch can restrict the autofocus range, improving focus speed when your subject is within a known distance range.

• COMPLETO: Allows focusing across the entire range (minimum focusing distance to infinity).
• 10 m - ∞: Limits focus to subjects 10 meters (32.8 feet) and further.
• 2.8 m - 10 m: Limits focus to subjects between 2.8 meters (9.2 feet) and 10 meters (32.8 feet).

5. Mantemento

5.1 Limpeza da lente

• Use un cepillo soprador para eliminar o po e as partículas soltas das superficies das lentes.
• For smudges or fingerprints, use a clean, soft microfiber cloth specifically designed for optical lenses. Apply a small amount of lens cleaning solution to the cloth, not directly to the lens.
• Clean the lens body with a soft, dry cloth. Do not use organic solvents like thinner or benzene.

5.2 Almacenamento

• Coloque sempre as tapas dianteira e traseira da lente cando non a estea a usar.
• Store the lens in a cool, dry place, away from direct sunlight and high humidity.
• Se o almacenas durante períodos prolongados, considera o uso dun axente deshumidificador para evitar a formación de mofo.

6 Solución de problemas

6.1 Lens Not Focusing

• Asegúrese de que o interruptor AF/MF da lente estea en posición AF.
• Check the focus limiter switch. If set to a limited range, ensure your subject is within that range.
• Comprobe que a lente estea fixada firmemente ao corpo da cámara.
• Limpa os contactos electrónicos tanto da lente como do corpo da cámara cun pano limpo e seco.

6.2 Image Stabilization Not Working

• Ensure the OS switch on the lens is set to Mode 1 or Mode 2.
• Check your camera's settings for any conflicting image stabilization options.

6.3 Lens Not Recognized by Camera

• Power off both the camera and lens, then reattach the lens firmly.
• Limpa os contactos electrónicos tanto da lente como do corpo da cámara.
• Ensure your camera's firmware is up to date. Visit the camera manufacturer's websitio para as últimas actualizacións.

7. Especificacións

8. Garantía e soporte

8.1 Información da garantía

This Sigma lens comes with a 4 ano de garantía. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Sigma websitio.

8.2 Atención ao cliente

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Sigma customer support. Contact information can typically be found on the official Sigma website or in the documentation provided with your lens.

When contacting support, please have your lens model number (747969) and proof of purchase readily available.
