ARLIME 28 Inch Electric Fireplace Insert Instruction Manual

1. Introdución

This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your ARLIME 28 Inch Electric Fireplace Insert. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Instrucións de seguridade importantes

Cando se utilicen aparellos eléctricos, deben seguirse sempre as precaucións básicas para reducir o risco de incendios, descargas eléctricas e lesións ás persoas, incluíndo as seguintes:

• Le todas as instrucións antes de usar este aquecedor.
• Este quentador está quente cando se usa. Para evitar queimaduras, non deixe que a pel descuberta toque superficies quentes. Manter os materiais combustibles, como mobles, almofadas, roupa de cama, papeis, roupa e cortinas a polo menos 3 m da parte dianteira do quentador e mantelos afastados dos laterais e traseiros.
• É necesario ter extrema precaución cando calquera aquecedor é usado por nenos ou persoas inválidas ou preto de eles e sempre que o aquecedor se deixa en funcionamento e sen vixilancia.
• Desenchufe sempre o aquecedor cando non estea en uso.
• Non faga funcionar ningún aquecedor cun cable ou enchufe danados ou despois de que o aquecedor non funcione correctamente, se caia ou estea danado de calquera xeito. Deseche o quentador ou volva a un centro de servizo autorizado para o seu exame e/ou reparación.
• Non pase o cable debaixo da alfombra. Non cubra o cable con alfombras, corredores ou revestimentos similares. Coloque o cable lonxe da zona de tráfico e onde non se tropece.
• Para desconectar o aquecedor, apague os controis e, a continuación, retire o enchufe da toma de corrente.
• Non insira nin permita que entren obxectos estraños en ningunha abertura de ventilación ou escape, xa que isto pode provocar unha descarga eléctrica ou incendio, ou danar o quentador.
• Para evitar un posible incendio, non bloquee de ningún xeito as entradas ou escapes de aire. Non o use en superficies brandas, como unha cama, onde se poidan bloquear as aberturas.
• All electrical heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
• Use este aquecedor só como se describe neste manual. Calquera outro uso non recomendado polo fabricante pode provocar incendios, descargas eléctricas ou lesións ás persoas.
• This heater is ETL certified, ensuring safety standards are met.

3. Produto rematadoview

The ARLIME 28 Inch Electric Fireplace Insert offers a realistic flame effect with adjustable heat settings, designed for both recessed and freestanding installations. It provides supplemental zone heating for areas up to 400 square feet.

Características principais:

• Efecto de chama realista: Features 3D adjustable flames with realistic wood burning logs, operable with or without heat.
• Calefacción eficiente: Provides 1400W (5000 BTU) of infrared heat, capable of warming up to 400 square feet.
• Control de termostato: Built-in thermostat allows temperature adjustment from 62°F to 82°F.
• Control dual: Operable via a touch screen panel on the unit or a convenient remote control.
• Características de seguridade: Equipped with overheating protection and ETL certification.
• Función de temporizador: Includes a timer for automatic shut-off, enhancing convenience.

Compoñentes incluídos:

• Inserto de cheminea eléctrica
• Control remoto
• Realistic Log Set

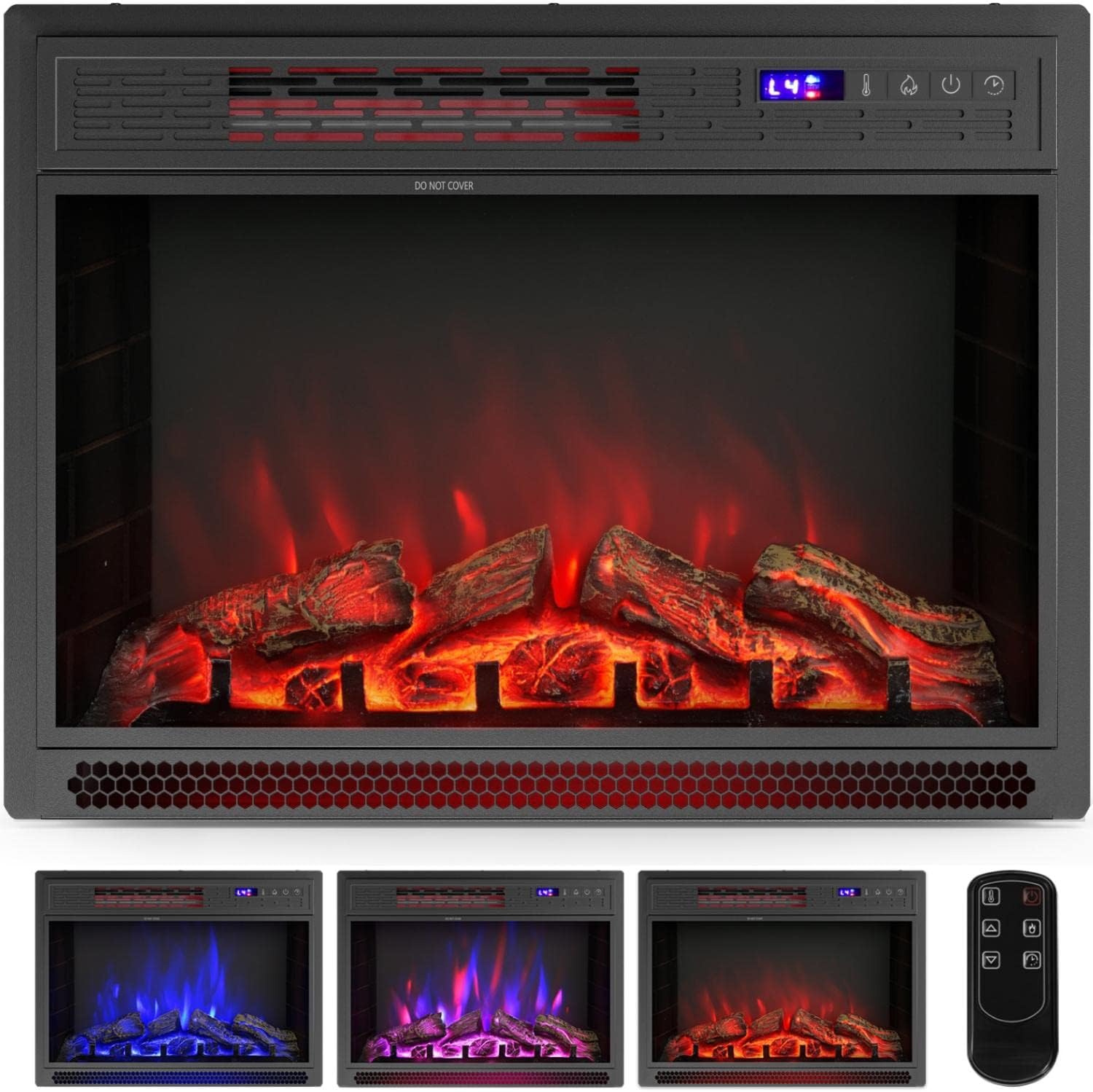

Figure 1: ARLIME 28 Inch Electric Fireplace Insert with remote control and various flame color options displayed below.

4. Configuración e instalación

The ARLIME 28 Inch Electric Fireplace Insert is designed for versatile installation, including in-wall recessed, freestanding, or integration into a TV stand or decorative fireplace cabinet.

Dimensións:

• Dimensións do produto: 9.5 cm de profundidade x 29 cm de ancho x 20.5 cm de alto

Directrices de instalación:

1. Desembalaxe: Carefully remove the fireplace insert from its packaging. Retain all packaging materials for future transport or storage.
2. Selección de localización: Choose a location that is dry, level, and away from direct sunlight, heat sources, and high traffic areas. Ensure there is a grounded 120V AC outlet nearby.
3. Liquidación: Maintain a minimum clearance of 3 feet (0.9 m) from combustible materials (curtains, furniture, bedding) to the front, sides, and rear of the heater.
4. Interruptor de alimentación: Before installation, ensure the main heating switch (often located on the side or rear of the unit) is in the "ON" position.
5. Instalación empotrada: If recessing into a wall or cabinet, ensure the opening dimensions match the fireplace insert's specifications. Leave at least 4 inches of safe distance on top of the electric fireplace for proper ventilation.
6. Instalación independente: For freestanding use, ensure the unit is placed on a stable, level surface.
7. Conexión: Conecte o cable de alimentación a unha toma de corrente alterna de 120 V con toma de terra. Non empregue cables de extensión nin enchufes múltiple.

Figure 2: Detailed product dimensions and visual guidance for installation, highlighting the heater switch.

Figura 3: Examples of the fireplace insert in different installation scenarios, including TV stand, cabinet, wall, and freestanding.

5. Instrucións de funcionamento

Your ARLIME Electric Fireplace Insert can be operated using the touch control panel on the unit or the included remote control.

Funcións do panel de control e do mando a distancia:

Figure 4: The touch control panel on the fireplace insert for direct operation.

Figure 5: The remote control and its various functions for convenient operation.

• Encendido/apagado: Preme o botón de acendido para acender ou apagar a unidade.
• Control de chama: Adjust the flame effect. The unit offers 3 flame colors and 5 brightness levels.


  Figure 6: Visual representation of the adjustable flame colors and brightness.

• Quentador aceso/apagado: Activate or deactivate the heating function. The heater operates at 750W or 1500W.
• Control de temperatura: Use the temperature buttons to set your desired room temperature between 62°F and 82°F. The infrared heater will automatically maintain this temperature.
• Temporizador: Set the timer for automatic shut-off from 0.5 to 6 hours.

Figure 7: The infrared heating function with thermostat control, providing warmth to the room.

Figure 8: The fireplace's heating capabilities, offering two power modes for efficient warming.

6. Mantemento

Regular maintenance ensures the longevity and optimal performance of your electric fireplace insert. Always unplug the unit before performing any maintenance.

Limpeza:

• Exterior: Limpe as superficies exteriores cun suave, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
• Panel de vidro: Clean the glass panel with a soft cloth and a glass cleaner. Do not spray cleaner directly onto the unit.
• Ventos de aire: Use a vacuum cleaner with a brush attachment to gently clean dust from the air intake and exhaust vents.

Almacenamento:

When not in use, store the fireplace insert in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.

7 Solución de problemas

If you experience issues with your electric fireplace, refer to the following common problems and solutions:

8. Especificacións

9. Garantía e soporte

The ARLIME 28 Inch Electric Fireplace Insert comes with a Garantía limitada. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact ARLIME customer service.

Atención ao cliente:

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact ARLIME customer support. Contact information can typically be found on the manufacturer's websitio web ou na embalaxe do produto.

• Fabricante: ARLIME
• Websitio: Visit the ARLIME Store on Amazon
• Please have your model number (FP10048US) and purchase date ready when contacting support.
