Manual de usuario do patinete eléctrico SmooSat E9 PRO

1. Produto rematadoview

The SmooSat E9 PRO Electric Scooter is designed for kids aged 8 and up, offering a fun and safe riding experience with its colorful rainbow lights, adjustable speed and height, and foldable design. It features a durable aluminum alloy frame and an intuitive LED display.

Figure 1: SmooSat E9 PRO Electric Scooter (Pink model shown)

2. Configuración e montaxe

Your SmooSat E9 PRO Electric Scooter comes partially assembled. Follow these steps to complete the setup and prepare for first use.

2.1 Desembalaxe e inspección inicial

1. Carefully open the product packaging and remove all components.
2. Inspect the scooter and all included accessories for any signs of damage.
3. Verify that all parts listed in the packing list are present: E9 PRO Kids Electric Scooter, Charger, 5mm Allen Wrench, Quick Start Guide.

Figure 2: Folded scooter as it appears upon unboxing.

For a visual guide on unboxing and initial setup, please refer to the official unboxing video below.

2.2 Montaxe do manillar

1. Locate the handlebar and the main stem of the scooter.
2. Use the provided 5mm Allen Wrench to loosen the screw on the handlebar clamp.
3. Carefully insert the handlebar into the stem, ensuring the wires are not pinched.
4. Align the handlebar and tighten the screw firmly with the Allen Wrench to secure it in place.

For detailed assembly steps, watch the installation tutorial video:

2.3 Carga inicial

Before first use, fully charge the scooter's battery. The charging port is located near the handlebar base.

• Open the rubber cover on the charging port.
• Connect the charger to the scooter and then plug it into a standard wall outlet.
• A luz indicadora de carga do cargador cambiará (por exemplo, de vermello a verde) cando remate a carga.
• O tempo de carga é de aproximadamente 5 horas para unha carga completa.

3. Instrucións de funcionamento

3.1 Powering On/Off and Speed Adjustment

• To power on the scooter, long press the power button on the handlebar display. The LED display will illuminate.
• To change speed modes (Economical, Normal, Sport), short press the power button. The display will show 'E', 'N', or 'S' respectively.
  • Economical (E) Mode: Max speed 5 mph. Ideal for beginners.
  • Normal (N) Mode: Max speed 8 mph.
  • Sport (S) Mode: Max speed 10 mph. For skilled riders.
• To power off the scooter, long press the power button again.

Figure 3: Handlebar LED display showing speed modes and battery level.

3.2 Rainbow LED Lights

The scooter features colorful rainbow LED lights along the pedals for enhanced visibility and fun. These lights can be controlled via a dedicated button on the handlebar.

• Short press the light button to cycle through different light modes and colors.
• Long press the light button to turn the lights on or off.

Figure 4: Scooter with illuminated rainbow LED lights.

3.3 Altura axustable

The handlebar height can be adjusted to accommodate riders of different heights (4.0~5.3 feet).

• Abra a cl de liberación rápidaamp no talo.
• Adjust the handlebar to one of the three preset heights: 28 in, 32 in, or 36 in. Ensure the locking pin clicks into place.
• Peche a cl de liberación rápidaamp firmemente para fixar o manillar.

Figure 5: Adjustable handlebar heights for various rider sizes.

3.4 Folding and Kickstand

The scooter features a one-step folding mechanism for easy transport and storage.

• To fold: Press the folding mechanism release lever and fold the stem down until it locks into place.
• To unfold: Release the folding mechanism and pull the stem up until it clicks into the riding position.
• The convenient kickstand allows for easy parking and resting the scooter upright. Simply push it down with your foot to deploy.

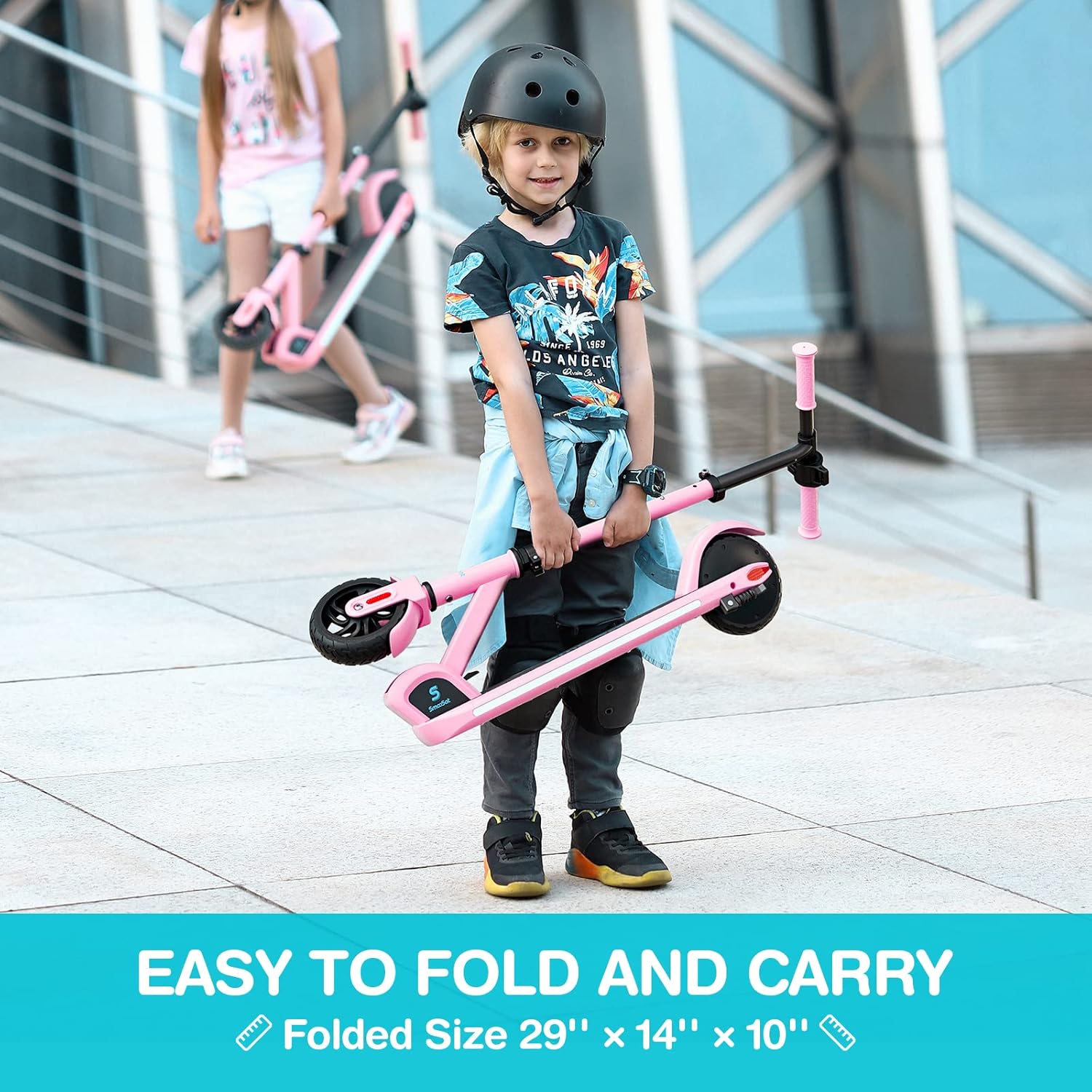

Figure 6: Easy to fold and carry design.

Figure 7: Convenient kickstand for easy parking.

See the scooter in action, demonstrating its features and usage:

4. Mantemento

Proper maintenance ensures the longevity and safe operation of your SmooSat E9 PRO Electric Scooter.

4.1 Carga e coidado da batería

• Use sempre o cargador orixinal que se inclúe co scooter.
• Non sobrecargues a batería. Desconecta o cargador unha vez que a batería estea chea.
• If storing the scooter for an extended period, ensure the battery is charged to about 50-70% and recharge it every 30-60 days to prevent deep discharge.
• Evite expor a batería a temperaturas extremas.

4.2 Limpeza e almacenamento

• Limpa o scooter cun anuncioamp pano. Non use produtos químicos agresivos ou materiais abrasivos.
• Avoid direct water spray or submersion, as this can damage electrical components.
• Store the scooter in a cool, dry place away from direct sunlight and moisture.

5 Solución de problemas

If you encounter issues with your SmooSat E9 PRO, refer to the following common troubleshooting tips:

For more complex issues, please refer to the official User Guide PDF or contact customer support.

6. Especificacións

7. Garantía e soporte

The SmooSat E9 PRO Electric Scooter comes with a Garantía de 180 días. For any product-related inquiries, technical support, or warranty claims, please refer to the official user guide or contact SmooSat customer service.

Guía oficial do usuario: Descargar a guía do usuario en PDF
