Firestone FireHawk A/S V2
Firestone FireHawk A/S V2 UHP All Season Passenger Tire User Manual
Model: FireHawk A/S V2 | Brand: Firestone
Introdución
This manual provides essential information for the proper use, maintenance, and care of your Firestone FireHawk A/S V2 UHP All Season Passenger Tire. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
The Firestone FireHawk A/S V2 is a high-performance all-season tire designed to deliver reliable traction and handling in various weather conditions. Its advanced tread design and durable construction contribute to a long service life and consistent performance.
Configuración e instalación
Proper installation is crucial for tire performance and safety. It is highly recommended that tire installation be performed by a qualified professional using appropriate equipment.
Comprobacións previas á instalación
- Compatibilidade do vehículo: Ensure the tire size (245/45R20) and load/speed ratings (103W XL) match your vehicle's specifications as recommended by the vehicle manufacturer.
- Rim Condition: Inspect rims for damage, corrosion, or deformation. Only install tires on undamaged, clean rims.
- Inspección de pneumáticos: Before mounting, visually inspect the tire for any manufacturing defects or shipping damage.
Procedemento de montaxe
- Clean the tire bead and rim seat thoroughly.
- Apply a suitable tire mounting lubricant to the tire beads and rim flanges.
- Mount the tire onto the rim using a tire mounting machine, ensuring the tire's rotation direction (if indicated) is correct.
- Inflate the tire slowly to the recommended pressure, ensuring both beads seat properly. Do not exceed 40 PSI (2.75 bar) to seat beads.
- Once beads are seated, adjust the tire pressure to the vehicle manufacturer's recommended cold inflation pressure, typically found on a placard inside the driver's door jamb or in the owner's manual. The maximum pressure for this tire is 50 PSI.
- Balance the tire and wheel assembly using a wheel balancing machine to prevent vibrations.

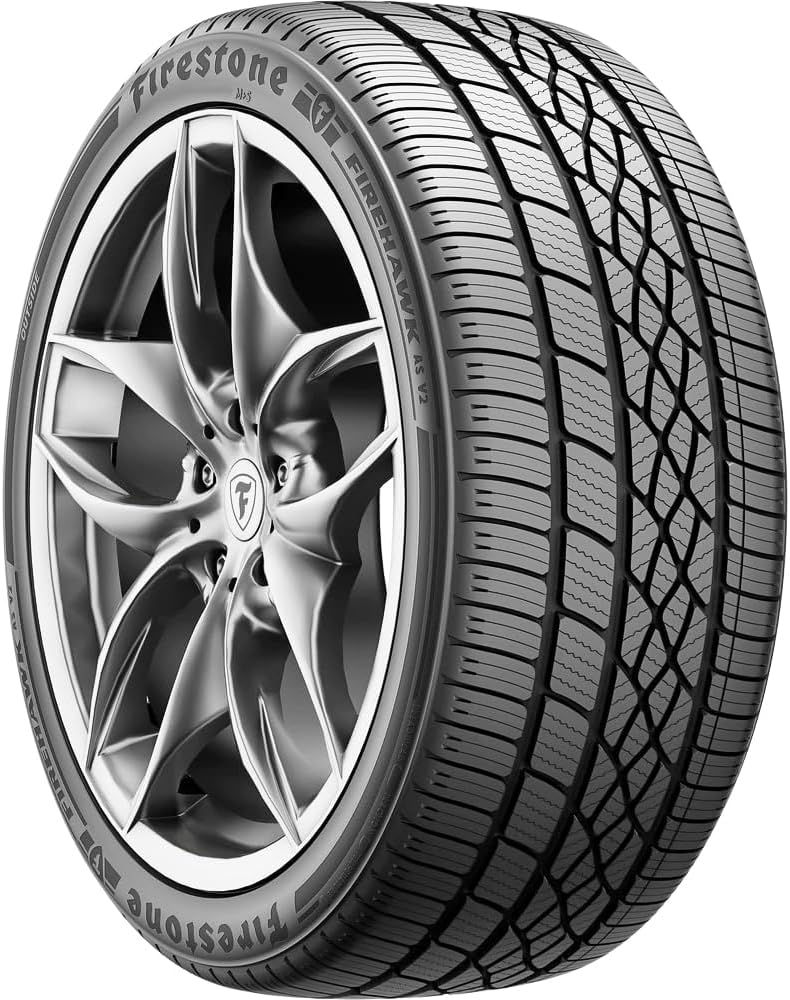

Figure 1: Firestone FireHawk A/S V2 tire mounted on a wheel, showcasing the tread pattern and sidewall markings. This image illustrates the tire's appearance when properly installed.
Pautas de funcionamento
Adhering to these operating guidelines will help maximize the performance, safety, and lifespan of your Firestone FireHawk A/S V2 tires.
Presión dos pneumáticos
Maintain correct tire inflation pressure as specified by your vehicle manufacturer. Check tire pressure at least once a month when tires are cold (before driving). Under-inflation can lead to excessive heat buildup, premature wear, and reduced fuel efficiency. Over-inflation can result in a harsher ride, reduced traction, and uneven wear.
Condicións de condución
- Rendemento en toda a tempada: These tires are designed for year-round capabilities, offering good traction in wet, dry, and light snow conditions due to their dense pattern of channels and extra biting edges.
- Clasificación de velocidade: The 'W' speed rating indicates the tire is designed for speeds up to 168 mph (270 km/h). Always adhere to legal speed limits and adjust driving speed to road and weather conditions.
- Capacidade de carga: The '103 XL' load index signifies a maximum load capacity of 1929 lbs (875 kg) per tire at maximum inflation pressure. Do not exceed your vehicle's Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR).
Figura 2: De arriba abaixo view of the Firestone FireHawk A/S V2 tire tread. This image highlights the asymmetrical tread pattern and biting edges designed for enhanced all-season traction.
Mantemento
Regular maintenance extends tire life and ensures safe operation.
Rotación de pneumáticos
Rotate your tires every 5,000 to 7,500 miles (8,000 to 12,000 km) or as recommended by your vehicle manufacturer. Regular rotation helps promote even tread wear across all four tires, contributing to a longer overall tire life and consistent handling characteristics.
Figure 3: A stack of Firestone FireHawk A/S V2 tires, illustrating the robust construction and readiness for installation. Proper storage and handling are important for tire longevity.
Tread Depth Inspection
Regularly inspect tread depth. The FireHawk A/S V2 has a tread depth of 9/32nds when new. Tires should be replaced when tread depth reaches 2/32nds of an inch (1.6 mm), indicated by the tread wear indicators (small bars molded into the tread grooves). Driving with worn tires significantly reduces traction, especially in wet conditions.
Wheel Alignment and Balancing
Have your vehicle's wheel alignment checked periodically, especially if you notice uneven tire wear or steering issues. Proper alignment prevents premature and irregular tire wear. Re-balance tires if you notice vibrations while driving.
Limpeza e almacenamento
Clean tires with mild soap and water. Avoid harsh chemicals that can degrade rubber. When storing tires not in use, keep them in a cool, dry place away from direct sunlight, heat sources, and ozone-producing equipment (e.g., electric motors).
Solución de problemas comúns
| Problema | Causa posible | Solución |
|---|---|---|
| Desgaste irregular da banda de rodaxe | Improper inflation, misaligned wheels, worn suspension components, lack of rotation. | Check and adjust tire pressure. Have wheel alignment checked. Rotate tires regularly. Inspect suspension. |
| Vibrations at Speed | Unbalanced wheels, bent rim, tire damage, worn suspension. | Have tires re-balanced. Inspect rims and tires for damage. Consult a professional for suspension check. |
| Desgaste rápido da banda de rodaxe | Aggressive driving, under-inflation, misaligned wheels, incorrect tire for application. | Adjust driving habits. Maintain correct tire pressure. Check alignment. Ensure tire is suitable for vehicle. |
| Perda de presión de aire | Puncture, faulty valve stem, damaged rim, bead leak. | Inspect tire for punctures. Check valve stem. Have tire and rim inspected by a professional. |
For any issues not resolved by these steps, or for significant tire damage, consult a certified tire professional immediately.
Especificacións do produto
| Característica | Detalle |
|---|---|
| Marca | Firestone |
| Modelo | FireHawk A/S V2 |
| Tamaño | 245/45R20 |
| Load/Speed Rating | 103W XL (Extra Load) |
| Estacións | All Season |
| Ancho da sección | 245 milímetros |
| Tread Depth (New) | 9/32nds |
| Tipo de rodadura | Asimétrico |
| Presión máxima | 50 PSI (libra por polgada cadrada) |
| Clasificación de capas | 4 capas |
| Ancho do bordo | 20 polgadas |
| Diámetro do pneumático | 28.70 polgadas |
| Peso do elemento | 28.7 libras |
| Tipo de construción | Radial |
| UTQG | 500-AA |
Garantía e Soporte
Limited Manufacturer Tread Life Warranty
The Firestone FireHawk A/S V2 tire is backed by an up to 50,000 mile limited manufacturer tread life warranty. This warranty applies to the original purchaser and vehicle, and is subject to specific terms and conditions, including proper tire maintenance and rotation. For full details regarding the warranty coverage, limitations, and claim procedures, please refer to the official Firestone warranty documentation provided with your purchase or visit the official Firestone websitio.
Atención ao cliente
For technical assistance, warranty claims, or general inquiries, please contact Firestone customer support or visit an authorized Firestone dealer. Contact information can typically be found on the official Firestone websitio web ou na documentación da súa compra.
Note: This manual provides general guidance. Always refer to your vehicle's owner's manual and consult with a certified tire professional for specific recommendations and services.
