Cuisinart 14-Cup Brew Central Programmable Coffeemaker

Introdución

The Cuisinart Brew Central 14-Cup Programmable Coffeemaker is designed to deliver a perfect brew with convenience and advanced features. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your coffeemaker to ensure optimal performance and longevity.

Imaxe: Fronte view of the Cuisinart 14-Cup Brew Central Programmable Coffeemaker, showcasing its stainless steel and black design with the digital display and control buttons.

Configuración

1. Desembalaxe: Carefully remove all packaging materials and dispose of them properly. Ensure all components are present: coffeemaker unit, glass carafe, filter basket, and charcoal water filter holder.
2. Limpeza antes do primeiro uso: Wash the carafe, filter basket, and carafe lid in warm, soapy water. Rinse thoroughly. Wipe the exterior of the coffeemaker with a damp pano.
3. Charcoal Water Filter Installation:
   • Remove the charcoal water filter from its polybag and soak it in cold tap water for 15 minutes.
   • Insert the charcoal filter into the filter holder.
   • Place the filter holder into the water reservoir, pressing it down to secure it.
4. First Brew Cycle (Cleaning Cycle):
   • Encha o depósito de auga ata a marca de 14 cuncas con auga fresca e fría.
   • Place the filter basket (empty) and carafe in position.
   • Preme o Preparar/Desactivar button to start a full brewing cycle without coffee.
   • Once complete, discard the water from the carafe. Your coffeemaker is now ready for use.

Instrucións de funcionamento

Configuración do reloxo

1. Preme o Reloxo botón. Os díxitos da hora parpadearán.
2. Preme o Hr button to set the hour. Pay attention to the AM/PM indicator.
3. Preme o Min botón para axustar os minutos.
4. Preme o Reloxo botón de novo para confirmar a hora.

Elaboración de café

1. Encher o depósito de auga: Open the top lid and fill the water reservoir with the desired amount of fresh, cold water using the clear-view water window as a guide (1 to 14 cups).
2. Engadir café moído: Place a paper filter (cone-style) or the permanent gold-tone filter into the filter basket. Add the desired amount of ground coffee. For best results, use 1 scoop (1 tablespoon) of ground coffee per cup.
3. Posición da garrafa: Ensure the glass carafe with its lid is properly placed on the heating plate.
4. Selecciona a intensidade da infusión: Preme o Atrevido button for a stronger coffee flavor, or leave it off for regular strength.
5. Comezar a elaborar cervexa: Preme o Preparar/Desactivar button. The blue indicator light will illuminate, and brewing will begin.
6. Brew Pause Feature: You can remove the carafe during the brewing cycle to pour a cup. The flow of coffee will automatically stop. Return the carafe to the heating plate within 20 seconds to prevent overflow.

Funcións programables

24-Hour Brew Start (Program Function)

1. Prepare the coffeemaker for brewing as described above (water, coffee, carafe in place).
2. Preme o Prog button. The green indicator light will flash, and the program time will appear.
3. Usa o Hr e Min botóns para axustar a hora de inicio da preparación desexada.
4. Preme o Prog button again to activate the programmed brew time. The green indicator light will remain on, indicating the program is set.

Apagado automático axustable

The coffeemaker is designed to automatically shut off after brewing is complete. You can adjust this duration:

1. Preme o Apagado automático button. The default auto-off time (e.g., 2 hours) will flash.
2. Usa o Hr e Min buttons to adjust the auto-off time from 0 to 4 hours.
3. Preme o Apagado automático botón de novo para confirmar.

Carafe Plate Temperature (Temp)

You can adjust the temperature of the heating plate to keep your coffee warm at your preferred setting:

1. Preme o Temp botón.
2. Each press will cycle through High, Medium, and Low settings. Select your desired temperature.

Ready Tone (Tone)

The coffeemaker emits an audible tone when brewing is complete. You can turn this feature on or off:

1. Preme o Ton button to toggle the ready tone on or off.

Mantemento

Limpeza diaria

• Always unplug the coffeemaker from the electrical outlet before cleaning.
• Wash the glass carafe, carafe lid, and filter basket in warm, soapy water after each use. These parts are also top-rack dishwasher safe.
• Wipe the heating plate and the exterior of the coffeemaker with a soft, damp pano. Non use produtos de limpeza abrasivos nin estropajos.

Decalcification (Cleaning Cycle)

Mineral deposits (calcium) can build up in your coffeemaker and affect its performance. The Limpo indicator light will illuminate when it's time to decalcify the unit.

1. Preparar a solución: Fill the water reservoir with a mixture of ⅓ white vinegar and ⅔ water.
2. Iniciar o ciclo de limpeza: Preme o Limpo button. The blue indicator light will illuminate.
3. Finalización: When the cycle is complete, the coffeemaker will beep five times and shut off. The Limpo a luz apagarase.
4. Ciclos de enxague: Run two to three full cycles with fresh, cold water to flush out any remaining vinegar solution.

Charcoal Water Filter Replacement

The charcoal water filter should be replaced every 60 days or after 60 uses, more often if you have hard water.

• Remove the old filter from the filter holder.
• Soak a new charcoal filter in cold tap water for 15 minutes.
• Insert the new filter into the filter holder and place it back into the water reservoir.

Resolución de problemas

Especificacións

• Marca: Cuisinart
• Modelo: 14-Cup Central Programmable Coffeemaker
• Capacidade: 14 cuncas
• Dimensións (PxWxH): 9.1" D x 7.9" W x 14.7" H
• Peso: 7.62 libras
• Características especiais: Programmable, 24-hour advance start, adjustable auto shutoff, Brew Pause, Self-cleaning with time-to-clean alert, adjustable carafe plate temperature, ready tone.
• Tipo de filtro: Reusable (Gold-tone) and Charcoal Water Filter
• Potencia: Standard household electrical outlet (voltage not specified in input, but implied by product type).
• UPC: 086279177322

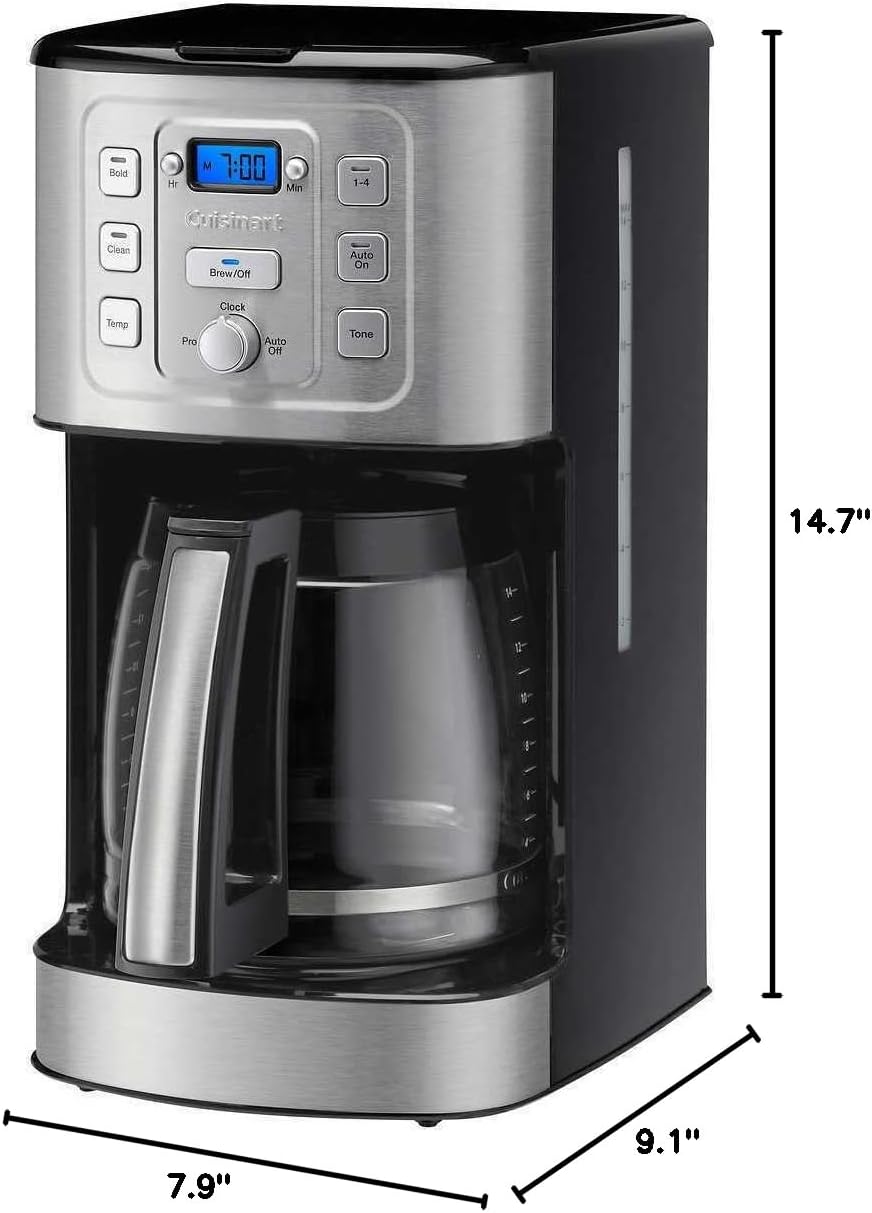

Image: Diagram showing the dimensions of the Cuisinart 14-Cup Brew Central Programmable Coffeemaker: 14.7 inches high, 7.9 inches wide, and 9.1 inches deep.

Garantía e soporte

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Cuisinart websitio. Garde o recibo da compra como proba de compra para calquera reclamación de garantía.

Tamén podes atopar axuda adicional e preguntas frecuentes en Cuisinart Store on Amazon.
