VLOXO AT001

Manual do usuario das tesoiras eléctricas sen fíos VLOXO modelo AT001

Instrucións completas para as tesoiras eléctricas sen fíos VLOXO de 4.2 V, modelo AT001, que abarcan a configuración, o funcionamento, o mantemento e a seguridade.

1. Introdución

Thank you for choosing the VLOXO Cordless Electric Scissors, Model AT001. This tool is designed for efficient cutting of various materials such as cardboard, leather, plastic mats, carpets, and felt. Please read this manual thoroughly before use to ensure safe and optimal operation.

Contido do paquete

  • Cordless Electric Scissor Unit (1)
  • TYPE-C Charge Cable (1)
  • Storage Case (1)
  • Manual de usuario (1)
VLOXO Cordless Electric Scissors with charging cable and storage case
Image 1.1: The VLOXO Cordless Electric Scissors, including the main unit, USB-C charging cable, and a protective storage case.
Package contents of VLOXO electric scissors including the tool, cable, and case with dimensions
Image 1.2: A visual representation of the items included in the package, along with the dimensions of the tool and case.

2. Información de seguridade

Observe sempre as seguintes precaucións de seguridade para evitar lesións ou danos na ferramenta.

  • Keep hands and fingers away from the rotating blade during operation.
  • Ensure the safety lock switch is engaged when the tool is not in use to prevent accidental activation.
  • Do not use the tool for cutting fabric or for precision cuts, as it is not designed for these applications.
  • Do not use the tool while it is charging.
  • Store the tool in its storage case when not in use, out of reach of children.
  • Use o equipo de protección individual axeitado, como lentes de seguridade, ao operar a ferramenta.
  • Do not attempt to cut materials thicker than 1/4 inch (6.35 mm).
  • Keep the blade guard area clean to ensure proper sharpening and operation.

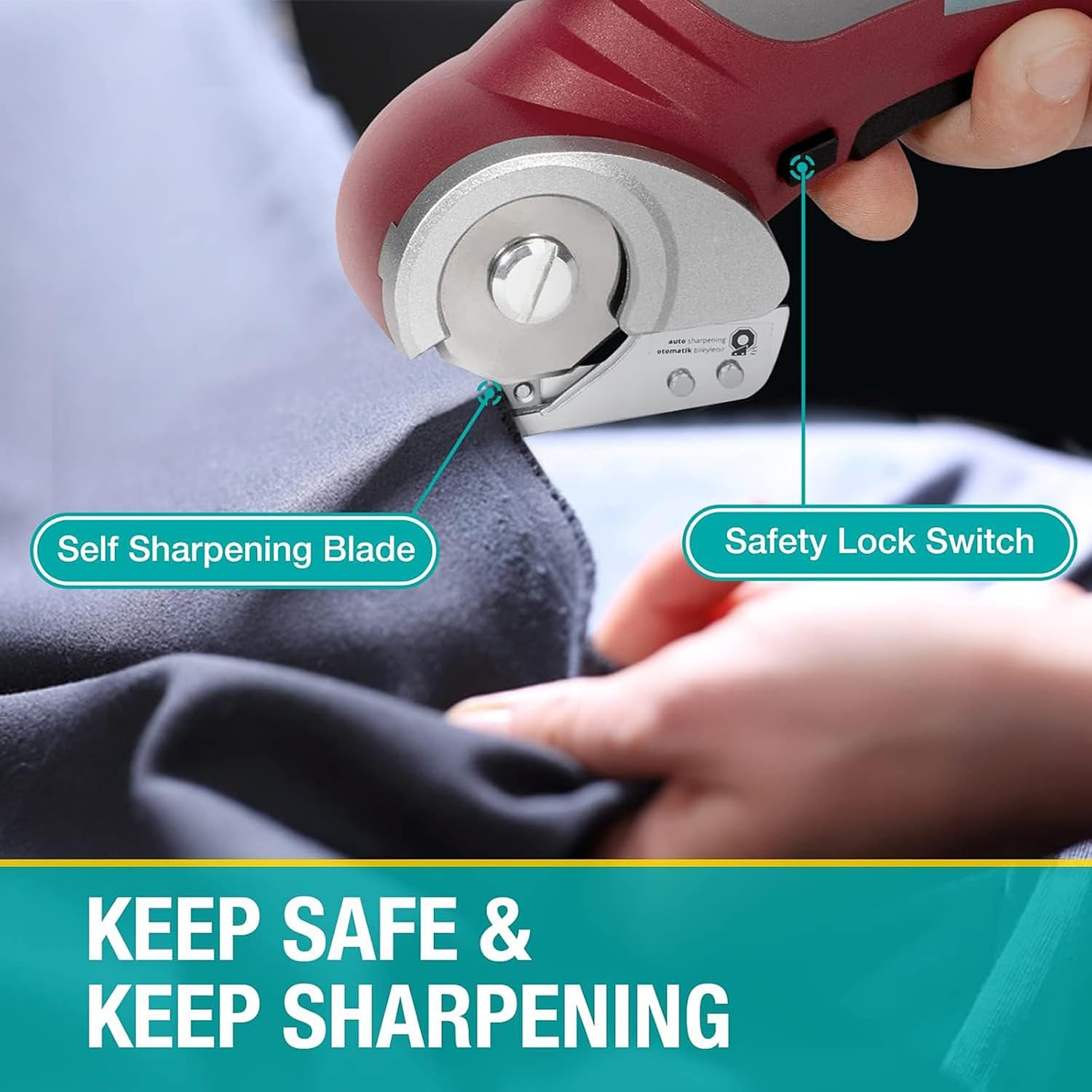

Close-up of VLOXO electric scissors showing self-sharpening blade and safety lock switch
Imaxe 2.1: Detalle view highlighting the self-sharpening blade mechanism and the safety lock switch on the VLOXO electric scissors.
Illustration showing the correct and incorrect way to handle the blade of the electric scissors
Image 2.2: Guidance on correctly touching the blade, emphasizing safety during handling or cleaning.

3. Configuración

Cargando a batería

  1. Locate the TYPE-C charging port on the tool.
  2. Connect the provided TYPE-C charge cable to the tool and a compatible USB power adapter (not included).
  3. A luz indicadora de carga acenderase.
  4. Allow the tool to charge fully before first use. Charging time may vary.
  5. Desconecte o cargador unha vez que estea completamente cargado.

Important: Do not operate the electric scissors while charging.

If the tool is not used for an extended period, charge it regularly to maintain battery health.

VLOXO electric scissors connected to a USB-C charging cable
Image 3.1: The electric scissors being charged via its USB Type-C port, connected to a power source.

4. Instrucións de funcionamento

Activating the Tool

The VLOXO electric scissors feature a safety lock-off mechanism to prevent unintended activation.

  1. Press the Safety Lock Switch: With your thumb, press the safety lock switch located on the side of the handle.
  2. Pulsa o gatillo: While holding the safety lock switch, pull the main trigger with your index finger. The blade will begin to rotate.
  3. Desbloquear o bloqueo de seguranza: Once the blade is rotating, you may release the safety lock switch. The tool will continue to operate as long as the trigger is pressed.
  4. Parar operación: Release the trigger to stop the blade.
Diagram showing the steps to activate VLOXO electric scissors: press safety switch, pull trigger, release safety switch
Image 4.1: Step-by-step guide illustrating how to safely activate the electric scissors by engaging the safety lock and then pulling the trigger.

Materiais de corte

The VLOXO electric scissors are suitable for cutting materials up to 1/4 inch (6.35 mm) thick, including:

  • Cartón
  • Coiro
  • Plastic Mats
  • Alfombras
  • Feltros

Note: This tool is not recommended for cutting fabric or for applications requiring high precision.

  1. Ensure the material to be cut is placed on a stable, flat surface.
  2. Activate the tool as described above.
  3. Gently guide the rotating blade along the desired cutting line. Apply steady, even pressure.
  4. Allow the tool to do the work; do not force it through materials.
  5. After cutting, release the trigger and store the tool safely.
VLOXO electric scissors cutting through a piece of dark material
Image 4.2: The VLOXO electric scissors in action, demonstrating its ability to cut through various materials with its 240 RPM cutting speed and 1/4 inch capacity.
Examples of materials that can be cut by VLOXO electric scissors: leather, cloth, cardboard, carpet, plastic, felts
Image 4.3: A visual guide to the wide range of materials compatible with the VLOXO electric scissors, including leather, cloth, cardboard, carpet, plastic, and felts.

5. Mantemento

Afiador de follas

The VLOXO electric scissors are equipped with an automatic sharpening system. This system ensures the octagonal blade remains sharp during use.

  • To maintain optimal cutting performance, regularly inspect the area around the blade guard.
  • Ensure this area is free from dust and debris.
  • Clean by blowing out with compressed air or using a small brush.
Close-up of the self-sharpening blade mechanism on the VLOXO electric scissors
Imaxe 5.1: Detallada view of the self-sharpening blade feature, which helps maintain the cutting edge during operation.

Limpeza e almacenamento

  • Before cleaning, ensure the tool is turned off and the safety lock is engaged.
  • Usa un pano seco para limpar o exterior da ferramenta.
  • Remove any accumulated debris from the blade area using a brush or compressed air.
  • Store the electric scissors in the provided storage case in a dry, cool place.

6 Solución de problemas

ProblemaCausa posibleSolución
A ferramenta non se acende.A batería está esgotada.
Peche de seguridade non desenganchado.		Cargue a batería completamente.
Ensure both the safety lock switch and trigger are pressed simultaneously to start.
Cutting performance is poor.Blade area is obstructed.
O material é demasiado groso.		Clean debris from around the blade guard.
Do not attempt to cut materials exceeding 1/4 inch thickness.
A ferramenta para durante o funcionamento.A batería está baixa.
Protección de sobrecarga activada.		Recarga a batería.
Reduce pressure or cut thinner materials. Allow tool to cool if overheated.

7. Especificacións

CaracterísticaDetalle
Número de modeloAT001
MarcaVLOXO
Batería Voltage4.2 V
Velocidade de corte240 RPM
Capacidade de corte1/4 de polgada (6.35 mm)
Material da láminaAceiro para ferramentas de alta velocidade
Dimensións do produto8.6" de longo x 1.9" de ancho
Peso do elemento14.9 onzas (aprox. 422 g)
Material do mangoPlástico
Orientación das mansAmbidiestro
Tipo de bateríaMetal de litio (incluído)

8. Garantía e soporte

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official VLOXO websitio.

Garda o teu recibo de compra como xustificante de compra para reclamacións de garantía.
