NorthStar Gas Cold Water Pressure Washer User Manual

Introdución

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your NorthStar Gas Cold Water Pressure Washer, Model 1571231. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent injury or damage.

The NorthStar Gas Cold Water Pressure Washer is designed for powerful cleaning tasks, featuring a Kohler Command PRO CH270 commercial engine and a CAT 4DNX crankshaft triplex pump. It is ideal for blasting through mud, dirt, and debris on various surfaces.

Información importante de seguridade

Siga sempre as precaucións de seguridade básicas ao usar este produto para reducir o risco de incendio, descarga eléctrica e lesións persoais.

• Read all instructions before using the pressure washer.
• Do not operate the unit without proper ventilation.
• Usar equipos de protección individual (EPI) axeitados, incluíndo protección ocular e auditiva.
• Asegúrese de que todas as conexións estean seguras antes de arrincar a unidade.
• Manteña os nenos e as mascotas lonxe da zona de operación.
• Nunca apunte a pistola cara a persoas ou animais.
• Use só accesorios e pezas de recambio aprobados.

Compoñentes do produto

Familiarize yourself with the main components of your NorthStar Pressure Washer.

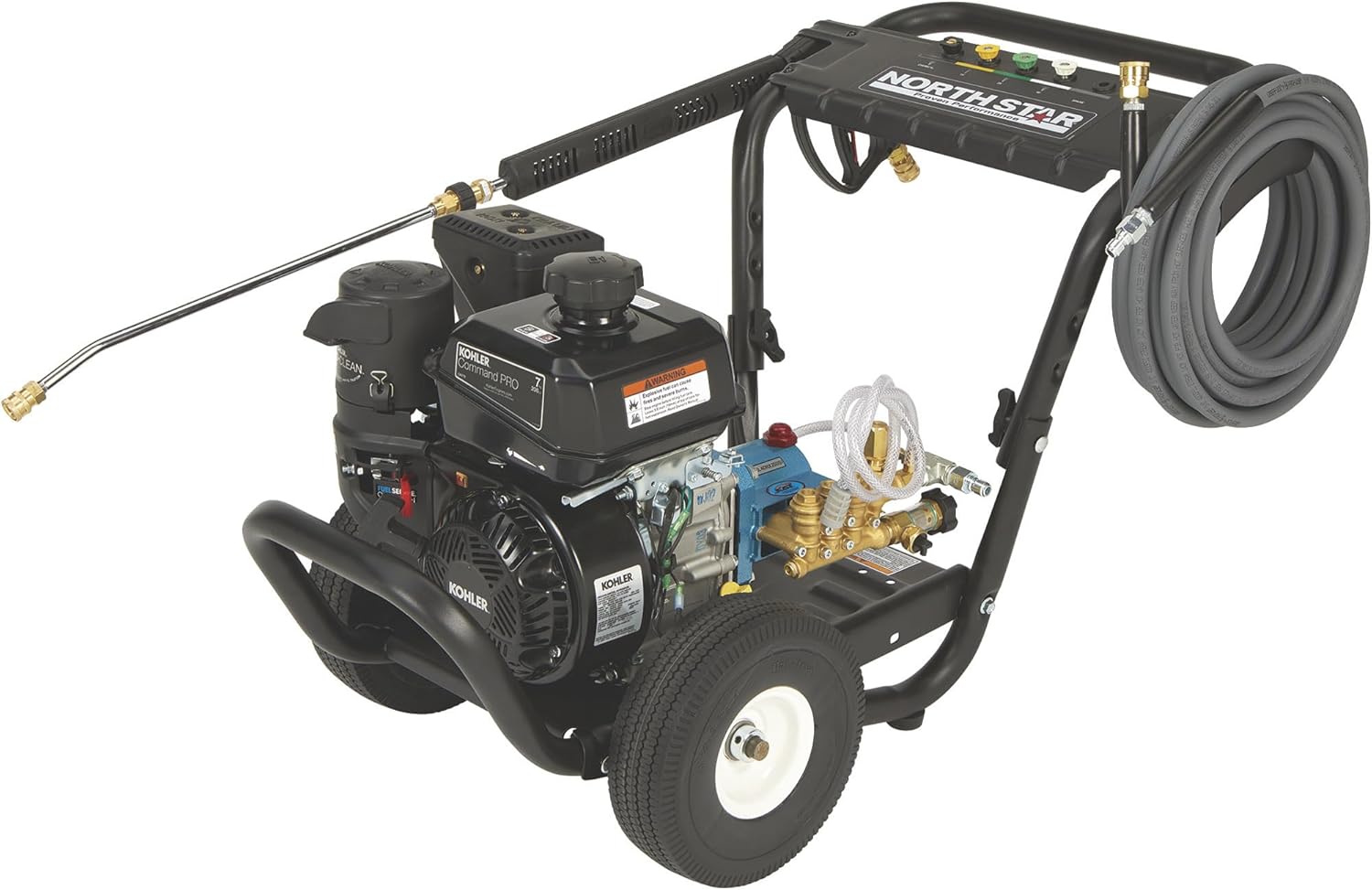

Figura 1: Fronte view of the NorthStar Gas Cold Water Pressure Washer, showing the spray gun, hose reel, and engine.

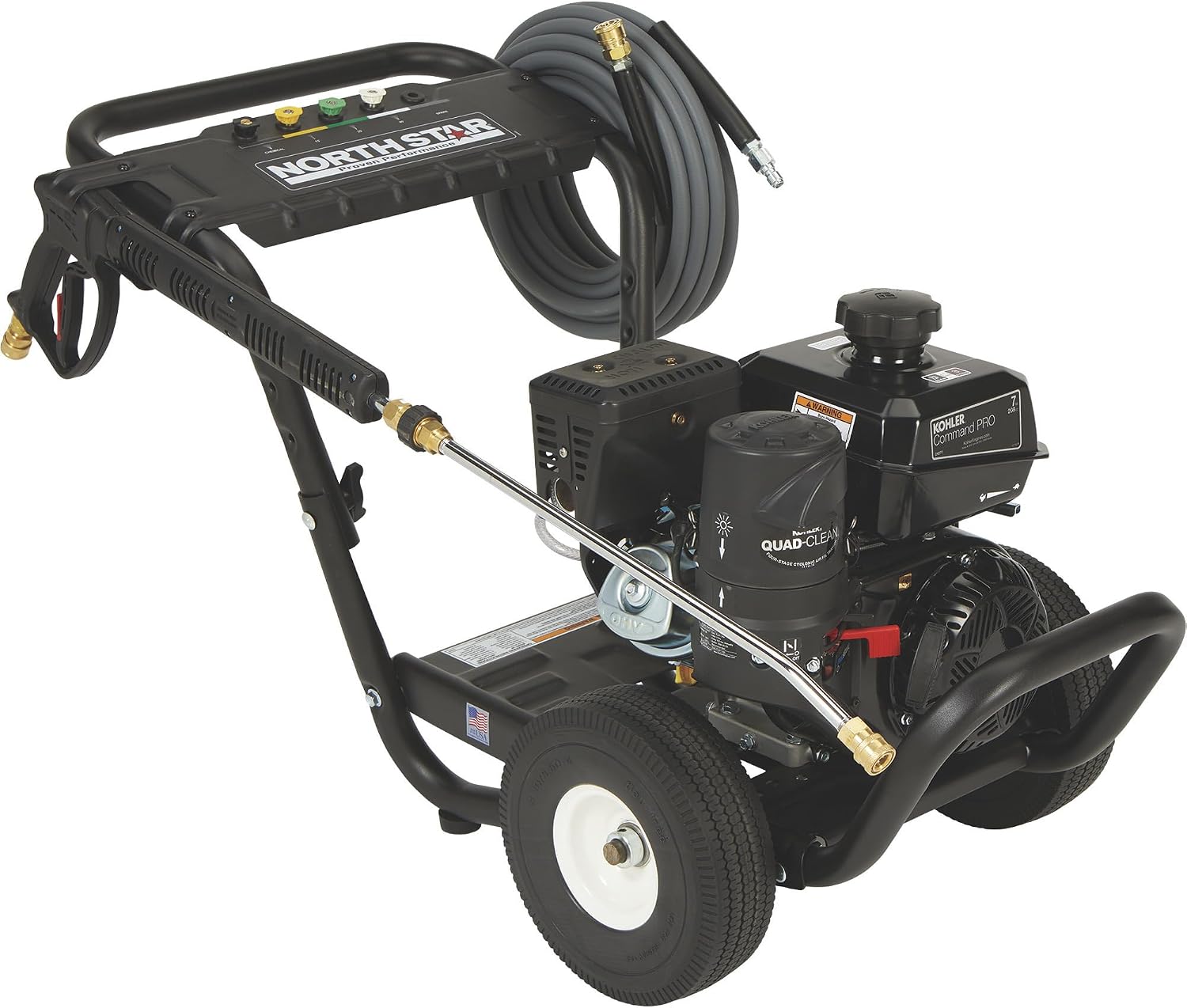

Figura 2: Lateral view of the pressure washer, highlighting the pump assembly and wheel design.

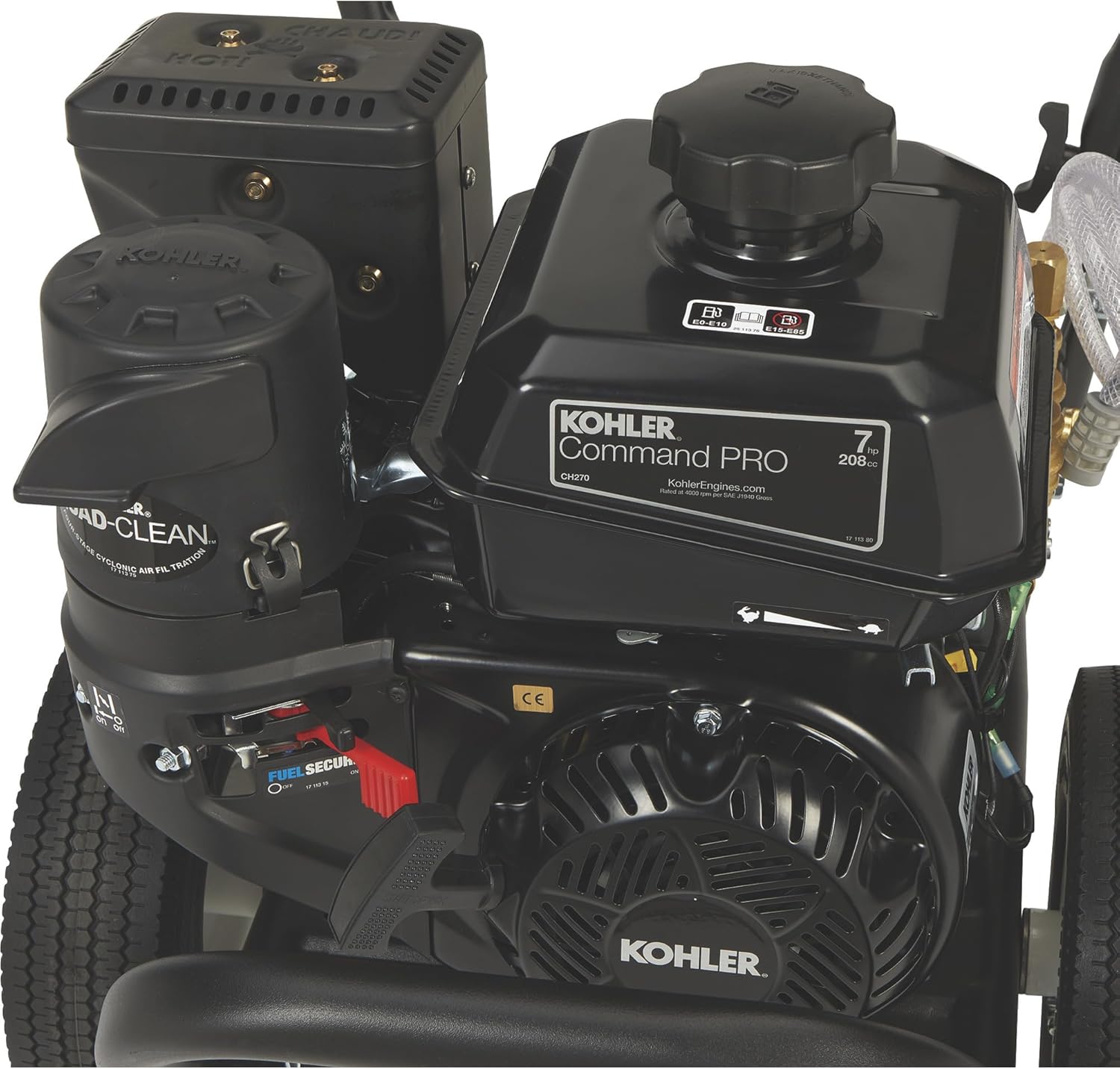

Imaxe 3: Primeiro plano view of the Kohler Command PRO CH270 engine, showing the fuel cap and air filter.

• Motor: Kohler Command PRO CH270 commercial engine.
• Bomba: CAT 4DNX crankshaft triplex pump with thermal protection and ceramic plungers.
• Mangueira: 50ft. heavy-duty non-marking hose.
• Spray Gun & Lance: Deseñado ergonomicamente para un uso cómodo.
• Boquillas: Four quick-connect nozzles for various spray patterns.
• Marco: Rugged 1-3/8in. steel tube frame.
• Rodas: 10in. flat-free tires for easy portability.

Configuración e montaxe

Follow these steps to assemble and prepare your pressure washer for first use.

1. Desembalaxe: Carefully remove all components from the packaging. Verify all parts listed in the packing list are present.
2. Montaxe do mango: Attach the handle to the main frame using the provided bolts and nuts. Ensure it is securely fastened.
3. Instalación da roda: If not pre-installed, attach the flat-free tires to the axle.
4. Conexión da mangueira: Connect the high-pressure hose to the pump outlet and the spray gun inlet. Ensure connections are tight.
5. Conexión de abastecemento de auga: Connect a garden hose (minimum 5/8 inch diameter) to the water inlet on the pump. Ensure the water supply is clean and free of debris.
6. Aceite de motor: Fill the engine crankcase with the recommended engine oil (SAE 30) to the proper level. Refer to the engine manual for exact capacity.
7. Combustible: Encha o depósito de combustible con gasolina sen chumbo fresca. Non o encha demasiado.

Instrucións de funcionamento

Before starting, ensure the unit is on a level surface and all connections are secure.

Arrancar o motor

1. Xire a válvula de combustible á posición "ON".
2. Move the choke lever to the "FULL CHOKE" position (cold engine).
3. Set the engine switch to "ON".
4. Pull the recoil starter handle slowly until resistance is felt, then pull quickly and firmly.
5. Unha vez que o motor arranque, mova gradualmente a panca do estrangulador á posición "RUN".

Usando a lavadora a presión

• Selección de boquillas: Choose the appropriate quick-connect nozzle for your cleaning task.
  • Red (0°): Pin-point stream for tough spots.
  • Yellow (15°): Narrow fan for intense cleaning.
  • Green (25°): Medium fan for general cleaning.
  • White (40°): Wide fan for gentle cleaning.
  • Black (Soap): Low-pressure for applying detergent.
• Axuste de presión: The unit features adjustable pressure to suit any job. Consult the engine manual for specific adjustment procedures.
• Aplicación de deterxente: Use the black soap nozzle and the chemical injector for applying detergents. Ensure the detergent siphon tube is placed in a container of pressure washer safe detergent.
• Técnica de limpeza: Start spraying from a distance and move closer as needed. Avoid spraying directly into electrical components or delicate surfaces.

Parando o motor

1. Solte o gatillo da pistola pulverizadora.
2. Turn the engine switch to "OFF".
3. Xire a válvula de combustible á posición "OFF".
4. Desconectar o abastecemento de auga.
5. Aperte o gatillo da pistola pulverizadora para liberar calquera presión restante no sistema.

Mantemento

Un mantemento regular garante un rendemento óptimo e prolonga a vida útil da súa hidrolavadora.

• Cambio de aceite de motor: Change engine oil after the first 5 hours of operation, then every 50 hours or annually. The unit features oil drain cutouts for quick, clean changes.
• Pump Oil Change: Check pump oil level before each use. Change pump oil every 200 hours or annually.
• Filtro de ar: Limpar ou substituír o filtro de aire regularmente, especialmente en lugares con moito po.
• Buxía: Inspeccione e limpe a buxía anualmente. Substitúaa se é necesario.
• Limpeza de boquillas: Clean clogged nozzles using the provided nozzle cleaning tool.
• Almacenamento: For long-term storage, drain all fuel from the tank and carburetor. Add fuel stabilizer if storing with fuel. Drain water from the pump and hoses to prevent freezing.

Resolución de problemas

Consulta esta sección para ver os problemas comúns e as súas solucións.

Especificacións

Detailed technical specifications for the NorthStar Gas Cold Water Pressure Washer.

For a complete list of specifications, refer to the product's official documentation or the manufacturer's websitio.

Garantía e Soporte

NorthStar products are built for durability and reliability. For warranty information, technical support, or to order replacement parts, please visit the official NorthStar websitio ou póñase en contacto co servizo de atención ao cliente.

Soporte en liña: NorthStar Official Store

Atención ao cliente: Consulta a documentación da túa compra para obter os datos de contacto específicos.
