INGCO RS3208 Rotary Sander User Manual

1. Información de seguridade

Always observe basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.

Avisos xerais de seguridade:

• Seguridade na zona de traballo: Manteña a súa área de traballo limpa e ben iluminada. As zonas desordenadas ou escuras invitan aos accidentes. Non manexe ferramentas eléctricas en atmosferas explosivas, como en presenza de líquidos, gases ou po inflamables.
• Seguridade eléctrica: Os enchufes das ferramentas eléctricas deben coincidir coa toma de corrente. Nunca modifique o enchufe de ningún xeito. Non maltrate o cable. Nunca use o cable para transportar, tirar ou desconectar a ferramenta eléctrica. Manteña o cable lonxe da calor, aceite, bordos afiados ou pezas móbiles.
• Seguridade persoal: Always wear eye protection. Use dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts.
• Uso e coidado da ferramenta: Non force a ferramenta eléctrica. Empregue a ferramenta eléctrica axeitada para a súa aplicación. Desconecte o enchufe da fonte de alimentación antes de facer axustes, cambiar accesorios ou gardar ferramentas eléctricas.
• Recollida de po: This sander is equipped with a dust collection system. Ensure the dust bag is properly attached and emptied regularly to maintain efficient dust extraction and a cleaner work environment.

2. Produto rematadoview

The INGCO RS3208 Rotary Sander is a powerful and versatile tool designed for various sanding applications. It features a 320W motor, a 125mm sanding pad, and a self-vacuum function for efficient dust collection.

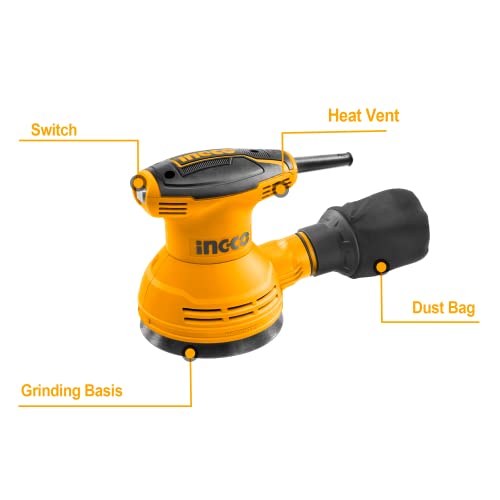

Figura 2.1: Components of the INGCO RS3208 Rotary Sander. Key parts include the On/Off Switch, Motor Head, Dust Bag, and Grinding Base.

Características principais:

• 320W high-performance motor for smooth operation.
• 12,000 RPM maximum rotational speed for efficient material removal.
• 125mm sanding pad suitable for various surfaces.
• Integrated dust collection system with an easy-to-clean container.
• Compact size and ergonomic design for access to tight spaces and enhanced user control.
• Low vibration design with a soft rubber grip for reduced hand fatigue.
• Dust-sealed On/Off switch for durability and ease of use.

3. Especificacións

4. Que hai na caixa

Upon unpacking your INGCO RS3208 Rotary Sander, ensure all items are present and undamaged:

• 1 x INGCO RS3208 Rotary Sander Unit
• 1 bolsa para o po
• 5 x Sand Papers (AKRS125051)
• 1 x Manual de usuario (este documento)

5. Configuración

Before operating the sander, proper setup is crucial for safety and performance.

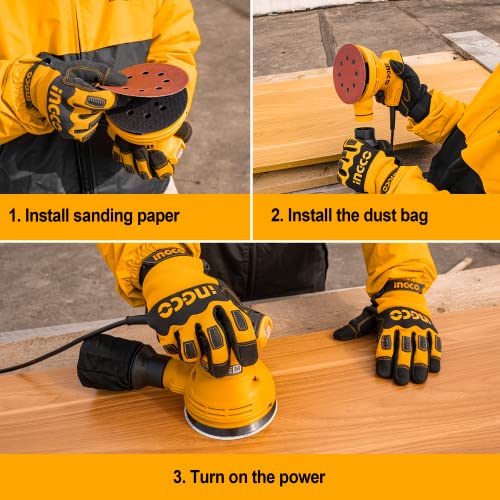

Figura 5.1: Visual guide for installing sanding paper and dust bag.

5.1. Attaching Sanding Paper

1. Asegúrate de que a lixadora estea desconectada da fonte de alimentación.
2. Align the holes on the sanding paper with the holes on the sanding pad.
3. Press the sanding paper firmly onto the hook-and-loop sanding pad until it is securely attached.

5.2. Colocación da bolsa de po

1. Locate the dust exhaust port on the sander.
2. Slide the dust bag onto the exhaust port, ensuring a snug fit to prevent dust leakage.
3. Verify the dust bag is securely attached before operation.

6. Funcionamento

Follow these steps for safe and effective operation of your INGCO Rotary Sander.

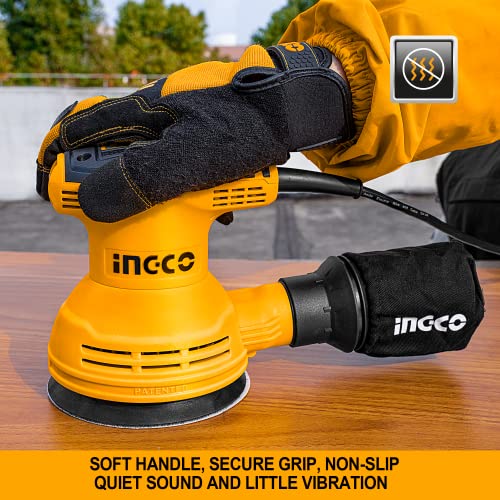

Figura 6.1: Proper grip and ergonomic design for comfortable operation.

6.1. Acendido/apagado

1. Ensure the sander is properly set up with sanding paper and dust bag.
2. Enchufe o cable de alimentación nunha toma eléctrica adecuada.
3. To turn on the sander, press the dust-sealed On/Off switch to the 'On' position.
4. To turn off the sander, press the switch to the 'Off' position.

6.2. Técnicas de lixado

• Hold the sander firmly with both hands, ensuring a secure grip.
• Coloque a almofada de lixa plana sobre a peza de traballo antes de acender a ferramenta.
• Apply light, even pressure. Do not press too hard, as this can reduce sanding efficiency and damage the workpiece or tool.
• Move the sander in overlapping circular or elliptical patterns for best results and to avoid swirl marks.
• For optimal dust collection, ensure the dust bag is properly attached and empty it regularly.
• Ao rematar, levante a lixadora da peza de traballo antes de apagala.

7. Mantemento

Regular maintenance ensures the longevity and optimal performance of your INGCO Rotary Sander.

7.1. Cleaning the Dust Bag

1. Desenchufe a lixadora da fonte de enerxía.
2. Retire a bolsa de po do orificio de escape.
3. Empty the collected dust into a waste receptacle. Tap the bag gently to dislodge any trapped dust.
4. Reattach the dust bag securely before next use.

7.2. Limpeza xeral

• Desenchufe sempre a ferramenta antes de limpala.
• Use un cepillo suave ou aire comprimido para limpar o po e os residuos das aberturas de ventilación.
• Limpar o exterior da ferramenta con publicidadeamp pano. Non use produtos químicos agresivos ou produtos de limpeza abrasivos.
• Inspect the power cord for any damage. If damaged, have it replaced by a qualified technician.

8 Solución de problemas

If you encounter issues with your INGCO Rotary Sander, refer to the following common problems and solutions:

Problemas comúns:

• Sander does not start:
  • Comprobe se o cable de alimentación está conectado correctamente a unha toma de corrente que funcione.
  • Ensure the On/Off switch is in the 'On' position.
  • Comprobe o disxuntor ou o fusible da toma de corrente.
• Poor sanding performance:
  • Replace worn-out sanding paper.
  • Ensure the correct grit of sanding paper is used for the task.
  • Apply light, even pressure; excessive pressure can hinder performance.
• Exceso de po:
  • Ensure the dust bag is securely attached and not full. Empty if necessary.
  • Check if the sanding paper holes align with the sanding pad holes for proper dust extraction.
• Vibración ou ruído excesivos:
  • Ensure the sanding paper is properly centered and securely attached.
  • Inspect the sanding pad for damage or wear.
  • Se o problema persiste, deixe de usar e póñase en contacto co servizo de atención ao cliente.

9. Garantía e soporte

INGCO products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official INGCO websitio. Garde o recibo da compra como xustificante da mesma.

For technical assistance, spare parts, or service inquiries, please contact INGCO customer support through their official channels. Provide your product model number (RS3208) and purchase details when seeking support.
