NineLeaf Bike Alarm with Remote Instruction Manual

Introdución

The NineLeaf Bike Alarm is a wireless security device designed to protect your bicycle, motorcycle, e-bike, or electric scooter from theft. Featuring a vibration motion sensor, it emits a loud 113dB alarm to deter potential thieves and alert you to unauthorized movement. This alarm is also IP55 waterproof, making it suitable for various outdoor conditions. It includes a remote control for convenient arming, disarming, and other functions.

This manual provides detailed instructions on how to set up, operate, and maintain your NineLeaf Bike Alarm.

Image: NineLeaf Bike Alarm unit and remote control.

Especificacións

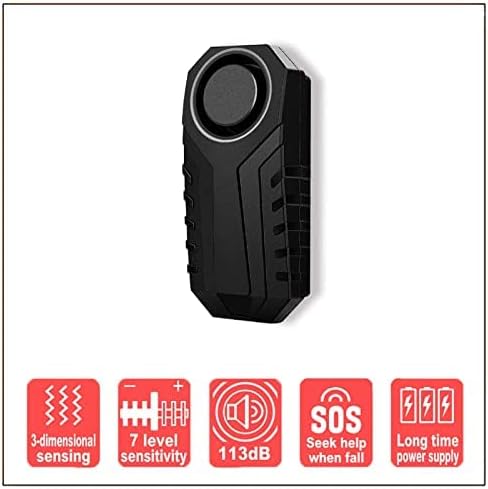

Image: Key features of the NineLeaf Bike Alarm.

Configuración

1. Instalación da batería

The alarm unit requires 3 AAA alkaline batteries (not included). The remote control requires 1 x 12V/27A alkaline battery (included).

1. Open the battery compartment of the alarm unit.
2. Insert 3 AAA alkaline batteries, ensuring correct polarity.
3. Pecha o compartimento da batería.
4. For the remote, ensure the pre-installed 12V/27A battery is active.

2. Powering On the Alarm

1. Manteña premido o Brazo key on the remote control until the alarm emits a short "Bi" sound.
2. Gently shake the alarm unit. You will hear three short "Bi" sounds, indicating that the alarm is powered on and ready for use.

3. Instalación

The alarm can be installed using the provided double-sided sticker or strap. No screws or wiring are required.

• Using Double-Sided Sticker: Clean the desired surface on your vehicle. Apply the sticker to the back of the alarm and firmly press it onto the surface.
• Using Strap: Secure the alarm to a suitable part of your vehicle (e.g., seat post, frame) using the provided strap.

Imaxe: Examples of the NineLeaf Bike Alarm installed on various vehicles.

Operación

Armado e Desarmado

• Para armar: Preme o Brazo button on the remote control. The alarm will emit a confirmation sound.
• Para desarmar: Preme o Desarmar button on the remote control. The alarm will emit a confirmation sound.

Adjusting Touch Sensitivity (7 Levels)

The alarm has 7 levels of sensitivity, from a gentle touch to a strong impact. "Do" represents the highest sensitivity.

1. Mantén presionado Desarmar key on the remote control until the LED light on the remote stays lit.
2. While the LED is lit, press the Brazo key. Each press will cycle through the sensitivity levels from high to low.
3. You will hear different tones (do, re, mi, fa, sol, la, si) corresponding to the sensitivity levels. "Do" is the highest sensitivity.
4. Release the buttons to set the desired sensitivity.

Image: Visual representation of the 7 adjustable sensitivity levels.

Changing Electrical Bell Sound (3 Types)

The alarm offers 3 different bell sounds for the vehicle search function (not available in armed mode).

1. Ensure the alarm is in disarm mode.
2. Preme o Bell button on the remote control to cycle through the available bell sounds.

Searching Vehicle

To locate your vehicle in a parking lot, press the Bell button on the remote control. The alarm will sound, helping you find your vehicle.

SOS Functions (Fall Help)

The SOS function can be activated to automatically call for help if the alarm unit detects an accidental fall (tilt more than 45 degrees). If the normal position is restored, the call for help will automatically turn off.

Image: Explanation of the SOS fall help function.

Indicación de batería baixa

The alarm unit will provide an indication when its batteries are low, prompting you to replace them.

Emparejamento de mandos a distancia

The NineLeaf Bike Alarm can be paired with a maximum of 8 remote controls.

1. Pairing the First Remote Control

1. Remove the batteries from the alarm unit. Wait for 30 seconds.
2. Reinstall the batteries into the alarm unit.
3. Mantén presionado Ton de chamada key (often represented by a bell icon) on the remote control.
4. After the alarm emits a "Bi" sound, press the Brazo clave do mando a distancia.
5. The alarm will sound "Bi...Bi" twice, confirming successful pairing.

2. Pairing Additional Remote Controls

You can pair additional remotes one by one. If you pair more than 8 remotes, the code of the first remote will be overwritten.

1. First, disarm the alarm using an already paired remote control.
2. Mantén presionado Ton de chamada key (often represented by a bell icon) on the first paired remote control to enter code learning mode.
3. After the alarm emits a "Bi" sound, press the Brazo or Desarmar tecla na new remote control quere emparellar.
4. The alarm will sound "Bi...Bi" twice, confirming successful pairing of the new remote.
5. Repeat for any other additional remotes.

3. Deleting Pairing (Resetting All Remotes)

This procedure will delete all paired remote controls from the alarm unit.

1. Ensure the bike alarm is not in arming mode.
2. Manteña premido o Desarmar button on any learned remote control.
3. After hearing a single "Bi" sound, press the Bell button on the same remote control.
4. You will hear "Bi...Bi...Bi" three times. At this point, all pairing codes in the alarm will be reset.

Mantemento

• Substitución da batería: Replace the alarm's AAA batteries when the low battery indicator is active. Replace the remote's 12V/27A battery approximately once a year or when its range decreases.
• Limpeza: Wipe the alarm unit and remote with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Almacenamento: If storing the alarm for an extended period, remove the batteries from the alarm unit to prevent leakage.
• Exposición á auga: While IP55 waterproof, avoid submerging the device in water. Ensure the battery compartment is securely closed after battery changes.

Image: The IP55 waterproof feature of the NineLeaf Bike Alarm.

Resolución de problemas

Garantía e Soporte

NineLeaf is committed to providing quality products. For any questions, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official NineLeaf websitio.

Conserve o comprobante de compra para efectos da garantía.
