iDIGMALL J207 Bluetooth 5.4 Receiver User Manual

Introdución

The iDIGMALL J207 is a Bluetooth 5.4 audio receiver designed to add wireless audio streaming capabilities to your existing audio systems. This device allows you to connect your smartphone, tablet, or laptop wirelessly to non-Bluetooth car stereos, home stereo systems, or wired headphones via a 3.5mm or RCA auxiliary input. It also features a built-in microphone for hands-free calling.

Nota: The J207 is an audio receiver only and does not function as a transmitter. It cannot be used to add Bluetooth capabilities to a television for transmitting audio.

O que hai na caixa

This image displays the iDIGMALL J207 Bluetooth Receiver along with its accessories. The receiver is a small, square black device with a central multi-function button. Below it are the included 3.5mm audio cable and a USB Type-C charging cable, and a user manual.

• 1 x iDIGMALL J207 Bluetooth Receiver
• 1 cable de audio de 3.5 mm
• 1 x cable de carga USB tipo C
• 1 x Manual de usuario

Diagrama e controis do produto

This diagram illustrates the various buttons and ports on the iDIGMALL J207 Bluetooth Receiver. It shows the Volume + button, MFB (Multi-Function Button), Previous Song button, AUX Port, Microphone, Next Song button, Type-C Charging Port, and Volume - button.

Especificacións

Configuración

1. Cargue o receptor

   Before initial use, fully charge the J207 receiver using the provided USB Type-C charging cable. Connect the Type-C end to the receiver's charging port and the USB-A end to a standard USB power adapter (not included) or a computer USB port. The indicator light will show charging status and turn off when fully charged (approximately 2 hours).

2. Connect to Your Audio System



   This image shows the iDIGMALL J207 Bluetooth Receiver connected to a home stereo system via a 3.5mm audio cable. The receiver is placed on a white cabinet next to the stereo receiver and a large speaker.

   Connect the J207 receiver to your desired audio system (car stereo, home stereo, wired headphones) using the supplied 3.5mm audio cable. If your system requires RCA input, use a 3.5mm to RCA adapter (not included).

   • For car stereos: Plug the 3.5mm cable into the AUX input of your car stereo.
   • For home stereos/speakers: Plug the 3.5mm cable into the AUX input of your amplifier ou altofalante alimentado.
   • For wired headphones: Plug your wired headphones directly into the 3.5mm AUX port of the J207 receiver.

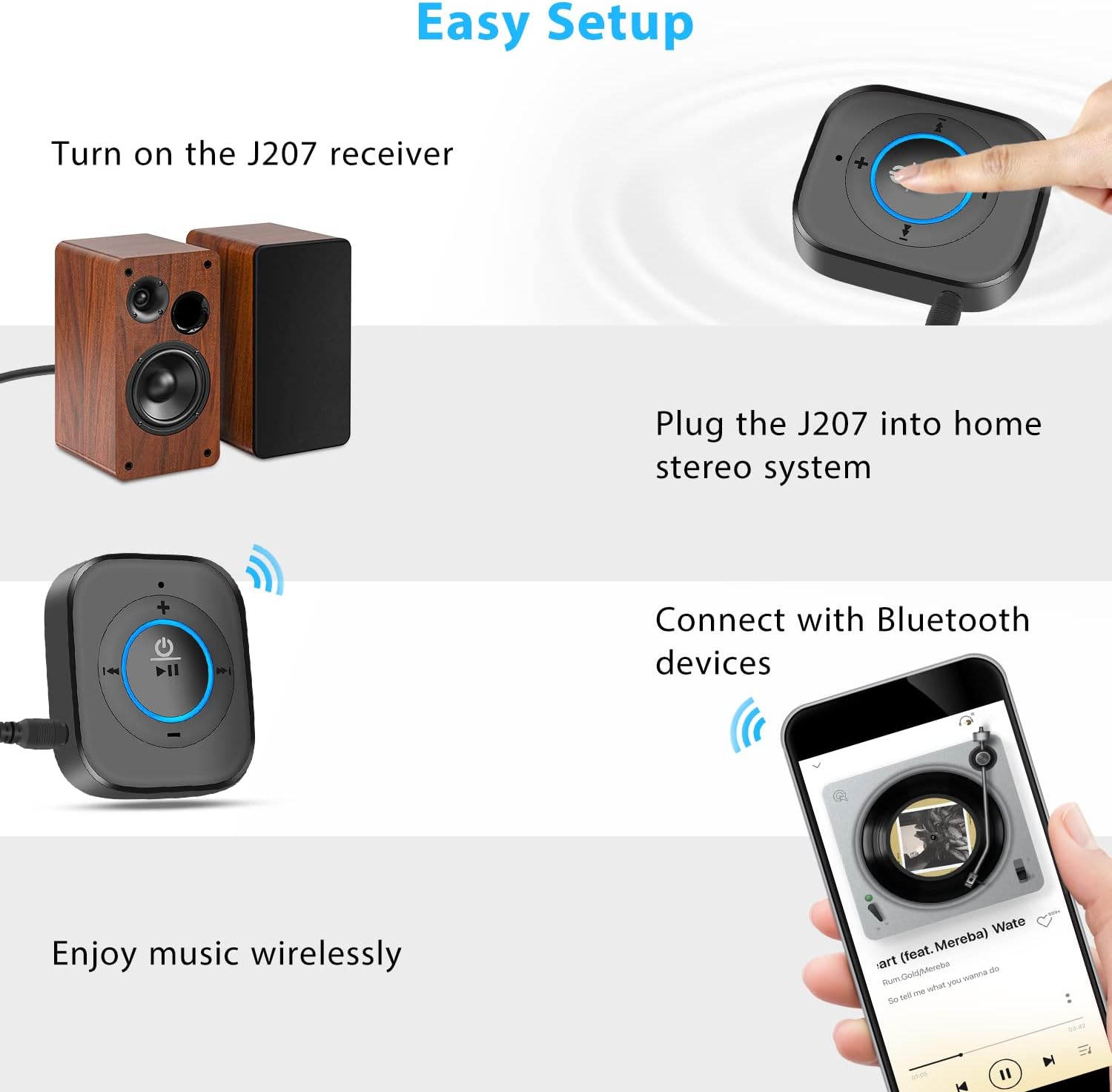

3. Power On and Enter Pairing Mode



   This image depicts a hand pressing the central MFB button on the iDIGMALL J207 Bluetooth Receiver to power it on. The button glows blue, indicating it is active or in pairing mode.

   Manteña premido o Botón MFB (center button) for approximately 3 seconds until the indicator light flashes blue and red alternately. This indicates the receiver is powered on and in pairing mode.

4. Pair with Your Bluetooth Device



   This image shows a smartphone screen with its Bluetooth settings open, displaying "J207" as an available device to connect to. The J207 receiver is visible in the background, connected to a stereo system.

   No teu teléfono intelixente, tableta ou outro dispositivo con Bluetooth, vai á configuración de Bluetooth e activa Bluetooth. Busca available devices and select "J207" from the list to pair. Once paired, the indicator light on the J207 will flash blue slowly.

Instrucións de funcionamento

Encendido/apagado

• Encendido: Press and hold the MFB button for 3 seconds. The indicator light will flash blue and red.
• Apagado: Press and hold the MFB button for 3 seconds. The indicator light will turn off.
• Reconexión automática: If the J207 is connected to a car charger, it will automatically power on and reconnect to the last paired device when the car starts.

Control de reprodución de música

This image focuses on the iDIGMALL J207 receiver's control buttons, specifically highlighting the volume up/down and next/previous track buttons. A smartphone and a portable speaker are in the background, illustrating music control.

• Reproducir/Pausa: Prema brevemente o botón MFB.
• Próxima pista: Short press the "Next Song" button (right arrow).
• Pista anterior: Short press the "Previous Song" button (left arrow).
• Subir volume: Prema brevemente o botón "Volume +".
• Baixar volume: Prema brevemente o botón "Volume -".

Chamadas mans libres

This image shows the iDIGMALL J207 Bluetooth Receiver placed on a car dashboard, with a smartphone displaying an incoming call. This illustrates its use for hands-free calling while driving.

• Responder chamada: Short press the MFB button during an incoming call.
• Finalizar a chamada: Short press the MFB button during an active call.
• Rexeitar a chamada: Press and hold the MFB button for 2 seconds during an incoming call.
• Volver a marcar o último número: Double press the MFB button when not on a call.

Multi-Point Connection (Connect Two Devices Simultaneously)

This image demonstrates the iDIGMALL J207 Bluetooth Receiver's ability to connect to two Bluetooth devices (two smartphones) simultaneously, allowing seamless switching between audio sources.

The J207 receiver supports connecting to two Bluetooth devices (e.g., two smartphones) simultaneously. This allows you to switch between audio sources without re-pairing. To use this feature:

1. Pair the first device with the J207 as described in the "Pair with Your Bluetooth Device" section.
2. Disable Bluetooth on the first device. The J207 will re-enter pairing mode (flashing blue and red).
3. Pair the second device with the J207.
4. Enable Bluetooth on the first device. It should automatically reconnect to the J207.
5. The J207 is now connected to both devices. Audio will play from the device that is currently active.

Charging While Playing

This image shows the iDIGMALL J207 Bluetooth Receiver connected to a power outlet via its USB-C charging cable, while simultaneously connected to a home entertainment system. This illustrates the ability to use the device while it charges.

The J207 can be used while it is charging. Connect the USB Type-C charging cable to the receiver and a power source. This ensures uninterrupted audio playback even during extended use.

Mantemento

• Manteña o dispositivo seco. Evite a exposición á humidade ou a líquidos.
• Limpa o dispositivo cun pano suave e seco. Non empregues produtos químicos agresivos nin produtos de limpeza abrasivos.
• Garda o dispositivo nun lugar fresco e seco cando non estea en uso.
• Avoid extreme temperatures, as this can shorten the lifespan of the battery and electronic components.

Resolución de problemas

Información de seguridade

Please read and follow these safety guidelines to ensure proper use and prevent damage to the device or injury.

• Manexo da batería: The device contains a Lithium Ion battery. Do not disassemble, crush, puncture, short-circuit, or dispose of in fire or water. Do not expose to temperatures above 60°C (140°F).
• Auga e humidade: Keep the device away from water, rain, and other liquids. Do not immerse the device in water.
• Temperaturas extremas: Avoid exposing the device to extremely high or low temperatures.
• Interferencia: This device may cause interference with other electronic devices. Keep it away from medical devices (e.g., pacemakers) and other sensitive electronics.
• Limpeza: Use only a dry, soft cloth for cleaning. Do not use chemical cleaners.
• Eliminación: Dispose of the device and its battery responsibly according to local regulations. Do not dispose of with household waste.

Garantía e Soporte

The iDIGMALL J207 Bluetooth Receiver comes with a 12 meses de garantía desde a data de compra. Esta garantía cobre defectos de fabricación e avarías de funcionamento en condicións normais de uso.

For warranty claims, technical support, or any questions regarding your product, please contact iDIGMALL customer service. You can typically find contact information on the product packaging or the official iDIGMALL websitio.

Información de contacto do fabricante: 4F, C Building, Feng Men Ao industrial park, GangTou, BanTian, LongGang District, Shenzhen, China.

Política de devolución: Please refer to the retailer's return policy for details on product returns. Typically, products can be returned within 30 days for a refund or replacement, subject to the retailer's terms and conditions.
