1. Introdución
This document provides essential information for the proper setup, operation, and maintenance of your new replacement wireless remote control. This remote is designed as a direct infrared replacement for specific Alpine car stereo receiver systems. Please ensure your original remote or car stereo model is listed as compatible before use.
2. Produto rematadoview
The replacement remote control offers a convenient way to manage your Alpine car stereo system from a distance. It features an ergonomic design and standard button layout for intuitive control.
2.1 Características principais
- Direct infrared replacement for compatible Alpine car stereo models.
- No setup or programming required; ready to use after battery installation.
- Deseño ergonómico para un manexo cómodo.
- Standard button layout for common audio functions.
2.2 Deseño do control remoto
Figura 1: Fronte view of the remote control, showing the power, source, band, volume, track navigation, play/pause, A.PROC., and mute buttons.

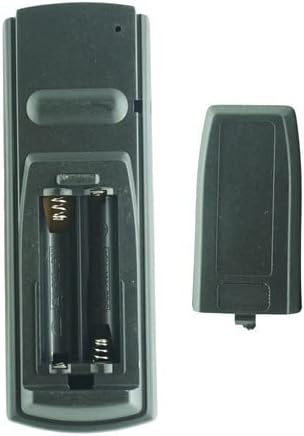

Figura 2: De volta view of the remote control with the battery compartment cover removed, showing slots for two AAA batteries.
Figura 3: De volta view of the remote control with the battery compartment cover securely closed.
3. Configuración
3.1 Instalación da batería
- Localice o compartimento da batería na parte traseira do control remoto.
- Slide the battery compartment cover downwards or in the direction indicated by an arrow to open it. Refer to Figura 2 para orientación visual.
- Insira dúas (2) pilas AAA, asegurándose de que os terminais positivo (+) e negativo (-) estean aliñados correctamente coas marcas do interior do compartimento.
- Replace the battery compartment cover by sliding it back into place until it clicks securely. Refer to Figura 3 para orientación visual.
Nota: This remote control does not require any programming or code setup. It is an infrared replacement designed to work immediately with compatible Alpine car stereo systems once batteries are installed.
4. Instrucións de funcionamento
Point the remote control directly at the infrared receiver on your Alpine car stereo system. Ensure there are no obstructions between the remote and the stereo.
4.1 Funcións básicas
| Botón | Función |
|---|---|
| POTENCIA | Turns the car stereo system on or off. |
| FONTE | Cycles through available audio sources (e.g., Radio, CD, USB, Bluetooth). |
| BANDA | Changes radio bands (e.g., FM1, FM2, AM). |
| VOLUME ▼ / ▲ | Decreases (▼) or increases (▲) the audio volume. |
| ◀◀ (Previous Track/Tune Down) | Salta á pista anterior/file or tunes down radio frequency. |
| ▶▶ (Next Track/Tune Up) | Salta á seguinte pista/file or tunes up radio frequency. |
| ► / ▐▐ (Play/Pause) | Plays or pauses the current audio playback. |
| A.PROC. | Activates or cycles through audio processing modes (e.g., Bass Engine, EQ presets). Refer to your car stereo's manual for specific functions. |
| MUTO | Silencia ou activa a saída de audio. |
Note: Specific button functionalities may vary slightly depending on your Alpine car stereo model. Refer to your car stereo's original user manual for detailed information on its remote control functions.
5. Mantemento
5.1 Limpeza
To clean the remote control, gently wipe it with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the surface or internal components.
5.2 Substitución da batería
Replace the batteries when the remote control's response becomes sluggish or stops working. Always replace both AAA batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries.
5.3 Almacenamento
Store the remote control in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If the remote will not be used for an extended period, it is recommended to remove the batteries to prevent leakage.
6 Solución de problemas
| Problema | Posible causa/solución |
|---|---|
| O control remoto non funciona. |
|
| Os botóns non responden ou están pegañentos. |
|
| O control remoto funciona de forma intermitente. |
|
Importante: This remote is a direct replacement. If your original remote looked different, or your car stereo model is not explicitly listed as compatible, this replacement remote may not function correctly. Always compare the appearance of this remote with your original remote before purchase and use.
7. Especificacións
| Característica | Detalle |
|---|---|
| Tipo de produto | Replacement Wireless Remote Control |
| Compatibilidade | Alpine TDM-7544, UTE-72BT, UTE-62BT, IXA-W407BT, CDE-101EM, CDE-101E, CDE-101R, CDE-101RM, CDE-102BT, CDE-102RI Car Stereo Receiver Systems |
| Tecnoloxía de conectividade | Infravermello (IR) |
| Tipo de controlador | Control de botón |
| Fonte de enerxía | 2 pilas AAA (non incluídas) |
| Característica especial | Ergonomic design, no setup required |
| ASIN | B0C6DSCSPQ |
| Data de primeira dispoñibilidade | 26 de maio de 2023 |
| Fabricante | SZHKHXD |
| País de Orixe | China |
8. Garantía e soporte
Information regarding specific warranty terms for this replacement remote control is not provided in this manual. Please refer to the seller's return policy or contact the seller directly for details on warranty coverage and support.
For technical assistance or inquiries regarding compatibility, it is recommended to contact the seller or refer to the original user manual of your Alpine car stereo system.
