Berkel Volano Tribute Premium Flywheel Food Slicer - Black

Introdución

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and care of your Berkel Volano Tribute Premium Flywheel Food Slicer. Designed with Italian tradition and craftsmanship, this slicer offers precise slicing for a variety of foods. Please read this manual thoroughly before initial use and retain it for future reference.

Instrucións de seguridade

Always prioritize safety when operating any food slicing equipment. Failure to follow these instructions may result in serious injury or damage to the appliance.

• Le todas as instrucións: Familiarize yourself with all operating and safety procedures before using the slicer.
• Manteña as mans claras: Never place hands near the blade during operation. Always use the product press holder.
• Superficie estable: Ensure the slicer is placed on a stable, level, and non-slip surface. The included pedestal is designed for this purpose.
• Protección da lámina: Always ensure the blade protection device is in place when the machine is not in use or during cleaning.
• Desenchufe antes de limpar: Disconnect the slicer from its power source (if applicable, though this is manual) before cleaning or maintenance.
• Supervisión de adultos: This appliance is not intended for use by children. Keep children and pets away from the slicer during operation.
• Proper Food Handling: Only slice appropriate food items. Do not attempt to slice frozen foods or items with bones.
• Lámina afiada: The blade is extremely sharp. Handle with extreme care during assembly, disassembly, and cleaning.

Produto rematadoview

Image: The Berkel Volano Tribute Premium Flywheel Food Slicer shown alongside its dedicated pedestal.

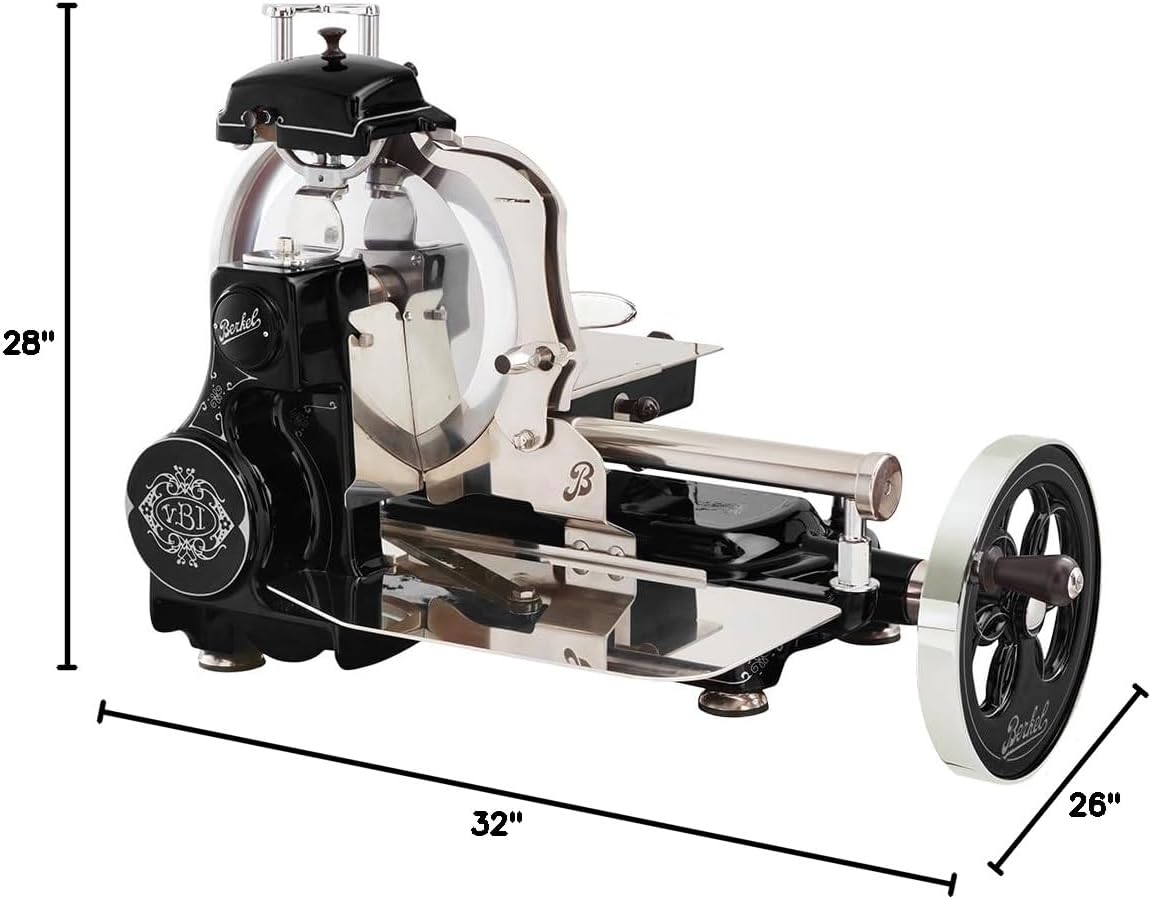

Image: Product dimensions illustrating the length, width, and height of the slicer.

Compoñentes clave:

• Volante: The iconic hand-crank mechanism for blade rotation.
• Chromed Steel Blade: 11.8 inch (300 mm) professional profile folla.
• Gauge Plate Opening Knob: Adjusts slice thickness (11 positions, 0-.059 inches).
• Removable Sharpener: Integrated sharpening system.
• Product Press Holder: Assisted stainless steel holder for securing food.
• Food Plate: Stainless steel professional food plate.
• Pedestal: Dedicated stand for elevating the slicer.

Características:

• Inspired by the historic Berkel B model of the '20s, combining elegance and tradition.
• Concave blade shape touches product only at the cutting point, preserving taste and scent.
• Removable sharpener with a two-movement operating system for precise sharpening.
• Detachable food plate system for easy cleaning and wide rear space for waste collection.
• Equipped with a protection device covering the blade for maximum safety.
• Versatile for slicing prosciutto, meat, cold cuts, fish, ham, cheese, bread, fruits, and veggies.

Configuración

1. Desembalaxe: Retire con coidado todos os compoñentes da embalaxe. Garde a embalaxe para un posible transporte ou almacenamento futuro.
2. Montaxe de pedestal: If not pre-assembled, securely attach the slicer to the included pedestal using the provided hardware. Ensure all connections are tight and stable.


Image: The Berkel slicer correctly mounted on its pedestal, ready for operation.

3. Limpeza inicial: Antes do primeiro uso, limpe ben todas as pezas que entrarán en contacto cos alimentos. Consulte a sección "Mantemento e limpeza" para obter instrucións detalladas.
4. Colocación: Place the assembled slicer on a sturdy, level surface in a well-lit area, ensuring sufficient space around the unit for safe operation and cleaning.

Instrucións de funcionamento

1. Preparar comida: Ensure the food item is at the appropriate temperature and consistency for slicing. Remove any packaging or hard elements.
2. Adjust Slice Thickness: Use the gauge plate opening knob to select the desired slice thickness. There are 11 positions available, ranging from 0 to 0.059 inches.
3. Comida do lugar: Carefully place the food item onto the stainless steel food plate. Use the assisted stainless steel product press holder to secure the food firmly against the gauge plate.
4. Begin Slicing: Grasp the flywheel handle and begin rotating it smoothly and consistently. The blade will rotate, and the food carriage will advance, producing slices.
5. Recoller rebandas: Slices will fall onto the receiving tray. Collect them as they are produced.
6. Sharpening the Blade:
   • The slicer features a removable sharpener.
   • To sharpen, lift and rotate the sharpener manually until it is in the correct position over the blade.
   • Follow the specific instructions for engaging the sharpening stones (typically involves two movements for optimal precision).
   • Sharpen only when necessary to maintain blade integrity.

Mantemento e Limpeza

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your Berkel slicer.

1. A seguridade primeiro: Always ensure the slicer is completely stopped and the blade protection device is engaged before cleaning.
2. Desmontaxe para a limpeza: The overplate, meat table, receiving tray, and sharpener can be easily removed for thorough cleaning.
3. Só lavado a man: All removable parts and the main body of the slicer should be hand washed. Do not place parts in a dishwasher.
4. Axentes de limpeza: Use mild soap and warm water. Avoid abrasive cleaners, scouring pads, or harsh chemicals that could damage the finish or components.
5. Limpeza de láminas: Exercise extreme caution when cleaning the blade. Use a damp cloth and wipe from the center outwards, away from the sharp edge. Never touch the blade directly with your bare hands.
6. Secado: Thoroughly dry all components immediately after washing to prevent water spots and corrosion.
7. Remontaxe: Reassemble all parts correctly after cleaning. Ensure the blade protection device is properly reinstalled.
8. Lubricación: Periodically apply food-grade lubricant to moving parts as indicated in the detailed product manual (not provided in this summary, but a general best practice for mechanical slicers).

Resolución de problemas

This section addresses common issues you might encounter with your slicer.

Especificacións

Garantía e Soporte

For warranty information, technical support, or to inquire about replacement parts, please contact Berkel customer service directly. Refer to the product packaging or the official Berkel websitio web para obter os datos de contacto máis actualizados.

Tamén podes visitar o Berkel Store on Amazon para obter información adicional sobre o produto e recursos de asistencia.
