1. Introdución
This manual provides essential information for setting up, operating, and maintaining your TCL 65QM8B Mini LED QLED 4K HDR Google TV. Please read it thoroughly before use to ensure proper functionality and safety. This television combines advanced Mini LED and QLED technologies with a 144Hz refresh rate, 4K HDR Premium 1300nits brightness, and the Google TV smart platform, offering a premium viewexperiencia de xogo e xogo.
2. Información importante de seguridade
- Seguridade eléctrica: Always ensure the power cable is securely connected to a grounded outlet. Do not overload power strips. Disconnect the power plug during lightning storms or when unused for long periods.
- Ventilación: Maintain adequate space around the TV for proper ventilation. Do not block ventilation openings. Avoid placing the TV on soft surfaces like carpets or beds that may obstruct airflow.
- Limpeza: Unplug the TV before cleaning. Use a soft, dry cloth to clean the screen and cabinet. Avoid liquid cleaners, aerosols, or abrasive cloths.
- Manexo: The TV is heavy. Always use at least two people when lifting or moving the television to prevent injury or damage.
- Nenos: Non permita que os nenos suban ao televisor nin ao soporte. Asegúrese de que o televisor estea colocado sobre unha superficie estable ou fixado firmemente na parede para evitar que se volque.
- Humidade: Non expoñas o televisor á choiva nin á humidade. Non coloques obxectos cheos de líquidos, como vasos, enriba do televisor.
3. Contido do paquete
Verifica que todos os elementos estean presentes no paquete:
- TCL 65QM8B 65-inch Mini LED QLED 4K HDR Google TV
- Control remoto
- Pilas AAA (2x)
- Cable de alimentación
- Manual de usuario (este documento)
- Compoñentes do soporte de TV (base e parafusos)
4. Guía de configuración
4.1 Desembalaxe e colocación
Carefully remove the TV from its packaging. It is recommended that two people handle the TV due to its size and weight. Place the TV on a flat, stable surface or prepare for wall mounting.

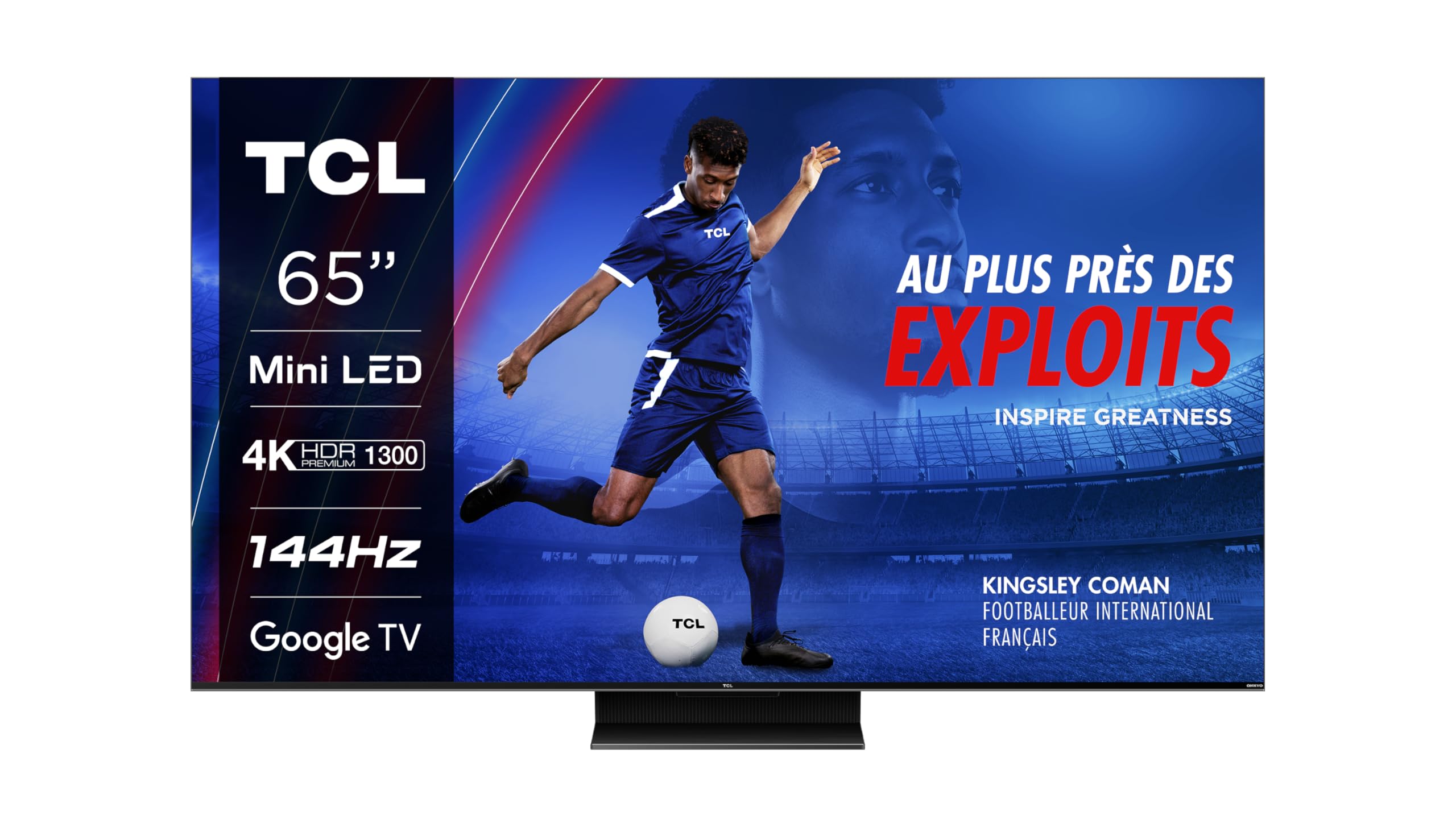

Imaxe: Fronte view of the TCL 65QM8B TV on its stand.
4.2 Montaxe do soporte / Montaxe na parede
If using the included stand, attach the base to the TV following the instructions provided in the separate quick start guide. Ensure all screws are tightened securely. For wall mounting, the TV supports a VESA standard of 300 x 300 mm. Use a compatible wall mount bracket (sold separately) and consult a professional for installation.
Image: Technical drawing showing the dimensions of the TCL 65QM8B TV with its stand, and a view do mando a distancia.
4.3 Conexión de periféricos
Conecta os teus dispositivos externos ao televisor usando os portos dispoñibles:
- HDMI (x4): For high-definition devices such as game consoles (PlayStation, Xbox), Blu-ray players, and soundbars.
- USB (x1): Para conectar dispositivos de almacenamento USB para reproducir contido multimedia files ou para actualizacións de software.
- LAN (Ethernet): Para unha conexión estable a internet por cable.
- Óptica (saída de audio dixital): For connecting to external audio receivers or sound systems.
- Entrada AV: Para conectar dispositivos antigos con saídas de vídeo composto e audio estéreo.
- Auriculares: Para escoita de audio en privado.
- Ranura CI: For inserting a Conditional Access Module (CAM) for encrypted digital TV services.
Image: Diagram illustrating the various connectivity ports on the TCL 65QM8B TV, including HDMI, USB, LAN, Optical, AV Input, Headphone, and CI Slot.
5. Funcionamento da súa TV
5.1 First-Time Setup and Google TV
After connecting the power cable and turning on the TV, follow the on-screen instructions for the initial setup. This includes selecting your language, connecting to a Wi-Fi network, and logging in with your Google account to access Google TV features and apps.
Image: The TCL 65QM8B TV screen showing the Google TV home interface with various streaming app icons and content recommendations.
5.2 Funcións de control remoto
The included remote control allows you to navigate the TV's interface and control various functions. Key buttons include Power, Volume Up/Down, Channel Up/Down, Input Source selection, and a dedicated Google Assistant button for voice commands.
5.3 Características principais
Mini LED Technology
The TCL 65QM8B utilizes Mini LED backlighting, which consists of thousands of tiny LEDs. This technology allows for precise light control, delivering deeper blacks, brighter whites, and enhanced contrast compared to traditional LED TVs.
Image: A visual representation of Mini LED technology, showing how small LEDs provide precise backlighting for improved picture quality.
Full Array Local Dimming (FALD)
The TV's screen is divided into over 500 local dimming zones. Full Array Local Dimming precisely adjusts the brightness of each zone, optimizing contrast and ensuring that dark areas remain dark while bright areas shine, revealing more detail in every scene.
Image: A diagram demonstrating Full Array Local Dimming, showing how different zones of the backlight are controlled independently to enhance contrast.
Pantalla QLED
Quantum Dot (QLED) technology enhances color reproduction, allowing the TV to display over a billion shades of vibrant, accurate colors. This results in a wider color gamut and more lifelike images.
144Hz VRR for Gaming
Designed for gamers, the 144Hz Variable Refresh Rate (VRR) ensures ultra-smooth motion and reduced input lag. This feature, combined with Game Master Pro 2.0 and AMD FreeSync Premium, provides a highly responsive and immersive gaming experience without screen tearing or stuttering.
Image: A person enjoying a video game on the TCL 65QM8B TV, highlighting the immersive gaming experience.
Dolby Vision IQ e Dolby Atmos
Experience cinematic visuals with Dolby Vision IQ, which intelligently optimizes picture quality based on ambient light. Complementing this, Dolby Atmos delivers immersive, multi-dimensional audio through the integrated Onkyo 2.0 sound system, placing you in the center of the action.
6. Mantemento
6.1 Limpeza do televisor
Para limpar a pantalla, limpe con coidado cun pano suave e sen pelusa. Para manchas difíciles, límpeaa lixeiramenteampen the cloth with water. Never spray liquid directly onto the screen. For the TV cabinet, use a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
6.2 Actualizacións de software
Your TCL TV may receive software updates to improve performance and add new features. To check for updates, navigate to the Settings menu on your Google TV interface and look for the 'About' or 'System Update' section. Ensure your TV is connected to the internet for updates.
7 Solución de problemas
Se tes problemas co teu televisor, consulta os seguintes problemas e solucións comúns:
| Problema | Posible Solución |
|---|---|
| Sen Poder | Check if the power cable is securely plugged into the TV and a working electrical outlet. Try a different outlet. |
| Sen imaxe / Pantalla negra | Ensure the correct input source is selected. Check all HDMI/AV cables for secure connections. Try restarting the TV. |
| Sen son | Check the volume level. Ensure the TV is not muted. Verify audio output settings (e.g., internal speakers vs. external sound system). Check audio cables if using external speakers. |
| O control remoto non funciona | Substitúa as pilas. Asegúrese de que non haxa obstrucións entre o mando a distancia e o sensor de infravermellos do televisor. |
| Problemas de conexión de rede | Check your Wi-Fi router and modem. Restart network equipment. Re-enter Wi-Fi password in TV settings. Try a wired Ethernet connection if Wi-Fi fails. |
| Problemas de calidade de imaxe (por exemplo, borrosa, distorsionada) | Check the resolution of the input source. Adjust picture settings (brightness, contrast, sharpness) in the TV menu. Ensure cables are high-quality and properly connected. |
8. Especificacións técnicas
Below are the detailed technical specifications for the TCL 65QM8B TV:
| Característica | Especificación |
|---|---|
| Número de modelo | 65QM8BX1 |
| Tamaño da pantalla | 65 polgadas (164 cm) |
| Tecnoloxía de visualización | Mini LED, QLED |
| Resolución | 4K UHD (3840 x 2160) |
| Taxa de actualización | 144 Hz (VRR) |
| Soporte HDR | HDR Premium 1300nits, Dolby Vision IQ |
| Sistema de audio | Onkyo 2.0, Dolby Atmos, DTS:X |
| Sistema Operativo | Google TV |
| Conectividade | 4x HDMI, 1x USB, LAN, Wi-Fi, Bluetooth 5.0, Optical Out, AV Input, Headphone, CI Slot |
| Estándar de montaxe VESA | 300 x 300 mm |
| Dimensións (con soporte) | 144.4 cm (ancho) x 89.8 cm (alto) x 32 cm (fondo) |
| Peso (sen soporte) | 20.7 quilogramos |
| Consumo de enerxía (SDR) | 111 kWh/1000h |
| Consumo de enerxía (HDR) | 240 kWh/1000h |
| Compoñentes incluídos | Remote control, batteries, manual, power cable |
Image: EU Energy Efficiency Label for the TCL 65QM8B TV, showing energy class G for SDR and HDR, and power consumption values.
Para máis detalles, visite o Base de datos EPREL.
9. Garantía e soporte
Your TCL 65QM8B TV comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions.
- Garantía xeral: 2 anos
- Software Updates Guaranteed: Up to 8 years from the date of market placement.
- Dispoñibilidade de pezas de reposición: Guaranteed for 8 years from the date of market placement.
- Product Support Guaranteed: 8 anos.
Información de contacto do fabricante
For technical support, service, or warranty inquiries, please contact TCL customer support:
- Fabricante: TCL
- Websitio: www.tcl.com
- Teléfono: +48 46 854 01 00 (Please note this number may be specific to a region; check the TCL website for local contact details.)
