Kenmore Elite 24" Built-in Dishwasher

Introdución

This manual provides essential information for the installation, operation, and maintenance of your Kenmore Elite 24" Built-in Dishwasher. Designed for efficiency and quiet performance, this appliance incorporates advanced cleaning and drying technologies to simplify your dishwashing routine. Please read this manual thoroughly before using your dishwasher to ensure safe and optimal performance.

Figure 1: Kenmore Elite 24" Built-in Dishwasher (Black)

Configuración e instalación

Your Kenmore Elite 24" Built-in Dishwasher is designed for seamless integration into your kitchen cabinetry. Due to the nature of built-in appliances, professional installation is highly recommended to ensure proper water and electrical connections, as well as secure mounting.

• Dimensións: Ensure your cabinet opening meets the required dimensions of 24.61"D x 23.55"W x 33.88"H.
• Requisitos eléctricos: The unit operates on 115 Volts. Consult a qualified electrician for proper wiring.
• Subministro de auga: Connect to a hot water supply line with appropriate pressure.
• Drenaxe: Ensure proper connection to your kitchen drain system.

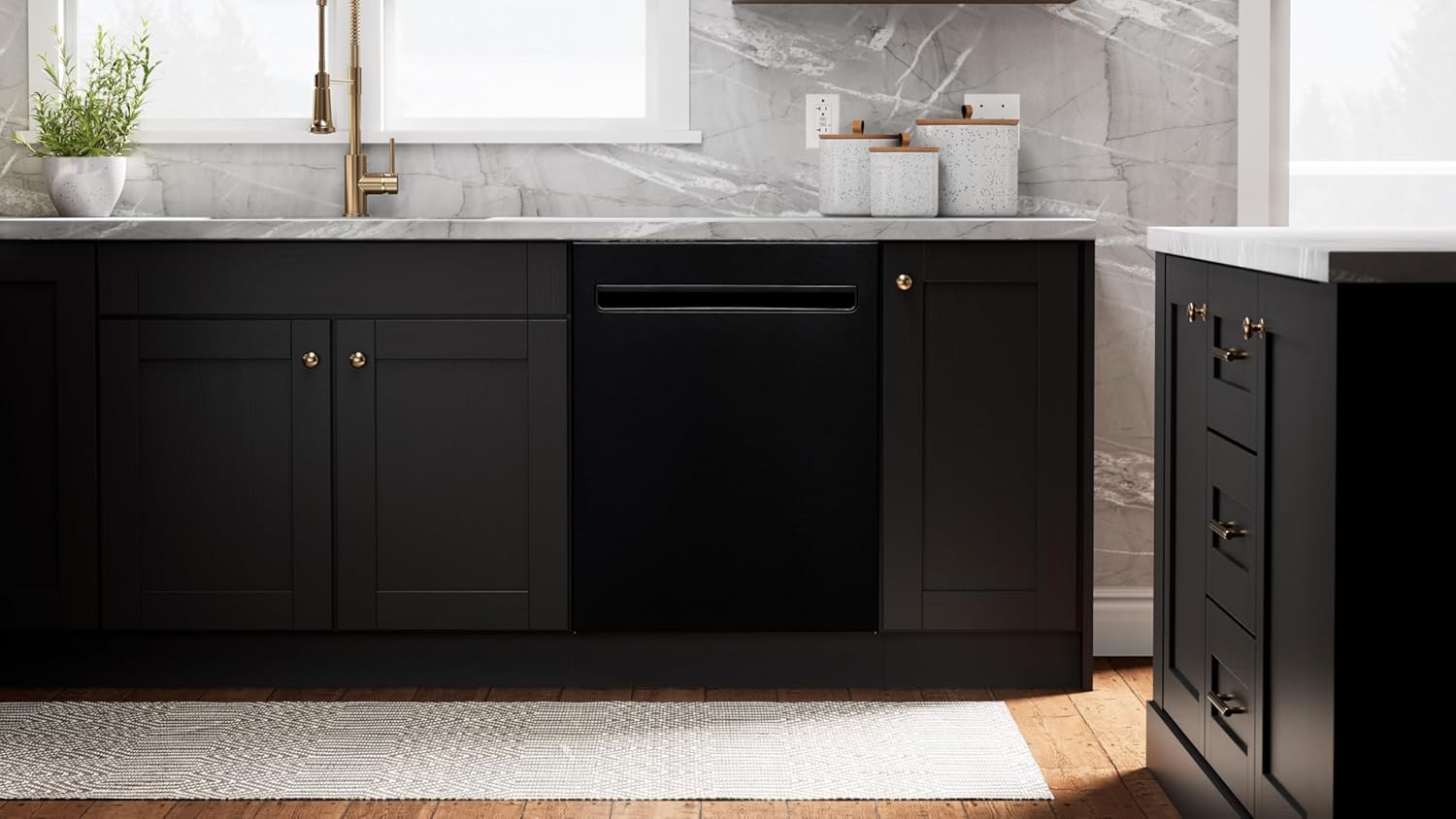

Figure 2: Dishwasher installed in a modern kitchen setting.

Instrucións de funcionamento

Your Kenmore Elite dishwasher offers a range of features designed for optimal cleaning and convenience.

Panel de control e ciclos

The hidden light-touch controls are located on the top edge of the door. Press the desired cycle button to select. Available cycles include Normal, SmartWash, Light Wash, Express, and more. Options like Accela Wash, Delay Start, Extra Dry, Half Load, and High Temp can be selected to customize your wash.

Figure 3: Hidden light-touch control panel.

SmartWash Cycle

The SmartWash Cycle utilizes sensor technology to detect the soil level in the water. It automatically adjusts the temperature, pressure, and cycle time to provide a deep and efficient clean tailored to each load, eliminating guesswork.

UltraWash Plus Power Cleaning

Equipped with three pressurized spray arms, the UltraWash Plus system cleans dishes from every angle using fresh, filtered water. This powerful system ensures thorough cleaning, even for heavily soiled items.

Figura 4: Interior view showing the lower spray arm and filter system.

TurboDry System

The TurboDry system uses hot air circulation and a heating element to remove moisture from every load, ensuring dishes, including plastics, come out dry and spot-free. This feature eliminates the need for towel drying.

TotalFlex Third Rack

The removable TurboFlex Third Rack provides 35% more loading space, ideal for long utensils, tools, and flatware. It can slide aside to accommodate taller items in the middle rack, offering enhanced flexibility.

Figure 5: TotalFlex Third Rack for utensils and small items.

MoreSpace Plus Adjustable Rack

The MoreSpace Plus Adjustable Rack can be shifted between three different heights, even when fully loaded. This allows you to customize the interior to fit oversized pots, delicate stemware, or other unusually shaped items.

Figure 6: MoreSpace Plus Adjustable Rack for flexible loading.

Quiet Operation and Indicators

Operating at a whisper-quiet 42 dBA, this dishwasher ensures minimal disruption. The QuietWash option further reduces noise levels. A green LED floor light indicates when the cycle is running, and built-in LED interior lighting makes it easy to see inside the tub.

Vídeo 1: Rematadoview of Kenmore 24" Built-In Dishwashers features, including SmartWash, UltraWash Plus, TurboDry, and flexible racking options.

Mantemento

Un mantemento regular garante a lonxevidade e o rendemento óptimo do seu lavalouzas.

• Limpeza do interior: Periodically clean the interior with a dishwasher cleaner or a mixture of white vinegar and baking soda to remove mineral buildup and odors.
• Limpeza de filtros: The UltraWash Plus system includes a 3-stage filter. Regularly remove and clean the filter to ensure proper drainage and prevent food particle recirculation. Refer to the detailed instructions in your full user manual for filter removal and cleaning.
• Coidados exteriores: Wipe down the stainless steel exterior with a soft cloth and a mild cleaner designed for stainless steel to maintain its finish.
• Dispensador de deterxente: Ensure the detergent dispenser is clean and free of residue.

Figura 7: Dosificador de deterxente e abrillantador.

Resolución de problemas

If you encounter issues with your dishwasher, try these common troubleshooting steps before contacting service.

• O lavalouzas non arranca: Check if the power cord is securely plugged in, the circuit breaker hasn't tripped, and the door is fully latched.
• Dishes Not Clean: Ensure proper loading, check that spray arms are not blocked, and verify the detergent dispenser is working correctly. Clean the filter if necessary.
• Dishes Not Drying: Confirm that rinse aid is filled and the TurboDry option is selected.
• Ruídos pouco comúns: Comprobe se hai obxectos estraños na zona da bomba ou nos brazos pulverizadores.
• Detección de fugas: This dishwasher features Built-in Leak Detection, which monitors water flow and automatically drains if a problem is detected. If a leak is indicated, turn off the water supply and contact service.

For more complex issues, refer to the comprehensive troubleshooting guide in your full user manual or contact Kenmore customer support.

Especificacións

Garantía e Soporte

For warranty information, please refer to the documentation included with your purchase. Kenmore offers various protection plans to extend coverage beyond the standard warranty. For customer support, service requests, or to inquire about protection plans, please visit the official Kenmore website or contact their customer service line. Details can typically be found on the product packaging or in the full user manual.

• Plans de protección: 2-Year and 3-Year Protection Plans are available.
• Política de devolución: 30-day easy returns are typically offered through the retailer.
• Atención ao cliente: Contact Kenmore for assistance with product operation, troubleshooting, and service.
