PowerSmart Gas Pressure Washer DL1034A User Manual

1. Información de seguridade

Always read and understand this manual before operating the PowerSmart Gas Pressure Washer. Failure to follow instructions can result in serious injury or property damage.

• Protección ocular: Use sempre lentes de seguridade con proteccións laterais homologadas pola norma ANSI Z87.1.
• Protección auditiva: Use hearing protection during operation.
• Calzado: Wear appropriate non-slip footwear.
• Ventilación: Operate in a well-ventilated area to avoid carbon monoxide poisoning.
• Seguridade de combustible: Handle gasoline with extreme care. Store in approved containers away from ignition sources.
• Conexión de auga: Ensure all water connections are secure before starting.
• Seguridade da boquilla: Nunca apunte a pistola pulverizadora a persoas, animais domésticos ou dispositivos eléctricos.
• Nenos e animais: Manteña os nenos e as mascotas lonxe da zona de operación.

2. Produto rematadoview

The PowerSmart Gas Pressure Washer DL1034A is a powerful and versatile cleaning tool designed for various outdoor tasks. It features a 212cc OHV engine, delivering a maximum of 3400 PSI and 2.5 GPM, making it suitable for cleaning driveways, houses, cars, and more.

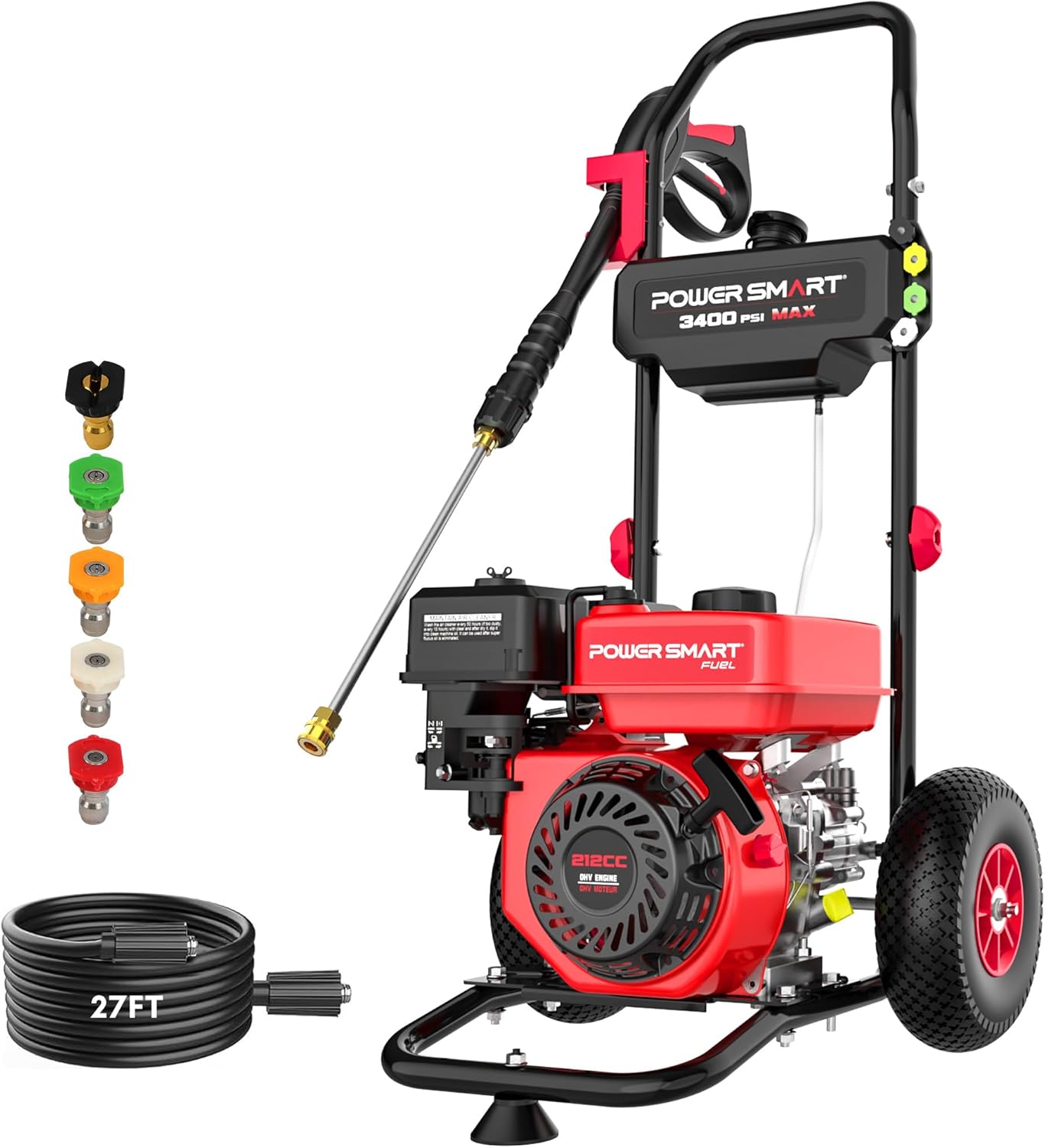

This image displays the complete PowerSmart Gas Pressure Washer unit, showcasing its robust design and the various accessories that come with it, such as the high-pressure hose and multiple nozzle tips.

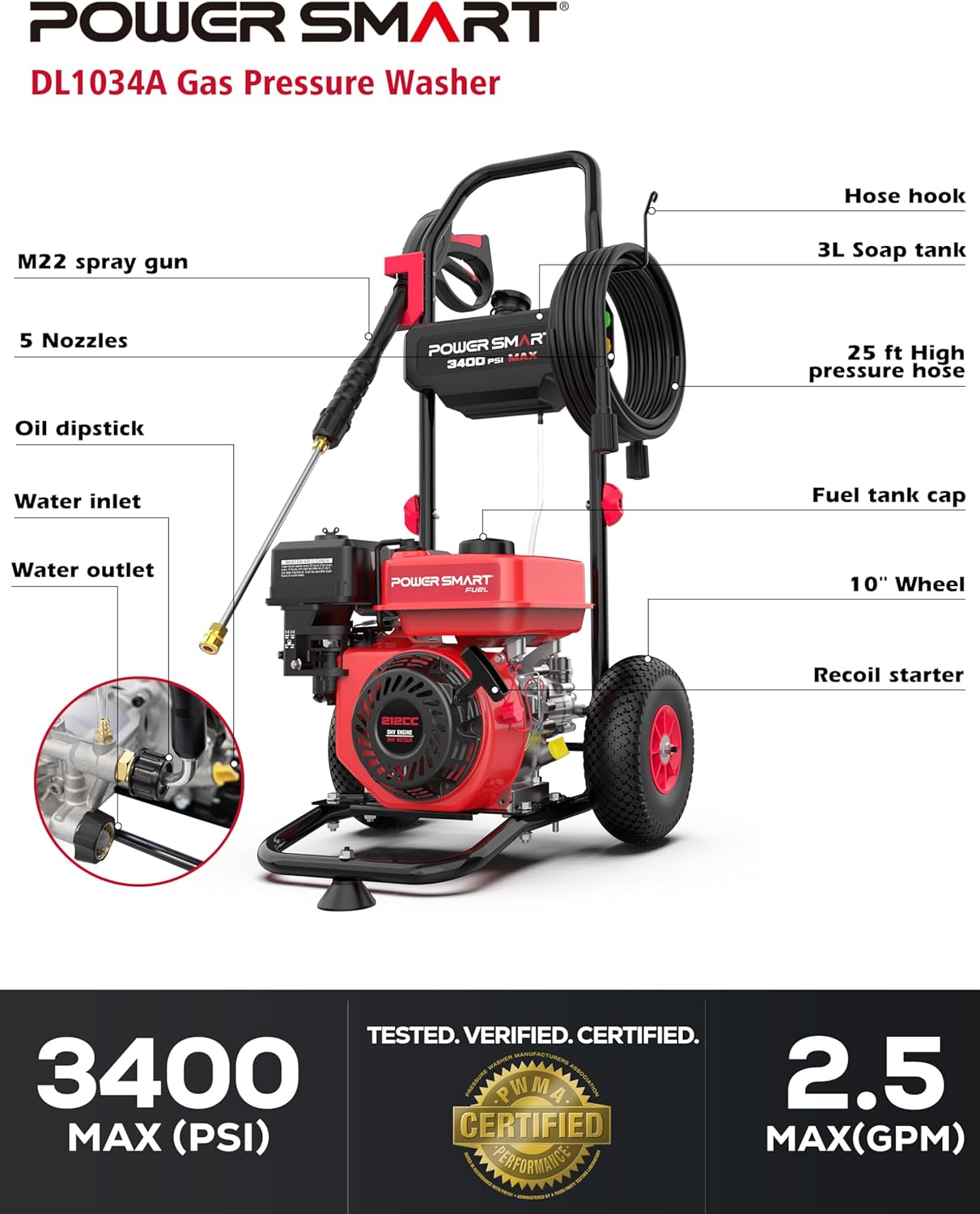

This diagram highlights the main parts of the pressure washer, including the M22 spray gun, 5 nozzles, oil dipstick, water inlet/outlet, fuel tank cap, 10" wheels, recoil starter, hose hook, and 3L soap tank, providing a clear visual guide for identification.

Características principais:

• Powerful 212cc OHV engine.
• MAX 3400 PSI and 2.5 GPM for effective cleaning.
• Rugged steel frame with 10" pneumatic wheels for portability.
• Onboard soap tank for easy detergent application.
• Includes 27ft high-pressure hose and 5 quick-connect nozzle tips.

Vídeo 2.1: Un overview of the PowerSmart Gas Pressure Washer, highlighting its features and capabilities for various cleaning tasks.

3. Configuración

3.1 Montaxe inicial

The PowerSmart pressure washer comes 95% assembled. Only minimal setup is required before first use.

• Attach the handle to the main unit using the provided hardware.
• Secure the rubber feet to the base of the unit.
• Ensure the wheels are securely attached.

This image shows all the components included in the box, such as the main pressure washer unit, metal spray wand, trigger handle, adjustable straps, high-pressure hose, 5 nozzles, and the instruction manual, indicating what to expect for assembly.

3.2 Engadir aceite de motor e combustible

The engine is shipped without oil. You must add engine oil before starting the unit for the first time. Use 10W-30 engine oil.

• Coloque a lavadora a presión nunha superficie plana.
• Localice a tapa/varilla de nivel de aceite no motor.
• Carefully pour the recommended engine oil into the oil fill opening using the provided funnel until it reaches the full mark on the dipstick. Do not overfill.
• Fill the fuel tank with fresh, unleaded gasoline (minimum 87 octane). Do not use E85 or E15 fuel.
• Ensure the fuel cap is securely tightened.

Video 3.1: This video demonstrates the initial setup of the pressure washer, including attaching the handle, adding engine oil, and filling the fuel tank, providing a visual guide for first-time users.

3.3 Conexión de mangueiras

• Connect your garden hose to the water inlet on the pressure washer. Ensure the connection is tight to prevent leaks.
• Conecte a mangueira de alta presión á saída de alta presión da bomba.
• Conecte o outro extremo da mangueira de alta presión á pistola pulverizadora.
• Insert the metal spray wand into the spray gun and twist to secure.

4. Instrucións de funcionamento

4.1 Arranque da lavadora a presión

1. Ensure the engine oil and fuel levels are correct.
2. Turn on the fuel valve (if applicable).
3. Coloque o interruptor do motor na posición "ON".
4. Pull the choke lever to the 'CHOKE' position (for cold starts).
5. Tire firmemente da manivela do arrancador de retroceso ata que o motor arranque.
6. Unha vez que o motor arranque, mova gradualmente a panca do estrangulador á posición "RUN".

4.2 Using Nozzles and Soap Tank

The PowerSmart pressure washer comes with 5 quick-connect nozzle tips, each designed for different cleaning intensities and applications:

• 0° (Vermello): For tough, stubborn stains and concentrated cleaning.
• 15° (Amarelo): For intense cleaning of hard surfaces like concrete and brick.
• 25° (Verde): For general cleaning of decks, patios, and fences.
• 40° (Branco): For gentle cleaning of delicate surfaces like vehicles and windows.
• Xabón (negro): For applying detergent at low pressure.

This image illustrates the five different quick-connect nozzles (0°, 15°, 25°, 40°, and Soap) and their corresponding spray patterns, helping users select the appropriate nozzle for their cleaning needs.

The onboard soap tank allows for easy application of cleaning detergents. Simply fill the tank with pressure washer-safe soap and attach the black soap nozzle. The system will automatically draw and mix the detergent with the water.

This image shows a person using the pressure washer to apply soap to a car, demonstrating the convenience of the built-in 3-liter soap tank for large-scale cleaning tasks.

Video 4.1: This video demonstrates the pressure washer in action, showcasing its powerful spray and the ease of use for various cleaning applications, including soap application.

4.3 Aplicacións de limpeza

The PowerSmart Gas Pressure Washer is ideal for a wide range of cleaning tasks due to its high pressure and versatile nozzles.

• Driveways and Sidewalks: Use a 15° or 25° nozzle for effective removal of dirt, grime, and mildew.
• Revestimento da casa: Use a 25° or 40° nozzle, starting from the bottom and working your way up, to clean siding without damage.
• Vehículos: Use the soap nozzle for applying detergent, then rinse with a 40° nozzle for a gentle yet thorough clean.
• Terrazas e patios: Use a 25° nozzle for most surfaces, adjusting as needed for softer materials.

This image emphasizes the gas-powered nature of the unit, allowing for cleaning without the need for an electrical outlet, providing flexibility and extended reach for outdoor tasks.

This image shows the pressure washer being used on a brick patio, demonstrating its effectiveness in removing dirt and grime from hard outdoor surfaces.

Video 4.2: This video illustrates the powerful cleaning capabilities of the gas pressure washer on various surfaces, including concrete and vehicles, showcasing its efficiency.

5. Mantemento

Un mantemento regular garante a lonxevidade e o rendemento óptimo da súa hidrolavadora.

• Aceite de motor: Check engine oil level before each use and change after the first 5 hours, then every 50 hours or annually.
• Filtro de ar: Limpe ou substitúa o filtro de aire cada 50 horas ou con máis frecuencia en lugares con moito po.
• Buxía: Inspect and clean the spark plug annually or every 100 hours. Replace if necessary.
• Sistema de combustible: Drain the fuel system if storing for more than 30 days to prevent fuel degradation.
• Bomba: Flush the pump with a pump protector or non-toxic antifreeze before long-term storage in freezing temperatures.
• Boquillas: Clean clogged nozzles with the provided nozzle cleaning tool.

6 Solución de problemas

Se tes problemas coa túa lavadora a presión, consulta a táboa seguinte para ver os problemas e as solucións máis habituais.

7. Especificacións

8. Garantía e soporte

For warranty information, technical support, or replacement parts, please contact the manufacturer, Amerisun Inc.

• Fabricante: Amerisun Inc.
• Manual do usuario (PDF): Descargar manual PDF
• Atención ao cliente: Refer to the contact information provided in your product packaging or the official PowerSmart websitio.
