EAFC VC012 Portable Cordless Car Vacuum and Hand Blower Instruction Manual

1. Introdución

Thank you for choosing the EAFC VC012 Portable Cordless Car Vacuum and Hand Blower. This versatile 2-in-1 device is designed for efficient cleaning in various environments, including your car, home, pet areas, and office. Its compact size, powerful suction, and convenient features make it an ideal tool for maintaining cleanliness.

Please read this manual thoroughly before using the product to ensure safe and optimal operation. Keep this manual for future reference.

2. Que hai na caixa

Desembala coidadosamente todos os compoñentes e comproba se hai algún dano. Asegúrate de que estean presentes todos os elementos que se indican a continuación:

• 1 x EAFC VC012 Portable Cordless Car Vacuum and Hand Blower Unit
• 1 boquilla de soprado
• 1 x Brush Flat Nozzle
• 1 x cable de carga tipo C
• 1 x Small Brush (for cleaning)
• 1 x Manual de usuario

Image: The EAFC VC012 unit displayed with its various accessories, including nozzles, charging cable, and cleaning brush.

3. Características do produto

• Funcionalidade 2 en 1: Functions as both a powerful vacuum cleaner and a hand blower.
• Modos de succión dual: Offers two adjustable suction power levels for different cleaning needs (9000Pa and 13000Pa).
• Alta potencia de succión: Up to 14000PA for effective debris removal.
• Luz LED integrada: Provides illumination for cleaning in dark or hard-to-reach areas.
• Funcionamento baixo ruído: Engineered for quiet performance, with a noise level of 80 Decibels.
• Sen fíos e portátiles: Lightweight (1.48 pounds) and compact (11.02 x 4.52 x 3.14 inches) for easy handling and storage.
• Batería recargable: Powered by a Lithium-Ion battery with a 3.5-hour charging time and approximately 35 minutes of battery life.
• Easy Dust Emptying: Designed for quick and hygienic disposal of collected debris.

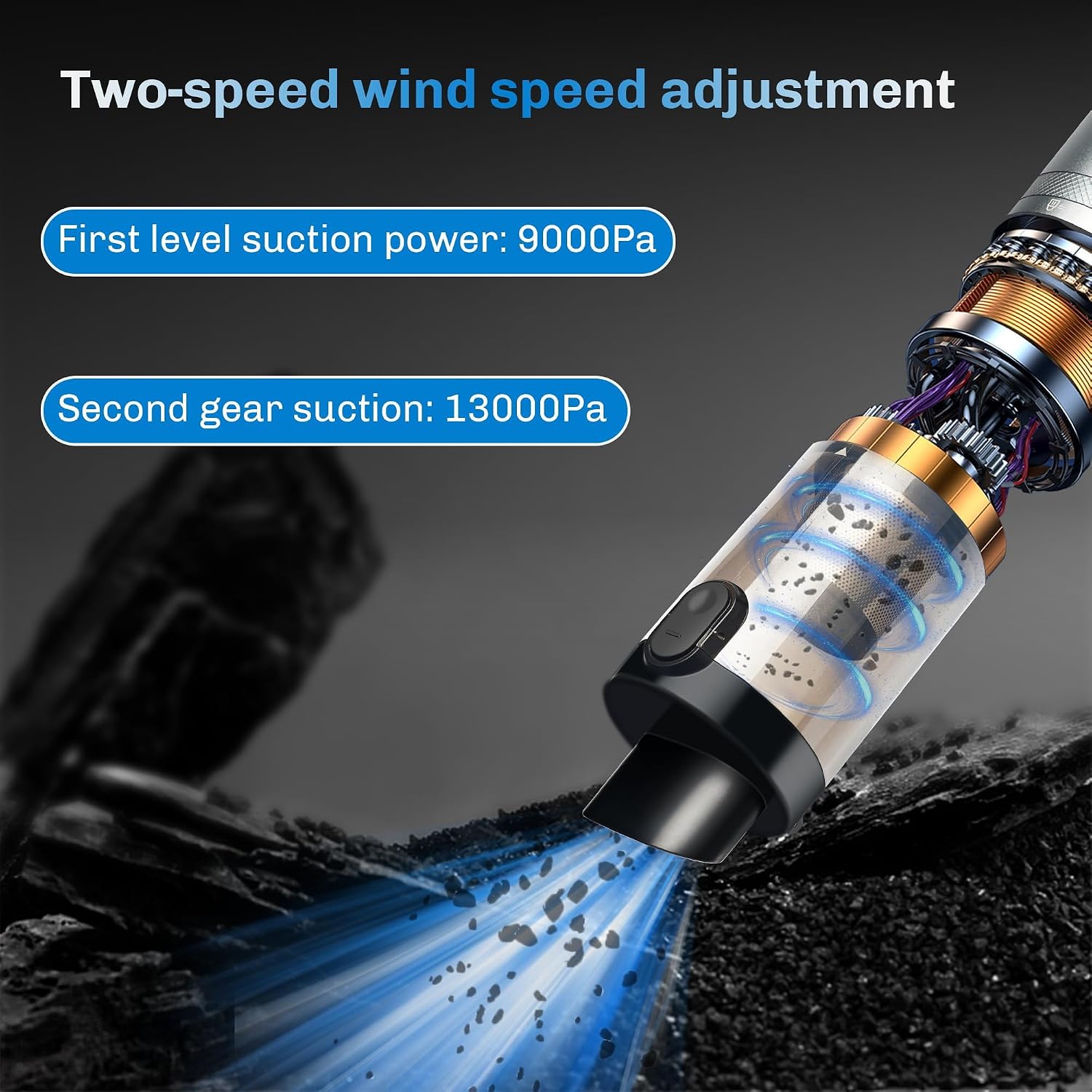

Image: Diagram illustrating the two-speed wind speed adjustment feature, showing 9000Pa and 13000Pa suction power.

4. Configuración

4.1 Instalación de accesorios

1. Select the appropriate nozzle for your cleaning task (Blowing Nozzle or Brush Flat Nozzle).
2. Align the chosen nozzle with the intake or exhaust port of the main unit.
3. Twist or push the nozzle firmly until it clicks into place, ensuring a secure connection.

4.2 Cargo inicial

Before first use, fully charge the device. Refer to the 'Charging' section for detailed instructions.

5. Instrucións de funcionamento

5.1 Encendido/apagado

Press and hold the power button (located on the main unit) for 2-3 seconds to turn the device on or off.

5.2 Vacuum Mode

1. Ensure the desired nozzle is securely attached to the vacuum intake port.
2. Press the power button once to activate the first suction level (9000Pa).
3. Press the power button a second time to switch to the second, stronger suction level (13000Pa).
4. Move the vacuum over the area to be cleaned, allowing it to pick up dust and debris.
5. Preme o botón de acendido unha terceira vez para apagar o baleiro.

Image: The EAFC VC012 portable vacuum being used to clean the interior of a car, demonstrating its compact size and maneuverability.

5.3 Blower Mode

1. Attach the Blowing Nozzle to the exhaust port of the main unit.
2. Acende o dispositivo usando o botón de acendido.
3. Direct the airflow towards the area where you want to blow away dust or debris.
4. To inflate items, attach the appropriate inflation adapter (if included) to the blowing nozzle and insert it into the item's valve.

5.4 Funcionamento da luz LED

The integrated LED light can be activated independently or simultaneously with the vacuum/blower function. Consult the user manual for specific button presses to control the LED light.

6. Cargando

The EAFC VC012 is equipped with a rechargeable Lithium-Ion battery. The device features a Type-C charging port for convenient charging.

1. Localiza o porto de carga tipo C no dispositivo.
2. Connect the provided Type-C charging cable to the device.
3. Plug the other end of the USB cable into a compatible USB power source (e.g., car charger, power bank, computer, or power adapter).
4. The LED display on the device will indicate the charging status. A full charge typically takes approximately 3.5 hours.
5. Disconnect the charger once the device is fully charged to preserve battery life.

Image: The EAFC VC012 unit with illustrations of various Type-C charging options, including car charge, power bank, computer, and power adapter.

7. Mantemento

7.1 Baleirar o depósito de po

To maintain optimal suction and hygiene, empty the dust cup regularly.

1. Asegúrate de que o aspirador estea apagado.
2. Locate the dust cup release button or mechanism.
3. Press the button and gently twist or pull to detach the dust cup from the main unit.
4. Open the dust cup lid and empty the collected debris into a trash receptacle.
5. Close the dust cup lid and reattach the dust cup to the main unit, ensuring it clicks securely into place.

Image: A hand demonstrating the one-click dust emptying feature of the EAFC VC012, showing debris being poured out of the dust cup.

7.2 Limpeza do filtro

The filter should be cleaned periodically to prevent clogging and maintain suction efficiency.

1. After emptying the dust cup, separate the filter from the dust cup assembly.
2. Gently tap the filter to dislodge any loose dust.
3. Enxágüe o filtro con auga corrente ata que estea limpo. Non empregue deterxentes fortes.
4. Allow the filter to air dry completely before reassembling. Ensure it is completely dry to prevent damage to the motor.
5. Reassemble the filter into the dust cup and then reattach the dust cup to the main unit.

Image: A visual guide showing the disassembly steps for cleaning the filter and dust cup, including rinsing the filter under water.

8 Solución de problemas

If you encounter any issues with your EAFC VC012, please refer to the following common troubleshooting steps:

• Sen enerxía: Ensure the device is fully charged. Check the charging cable and adapter for proper connection.
• Succión débil: Empty the dust cup and clean the filter. Check for any blockages in the nozzles or intake port.
• O dispositivo non se acende: Press and hold the power button for 2-3 seconds. If the battery is completely drained, it may take a few minutes of charging before the device responds.
• Ruído inusual: Turn off the device immediately. Check for any foreign objects lodged in the fan or motor area.

If the problem persists after following these steps, please contact customer support for assistance.

9. Especificacións

Image: Detailed dimensions of the EAFC VC012 unit and its accessories.

10. Garantía e soporte

10.1 Garantía do produto

Starting from the date of purchase, if the product is damaged by non-human factors, it will be replaced free of charge for 30 days.

10.2 Atención ao cliente

For any problems with the product received, please take a photo and then contact Amazon Logistics to get corresponding after-sales support.

Para obter máis asistencia ou consultas, visite EAFC Store on Amazon.
