Introdución
This manual provides essential information for the safe and efficient use of your Hotpoint Ariston H2I HD526 AS fully integrated dishwasher. Please read these instructions carefully before installation and operation, and keep them for future reference.
Información de seguridade
Siga sempre as precaucións de seguridade básicas ao usar electrodomésticos para reducir o risco de incendio, descarga eléctrica e lesións ás persoas.
- Seguridade eléctrica: Ensure the dishwasher is properly grounded. Do not use extension cords. Disconnect power before any maintenance.
- Seguridade na auga: Ensure water connections are secure to prevent leaks. Do not operate if there is a water leak.
- Seguridade de deterxentes: Keep detergents and rinse aid out of reach of children. Use only detergents specifically designed for automatic dishwashers.
- Seguridade infantil: Supervise children near the dishwasher. Do not allow children to play with the appliance.
- Obxectos afiados: Cargue os obxectos afiados (coitelos, garfos) cos mangos cara arriba para evitar lesións.
Configuración e instalación
The Hotpoint Ariston H2I HD526 AS is a fully integrated dishwasher designed to be concealed behind a cabinet door. Professional installation is recommended.
Desembalaxe
Carefully remove all packaging materials. Inspect the dishwasher for any damage during transit. Report any damage immediately to your retailer.
Posicionamento e nivelación
Place the dishwasher in the desired location. Use the adjustable feet to ensure the appliance is perfectly level. Proper leveling is crucial for door alignment and efficient operation.
Conexións de auga e electricidade
Connect the water inlet hose to a cold or hot water supply (maximum 60°C). Ensure the drain hose is properly connected to a suitable drainage system. The power cable length is 1.3m, inlet hose 1.55m, and drain hose 1.5m. Ensure all connections are tight to prevent leaks.
Imaxe: Traseira view of the dishwasher, illustrating the water inlet hose, drain hose, and electrical power cable connections. Ensure these are securely attached during installation.
Primeiro uso
Before the first wash cycle, fill the salt dispenser with dishwasher salt and the rinse aid dispenser with rinse aid. Refer to the 'Operating Instructions' section for details on filling these compartments.
Instrucións de funcionamento
This section guides you through the daily operation of your dishwasher.
Panel de control rematadoview
The control panel features buttons for power, program selection, delay start, half load, and a digital display. The display shows program status and remaining time.

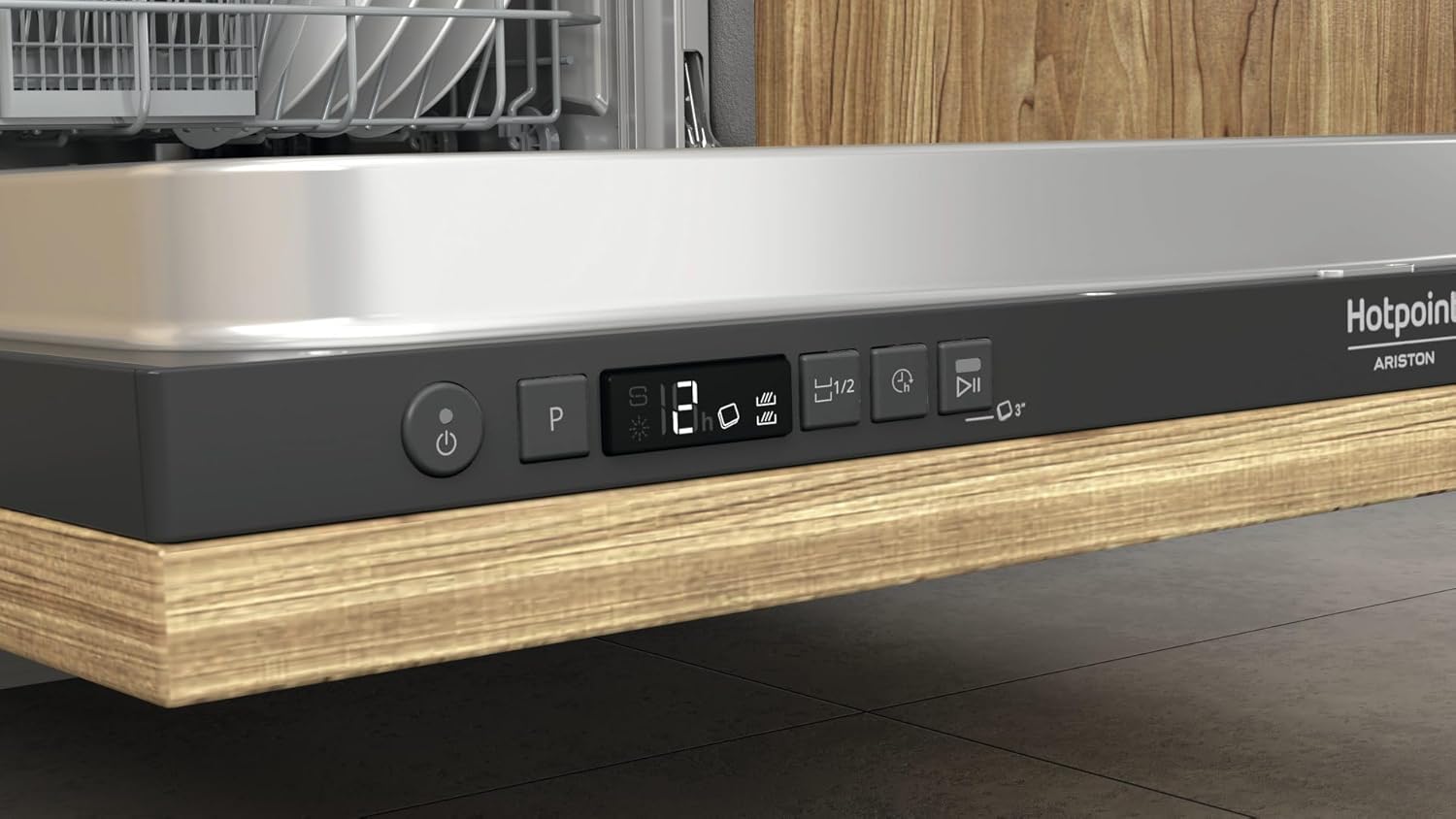

Imaxe: Un detallado view of the dishwasher's control panel, showing the power button, program selection button, digital display, delay start, and half-load options.
Cargando o lavalouza
Proper loading ensures optimal cleaning results and prevents damage to dishes. This dishwasher accommodates 14 place settings.
- Cesta inferior: Ideal for large items like plates, serving dishes, pots, and pans.
- Cesta superior: Suitable for glasses, cups, smaller plates, and bowls. The upper basket is adjustable.
- Cesta de cubertos: Place cutlery with handles facing down, ensuring items do not nest together.
Imaxe: The dishwasher with its door open, revealing the upper and lower baskets fully loaded with various dishes, glasses, and cutlery, demonstrating proper loading technique.

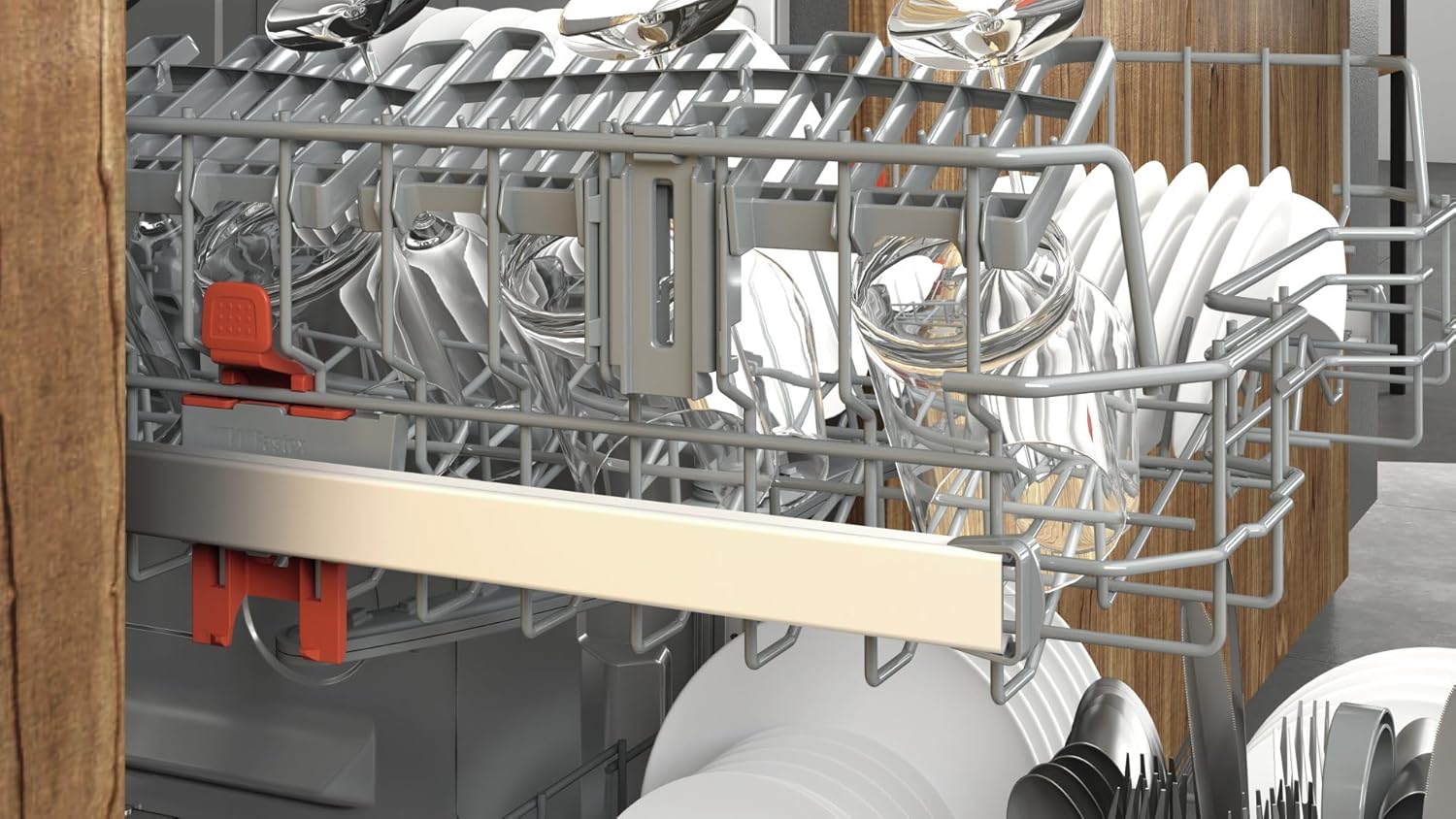

Imaxe: Un primeiro plano view of the upper basket, showing how glasses and smaller items are arranged for washing.
Imaxe: Unha xeral view of both the upper and lower baskets, demonstrating a complete load of dishes, glasses, and cutlery.
Engadindo deterxente e abrillantador
Open the detergent dispenser and add the recommended amount of dishwasher detergent. Fill the rinse aid dispenser until the indicator shows full. The dishwasher has a rinse aid indicator light.
Selección do programa e inicio
- Enche o lavalouzas e engade deterxente/abrillantador.
- Pecha a porta do lavalouzas con seguridade.
- Preme o botón de acendido para acender o aparello.
- Use the Program selection button to choose one of the 9 available programs.
- (Optional) Select Delay Start (up to 12 hours) or Half Load function if needed.
- Prema o botón Inicio/Pausa para comezar o ciclo.
Available Wash Programs
O lavalouzas ofrece 9 programas de lavado para satisfacer diversas necesidades:
- Auto-mixed
- Daily 50°C
- Eco 50°C
- Hixiene
- Intensivo 65°C
- Prelavado
- Rápido
- Self-Clean 65°C
- Silent 50°C
Mantemento
Un mantemento regular garante a lonxevidade e o rendemento óptimo do seu lavalouzas.
Limpeza dos filtros
The filter system prevents food particles from recirculating and clogging the pump. Clean the filters regularly (weekly or bi-weekly depending on usage).
- Apague e desconecte o lavalouzas.
- Retire a cesta inferior.
- Xire e levante o filtro cilíndrico para extraelo.
- Separate the coarse and micro filters.
- Rinse all filter components under running water, using a brush if necessary to remove stubborn debris.
- Volva montar os filtros e colóqueos de volta no lavalouzas, asegurándose de que estean ben pechados.

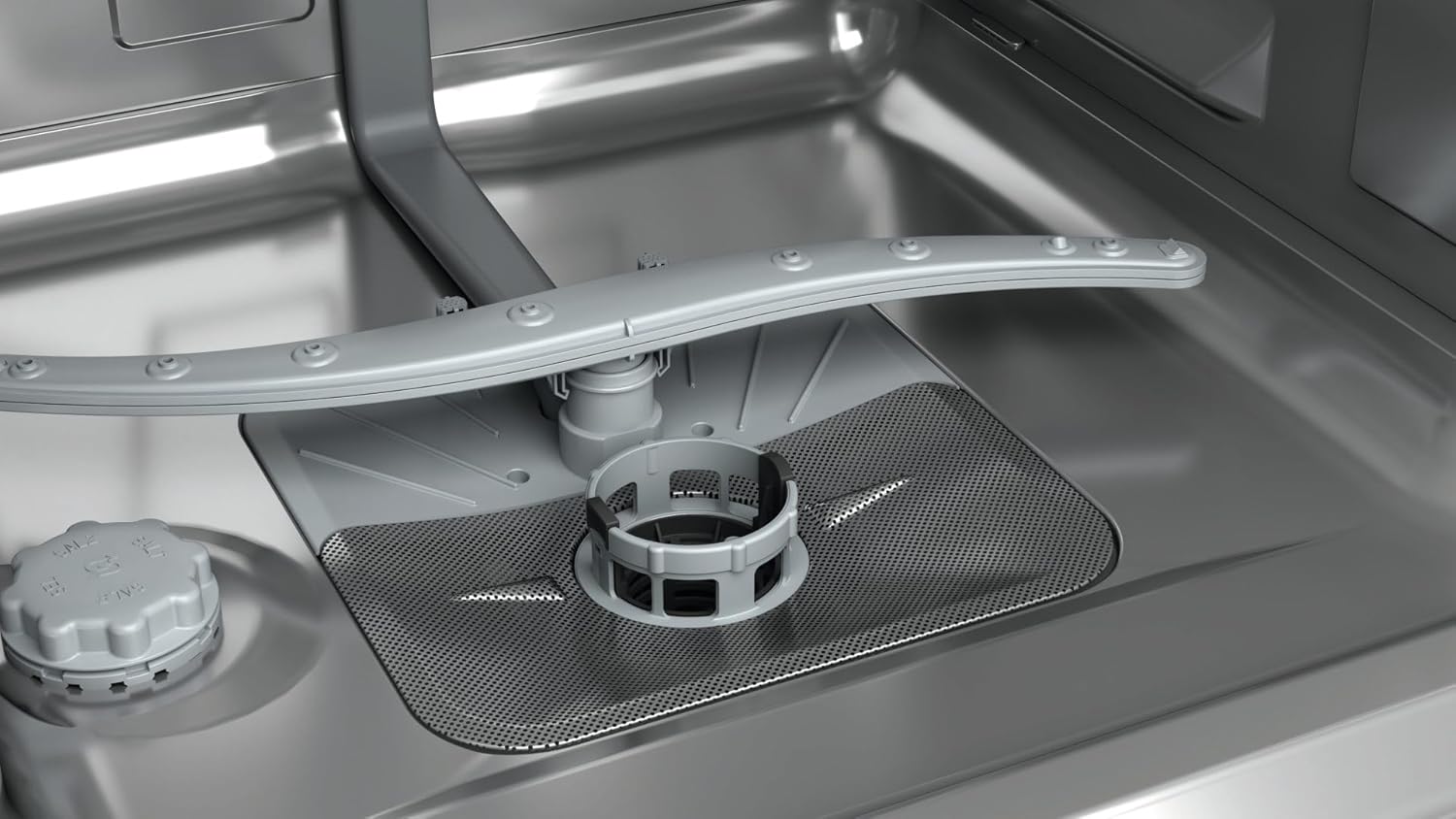

Imaxe: A close-up of the dishwasher's interior base, highlighting the filter assembly and the lower spray arm. Regular cleaning of these components is essential.
Limpeza dos brazos pulverizadores
Check the spray arm nozzles for blockages. If blocked, remove the spray arms and clean the holes with a thin object like a toothpick.
Indicadores de sal e abrillantador
The dishwasher is equipped with indicator lights for salt and rinse aid. Refill these compartments when the respective indicator lights illuminate on the control panel.
Self-Clean Program
Utilize the dedicated "Self-Clean 65°C" program periodically to maintain the internal hygiene of the dishwasher. Run this program without any dishes inside.
Resolución de problemas
Antes de contactar co servizo de atención ao cliente, consulte esta sección para obter solucións a problemas comúns.
| Problema | Causa posible | Solución |
|---|---|---|
| O lavalouza non arranca | Problema coa fonte de alimentación, a porta non pecha correctamente, o programa non está seleccionado. | Comprobe a conexión eléctrica, asegúrese de que a porta estea pechada, seleccione un programa e prema iniciar. |
| Resultados de limpeza deficientes | Improper loading, clogged spray arms/filters, insufficient detergent, incorrect program. | Reload dishes correctly, clean filters and spray arms, add more detergent, select a more intensive program. |
| Auga restante na bañeira | Mangueira ou filtro de drenaxe obstruídos, avaría da bomba de drenaxe. | Limpar os filtros, comprobar se a mangueira de drenaxe está dobrada ou atascada. |
| Fugas do lavalouza | Loose hose connections, damaged door seal, excessive detergent. | Check hose connections, inspect door seal for damage, reduce detergent amount. |
| O indicador de sal/abrillantador permanece aceso | Compartment empty, sensor malfunction. | Refill salt/rinse aid. If problem persists, contact service. |
Especificacións
Key technical specifications for the Hotpoint Ariston H2I HD526 AS dishwasher.
| Característica | Valor |
|---|---|
| Nome do modelo | H2I HD526 AS |
| Tipo de instalación | Totalmente integrado |
| Configuración do lugar | 14 |
| Clase de eficiencia enerxética | E (Scale A to G) |
| Clase de emisión de ruído | C |
| Nivel de ruído | 46 dB |
| Consumo de auga por ciclo | 9.5 litros |
| Consumo de enerxía por cada 100 ciclos | 95 kWh |
| Número de programas de lavado | 9 |
| Temperatura máxima da auga | 60°C |
| Cycle Duration (Eco 50°C) | minutos 215 |
| Opción de inicio retardado | Si (ata 12 horas) |
| Half Load Function | Si |
| Aquastop System | Yes (Overflow protection) |
| Tipo de control | Botóns |
| Tipo de visualización | LCD |
| Lonxitude do cable de alimentación | 1.3 m |
| Lonxitude da mangueira de entrada | 1.55 m |
| Lonxitude da mangueira de drenaxe | 1.5 m |
| Material (Dishwasher Tub) | Aceiro inoxidable |
Garantía e Soporte
Your Hotpoint Ariston H2I HD526 AS dishwasher comes with a manufacturer's warranty.
- Período de garantía: 2 years for private users, 1 year for businesses.
- Cobertura da garantía: Covers defects in materials and workmanship under normal use. Refer to the warranty card included with your product for full terms and conditions.
- Atención ao cliente: For technical assistance, spare parts, or warranty claims, please contact Hotpoint customer service or visit the official Hotpoint website. Have your model number (H2I HD526 AS) and serial number ready when contacting support.
