AIXZGLOBAL AIT200P 5-in-1 TIG Welder Instruction Manual

1. Introdución

This manual provides essential information for the safe and effective operation, setup, and maintenance of your AIXZGLOBAL AIT200P 5-in-1 TIG Welder. The AIT200P is a versatile welding machine offering MMA (Stick), AC TIG, DC TIG, AC Pulse TIG, and DC Pulse TIG functions, with dual voltage compatibility (110V/220V). Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

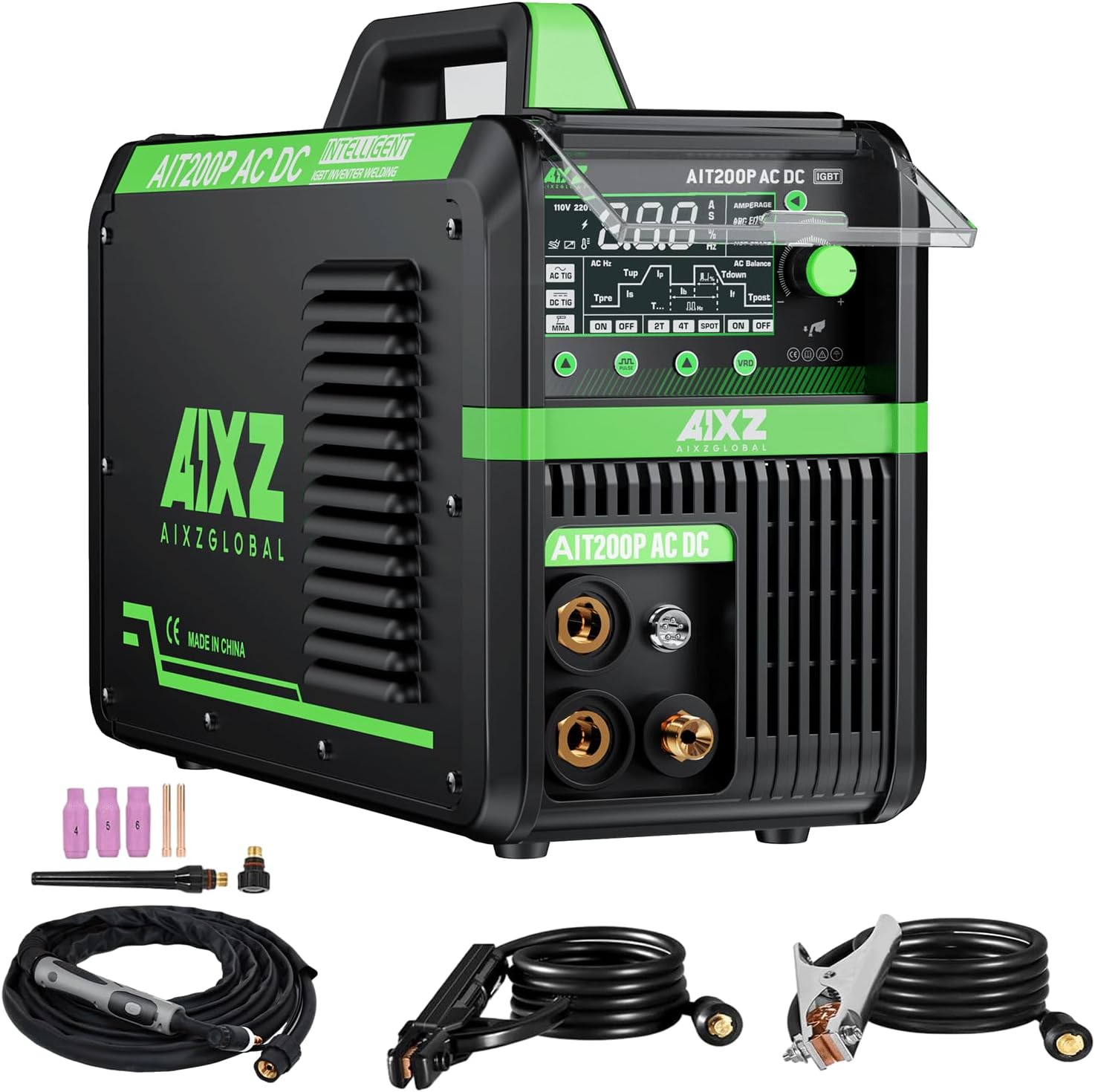

Figure 1.1: AIXZGLOBAL AIT200P TIG Welder and included accessories.

2. Instrucións de seguridade

Welding operations involve significant risks. Adhere to all safety precautions to prevent electric shock, burns, fire, and other hazards. Always wear appropriate personal protective equipment (PPE).

• Choque eléctrico: Ensure proper grounding. Do not touch live electrical parts. Wear dry welding gloves and protective clothing.
• Fumos e Gases: Work in a well-ventilated area. Use fume extractors if necessary. Avoid breathing welding fumes.
• Raios de arco: Protect eyes and skin from arc rays. Use a welding helmet with appropriate shade filter and protective clothing.
• Incendio e explosión: Manteña os materiais inflamables lonxe da zona de soldadura. Teña un extintor á man.
• Queimaduras: O metal e os equipos quentes poden causar queimaduras graves. Deixe que os materiais soldados arrefríen antes de manipulalos.
• Colocación da máquina: Place the welder on a stable, level surface. Ensure adequate clearance for ventilation.
• Mantemento: Desconecte a alimentación antes de realizar calquera mantemento ou servizo.

3. Contido do paquete

Verifica que todos os elementos estean presentes no paquete ao desembalar:

• AIXZGLOBAL AIT200P TIG Welder Unit
• WP-17V TIG Torch
• Terra Clamp
• Portaelectrodos
• TIG Consumables (collets, collet bodies, ceramic nozzles, tungsten electrodes)
• Adapter Cord (for voltage conversión)
• Manual de instrucións

4. Produto rematadoview e Controis

The AIXZGLOBAL AIT200P features an intuitive control panel designed for ease of use across its multiple welding functions. The large LED display provides real-time current readings and mode selections.

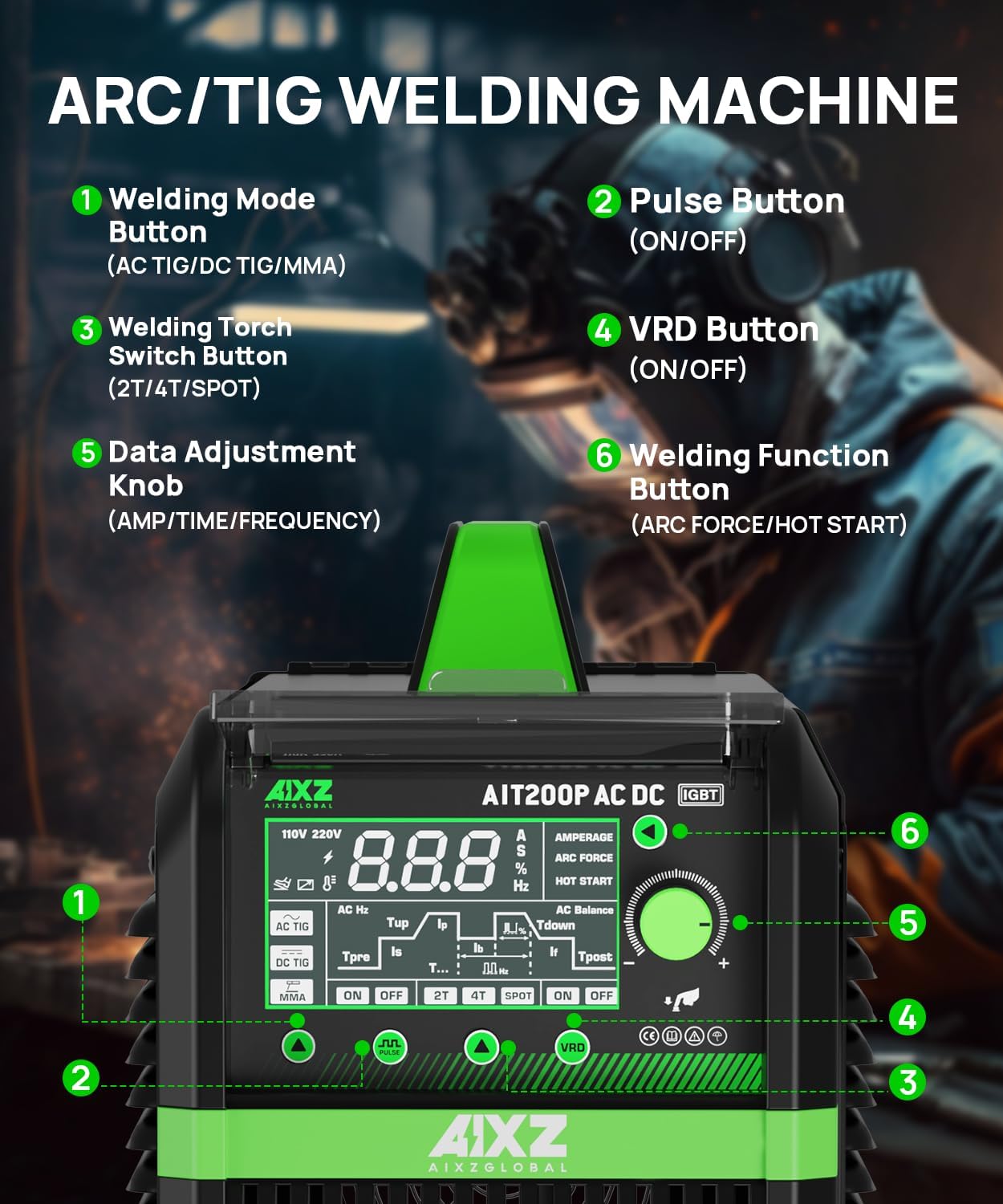

Figure 4.1: Front Panel Controls of the AIT200P.

1. Botón do modo de soldadura: Selects between AC TIG, DC TIG, and MMA (Stick) welding modes.
2. Botón de pulso: Activates or deactivates the Pulse TIG function for both AC and DC TIG modes.
3. Welding Torch Switch Button: Toggles between 2T (two-touch), 4T (four-touch), and SPOT welding modes.
4. VRD Button: Turns Voltage Reduction Device (VRD) function ON or OFF for enhanced safety.
5. Data Adjustment Knob: Used to adjust welding parameters such as amperage, time settings (pre-flow, post-flow, up-slope, down-slope), and frequency.
6. Welding Function Button: Activates or deactivates specific welding functions like Arc Force and Hot Start for MMA welding.

The machine also features a durable dust cover for the control panel, protecting it from environmental elements in a welding environment.

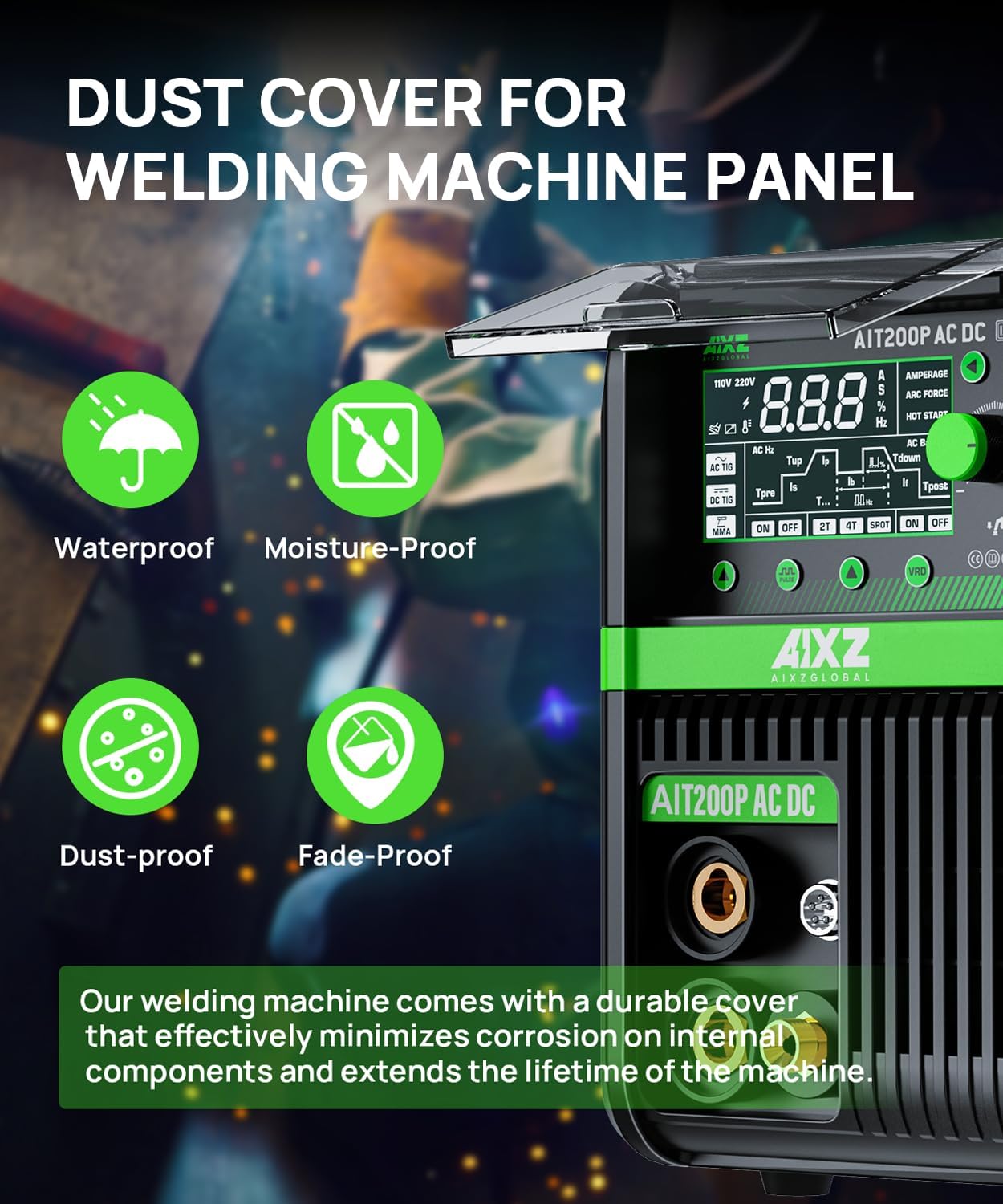

Figure 4.2: Dust cover protecting the control panel.

5. Configuración

Proper setup is crucial for safe and effective welding. Follow these steps:

1. Conexión de alimentación: Connect the welder to a suitable power source (110V or 220V) using the provided adapter cord if necessary. Ensure the power outlet matches the machine's voltage requirements. The adapter cord changes the plug shape, not the voltage.
2. Cl Claseamp Conexión: Coloque a terra clamp securely to the workpiece or welding table. A good ground connection is essential for arc stability and safety.
3. Conexión da tocha TIG: Connect the WP-17V TIG torch to the appropriate port on the front panel. Ensure all connections are tight.
4. Gas Connection (for TIG): Connect your shielding gas cylinder (typically Argon for TIG welding) to the gas inlet on the rear of the machine. Ensure the gas regulator is properly installed and the gas flow rate is set according to your welding requirements.
5. Conexión do soporte do eléctrodo (para MMA): If performing MMA (Stick) welding, connect the electrode holder to the designated port.
6. Optional Foot Pedal: If using an optional foot pedal (not included), connect it to the designated port for remote amperage control.

Figure 5.1: Connection point for an optional foot pedal.

6. Instrucións de funcionamento

The AIT200P offers five distinct welding functions. Select the appropriate mode and adjust parameters using the control panel.

Figure 6.1: Available welding modes.

6.1. Modos de soldadura

• MMA (Manual Metal Arc / Stick Welding): Suitable for general-purpose welding of various metals. Use the Welding Mode Button to select MMA. Adjust amperage and use the Welding Function Button for Arc Force and Hot Start.
• DC TIG (Direct Current Tungsten Inert Gas): Ideal for welding stainless steel, carbon steel, copper, and other non-ferrous metals (except aluminum). Select DC TIG mode.
• AC TIG (Alternating Current Tungsten Inert Gas): Specifically designed for welding aluminum and magnesium alloys, providing cleaning action to break up oxides. Select AC TIG mode.
• DC Pulse TIG: Offers enhanced control over heat input, reducing distortion and improving weld quality on thin materials or when welding out of position. Activate Pulse Button in DC TIG mode.
• AC Pulse TIG: Combines the benefits of AC TIG for aluminum with the controlled heat input of pulse welding. Activate Pulse Button in AC TIG mode.

6.2. 2T/4T Mode

• 2T (Dous toques): Press and hold the torch trigger to start the arc; release to stop. This mode is suitable for short welds.
• 4T (Catro toques): Press and release the torch trigger to start the arc; press and release again to stop. This mode is beneficial for long welds, reducing operator fatigue.

6.3. Compatibilidade de materiais

The AIT200P is capable of welding a variety of metals:

Figura 6.2: Examples of weldable materials.

• Aceiro: Carbon steel, stainless steel.
• Aluminio: Aluminum alloys (using AC TIG).
• Cobre: Copper and its alloys.

The machine supports welding thicknesses from 0.7mm to 6mm, depending on the material and welding process.

Figure 6.3: Welding capabilities and features.

7. Mantemento

Un mantemento regular garante a lonxevidade e o rendemento óptimo da súa máquina de soldar.

• Limpeza: Periodically clean the exterior of the machine with a dry cloth. Ensure the ventilation openings are free from dust and debris.
• Funda antipolvo: The control panel is equipped with a dust cover to protect against dust, moisture, and fading. Keep this cover closed when not adjusting settings.
• Ventilación: The AIT200P features an efficient heat dissipation system. Ensure adequate airflow around the machine to prevent overheating. Do not block air vents.
• Inspección de cables: Regularly inspect all cables (power, torch, ground) for damage, cuts, or frayed insulation. Replace damaged cables immediately.
• Consumibles: Replace TIG torch consumables (collets, collet bodies, nozzles, tungsten electrodes) as they wear out to maintain weld quality.

Figura 7.1: Traseira view highlighting heat dissipation.

8 Solución de problemas

If you encounter issues with your AIT200P welder, consider the following common troubleshooting steps:

• Sen enerxía: Check the power cord connection, circuit breaker, and ensure the power switch on the machine is ON.
• Sen arco: Verify all cable connections (ground, torch, electrode holder). Ensure the workpiece is clean and has good electrical contact. Check for proper gas flow in TIG mode.
• Mala calidade da soldadura: Adjust welding parameters (ampera, voltage, wire feed speed if applicable). Ensure correct shielding gas and flow rate. Check for worn or incorrect consumables.
• Sobrequecemento: Se a máquina se apaga debido a un sobrequecemento, déixea arrefriar. Asegúrese de que as aberturas de ventilación estean despexadas e de que non se supere o ciclo de traballo.
• Códigos de erro: Refer to the specific error code displayed on the LED screen and consult the detailed troubleshooting section in the full manual (if available) or contact customer support.

9. Especificacións

Technical specifications for the AIXZGLOBAL AIT200P TIG Welder:

Figura 9.1: Especificacións técnicas detalladas.

10. Garantía e soporte

AIXZGLOBAL provides a 2-year after-sales warranty service for the AIT200P TIG Welder. Additionally, lifetime technical support is available for all customers. For any questions, technical assistance, or warranty claims, please contact AIXZGLOBAL customer service.
