User Manual for Okin Compatible Adjustable Bed Remote Control

1. Produto rematadoview

This remote control is designed as a replacement for specific Okin electric adjustable base bed models. It provides essential functions for adjusting your bed's position and features.

Figura 1: Fronte view of the replacement remote control, showing various function buttons for bed adjustments, memory settings, and sleep enhancement.

Características principais:

• Infrared (IR) replacement remote, designed to match the appearance and functionality of the original.
• Controls various bed positions, including head and foot adjustments, zero gravity, and flat positions.
• Includes sleep enhancement features and memory settings.
• Require 1 pila AAA (non incluída).

2. Información importante sobre compatibilidade

This remote control is NOT universal. To ensure compatibility, it is crucial to verify that your existing control box is an OKIN brand and that your old remote control matches the models listed (RF.31.18.03, RF.31.18.02, RF.31.18.11).

Figure 2: Visual guide emphasizing the importance of verifying your control box and old remote for compatibility. It suggests sending clear pictures of your control box and old remote (front & back) to ensure the correct replacement is provided.

Figure 3: Important notes for compatibility. This image highlights that dip switches are not compatible with 'Pair' button models, the need to check if your old remote uses a Dip switch or Pair button, and that the remote needs to be paired before use.

Key Compatibility Notes:

• Verificación do modelo: If your bed's model number is not explicitly listed in the product title, please contact the seller with your exact model number and clear photos of your old remote (front and back) and control box.
• Dip Switches vs. Pair Button: This remote may not be compatible with systems that use dip switches if your original remote had a 'Pair' button. Carefully inspect your old remote and control box.
• Emparejamento necesario: This remote requires pairing with your adjustable bed's control box before first use. The specific pairing method is typically found in the original user manual for your adjustable bed.

3. Configuración

3.1. Instalación da batería

1. Localice o compartimento da batería na parte traseira do control remoto.
2. Deslice a tapa da batería cara abaixo ou cara a fóra para abrila.
3. Insert 1 AAA battery, ensuring the positive (+) and negative (-) terminals align correctly with the indicators inside the compartment.
4. Volva colocar a tapa da batería deslizándoa de volta ao seu lugar ata que faga clic de forma segura.

Figure 4: Back of the remote control with the battery cover open, illustrating the correct orientation for AAA battery insertion.

3.2. Vincular o mando a distancia

This remote control must be paired with your adjustable bed's control box before it can be used. The exact pairing procedure varies by bed model and manufacturer. Please refer to the original user manual that came with your adjustable bed for detailed pairing instructions.

General Pairing Steps (Consult your bed's manual for specifics):

• Ensure the bed is plugged into a power outlet.
• Locate the pairing button on your bed's control box (often a small button labeled 'Pair' or 'Learn').
• Press and hold the pairing button on the control box for a few seconds until an indicator light flashes or a sound is heard.
• Within a short timeframe (usually 5-10 seconds), press and hold a specific button on the new remote control (e.g., 'Flat' or 'Head Up' button) until the bed responds or the indicator light on the control box changes.
• Proba as funcións do mando a distancia para confirmar que o emparellamento se realizou correctamente.

4. Instrucións de funcionamento

Once paired, the remote control allows you to operate your adjustable bed. The buttons are typically labeled with intuitive icons or text indicating their function.

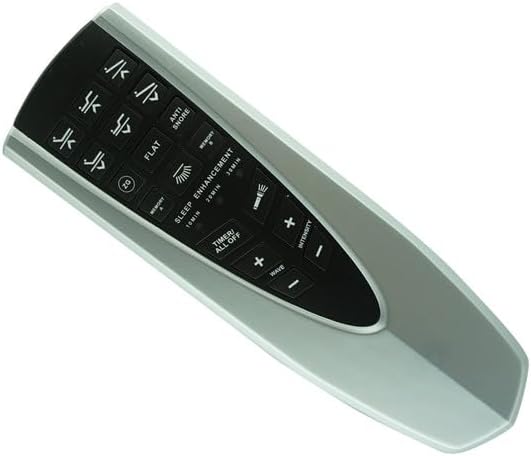

Figura 5: En ángulo view of the remote control, providing a clearer look at the button layout and their respective functions.

Funcións comúns dos botóns:

• Cabeza arriba/abaixo: Axusta a sección da cabeceira da cama.
• Pé arriba/abaixo: Axusta a sección dos pés da cama.
• Piso: Devolve a cama a unha posición completamente plana.
• Zero G / ZG: Moves the bed to a 'zero gravity' position, often elevating the head and feet slightly to relieve pressure.
• Anti Snore: Adjusts the head section to a position that may help reduce snoring.
• Memory 1 / Memory 2: Saves and recalls your preferred bed positions. Consult your bed's manual for programming these.
• Sleep Enhancement / Wave / Intensity: Controls massage functions if your bed is equipped with them.
• Timer / All Off: May control a timer for massage functions or turn off all active features.

Press and hold the desired button until the bed reaches the desired position or function activates. Release the button to stop the movement.

5. Mantemento

5.1. Substitución da batería

When the remote control's range decreases or buttons become unresponsive, it is likely time to replace the battery. Follow the battery installation steps in Section 3.1.

Tipo de batería: 1 x batería AAA.

5.2. Limpeza

Para limpar o mando a distancia, limpe suavemente a súa superficie cun pano suave e seco. Para a sucidade persistente, limpe lixeiramenteamp cloth with mild soap can be used, followed by immediate drying. Do not use abrasive cleaners, solvents, or immerse the remote in water.

6 Solución de problemas

Se tes problemas co teu mando a distancia, proba os seguintes pasos para solucionalo:

If the problem persists after attempting these solutions, please contact the seller or manufacturer for further assistance.

7. Especificacións

8. Garantía e soporte

For any questions, technical support, or warranty inquiries regarding this replacement remote control, please contact the seller directly through the platform where the purchase was made. Provide your order details and a clear description of the issue for prompt assistance.

Please note that this is a replacement remote and may not have all the exact same functions as your original remote if your original was a different model or brand. Always refer to your adjustable bed's original manual for comprehensive information on its features and pairing procedures.
