Nillkin Bumper Combo Keyboard Case User Manual

1. Introdución

The Nillkin Bumper Combo Keyboard Case is a versatile accessory designed to enhance your Apple iPad experience. It features a removable keyboard, an adjustable stand, and a trackpad, facilitating typing, viewing, reading, and sketching. The case also provides robust protection for your device, including an anti-fall design and a patented sliding camera cover.

Image: The Nillkin Bumper Combo Keyboard Case, highlighting its protective and multi-functional design.

2. Compatibilidade

This keyboard case is specifically designed for the following Apple iPad models:

• iPad Air 11-inch (M2, 2024)
• iPad Air 5th Generation (2022)
• iPad Air 4th Generation (2020)
• iPad Pro 11-inch (2022/2021/2020/2018)

Compatible iPad model numbers include: A2435, A2761, A27759, A2316, A2324, A2325, A2072, A2377, A2459, A2301, A2460, A2068, A2228, A2230, A2231, A1980, A2013, A1934, A1979.

Importante: Please verify your iPad's model number before use. The Apple Pencil is not included.

Image: A visual guide to identifying compatible iPad models and their corresponding model numbers.

3. Contido do paquete

O paquete inclúe:

• 1 x Nillkin Bumper Combo Keyboard Case for Apple iPad

4. Configuración

4.1 Conectar o teu iPad

1. Carefully align your iPad with the case.
2. Gently press the iPad into the bumper case, ensuring all edges are securely fitted. The anti-fall design will wrap tightly around the iPad's edges.

4.2 Connecting the Keyboard (Bluetooth Pairing)

1. Ensure the keyboard is charged (refer to section 4.3).
2. Acenda o teclado usando o seu interruptor de alimentación.
3. No teu iPad, vai a Configuración > Bluetooth.
4. Enable Bluetooth and select the Nillkin keyboard from the list of available devices.
5. Siga as indicacións en pantalla para completar o proceso de vinculación.

4.3 Carga do teclado

Connect the keyboard to a power source using the provided charging cable. A full charge typically takes 2-3 hours. Once fully charged, the wireless keyboard can remain on standby for up to 90 days.

5. Instrucións de funcionamento

5.1 Uso do teclado

The keyboard features silent keys with a scissor foot structure for a comfortable and quiet typing experience. It includes various shortcut keys for quick access to functions.

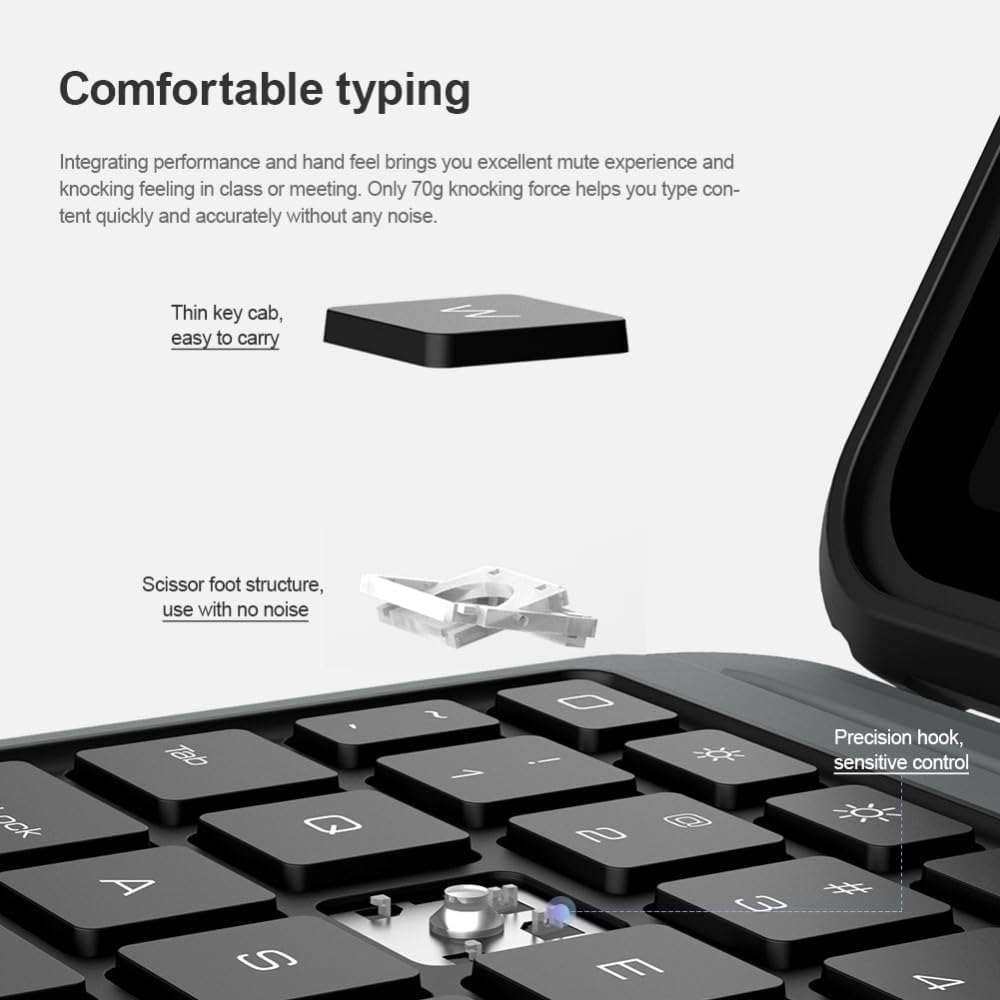

Image: Detail of the keyboard's thin keycaps and scissor foot structure, designed for quiet and precise typing.

Teclas de atallo:

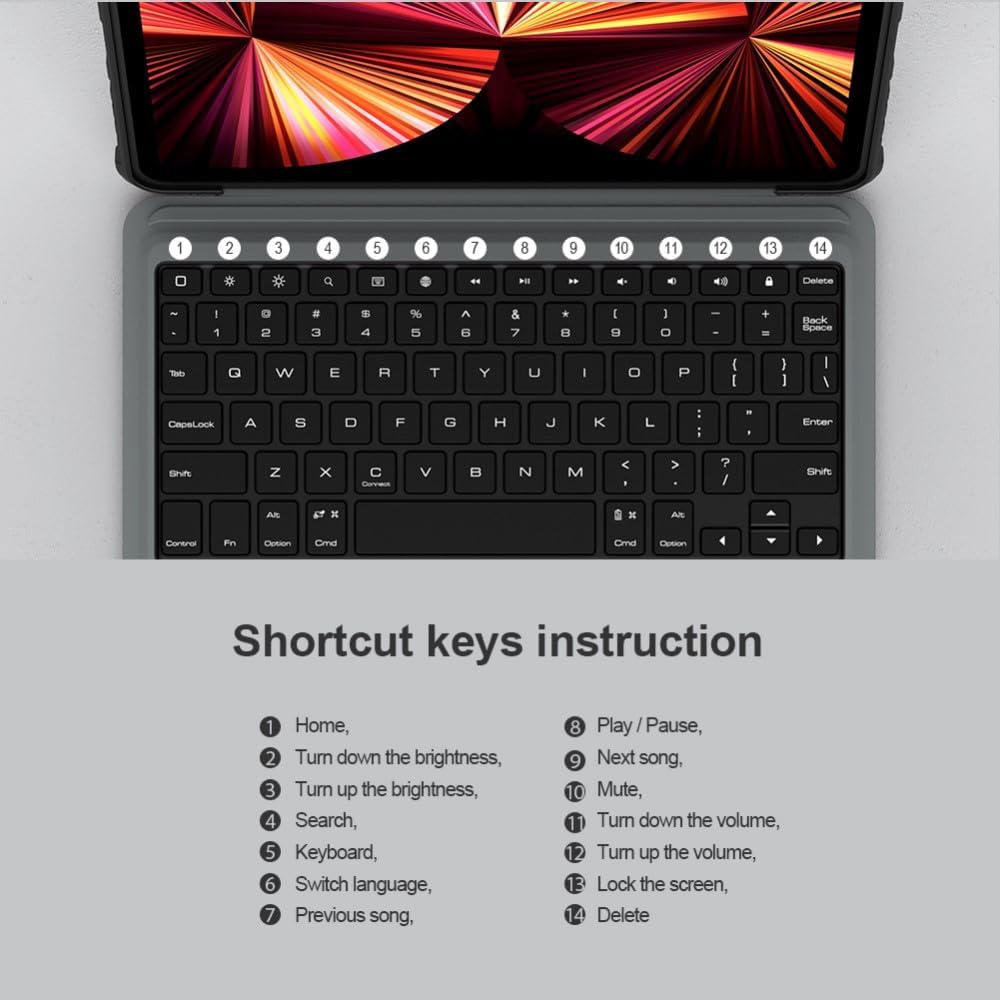

Image: An instruction guide for the keyboard's shortcut keys, detailing functions like Home, brightness adjustment, search, language switching, media playback control, and screen lock.

1. Casa: Volve á pantalla de inicio.
2. Turn down brightness: Diminuír o brillo da pantalla.
3. Turn up brightness: Aumenta o brillo da pantalla.
4. Busca: Activar a función de busca.
5. Teclado: Toggle virtual keyboard.
6. Cambiar idioma: Change input language.
7. Canción anterior: Ir á pista anterior.
8. Reproducir/Pausa: Reproducir ou pausar contido multimedia.
9. Próxima canción: Ir á seguinte pista.
10. Silenciar: Silenciar o audio.
11. Baixar o volume: Diminuír o volume.
12. Sube o volume: Aumentar o volume.
13. Bloquear a pantalla: Lock your iPad screen.
14. Eliminar: Delete character.

5.2 Trackpad Operations

The integrated trackpad supports various gestures for flexible control. To enable trackpad functionality after connecting to iPad, go to Configuración > Xeral > Trackpad > Tap to Click > Configuración rematada.

Image: A comprehensive guide to trackpad gestures, illustrating single-finger (swipe, click), two-finger (right click, move left/right, move up/down), and three-finger (back to home, switch multiple tasks, switch different pages) operations.

Gesture Guide:

• Dedo único:
  • Swipe: Move the mouse.
  • Click: Left click.
• Dous dedos:
  • Click with two fingers: Right click.
  • Swipe left or right: Move left or right.
  • Swipe up or down: Move up or down.
• Tres dedos:
  • Swipe up: Back to the home page.
  • Swipe up and hold: Switch between multiple tasks.
  • Swipe left or right: Switch between different pages.

The keyboard also features anti-mistouch technology, which automatically disables the touchpad when typing to prevent accidental cursor movements, allowing you to concentrate on your work.

Image: An iPad in the keyboard case, illustrating the anti-mistouch technology that disables the trackpad during typing.

5.3 Soporte axustable

The flexible stand allows you to adjust the viewing angle between 0° and 180° to suit your needs for typing, viewing, reading, or sketching. The mechanical hinge structure ensures stability.

Image: The adjustable stand in action, demonstrating the range of viewing angles from 0° to 180° for optimal comfort.

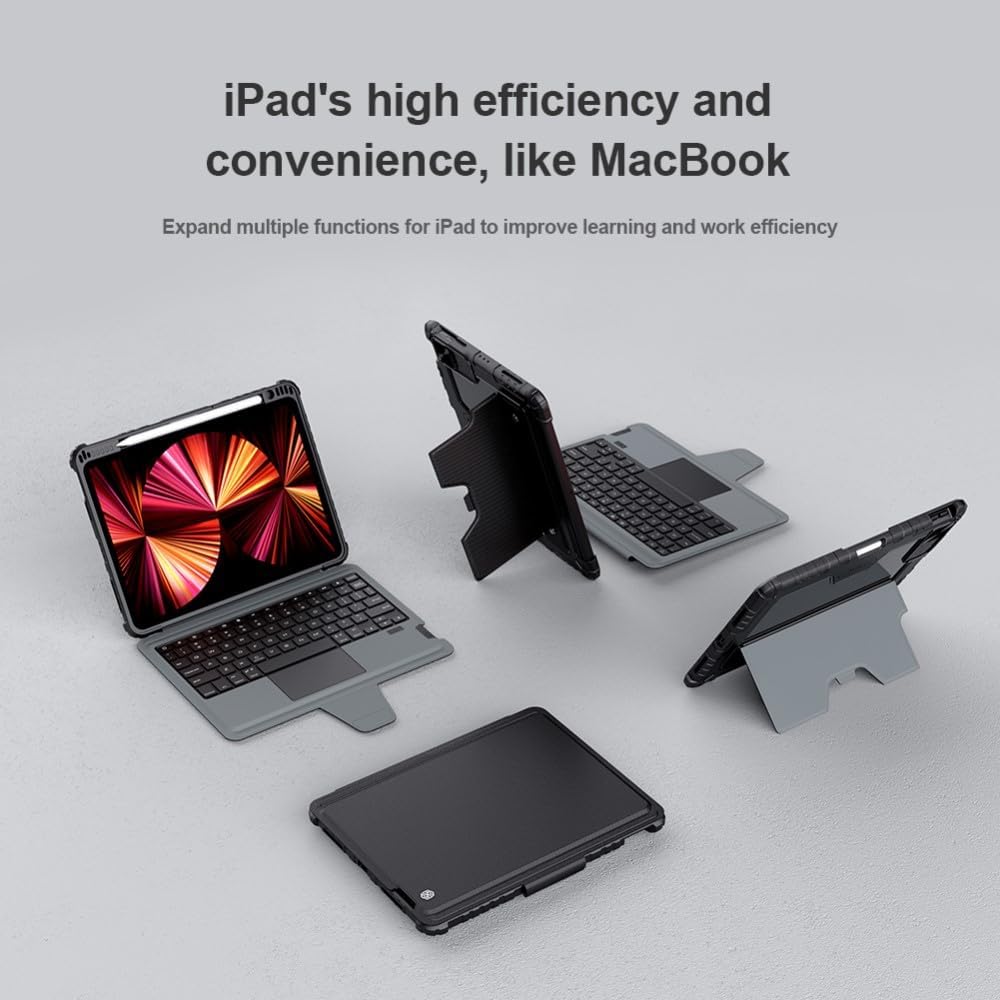

Image: Various usage modes of the keyboard case, illustrating how it can be configured for different tasks like typing, viewing, and drawing.

5.4 Protección da cámara

The case features a patented sliding camera cover made of metal, with a 1.1mm lifted bezel. This design effectively protects your iPad's camera from wear, scratches, and collisions.

Imaxe: Unha detallada view of the sliding camera cover, demonstrating its protective function and how it prevents scratches and dust accumulation.

5.5 Apple Pencil Holder

The case includes a dedicated holder for your Apple Pencil. When placed in the slot, the Apple Pencil will charge securely.

Image: The Apple Pencil holder, showing the pencil securely stored and charging within the case.

5.6 Power Management (Intelligent Sleep)

To conserve power, the keyboard will automatically enter standby mode if there is no operation within 10 minutes. You can wake it up by pressing any key. Closing the case will also automatically put the tablet to sleep.

Image: The keyboard's intelligent sleep feature, which automatically puts the device into standby after 10 minutes of inactivity to save power.

6. Mantemento

• Clean the case and keyboard regularly with a soft, dry cloth.
• Avoid using harsh chemicals or abrasive materials, as these may damage the surface.
• Keep the case away from extreme temperatures and direct sunlight.
• Asegúrate de que o porto de carga estea libre de po e residuos.

7 Solución de problemas

• O teclado non se conecta: Ensure Bluetooth is enabled on your iPad and the keyboard is powered on and charged. Try re-pairing the keyboard via iPad's Bluetooth settings.
• As teclas non responden: Check if the keyboard is charged. If the issue persists, try restarting both the iPad and the keyboard.
• O trackpad non funciona: Ensure the trackpad is enabled in iPad settings (Settings > General > Trackpad > Tap to Click). Check for any physical obstructions.
• Autonomía curta da batería: Ensure the keyboard is fully charged. Reduce usage of backlight (if applicable) and ensure the intelligent sleep function is active.

8. Especificacións

Marca:

Nillkin

Número de modelo:

6902048257955

Cor:

Negro

Dispositivos compatibles:

Apple iPad Air 11 2024/10.9 2020/Air 4/Air 5/Pro 11 2020/2021/2022

Factor de forma:

Caso

Tipo de caixa:

Difícil

Material:

Policarbonato

Max. Compatible Device Size:

11 polgadas

Características especiais:

Sliding Camera Cover, Pencil Holder, Trackpad

Patrón:

Sólido

Nivel de resistencia á auga:

Non resistente á auga

Compoñentes incluídos:

1 x Nillkin Bumper Combo Keyboard Case for Apple

Baterías:

1 Product specific battery required (included)

Dimensións do paquete:

31 x 22 x 3.5 cm; 840 g

País de orixe:

Taiwán

9. Garantía e soporte

Information regarding product warranty and customer support is not specified in the provided product data. Please refer to the retailer or manufacturer's official website for details on warranty coverage and support options.
