Introdución
Thank you for choosing the AKORD CL-3 3-Drawer Chest of Drawers. This manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

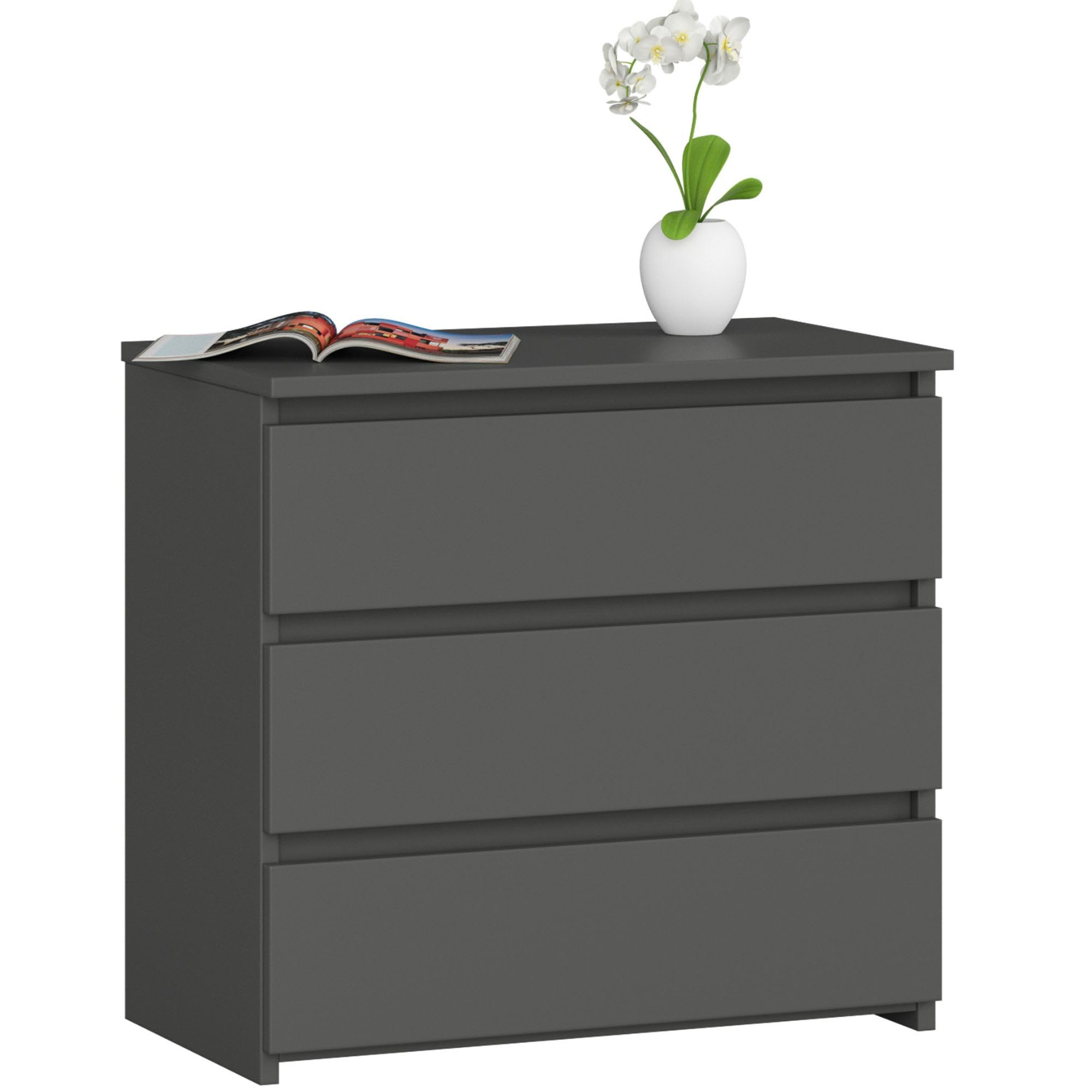

Image: The AKORD CL-3 3-Drawer Chest of Drawers in Graphite Grey, showcasino seu deseño minimalista nun dormitorio.
Información de seguridade
- Dispositivo anti-inclinación: For your safety, it is crucial to secure the chest of drawers to the wall using the anti-tip device provided. This prevents the unit from tipping over, which can cause serious injury.
- Montaxe: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all parts are correctly installed and fasteners are tightened securely before use.
- Distribución de peso: Distribute weight evenly in the drawers. Avoid placing heavy items on top of the unit that could compromise stability.
- Nenos: Do not allow children to climb on the furniture. Keep small parts out of reach of children during assembly.
Contido do paquete
Before starting assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Laminated furniture boards (sides, top, bottom, back panel, drawer fronts, drawer sides)
- 3 sets of metal drawer runners
- Assembly hardware (screws, dowels, cam locks, anti-tip kit)
- Manual de instrucións (este documento)
Instrucións de configuración e montaxe
Siga estes pasos atentamente para unha montaxe correcta. Recoméndase a montaxe por parte de dúas persoas.
- Preparar a zona: Clear a spacious area and lay down a blanket or cardboard to protect the furniture parts and your floor.
- Identificar pezas: Unpack all components and identify them using the provided parts list (if included in the physical package). Refer to the dimension diagram for component identification.
- Montar o cadro: Connect the side panels to the top and bottom panels using the provided hardware. Ensure all connections are tight and secure.
- Instalar o panel traseiro: Secure the back panel to the frame. This adds stability to the unit.
- Montar caixóns: For each drawer, connect the side panels to the front and back panels. Insert the drawer bottom.
- Attach Drawer Runners: Install the metal drawer runners to both the inside of the chest frame and the sides of each drawer. Ensure they are aligned correctly for smooth operation.
- Inserir caixóns: Carefully slide each assembled drawer into its respective runners in the chest frame.
- Colocar o dispositivo antivuelco: Securely attach the anti-tip device to the back of the chest and to a wall stud. Follow the specific instructions provided with the anti-tip kit.
Image: Technical drawing showing the overall dimensions (604mm W x 570mm H x 350mm D) and internal drawer dimensions (596mm W x 150mm H x 315mm D).
Imaxe: Detallada view of the metal drawer runners, highlighting the smooth-gliding mechanism.
Instrucións de funcionamento
The AKORD CL-3 chest of drawers features handle-less drawers with smooth-gliding metal runners for easy access.
- Apertura de caixóns: Gently pull the top edge of the drawer front to open.
- Pechando os caixóns: Empurre o caixón firmemente ata que estea completamente pechado e aliñado coa estrutura da cómoda.
- Capacidade de peso: Avoid overloading drawers. Distribute items evenly to ensure smooth operation and prevent damage to the runners.
Image: The chest of drawers with its three handle-less drawers partially open, demonstrating accessibility and internal storage.
Mantemento e coidados
Proper care will ensure the longevity and appearance of your AKORD CL-3 chest of drawers.
- Limpeza: The laminated surface is easy to clean. Wipe regularly with a dry, soft cloth. For heavier dirt, use a damp cloth with a small amount of mild dish soap or a commercially available furniture cleaning product, then wipe dry immediately.
- Evitar a humidade: Do not expose the furniture to excessive moisture or direct sunlight, as this can cause damage or discoloration.
- Químicos: Evita o uso de produtos químicos agresivos, limpadores abrasivos ou solventes, xa que poden danar o acabado.
- Inspeccións: Comprobe periodicamente todos os elementos de fixación e aperteos se é necesario para manter a estabilidade.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| Os caixóns non esvaran con suavidade. | Misaligned drawer runners, overloaded drawer, debris in runners. | Check alignment of runners on both drawer and frame. Reduce drawer contents. Clean runners. |
| Chest of drawers feels unstable. | Loose fasteners, uneven floor, anti-tip device not installed. | Tighten all assembly fasteners. Ensure unit is on a level surface. Install or re-secure the anti-tip device to the wall. |
| Espazos entre paneis. | Fasteners not fully tightened, incorrect assembly. | Ensure all cam locks and screws are fully tightened. Review assembly steps to confirm correct part placement. |
Especificacións
- Modelo: CL-3
- Marca: AKORD
- Dimensións xerais (ancho x alto x prof.): 60 cm x 57 cm x 35 cm (23.6 po x 22.4 po x 13.8 po)
- Peso: 17.5 kg (38.6 lb)
- Número de caixóns: 3
- Material: Madeira de enxeñería
- Remate: Laminado
- Cor: Gris Grafito
- País de orixe: Polonia
Garantía e Soporte
AKORD products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any questions, missing parts, or support needs, please contact AKORD customer service through your retailer or the official AKORD websitio.
You can visit the AKORD store for more information: AKORD Furniture Factory Store
