AMERLIFE Hybrid Polycarbonate Greenhouse Instruction Manual

1. Produto rematadoview

The AMERLIFE 14x9.5x9 FT Hybrid Polycarbonate Greenhouse is designed for outdoor use, providing a robust and spacious environment for plant cultivation or as a recreational sunroom. It features a durable aluminum frame, advanced quick-connector assembly system, and a combination of 6mm double-walled translucent PC panels and clear unbroken PC panels for optimal light transmission and UV protection. This manual provides essential information for assembly, operation, maintenance, and safety.

Figure 1.1: The AMERLIFE Hybrid Polycarbonate Greenhouse, showcasing its spacious design and clear panels in an outdoor setting.

2. Información de seguridade

Importantes precaucións de seguridade:

• Ensure proper safety measures are taken during all stages of assembly and use.
• Be cautious when handling heavy components to prevent injury. It is recommended to have multiple individuals for assembly.
• The greenhouse must be securely anchored to the ground to withstand wind and snow loads. Failure to do so may result in structural damage or personal injury.
• Protect skin from potential UV exposure, especially during prolonged periods inside the greenhouse. While panels offer UV protection, direct exposure can still occur.
• Manteña os nenos e as mascotas lonxe da zona de reunión.
• Do not climb on the greenhouse structure.
• Inspeccione regularmente a estrutura para detectar calquera signo de desgaste, danos ou conexións soltas.

3. Configuración e montaxe

The AMERLIFE greenhouse features an upgraded patented quick connector system designed to simplify assembly. Approximately 60% of the connections utilize these connectors, with screws pre-embedded to reduce installation time significantly. With the assistance of three DIY enthusiasts, assembly can typically be completed within 8 hours.

3.1 Quick Connector System

The quick connector system allows for efficient frame assembly. Simply attach the frame tubes to the connectors and drive in the pre-embedded screws. This design aims to reduce overall installation difficulty and save time.

Figura 3.1: detallada view of the quick connector system, showing how frame components attach.

Figure 3.2: Illustration of different quick connector types used in the greenhouse frame, designed for efficient assembly.

3.2 Anchoring and Stability

For enhanced stability and wind resistance, the greenhouse frame includes four corner posts and two middle posts. These posts, along with reinforced expansion screws, allow the structure to be deeply buried into soil, concrete, or wooden floors. This firm anchoring is crucial for the greenhouse to withstand wind ratings of up to 70 mph and snow loads of 30 psf.

Figure 3.3: Depiction of a corner post designed for secure anchoring into various ground types, enhancing stability.

3.3 Instalación do panel

The roof of the greenhouse utilizes 6mm double-walled translucent PC panels, offering 99.99% UV protection. The side walls are constructed with transparent endurance panels, known for their high density and resistance to breakage. After inserting the panels into the frame, it is recommended to use silicone sealant to ensure a tight and weather-resistant seal.

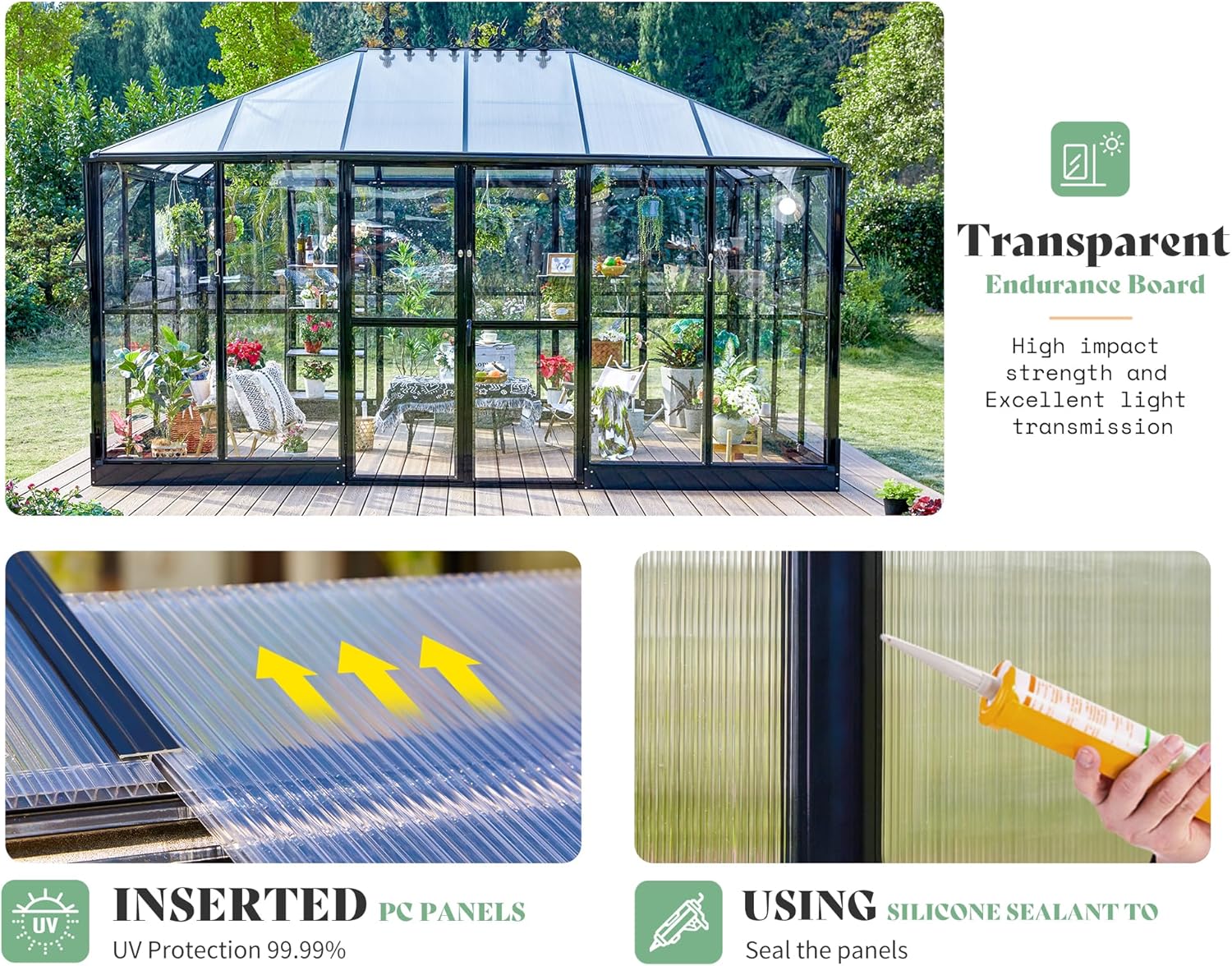

Figure 3.4: Illustration of inserting PC panels and applying silicone sealant for a secure fit.

4. Características e compoñentes

• Dimensións: The greenhouse measures 14x9.5 FT, with an overall height of 9 FT and an upgraded wall height of 6 FT, providing ample space and easy access without needing to bend over.
• Material do cadro: Constructed with a robust 1.5mm anti-rust aluminum frame.
• Material do panel: Features 6mm double-walled translucent PC panels on the roof for UV protection and transparent endurance panels on the sides for high impact strength and excellent light transmission.
• Portas: Equipped with 4.4 FT wide double swing doors, complete with door hooks for convenience and easy entry, even for garden equipment like wheelbarrows.
• Ventilación: Includes two adjustable side vents to facilitate air convection and maintain optimal internal temperatures.
• Drenaxe: Features a self-contained drainage hole system to manage water runoff.
• Deseño do tellado: A Victorian roof crest design is incorporated on the top for aesthetic appeal.

Figura 4.1: Un interior view demonstrating the generous 14-foot depth and 9-foot overall height of the greenhouse, suitable for various uses.

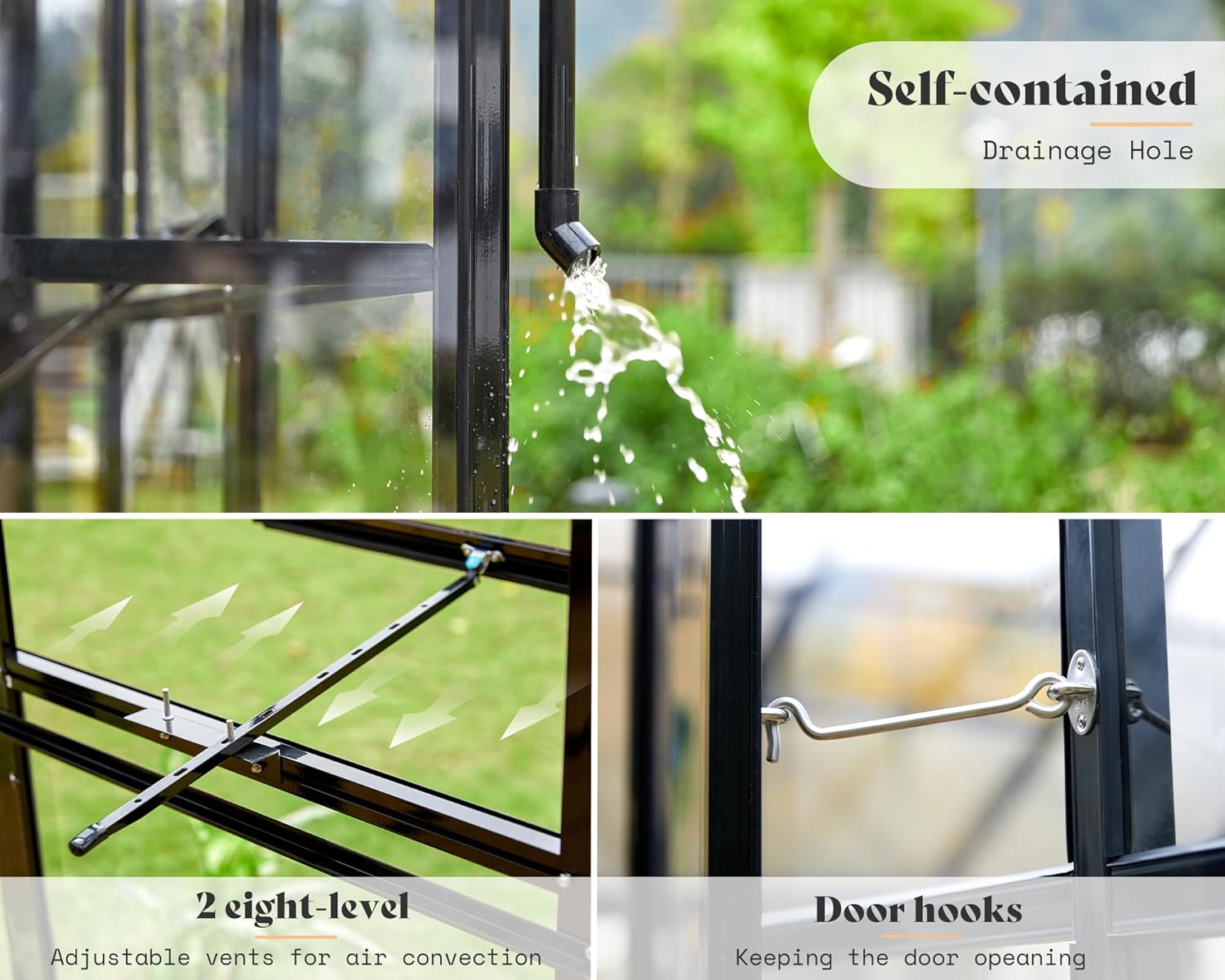

Figure 4.2: Close-up details of the self-contained drainage hole, adjustable side vents for air circulation, and door hooks for keeping doors open.

Figure 4.3: A diagram illustrating the key dimensions of the greenhouse, including length, width, and height measurements.

5. Instrucións de funcionamento

5.1 Funcionamento da porta

The greenhouse is equipped with double swing doors. To open, simply push or pull the doors. Door hooks are provided to secure the doors in an open position, which is useful for ventilation or when moving larger items in and out of the greenhouse.

5.2 Control da ventilación

The two adjustable side vents allow for controlled air circulation within the greenhouse. Open the vents to increase airflow and reduce internal temperature, especially on warm days. Close them to retain heat during cooler periods. Adjust the opening degree of the vents as needed to maintain desired environmental conditions for your plants.

6. Mantemento

Regular maintenance will extend the lifespan and performance of your AMERLIFE greenhouse.

• Cleaning Panels: Clean the polycarbonate panels periodically with mild soap and water using a soft cloth or sponge. Avoid abrasive cleaners or brushes that could scratch the surface. Rinse thoroughly with clean water.
• Inspección do cadro: Annually inspect the aluminum frame for any signs of corrosion, bending, or damage. Tighten any loose screws or connections.
• Comprobación do selante: Periodically check the silicone sealant around the panels for cracks or deterioration. Reapply sealant as necessary to maintain weatherproofing.
• Sistema de drenaxe: Ensure the drainage holes are clear of debris to allow for proper water runoff.
• Ancoraxe: Verify that the greenhouse remains securely anchored, especially after severe weather conditions. Re-secure expansion screws if any loosening is detected.
• Retirada de neve: In areas with heavy snowfall, gently remove accumulated snow from the roof to prevent excessive load, even though the greenhouse has a snow load capacity of 30 psf.

7 Solución de problemas

Esta sección aborda problemas comúns que podes atopar co teu invernadoiro.

• Fuga de auga: If you observe water leakage, inspect the panel seals and frame connections. Reapply silicone sealant where needed and ensure all screws are tightened. Check for any cracks in the panels themselves.
• Inestabilidade estrutural: If the greenhouse feels unstable, immediately check all anchoring points (corner posts, middle posts, expansion screws). Ensure they are firmly secured to the ground. Verify that all frame connections are tight.
• Difficulty Opening/Closing Doors or Vents: Check for obstructions in the tracks or hinges. Apply a silicone-based lubricant to hinges if they are stiff. Ensure the frame is level and square, as misalignment can affect door and vent operation.
• Panel Condensation: Condensation inside the greenhouse is normal due to humidity and temperature differences. Ensure adequate ventilation by opening vents and doors when appropriate to reduce humidity.

For issues not covered here, please refer to the "Warranty and Support" section for contact information.

8. Especificacións

9. Garantía e soporte

For any questions regarding the AMERLIFE Hybrid Polycarbonate Greenhouse, including assembly assistance, missing parts, or operational concerns, please contact AMERLIFE customer support. Keep your purchase receipt and model number (YPG302) ready when contacting support.

While specific warranty details are not provided in this manual, AMERLIFE is committed to customer satisfaction. Please refer to the product packaging or the official AMERLIFE website for the most current warranty information and contact methods.
