Manual do usuario do sistema de aire acondicionado/calefacción mini split ARLIME 12000 BTU 21 SEER2

1. Introdución

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ARLIME 12000 BTU 21 SEER2 Mini Split AC/Heating System. This inverter split air conditioner is designed for both cooling and heating, utilizing advanced inverter technology for consistent performance and energy efficiency. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Produto rematadoview

Características clave

• Efficient Cooling and Heating: 12000 BTU cooling capacity (920W) and 12300 BTU heating capacity (940W), suitable for areas up to 750 sq. ft.
• Tecnoloxía do inversor: Extends service life, provides comfortable experience, and lowers energy consumption. Energy Star certified.
• 4-in-1 System: Offers Cooling, Heating, Dry, and Fan modes for year-round climate control.
• Amplio intervalo de temperatura: Axustable de 60℉ (15.5℃) a 90℉ (32℃).
• Deshumidificación: Capacity of 42 pints per day.
• Control remoto multifuncional: Allows control of temperature, fan speed, timer, and mode settings from up to 26 ft away.
• Funcionamento silencioso: Operates with low noise levels, under 26 dB for the indoor unit, promoting undisturbed sleep.
• Función de temporizador: Programmable from 0.5 to 24 hours for energy saving.
• Auto Self-Cleaning: Features a 135℉ self-cleaning mode for improved air quality and unit hygiene.
• Refrigerante ecolóxico: Uses R32 refrigerant.

Compoñentes incluídos

O paquete inclúe os seguintes elementos:

• 1 unidade exterior
• 1 unidade interior
• 1 x 13 ft Copper & Aluminum Connection Pipe (Air Pipe)
• 1 x 13 ft Copper & Aluminum Connection Pipe (Liquid Pipe)
• 1 mangueira de drenaxe de 6.5 pés
• 1 x 13 ft Communication Wires
• 1 x mando a distancia
• 2 x Batteries (for remote control)
• 1 x cinta
• 1 x Luting (Putty)
• 1 x Guía do usuario (este manual)

3. Configuración e instalación

Professional installation is recommended for this mini split system to ensure proper function and safety. The included installation kit contains the necessary components for setup. Refer to the detailed installation instructions provided in the full user guide for step-by-step procedures.

Notas importantes de instalación:

• Ensure proper electrical connections according to local codes and the unit's voltage requirements (208-230V~60Hz/1PH).
• Proper vacuuming of the refrigerant lines is crucial for system efficiency and longevity.
• If additional R32 refrigerant is needed, consult a local seller for availability.

4. Instrucións de funcionamento

4-in-1 System Modes

Your ARLIME Mini Split AC/Heating System offers four primary operating modes:

• Modo de arrefriamento: Provides efficient cooling to maintain a comfortable indoor temperature.
• Modo de calefacción: Functions as a heat pump to warm your space during colder periods.
• Modo seco (deshumidificación): Reduce os niveis de humidade na habitación sen cambios significativos de temperatura.
• Modo de ventilador: Circulates air without cooling or heating, offering adjustable fan speeds (Low, Mid, High).

Funcións de control remoto

The included multi-functional remote control allows for convenient operation of your unit. It has a control range of approximately 26 feet.

• Interruptor de alimentación: Acende ou apaga a unidade.
• Botón de modo: Cycles through Cooling, Heating, Dry, and Fan modes.
• Axuste de temperatura: Use as frechas arriba/abaixo para axustar a temperatura desexada.
• Velocidade do ventilador: Adjusts the fan speed (Auto, Low, Mid, High).
• Temporizador: Sets the operating duration (0.5 to 24 hours).
• Función de balanceo: Controls the vertical and horizontal louver movement for optimal air distribution.
• Botón de visualización: Activa/desactiva a pantalla da unidade interior.
• Modo ECO: Activa o funcionamento de aforro de enerxía.
• Función de limpeza: Inicia o ciclo de autolimpeza.

Timer and Noise-Free Operation

The unit features a timer function allowing you to set operation for 0.5 to 24 hours, which can help in energy management. Additionally, the system is designed for quiet operation, with indoor noise levels as low as 26 dB, ensuring a peaceful environment, especially during sleep.

5. Mantemento

Función de autolimpeza automática

The unit includes an auto self-cleaning mode that operates at 135℉ to maintain internal hygiene and promote better air quality. The self-cleaning process involves several stages:

1. Condensación: Moisture collects on the evaporator coils.
2. Xeadas: The coils are frosted to trap dust and debris.
3. Fusión: The frost melts, washing away accumulated dirt.
4. High Temperature Sterilization: The unit heats up to 135℉ to sterilize the coils.
5. Limpeza: Further rinsing to remove residues.
6. Ventilación: Dries the internal components to prevent mold and odors.

Limpeza de filtros

The air filter can be easily removed for cleaning. Regular cleaning of the air filter is essential for maintaining optimal performance and air quality. Refer to the full user guide for specific instructions on how to remove and clean the filter.

6 Solución de problemas

If you encounter issues with your ARLIME Mini Split AC/Heating System, please refer to the troubleshooting section in the comprehensive user guide for detailed solutions. Common issues may include:

• A unidade non se acende.
• Refrixeración ou calefacción insuficientes.
• Ruídos ou cheiros pouco comúns.
• O mando a distancia non responde.
• Fuga de auga da unidade interior.

For complex problems or issues not covered in the manual, contact ARLIME customer support.

7. Especificacións

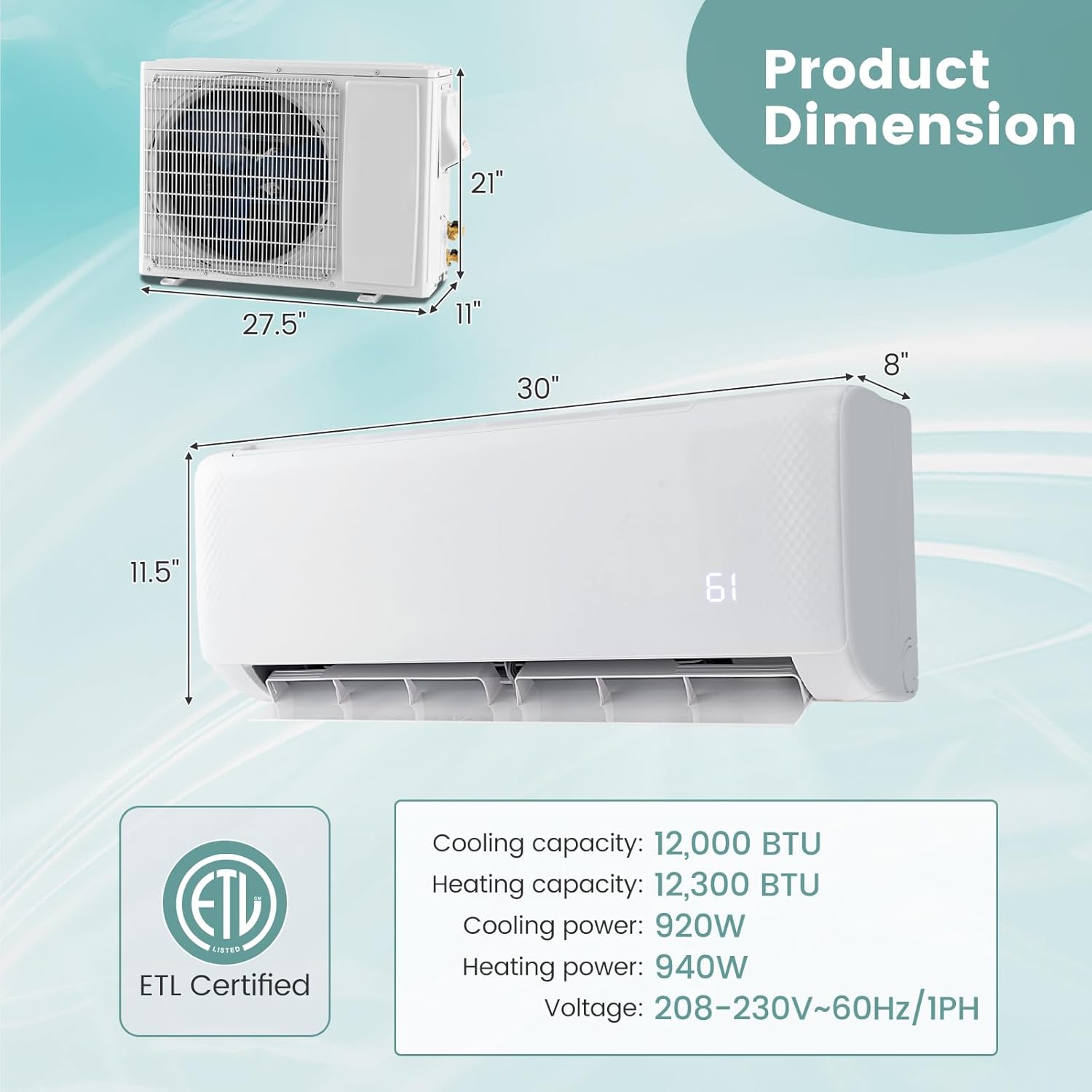

The following table outlines the technical specifications for the ARLIME 12000 BTU 21 SEER2 Mini Split AC/Heating System:

8. Garantía e soporte

For warranty information and customer support, please refer to the documentation included with your product or contact ARLIME customer service directly. Ensure you have your model number (AR-0000-24) and purchase details available when seeking support.
