Giraffe Tools HC-CZ2201 Portable Tire Inflator Instruction Manual

1. Produto rematadoview

The Giraffe Tools HC-CZ2201 Portable Tire Inflator is a compact and efficient air compressor designed for quick and easy inflation of various items. Featuring a powerful motor, digital pressure gauge, and automatic shut-off, it ensures precise and safe inflation. The integrated 13ft retractable power cord and emergency LED light enhance convenience and usability in diverse situations.

2. Contido do paquete

• 1 x Giraffe Tools Portable Tire Inflator (Model: HC-CZ2201)
• 1 x 13ft Retractable Power Cord (integrated)
• 4 x adaptadores de boquilla
• 1 x fusible de recambio
• 1 x bolsa de transporte
• 1 x manual de instrucións

3. Compoñentes do produto

Familiarize yourself with the key components of your tire inflator:

• Pantalla dixital: Shows current and set pressure.
• Panel de control: Buttons for power, mode selection, pressure adjustment (+/-), and LED light activation.
• Mangueira de aire: Conéctase ao elemento que se está inflando.
• Enchufe de alimentación de 12 V CC: Conéctase á toma do acendedor de cigarros do teu vehículo.
• Retraction Button: Activates automatic power cord retraction.
• Luz LED de emerxencia: Ofrece iluminación para uso nocturno.
• Compartimento de almacenamento de accesorios: Located on the underside for nozzle adapters and spare fuse.

The inflator features a user-friendly control panel with a digital display for clear readings. The power cord is designed for automatic retraction, and a dedicated compartment stores all necessary inflation adapters and a spare fuse.

4. Configuración

1. Conectar enerxía: Plug the 12V DC power plug into your vehicle's cigarette lighter socket. Ensure your vehicle's engine is running to provide stable power.
2. Conecte a mangueira de aire: Screw the air hose connector onto the valve stem of the item you wish to inflate. Ensure a tight seal to prevent air leakage.
3. Seleccionar adaptador (se é necesario): For items like balls, bicycles, or air mattresses, select the appropriate nozzle adapter from the storage compartment and attach it to the air hose before connecting to the item.

The inflator is designed for quick setup, allowing you to begin inflation within minutes. Always ensure a secure connection to both the power source and the item being inflated.

5. Instrucións de funcionamento

1. Encendido: Preme o botón de acendido () on the control panel. The digital display will illuminate, showing the current pressure.
2. Seleccionar unidade de presión: Press the 'M' (Mode) button to cycle through available pressure units: PSI, kPa, BAR, and KG/cm². Select your preferred unit.
3. Establecer a presión desexada: Use the '+' and '-' buttons to adjust the target pressure. The display will show the set value.
4. Inicio da inflación: Once the desired pressure is set, press the power button again to start the compressor. The inflator will automatically stop when the target pressure is reached.
5. Use Emergency LED Light: Prema o botón da luz () to activate the emergency LED light. Press again to cycle through modes (steady, SOS, off).

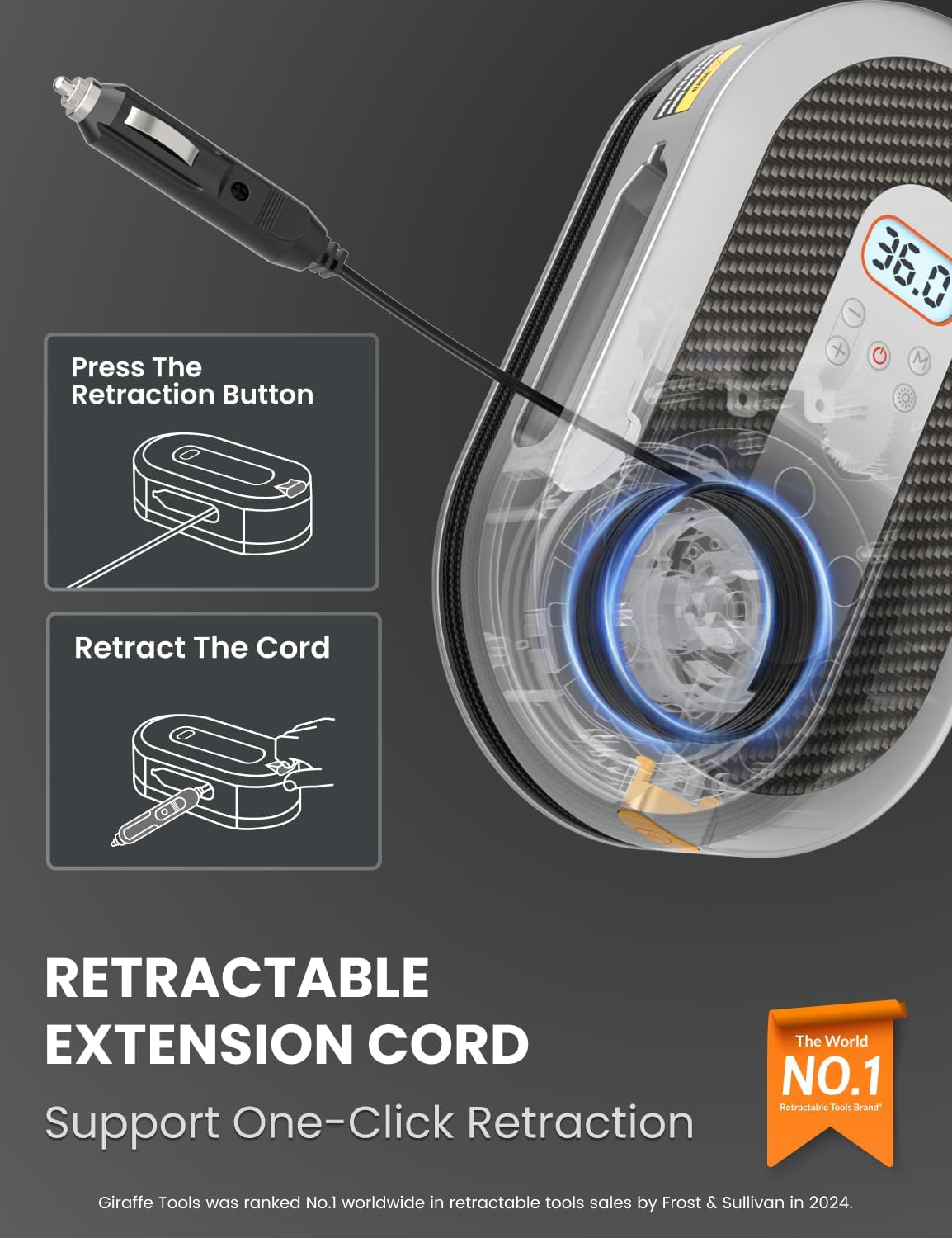

6. Retract Power Cord: After use, unplug the 12V DC power plug. Press the orange retraction button on the side of the unit to automatically retract the power cord for neat storage.

The automatic shut-off feature ensures that your tires are inflated to the exact pressure you set, preventing both under and over-inflation. This enhances safety and extends tire life.

The integrated LED light is crucial for roadside emergencies or when inflating items in dimly lit environments, providing both illumination and an SOS signal option.

The inflator comes with 4 additional nozzle adapters, making it suitable for inflating car tires, bicycles, motorcycles, balls, air mattresses, swim rings, and more.

Video Demostracións

6. Mantemento

• Limpeza: Limpar a unidade co anuncioamp pano. Non use produtos químicos agresivos nin mergullo en auga.
• Almacenamento: Store the inflator in its carry bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Uso continuo: For optimal performance and longevity, allow the air compressor to rest and cool for a while after 5-10 minutes of continuous inflating.
• Substitución de fusibles: If the unit stops working, check the fuse located in the accessory storage compartment. Replace it with the provided spare fuse if necessary.

7 Solución de problemas

• A unidade non se acende:
  • Ensure the 12V DC power plug is securely inserted into the vehicle's cigarette lighter socket.
  • Verify the vehicle's engine is running.
  • Check the fuse in the power plug and the unit's accessory compartment. Replace if blown.
• Inflator Not Inflating:
  • Ensure the air hose is tightly screwed onto the valve stem.
  • Verify the desired pressure is set above the current pressure.
  • Check for any kinks or blockages in the air hose.
• Automatic Shut-Off Not Working:
  • Ensure the desired pressure is correctly set on the digital display.
  • Se o problema persiste, póñase en contacto co servizo de atención ao cliente.

8. Especificacións

9. Garantía e soporte

The Giraffe Tools HC-CZ2201 Portable Tire Inflator comes with a Garantía de 24 meses. For any product inquiries, technical assistance, or warranty claims, please contact Giraffe Tools customer support. Our team is dedicated to providing timely solutions and friendly lifetime support.

Please refer to the contact information provided in your product packaging or visit the official Giraffe Tools websitio para obter detalles de asistencia.
