Kapbom KA-8506 Waterproof Bluetooth Speaker User Manual

Introdución

Thank you for choosing the Kapbom KA-8506 Waterproof Bluetooth Speaker. This portable speaker is designed to deliver quality sound in various environments, including home, beach, travel, and office settings. Its waterproof design ensures durability, and the integrated microphone allows for convenient hands-free calls and audio messages.

O que hai na caixa

Comprobe o contido do paquete para asegurarse de que estean presentes todos os elementos:

• 1x Kapbom KA-8506 Waterproof Bluetooth Speaker
• 1x Auxiliary Cable (P2 to P2)
• 1x cable de carga USB
• 1x Manual de usuario (este documento)

Image: Packaging box for the Kapbom KA-8506 speaker, illustrating its dimensions (13.5 cm height, 13 cm width, 6 cm depth) and a weight of 420 grams.

Produto rematadoview

The Kapbom KA-8506 speaker features a compact, rugged design with intuitive controls. Familiarize yourself with the speaker's components:

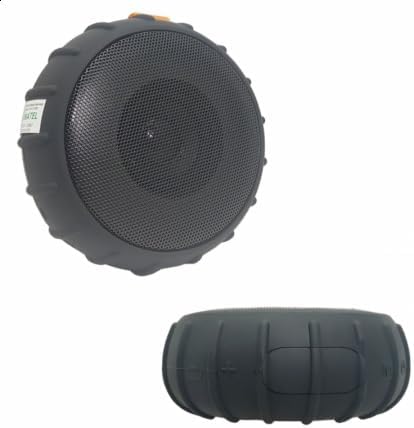

Imaxe: Parte superior e lateral views of the Kapbom KA-8506 speaker in black. The top view shows the speaker grille, while the side view displays the control buttons (+, -, and a central button) and the rugged rubberized casing.

• Reixa do altofalante: Saída de audio frontal.
• Botóns de control: Located on the side, typically for Power/Play/Pause, Volume Up/Next Track, and Volume Down/Previous Track.
• Porto de carga: USB input for charging.
• Entrada auxiliar: Conector de 3.5 mm para conexión de audio con cable.
• Micrófono: Integrated for hands-free communication.

Configuración

1. Cargando o altofalante

1. Connect the supplied USB charging cable to the speaker's charging port.
2. Connect the other end of the USB cable to a 5V DC power source (e.g., a USB wall adapter or computer USB port).
3. A luz indicadora de carga acenderase.
4. Unha carga completa tarda aproximadamente 2 horas. A luz indicadora cambiará ou apagarase unha vez completada a carga.

Nota: Ensure the charging port cover is securely closed after charging to maintain the speaker's waterproof integrity.

2. Emparellamento Bluetooth

1. Encendido: Press and hold the Power button (usually the central button) for a few seconds until you hear an audible prompt or see an indicator light flash, indicating it's in pairing mode.
2. Activar Bluetooth: No teu teléfono intelixente, tableta ou outro dispositivo con Bluetooth, vai á configuración de Bluetooth e asegúrate de que o Bluetooth estea activado.
3. Busca Dispositivos: O teu dispositivo buscará os dispositivos Bluetooth dispoñibles.
4. Select Speaker: Locate "KA-8506" (or similar name) in the list of available devices and select it to pair.
5. Confirmación: Once paired, you will hear a confirmation sound from the speaker, and the indicator light will typically stop flashing and remain solid.

Consello: Se o emparellamento falla, desactiva o altofalante e o Bluetooth do dispositivo e, a seguir, repite os pasos.

Instrucións de funcionamento

Encendido/apagado

• Para acender: Press and hold the central Power button for approximately 3 seconds.
• Para apagar: Press and hold the central Power button for approximately 3 seconds.

Music Playback (Bluetooth Mode)

• Reproducir/Pausa: Press the central Power button once.
• Subir volume: Prema o botón "+".
• Baixar volume: Prema o botón '-'.
• Próxima pista: Manteña premido o botón "+".
• Pista anterior: Manteña premido o botón '-'.

Funcións de chamada

With the integrated microphone, you can manage calls directly through the speaker when connected via Bluetooth.

• Responder chamada: Press the central Power button once when an incoming call rings.
• Finalizar a chamada: Press the central Power button once during a call.
• Rexeitar a chamada: Press and hold the central Power button for 2 seconds when an incoming call rings.

Auxiliary Input (Wired Connection)

To play audio from devices without Bluetooth, use the auxiliary cable:

1. Connect one end of the auxiliary cable to the speaker's AUX-in port.
2. Connect the other end to the audio output of your device (e.g., headphone jack).
3. The speaker will automatically switch to AUX mode or may require a mode button press (if available).
4. Controla a reprodución e o volume desde o teu dispositivo conectado.

Característica impermeable

The Kapbom KA-8506 is designed to be waterproof. This makes it suitable for use in environments where it may be exposed to water, such as by the pool, beach, or in the shower. Ensure all port covers are securely sealed before exposing the speaker to water to maintain its waterproof integrity.

Mantemento

• Limpeza: Limpe o altofalante cun suave, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
• Almacenamento: Garde o altofalante nun lugar fresco e seco, lonxe da luz solar directa e de temperaturas extremas, cando non o use durante períodos prolongados.
• Exposición á auga: After exposure to water, ensure the speaker is dry before charging. Do not charge a wet speaker.

Resolución de problemas

• Speaker will not turn on:
  • Asegúrate de que a batería estea cargada. Conecta o altofalante a unha fonte de alimentación mediante o cable USB.
  • Press and hold the Power button for a longer duration (e.g., 5 seconds).
• Non se pode emparellar co dispositivo Bluetooth:
  • Asegúrate de que o altofalante estea no modo de emparellamento (luz indicadora parpadeando).
  • Make sure Bluetooth is enabled on your device and it is within range (typically 10 meters).
  • Forget "KA-8506" from your device's Bluetooth list and try pairing again.
  • Reinicia tanto o altofalante como o dispositivo Bluetooth.
• Sen son:
  • Comprobe os niveis de volume tanto no altofalante como no dispositivo conectado.
  • Ensure the speaker is properly paired via Bluetooth or the auxiliary cable is fully inserted.
  • Tenta reproducir unha fonte de son diferente.
• Mala calidade de son:
  • Achega o altofalante ao teu dispositivo Bluetooth para reducir as interferencias.
  • Asegúrate de que non haxa obstáculos entre o altofalante e o dispositivo.
  • Comproba a calidade de son do material orixinal.

Especificacións

Garantía e Soporte

The Kapbom KA-8506 speaker comes with a limited warranty of 30 days from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or further assistance, please contact your retailer or the manufacturer directly using the contact information provided at the point of purchase.
