Shark Rotator Anti-Allergen Pet Plus w/Self-Cleaning Brushroll Vacuum ZU55 Instruction Manual

Produto rematadoview

The Shark Rotator Anti-Allergen Pet Plus with Self-Cleaning Brushroll Vacuum, ZU55, is engineered for effective cleaning, especially in homes with pets. This powerful upright vacuum incorporates Anti-Allergen Complete Seal Technology with a HEPA filter to capture pet hair, dust, dander, and allergens, preventing their release into the air. Its robust suction efficiently handles pet hair and debris, while the self-cleaning brushroll actively prevents hair wrap during operation, ensuring consistent performance.

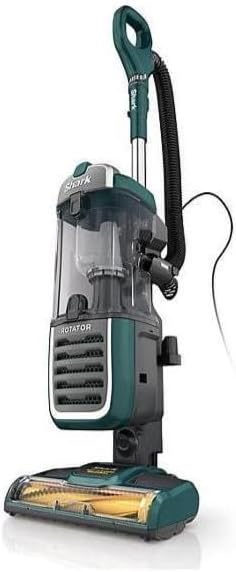

Figure 1: Shark Rotator Anti-Allergen Pet Plus Vacuum, ZU55.

Características clave

• Anti-Allergen Complete Seal Technology with HEPA Filter: Traps 99.9% of dust and allergens inside the vacuum.
• Cepillo autolimpador: Designed to eliminate hair wrap for consistent cleaning performance.
• Potente succión: Effectively picks up pet hair and debris from various floor types.
• Copa de po de gran capacidade: 0.74 qt capacity reduces the frequency of emptying.
• Alcance estendido: 25 ft. cord length provides ample reach for cleaning large areas.
• Filtros lavables: HEPA, Foam, and Felt filters are washable for easy maintenance.
• Dirección xiratoria: Allows for easy maneuverability around furniture and obstacles.

Figure 2: Diagram highlighting key features like Suction Control, Anti-Allergen Complete Seal, Self-Cleaning Brushroll, and Swivel Steering.

Configuración

Desembalaxe e montaxe

The Shark Rotator Anti-Allergen Pet Plus vacuum requires minimal assembly. Ensure all components are present before beginning. Assembly is required.

• Retire coidadosamente todas as pezas da embalaxe.
• Attach the main body to the floor nozzle until it clicks securely into place.
• Connect the hose to the back of the vacuum unit.
• Attach the accessory holder to the vacuum body.
• Store the Crevice Tool and Pet Power Brush on the accessory holder.

Figure 3: Contents of the box including the main vacuum unit, crevice tool, and pet power brush.

Conexión de alimentación

Plug the 25 ft. power cord into a standard electrical outlet. Ensure the cord is not in the path of the vacuum during operation to prevent damage.

Instrucións de funcionamento

Acendido e apagado

• To turn the vacuum ON, press the power button located on the main unit.
• To turn the vacuum OFF, press the power button again.

Seleccionando o tipo de chan

The vacuum features settings for different floor types:

• Configuración de chan duro: Ideal for bare floors and delicate area rugs.
• Colocación da alfombra: Provides optimized performance for carpets and thicker rugs.

Usando anexos

The vacuum comes with specialized attachments for targeted cleaning:

• Ferramenta de fendas: Use for cleaning tight spaces, corners, and along baseboards.
• Cepillo eléctrico para mascotas: Designed to tackle stubborn pet hair from upholstery, stairs, and other surfaces.

Figure 4: Demonstrating the use of the Pet Power Brush for cleaning furniture.

Mantemento

Baleirando o vaso de po

Empty the dust cup after each use or when debris reaches the MAX FILL line. To empty, detach the dust cup from the vacuum and press the release latch to open the bottom flap over a trash bin.

Limpeza de filtros

Regularly clean the filters to maintain optimal suction performance. All filters are washable.

• Filtros de escuma e feltro: Rinse with water and allow to air dry completely for at least 24 hours before reinserting. Clean monthly.
• Filtro HEPA: Tap clean to remove loose dirt. Rinse with water and allow to air dry completely for at least 24 hours before reinserting. Clean annually.

Self-Cleaning Brushroll Maintenance

The self-cleaning brushroll is designed to prevent hair wrap. Periodically check the brushroll for any remaining debris or blockages. If necessary, remove the brushroll cover and clear any obstructions.

Figure 5: Visual comparison showing the effectiveness of the self-cleaning brushroll in preventing hair wrap.

Resolución de problemas

If your Shark Rotator vacuum is not performing as expected, refer to the common issues below:

• Sen enerxía: Asegúrate de que o cable de alimentación estea conectado correctamente a unha toma de corrente que funcione. Comproba o disyuntor.
• Perda de succión: Empty the dust cup. Check and clean all filters (foam, felt, and HEPA). Inspect the hose and nozzles for blockages.
• O rodillo de cepillo non xira: Ensure the vacuum is upright and the floor type setting is correct. Check for obstructions in the brushroll.
• Ruídos pouco comúns: Turn off and unplug the vacuum. Check for any foreign objects in the brushroll, hose, or air pathways.

Para problemas persistentes, póñase en contacto co servizo de atención ao cliente.

Especificacións

Garantía e Soporte

Para obter información sobre a garantía ou asistencia técnica, consulte o sitio web oficial do fabricante websitio web ou póñase en contacto coa súa liña de atención ao cliente. Garde o recibo de compra para reclamacións de garantía.
