1. Introdución
Thank you for choosing the Riobel TAA39 Arca Floor Mounted Tub Filler. This manual provides essential information for the safe installation, operation, and maintenance of your new tub filler. Please read these instructions thoroughly before installation and keep them for future reference.
2. Información de seguridade
AVISO: Improper installation or use of this product can lead to injury or property damage. Always follow local plumbing and building codes. If you are unsure about any part of the installation, consult a qualified professional plumber.
- Asegúrese de que todas as liñas de subministración de auga estean pechadas antes de comezar a instalación.
- Wear appropriate personal protective equipment (PPE) during installation, such as safety glasses and gloves.
- Do not overtighten connections, as this can damage the product and cause leaks.
- Este produto contén substancias químicas que o Estado de California sabe que causan cancro e defectos conxénitos ou outros danos reprodutivos (advertencia da Proposición 65). Lávese as mans despois de manipulalo.
3. Produto rematadoview
The Riobel TAA39 Arca Floor Mounted Tub Filler is designed to provide a luxurious bathing experience. It features a sleek, floor-mounted design with a built-in diverter and an integrated hand shower.

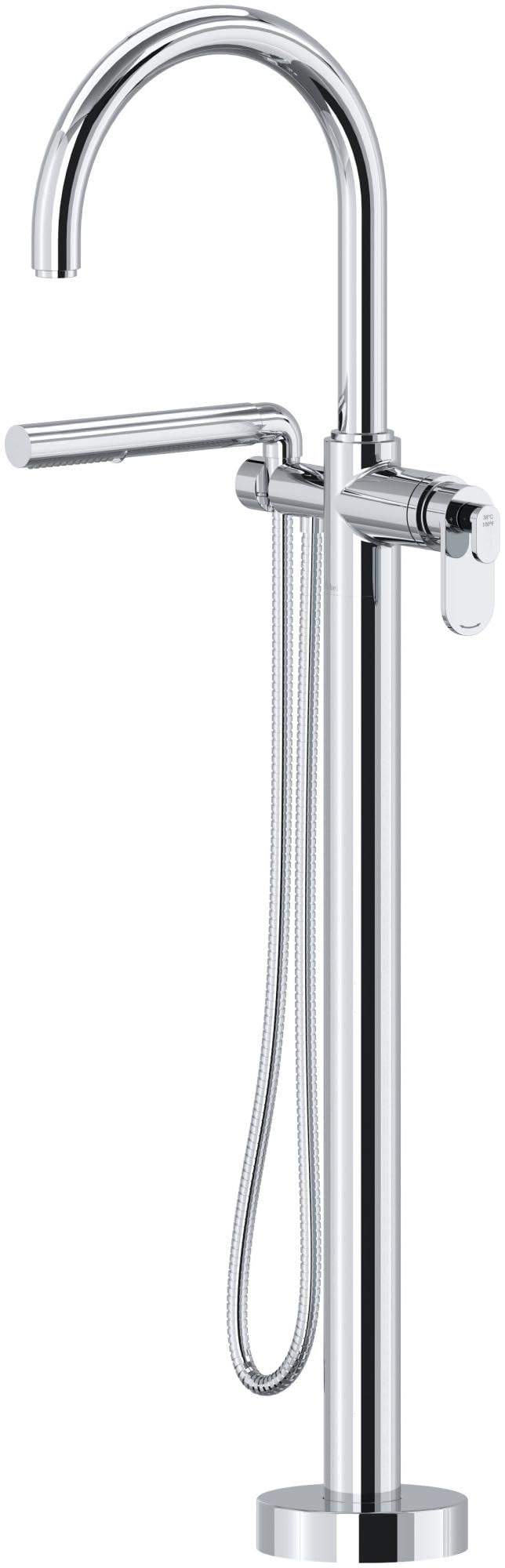

Figure 1: Riobel TAA39 Arca Floor Mounted Tub Filler. This image shows the complete Riobel TAA39 Arca floor-mounted tub filler unit, featuring a tall spout, a single handle, and an integrated hand shower with its hose.
Compoñentes clave:
- Tub Spout: Delivers water to the tub.
- Single Handle: Controls water temperature and flow.
- Built-in Diverter: Located on the tub spout, it redirects water flow between the tub spout and the hand shower.
- Ducha de man: Provides a flexible spray for rinsing.
- Floor Mount Base: Secures the unit to the floor.
4. Configuración e instalación
This tub filler requires a single-hole floor-mounted installation. A rough-in valve is not included with the product and must be purchased separately. Ensure you have all necessary tools and materials before starting.
4.1 Lista de verificación previa á instalación:
- Verificar que todos os compoñentes estean presentes e sen danos.
- Ensure the floor is structurally sound to support the tub filler.
- Confirm that hot and cold water supply lines are properly roughed in at the desired location.
- Have the appropriate rough-in valve ready for installation.
4.2 Pasos da instalación:
- Preparar o chan: Ensure the floor opening for the rough-in valve is correctly sized and positioned according to the rough-in valve manufacturer's instructions.
- Install Rough-in Valve: Follow the specific instructions provided with your rough-in valve to securely install it to the floor and connect the hot and cold water supply lines. Ensure the valve is level and at the correct height relative to the finished floor.
- Mount the Tub Filler: Once the rough-in valve is installed and the finished flooring is complete, carefully place the tub filler body onto the rough-in valve. Secure the tub filler to the floor using the provided mounting hardware. Ensure a watertight seal at the base.
- Conectar as liñas de auga: Connect the tub filler's water lines to the rough-in valve outlets. Use appropriate sealants (e.g., plumber's tape) on threaded connections to prevent leaks.
- Instalar ducha de man: Connect the hand shower hose to the designated outlet on the tub filler body. Secure the hand shower cradle to the tub filler or an adjacent surface as desired.
- Proba de fugas: Slowly turn on the main water supply. Check all connections for leaks. If leaks are detected, turn off the water, tighten connections, and retest.
5. Instrucións de funcionamento
The Riobel TAA39 features a smooth single-handle operation for controlling water flow and temperature, and an integrated diverter for switching between the tub spout and hand shower.
5.1 Water Flow and Temperature Control:
- Para activar/desactivar: Lift the single handle to turn on the water. Push it down to turn off.
- Para axustar a temperatura: Rotate the handle left for hotter water and right for colder water.
- To Adjust Flow: The further the handle is lifted, the greater the water flow. The tub spout delivers a flow rate of approximately 6 gallons per minute (GPM).
5.2 Diverter Operation:
- The diverter is integrated into the tub spout.
- To Use Tub Spout: Ensure the diverter is in the down position. Water will flow from the tub spout.
- To Use Hand Shower: Pull the diverter knob upwards. Water will redirect to the hand shower. The hand shower has a flow rate of approximately 1.8 GPM.
- To Return to Tub Spout: Push the diverter knob downwards.
6. Mantemento
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Riobel tub filler.
6.1 Instrucións de limpeza:
- Use un suave, damp un pano e xabón suave para limpar a superficie.
- NON use abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the chrome finish.
- Enxágüe ben con auga limpa despois da limpeza e seque cun pano suave para evitar manchas de auga.
6.2 Aerator Maintenance:
- Periodically unscrew the aerator from the end of the tub spout.
- Clean any mineral deposits or debris from the aerator screen.
- Rinse the aerator and reattach it securely.
7 Solución de problemas
Consulta a táboa seguinte para ver os problemas comúns e as súas posibles solucións.
| Problema | Causa posible | Solución |
|---|---|---|
| Baixo caudal de auga | Clogged aerator; partially closed shut-off valves; low water pressure. | Clean aerator; ensure shut-off valves are fully open; check household water pressure. |
| Fuga polo bico/maneta | Conexións soltas; xuntas tóricas ou cartucho desgastados. | Check and tighten connections; if problem persists, contact Riobel support for replacement parts. |
| Water Not Diverting to Hand Shower | Diverter mechanism obstructed or faulty. | Ensure diverter knob is fully pulled up; check for debris; if faulty, contact Riobel support. |
| Temperatura da auga inconsistente | Water heater issues; unbalanced water pressure. | Comprobe a configuración do quentador de auga; consulte cun fontaneiro para equilibrar a presión da auga. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | TAA39 |
| Marca | Riobel |
| Tipo de montaxe | Floor Mount, Single Hole |
| Tipo de acabado | Chrome |
| Material | Latón |
| Número de tiradores | 1 |
| Altura total | 40 inches (bottom to top of faucet) |
| Fonte de altura | 33-1/8 polgadas (da cuberta á saída do bico) |
| Alcance do pico | 9-7/8 inches (center of faucet body to center of spout outlet horizontally) |
| Tub Spout Flow Rate | 6 galóns por minuto (GPM) |
| Hand Shower Flow Rate | 1.8 galóns por minuto (GPM) |
| Peso do elemento | 17.3 libras |
| UPC | 883186545196 |
| GTIN | 883186545196 |
9. Garantía e soporte
9.1 Información sobre a garantía:
The Riobel TAA39 Arca Floor Mounted Tub Filler is covered under Riobel's limited lifetime warranty. This warranty covers manufacturing defects and ensures the product is free from defects in material and workmanship under normal use. For full details regarding the warranty terms and conditions, please refer to the official Riobel website or contact Riobel customer service.
9.2 Atención ao cliente:
Should you require assistance with installation, operation, troubleshooting, or warranty claims, please contact Riobel customer support. Have your model number (TAA39) and proof of purchase available when contacting support.
Please visit the official Riobel websitio para obter a información de contacto e os recursos de asistencia máis actualizados.
