UGREEN CM565 USB-C to HDMI 2.1 8K 60Hz Cable User Manual

1. Introdución

Thank you for choosing the UGREEN CM565 USB-C to HDMI 2.1 8K 60Hz Cable. This high-performance cable is designed to deliver superior audio and video quality, providing vibrant colors and clear sound without compression. It is ideal for connecting your USB-C enabled devices, such as computers, laptops, tablets, or phones, to HDMI displays like TVs or projectors, supporting resolutions up to 8K at 60Hz.

Image 1.1: UGREEN USB-C to HDMI 2.1 cable connected to a television.

2. Características do produto

• Soporte de alta resolución: Supports resolutions up to 8K (7680x4320) at 60Hz, ensuring crisp and detailed visuals.
• HDMI 2.1 Standard: Compliant with HDMI 2.1 specifications for enhanced bandwidth and features.
• Visuais vibrantes: Delivers vibrant and vivid colors for an immersive viewexperiencia ing.
• Audio nítido: Transmits clear, noise-free audio alongside video.
• Uncompressed Transmission: Ensures audio and video are transmitted without compression, preserving the highest quality.
• Compatibilidade versátil: Ideal for connecting computers, laptops, tablets, and phones to TVs or projectors.

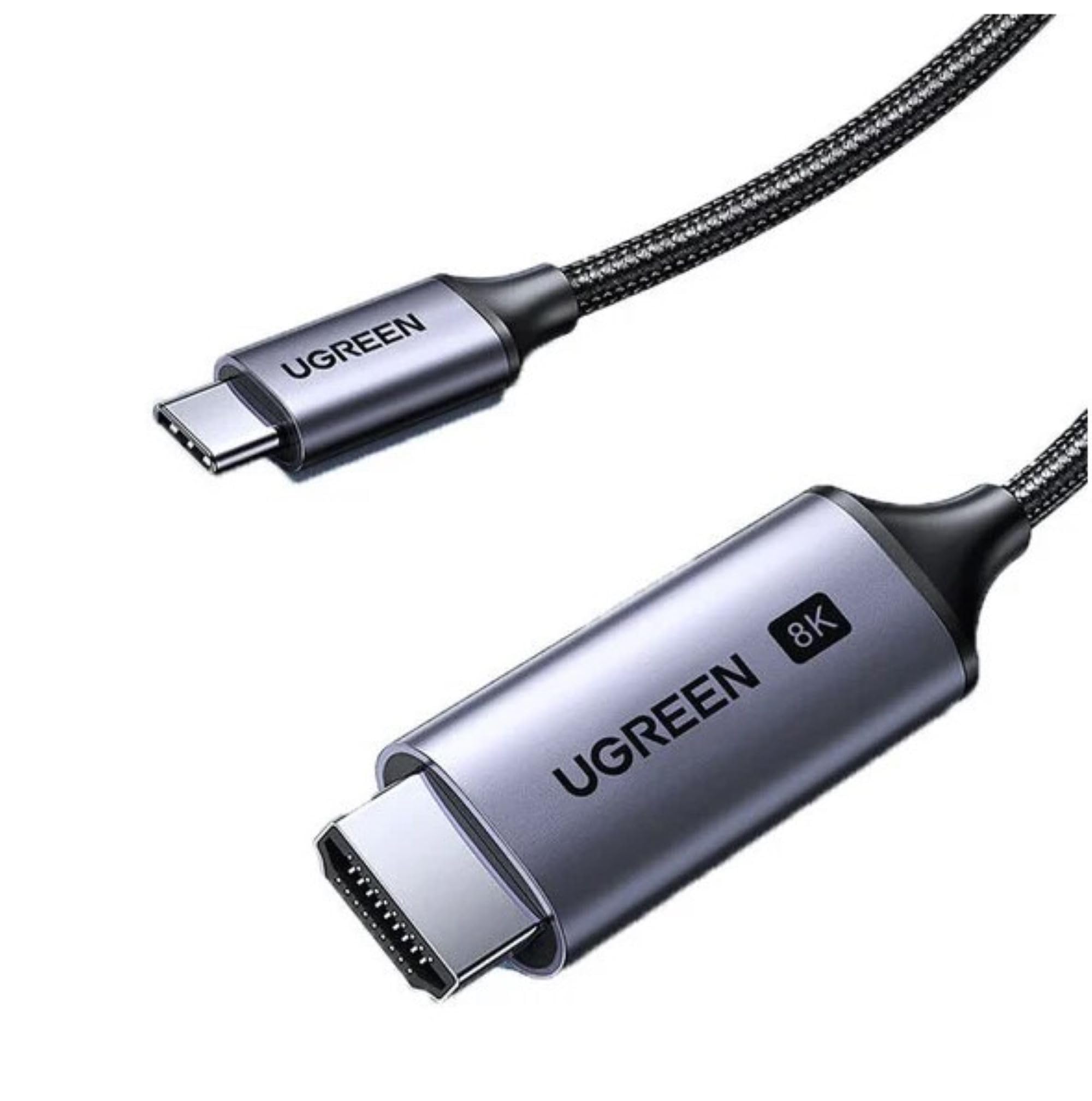

Imaxe 2.1: Fronte view of the UGREEN USB-C to HDMI 2.1 cable.

3. Contido do paquete

• 1 x UGREEN CM565 USB-C to HDMI 2.1 8K 60Hz Cable (1.5m)

4. Instrucións de configuración

Follow these steps to connect your UGREEN CM565 cable:

1. Identificar portos: Locate the USB-C port on your source device (e.g., laptop, tablet, phone) and an available HDMI input port on your display device (e.g., TV, projector, monitor).
2. Conectar USB-C: Insert the USB-C connector of the UGREEN cable into the USB-C port on your source device. Ensure the USB-C port on your device supports DisplayPort Alternate Mode (Alt Mode) for video output.
3. Conectar HDMI: Insert the HDMI connector of the UGREEN cable into the HDMI input port on your display device.
4. Seleccione entrada: No dispositivo de visualización, selecciona a fonte de entrada HDMI correcta usando o mando a distancia ou o menú en pantalla.
5. Verificar a pantalla: Your device's screen should now be mirrored or extended to the connected display.

Nota importante: For 8K 60Hz resolution, your source device's USB-C port must support DisplayPort 1.4 Alt Mode, and your display device must support HDMI 2.1.

5. Instrucións de funcionamento

Once connected, the UGREEN CM565 cable operates as a plug-and-play device. Here are some tips for optimal use:

• Configuración da pantalla: Access your source device's display settings to configure screen mirroring, extended display, or primary display options. You can also adjust resolution and refresh rate settings here.
• Saída de audio: Ensure your source device's audio output is set to the HDMI display if you wish to hear sound through the connected TV or monitor speakers.
• Resolución e taxa de actualización: For the best experience, ensure both your source device and display device are capable of the desired resolution and refresh rate (e.g., 8K 60Hz).

Image 5.1: UGREEN USB-C to HDMI cable in use with a laptop and external monitor.

6. Mantemento

To ensure the longevity and optimal performance of your UGREEN CM565 cable, follow these maintenance guidelines:

• Limpeza: Usa un pano suave e seco para limpar con coidado o cable e os conectores. Evita o uso de produtos químicos agresivos ou materiais abrasivos.
• Almacenamento: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tightly coiling or bending the cable at sharp angles.
• Manexo: Always grasp the connectors when plugging or unplugging the cable. Avoid pulling on the cable itself, as this can damage the internal wires.
• Protección: Keep the cable away from liquids, dust, and excessive force.

7 Solución de problemas

If you encounter issues with your UGREEN CM565 cable, refer to the following troubleshooting tips:

• Sen sinal na pantalla:
  • Ensure both the USB-C and HDMI connectors are fully inserted into their respective ports.
  • Comprobe que o dispositivo de visualización estea configurado na fonte de entrada HDMI correcta.
  • Check if your source device's USB-C port supports DisplayPort Alt Mode for video output. Not all USB-C ports support video.
  • Try connecting the cable to a different HDMI port on your display or a different display altogether.
  • Reinicie o dispositivo de orixe.
• Low Resolution or Refresh Rate:
  • Ensure your source device's graphics card and drivers are up to date and support the desired resolution and refresh rate (e.g., 8K 60Hz).
  • Verify that your display device also supports the desired resolution and refresh rate via its HDMI input.
  • Check your source device's display settings to manually adjust the resolution and refresh rate.
  • Confirm that your USB-C port supports DisplayPort 1.4 Alt Mode for 8K 60Hz output.
• Sen saída de audio:
  • Check your source device's sound settings and ensure the HDMI output is selected as the default playback device.
  • Verify that the volume on both your source device and display device is turned up and not muted.
• Pantalla parpadeante ou inestable:
  • Ensure the cable connections are secure.
  • Reduce the resolution or refresh rate in your source device's display settings to see if the issue resolves.
  • Test the cable with another device or display to rule out compatibility issues.

8. Especificacións

Image 8.1: Connector dimensions of the UGREEN CM565 cable.

9. Información da garantía

This UGREEN CM565 USB-C to HDMI 2.1 8K 60Hz Cable comes with a UGREEN Standard Warranty. For specific details regarding warranty coverage, duration, and claims process, please refer to the official UGREEN website or contact UGREEN customer support directly. Please retain your proof of purchase for warranty service.

10. Apoio

For further assistance, technical support, or inquiries regarding your UGREEN CM565 cable, please visit the official UGREEN website or contact their customer service department. You can typically find contact information, FAQs, and additional resources on their support pages.

Oficial de UGREEN Websitio: www.ugreen.com
