1. Introdución
Thank you for choosing the GGM Gastro TF1400NDG-EF Premium Stainless Steel Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before installation and use, and retain it for future reference.
This freezer is designed for commercial use, offering a large storage capacity of 1400 liters and featuring two glass doors for easy viewing of contents. Its stainless steel construction ensures durability and hygiene.
2. Información de seguridade
Observe sempre as precaucións básicas de seguridade ao usar electrodomésticos para reducir o risco de incendio, descarga eléctrica e lesións persoais.
- Asegúrese de que o aparello estea conectado a unha toma de corrente con conexión a terra.
- Non faga funcionar o conxelador cun cable de alimentación ou enchufe danados.
- Manter as aberturas de ventilación libres de obstáculos.
- Non almacene neste aparello substancias explosivas, como latas de aerosol con propelente inflamable.
- Só o persoal cualificado debe realizar as reparacións.
- Desenchufe o aparello antes de limpar ou realizar o mantemento.
3. Configuración e instalación
3.1 Desembalaxe
- Retire con coidado todos os materiais de embalaxe.
- Inspect the freezer for any shipping damage. Report any damage to your supplier immediately.
- Remove all protective films from surfaces.
3.2 Colocación
- Coloque o conxelador sobre unha superficie firme e nivelada capaz de soportar o seu peso cando estea completamente cheo.
- Ensure adequate ventilation around the unit. Maintain a minimum clearance of 10 cm (4 inches) from walls and other objects to allow for proper airflow.
- Avoid direct sunlight, heat sources, or areas with high humidity.
Figura 1: Freezer dimensions for proper placement.
3.3 Conexión eléctrica
- Antes de conectar, asegúrese do volumetage and frequency specified on the appliance's rating plate match your power supply.
- Connect the freezer to a dedicated, properly grounded electrical outlet. Do not use extension cords or multi-sockets.
- Allow the freezer to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
4. Instrucións de funcionamento
4.1 Panel de control rematadoview
Figura 2: Panel de control dixital.
The freezer is equipped with a digital control panel for precise temperature management. Key indicators and buttons include:
- Visualización da temperatura: Mostra a temperatura interna actual.
- Botón SET: Used to enter temperature setting mode.
- Frechas cara arriba/abaixo: Axuste a configuración de temperatura.
- Botón de encendido: Acende / apaga a unidade.
- Indicador de desconxelación: Illuminates during defrost cycles.
4.2 Axustar a temperatura
- Preme o SET button once. The temperature display will flash.
- Usa o Up or Abaixo botóns de frecha para axustar a temperatura desexada.
- Preme o SET button again to confirm the new setting, or wait a few seconds for the display to revert to the actual temperature.
4.3 Cargar o conxelador

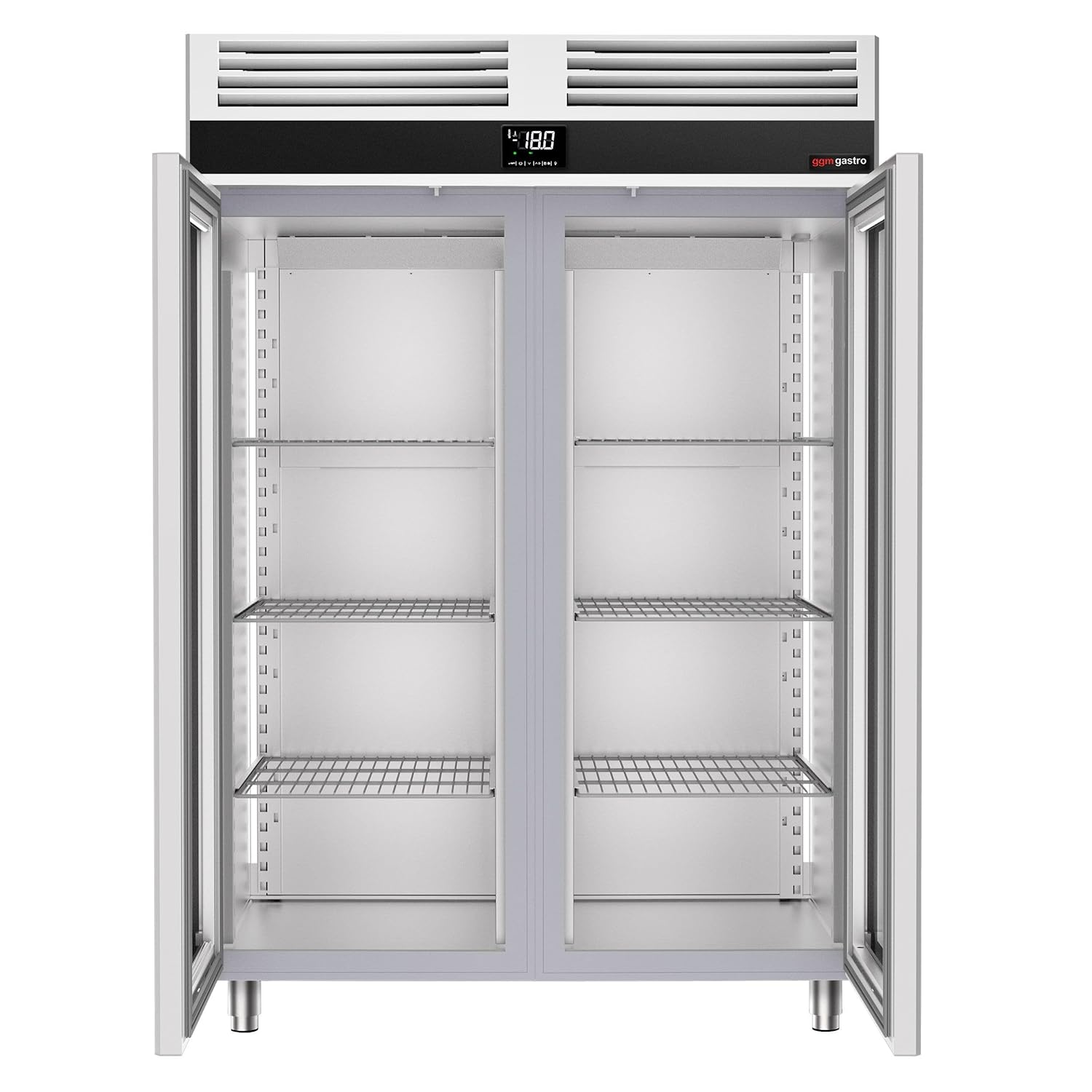

Figura 3: Interior view with adjustable shelving.
- Allow the freezer to reach the set temperature before loading products.
- Distribute products evenly on the shelves to ensure proper air circulation. Do not block the air vents.
- Evita sobrecargar o conxelador, xa que isto pode dificultar a eficiencia do arrefriamento.
- The freezer is designed to accommodate GN 2/1 containers.

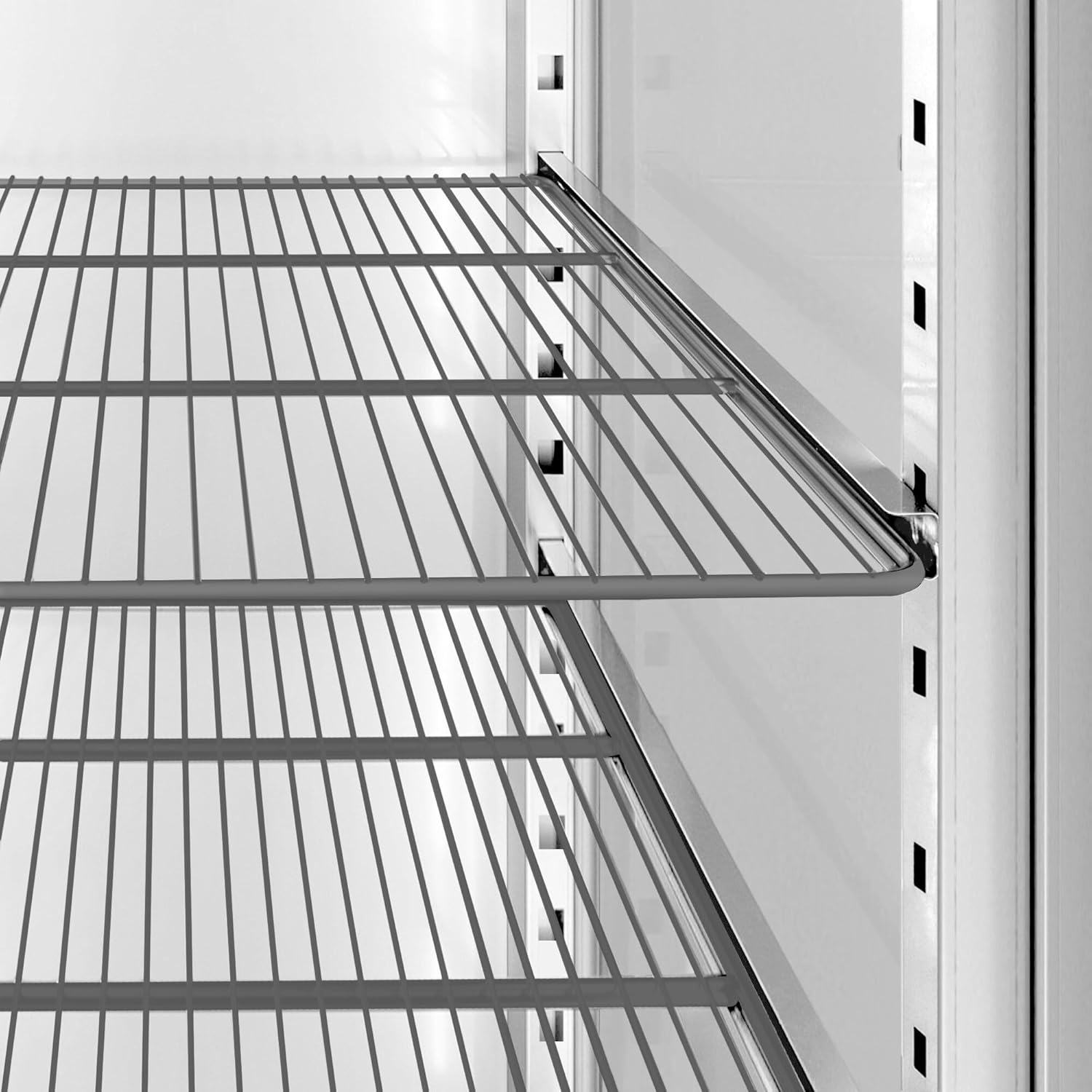

Figura 4: Detail of adjustable shelving for flexible storage.
5. Mantemento
5.1 Limpeza
- Desconecte sempre o conxelador antes de limpalo.
- Limpa as superficies interiores e exteriores regularmente cun deterxente suave e auga morna. Evita produtos de limpeza ou solventes abrasivos.
- Wipe door seals clean to ensure a tight seal.
- Clean the condenser coils periodically (every 3-6 months) to maintain efficiency. Use a brush or vacuum cleaner to remove dust and debris.
5.2 Desconxelación
This freezer features an automatic defrost system. However, if excessive ice buildup occurs, manual defrosting may be necessary.
- Remove all products and store them in another freezer.
- Desenchufe o aparello.
- Leave the doors open to allow ice to melt naturally. Do not use sharp objects to remove ice.
- Once defrosted, clean and dry the interior thoroughly before plugging the unit back in and reloading products.
6 Solución de problemas
Antes de contactar co servizo de atención ao cliente, comproba os seguintes problemas e solucións comúns:
| Problema | Causa posible | Solución |
|---|---|---|
| O conxelador non arrefría | Problema de alimentación Configuración de temperatura demasiado alta A porta non está pechada correctamente Serpentinas do condensador sucias | Check power plug and circuit breaker Axuste a configuración da temperatura Ensure doors are fully closed and seals are intact Limpar as serpentinas do condensador |
| Ruído excesivo | Aparello sen nivel Compoñentes soltos Obstrución do ventilador | Axustar os pés de nivelación Check for loose parts and secure them Ensure nothing is blocking the fan |
| Acumulación de xeo | Door left open frequently Faulty door seal Ambiente de alta humidade | Minimizar as aberturas das portas Inspect and replace faulty door seal Garantir unha ventilación adecuada |
7. Especificacións
The following specifications apply to the GGM Gastro TF1400NDG-EF Premium Stainless Steel Freezer:
- Modelo: TF1400NDG-EF
- Marca: GGM Gastro
- Tipo: Premium Stainless Steel Freezer
- Capacidade: 1400 litros
- Tipo de porta: 2 Portas de vidro
- Internal Configuration: GN 2/1 compatible
- ASIN: B0D1811FNH
- Data de primeira dispoñibilidade: 24 de marzo de 2023
- Dispoñibilidade de pezas de reposición: Información non dispoñible
Figura 5: GGM Gastro TF1400NDG-EF Freezer.
8. Garantía e soporte
For warranty information and technical support, please refer to the documentation provided with your purchase or contact GGM Gastro directly through their official website or customer service channels. Ensure you have your model number (TF1400NDG-EF) and purchase date available when contacting support.
Para obter máis asistencia, visite o GGM Gastro official websitio.
